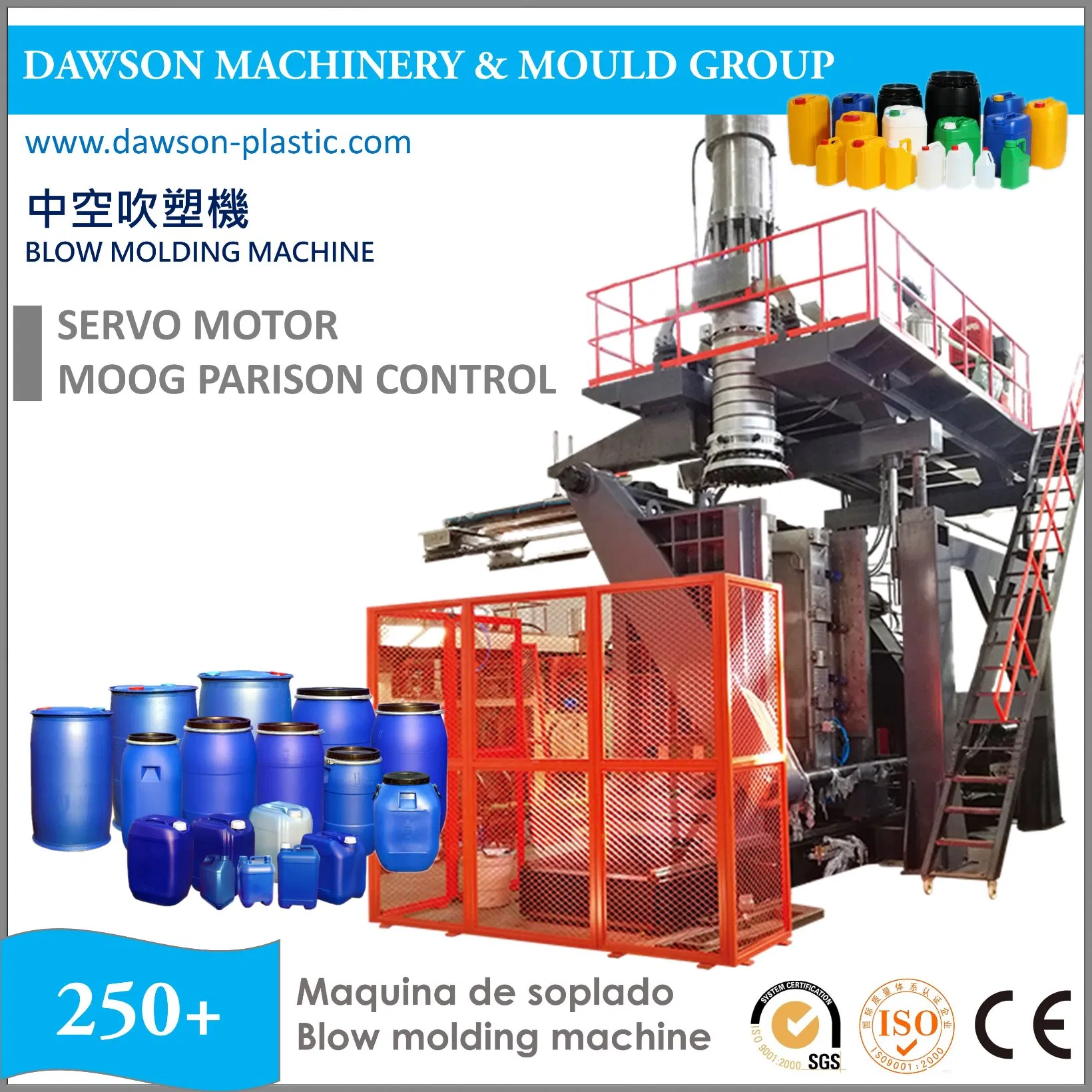

100L Water Drums Accumulation Extrusion Blow Molding Machine
Extrusion blow molding machine ABLD120 Basic parametersSuitable materialPEMax volume250LOutput capacity20~25 pcs/hSize8.6×3.8×5.8 (M)Weight38 TsystemSpecificationParametersNotePlasticizion systemSummarizeHigh efficient low power consumption plasticizion system,transducer control,......
Send Inquiry
Product Description

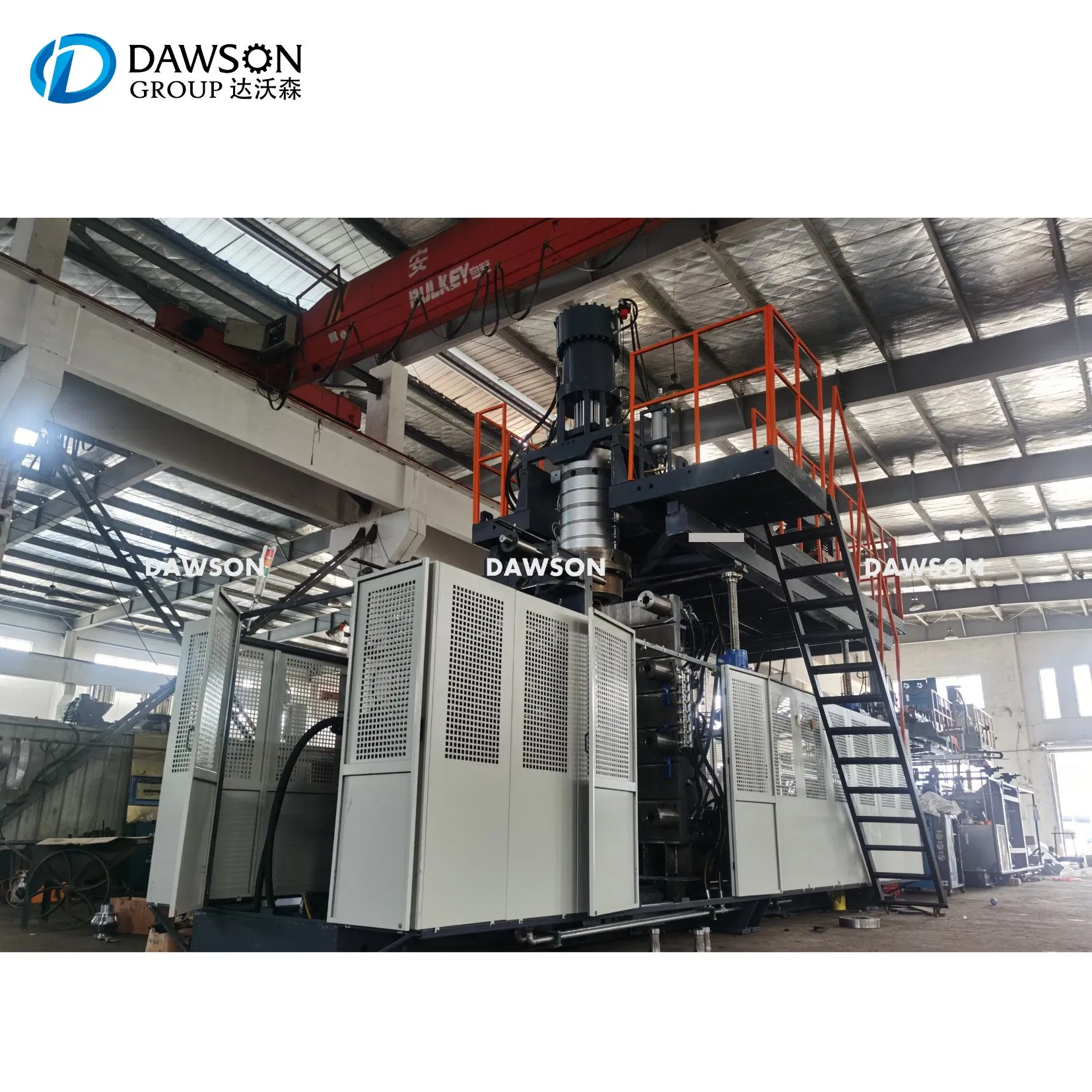

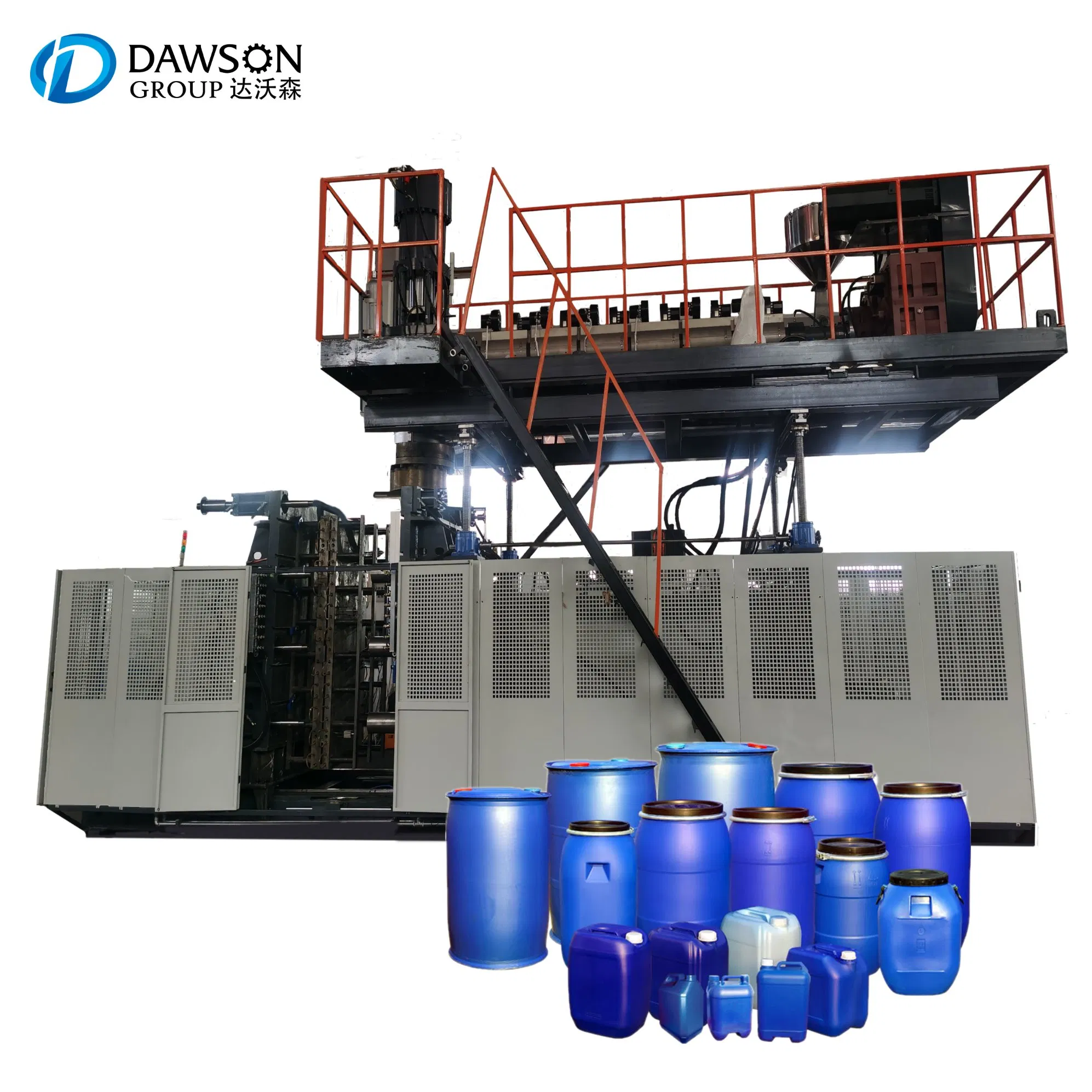

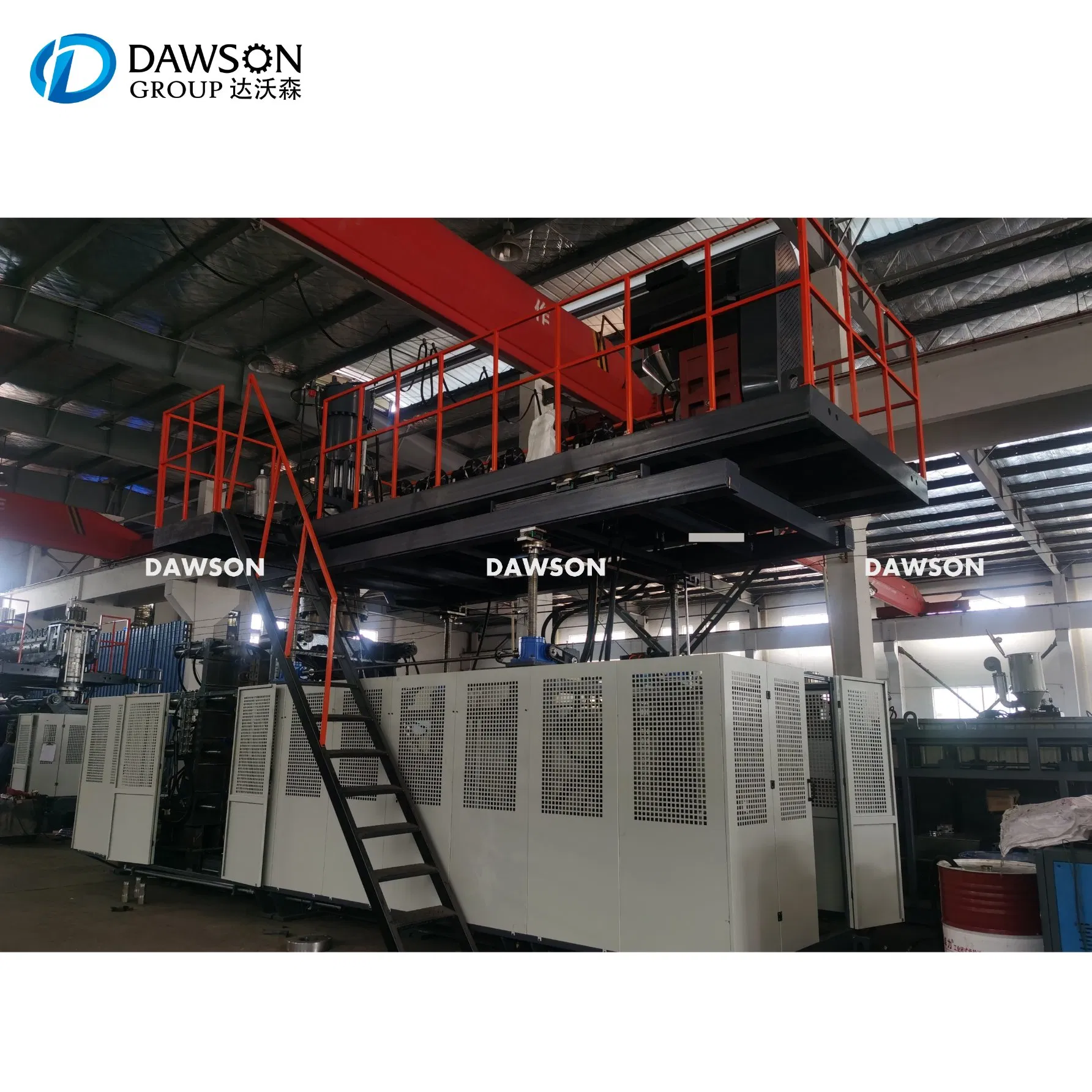

Extrusion blow molding machine ABLD120
| Basic parameters | Suitable material | PE | |
| Max volume | 250L | ||
| Output capacity | 20~25 pcs/h | ||
| Size | 8.6×3.8×5.8 (M) | ||
| Weight | 38 T | ||
| system | Specification | Parameters | Note |
| Plasticizion system | Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | |
| Reducer | Hard finishing,High intension,Low noise reducer | ||
| Screw | ∮120mm,L/D ratio 28, 38CrMoALA | Cooling system available | |
| Plasticization | 320~400 Kg/H | HDPE | |
| Heating Zone | 5~6 Aluminum Heater | Automatic heating | |
| Heating power | 36KW/H | ||
| Extrusion Motor | Motor 132kw (380V,50HZ) | ||
| Cooling Fan | 5~6zone | Automatic cooling | |
| Extrusion system | Summarize | High-grade alloy steel, center feeding | |
| Die head number | 1 | ||
| Center distance of die heads | / | ||
| Max die mouth | ∮600mm | ||
| Heating zone | 6 Stainless steel heating cycle | ||
| Clamping system | Summarize | High intension, rigidity, center mold locking, stable mould opening and clamping system | |
| Clamping force | 850~900KN | ||
| Template distance | 850~1850mm | ||
| Max mould size | 1200X1800mm | ||
| Mould material | High grade 50# steel | ||
| Electric system | Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) | Japanese Mitsubishi PLC system |
| Operate interface | Touch screen, automatic self-diagnose alarm system | ||
| Temperature control | Automatic temperature control module | ||
| Movement control | Japanese Mitsubishi, Chinese/English Version | ||
| Electric protection | Ampere overload, electric short circuit self-protection function | ||
| Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | |
| Oil pump motor | Three phase asynchronous motor (380V/220V,50/60HZ) 22kw | ||
| Oil pump | Imported double pump | ||
| Valves | Imported oil pump valves and connections | ||
| Oil pipes | Double layer overpressure resistant | ||
| System pressure | 60Kg/cm² | ||
| Cooling system | Separate water cooling cycle, oil cooler cooling system | ||
| Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | |
| Air pressure | 1Mpa | ||
| Air displacement | 1.8M3/min | ||
| Electromagnetic valve | AIRTAC | ||
| Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | |
| Cooling medium | Water | ||
| Water flow | 18t/h | ||
| Water pressure | 0.3-0.6MPa | ||
