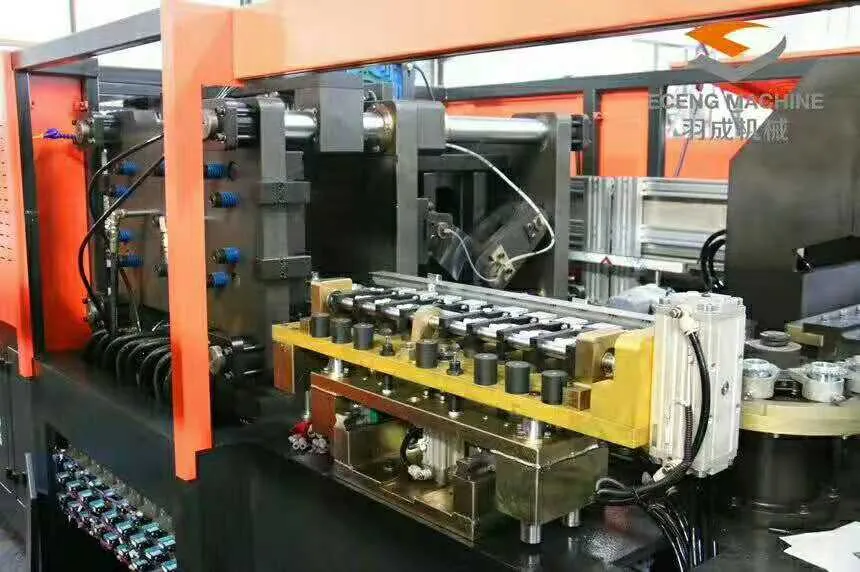

12000bph Full Automatic Small Pet Bottle Blowing Machine Equipment
12000bph Full Automatic small Pet Bottle blowing Machine equipmentMachine parameter ItemQ12000Bottle type specificationCavity9Theoryoutput12000Max.volume750mlBottle mouth maximum overall diameter28-38mmBottle biggest diameter65mmBottle maximum height240mmPower specificatio......
Send Inquiry
Product Description
12000bph Full Automatic small Pet Bottle blowing Machine equipment
Machine parameter

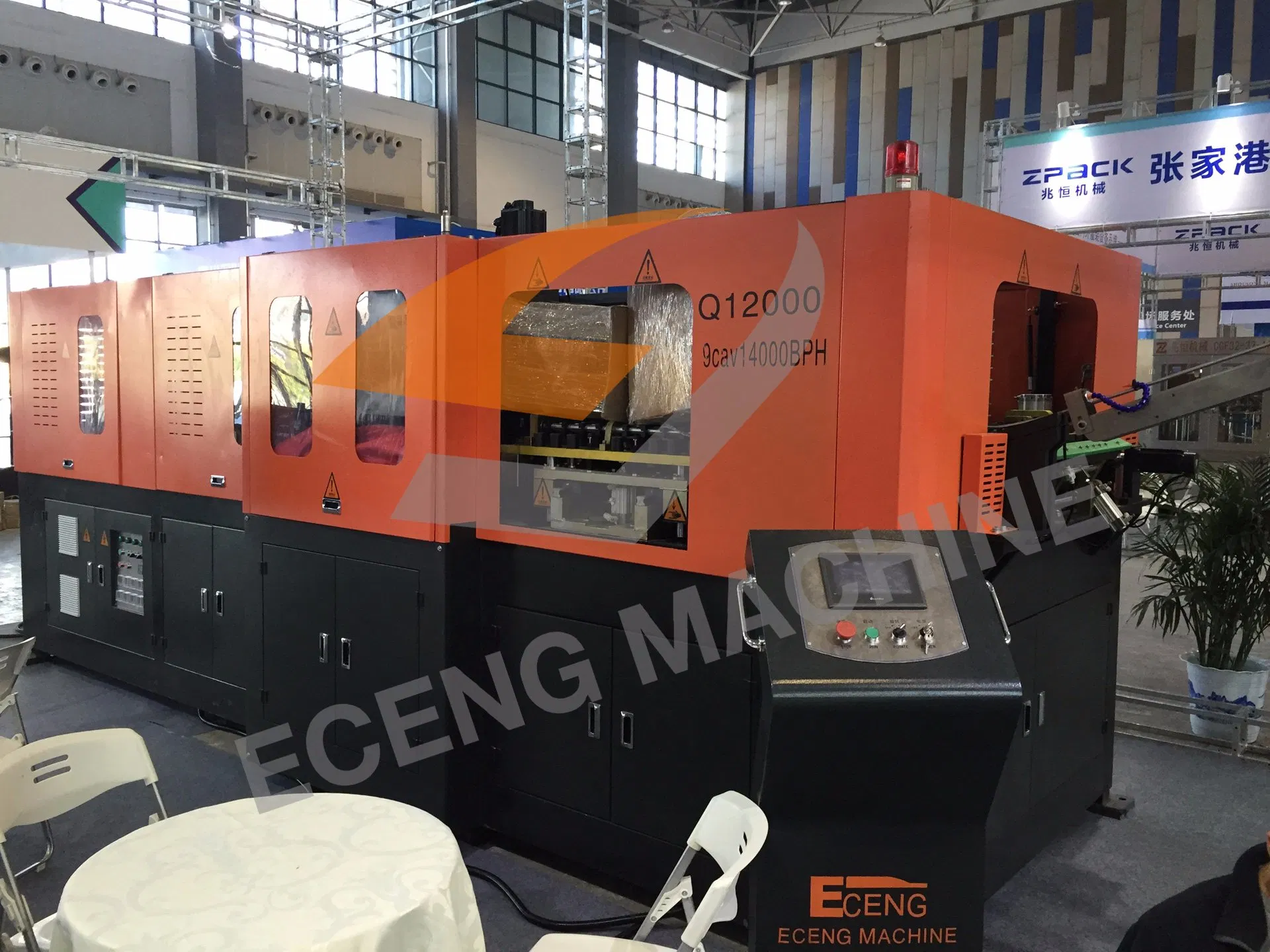

| Item | Q12000 | |
| Bottle type specification | Cavity | 9 |
| Theoryoutput | 12000 | |
| Max.volume | 750ml | |
| Bottle mouth maximum overall diameter | 28-38mm | |
| Bottle biggest diameter | 65mm | |
| Bottle maximum height | 240mm | |
| Power specifications | Light tube quantity | 32pcs |
| Light tube power | 1.5KW | |
| Maximum heating power | 54KW | |
| All electric machine installation | 57KW | |
| Actual consumption | 40KW | |
| Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1600L/min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Higher -pressure gas consumption | 4800Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10 | |
| Consumption | 12000kcal/hr | |
| Forzen water flow | 88L/min | |
| Machine specification | Size of the machine | 8.45x1.6x1.9 |
| Weight of the machine | 7ton | |
