12000bph Small Water Oil Bottle Can High Speed Pet Bottle Blow Moulding Machine
50ml-2L 12000BPH high speed Pet Bottle Blow Moulding Machinemodel:Q12000Q series fully automatic machine is developed by advanced bottle blowing technology,it has the advantage of high-level fully automatic,stable working performance,simple structure but high working efficiency.also,these models are......
Send Inquiry
Product Description
50ml-2L 12000BPH high speed Pet Bottle Blow Moulding Machine
model:Q12000
Q series fully automatic machine is developed by advanced bottle blowing technology,it has the advantage of high-level fully automatic,stable working performance,simple structure but high working efficiency.also,these models are energy-saving,low noise,prevent production from polluting during the working process.these models widely used in blowing drinking bottles,cosmetics bottle and medical bottle etc.so far Eceng have provided more than 1800 sets of blow moulding machines for more than 100 countries in the world.we will always keep researching,supply better service and stable machines to our customer,all what we do is to make sure us and our customer to be the leader of our industry.
machine parameter
TECHNICAL TEAM
FAQ:
Q1:Are you a trading company or a manufacturer?
A1:We have our own factory for 10 years,will try our best to provide you service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines?A2:We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,
Life long after service. Mean while, our engineers can go to your factory assist you installing and testing machine to normal working condition.we also have a technical team support for after service.
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:What's the delivery time?
A5:45 days after the T/T deposit or L/C.
warmly welcome to visit our factory!

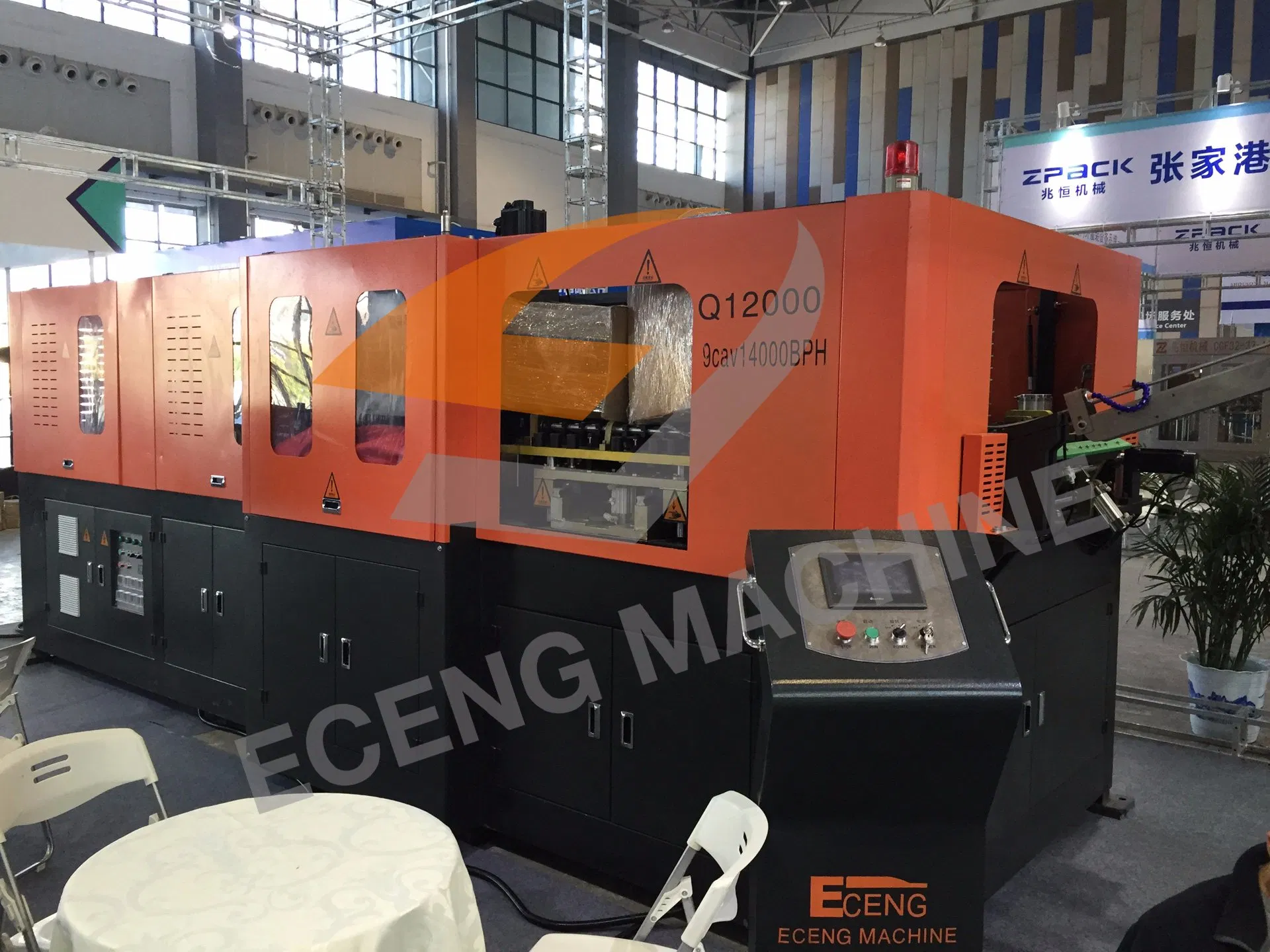

model:Q12000
Q series fully automatic machine is developed by advanced bottle blowing technology,it has the advantage of high-level fully automatic,stable working performance,simple structure but high working efficiency.also,these models are energy-saving,low noise,prevent production from polluting during the working process.these models widely used in blowing drinking bottles,cosmetics bottle and medical bottle etc.so far Eceng have provided more than 1800 sets of blow moulding machines for more than 100 countries in the world.we will always keep researching,supply better service and stable machines to our customer,all what we do is to make sure us and our customer to be the leader of our industry.
machine parameter
| item | Q12000 | |
Bottle type specification | cavity | 9 |
| theory output (PCS/HR) | 12000 | |
| Max. volume (L) | 750ml | |
| Bottle mouth maximum overall diameter (mm) | 28-38mm | |
| Bottle biggest diameter | 65mm | |
| Bottle maximum height | 240mm | |
| Power specifications | Light tube quantity | 32pcs |
| Light tube power | 1.5kw | |
| Maximum heating power | 54kw | |
| All electric machine installation | 57kw | |
| Actual consumption | 40kw | |
| Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1600Ltr/min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Higher -pressure gas consumption | 4800 Ltr/min | |
| Frozen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10 | |
| Consumption | 12000kcal/hr | |
| Frozen water flow | 88Ltr/min | |
| Machine specification | Size of the machine | 8.45x1.6x1.9 (m) |
| Weight of the machine | 7ton |

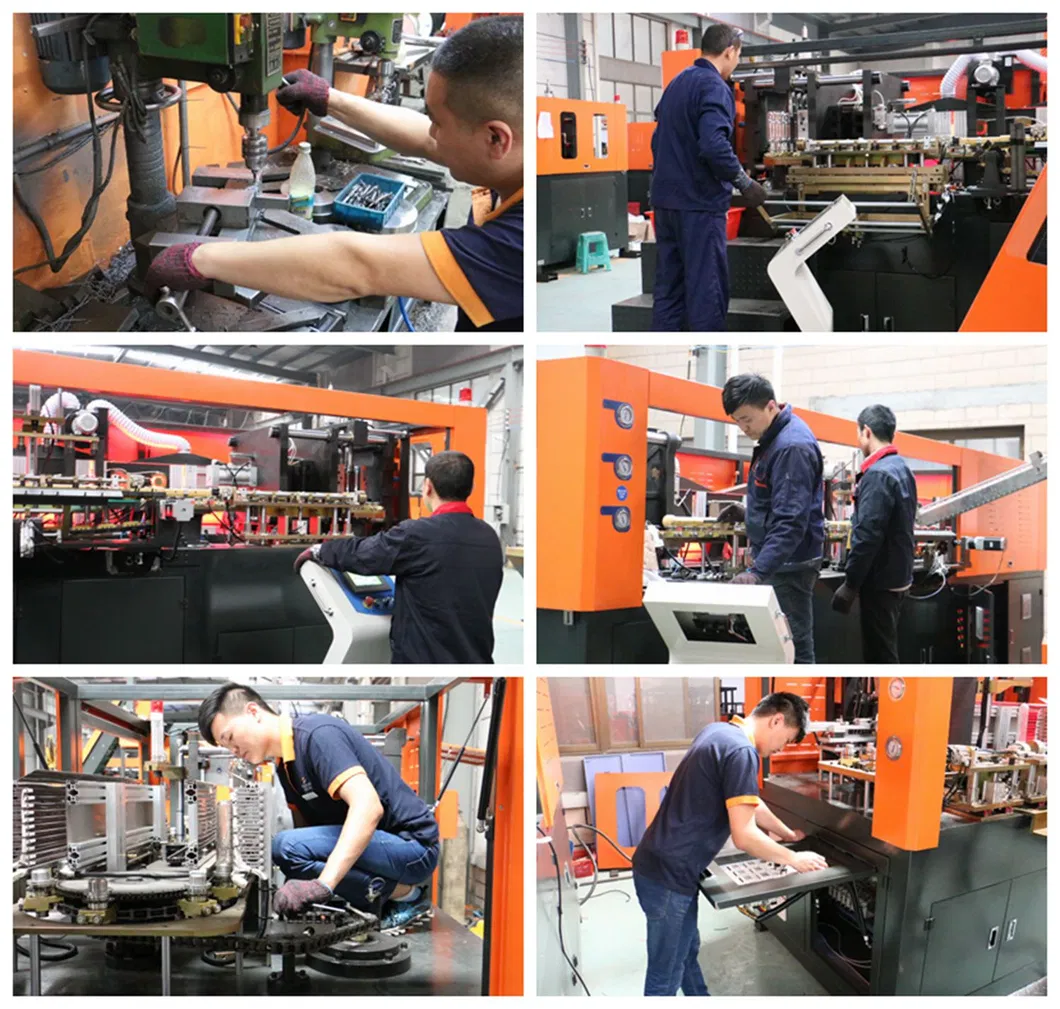

TECHNICAL TEAM
FAQ:
Q1:Are you a trading company or a manufacturer?
A1:We have our own factory for 10 years,will try our best to provide you service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines?A2:We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,
Life long after service. Mean while, our engineers can go to your factory assist you installing and testing machine to normal working condition.we also have a technical team support for after service.
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:What's the delivery time?
A5:45 days after the T/T deposit or L/C.
warmly welcome to visit our factory!
