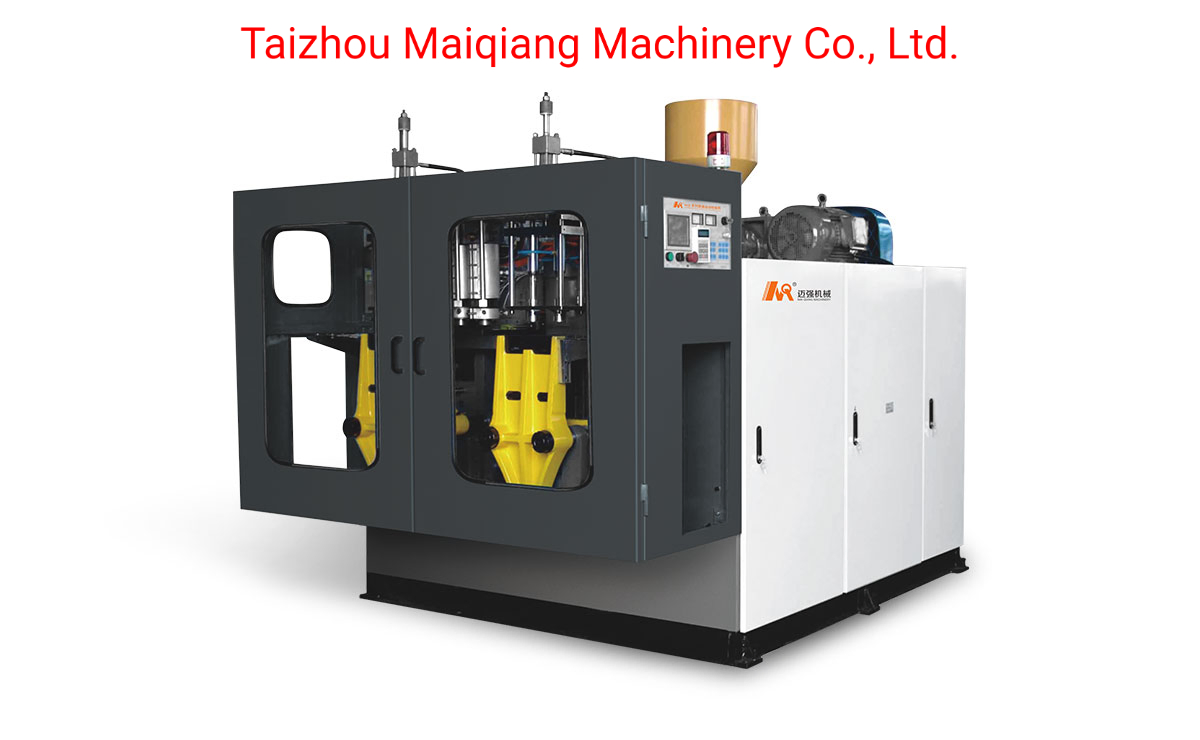

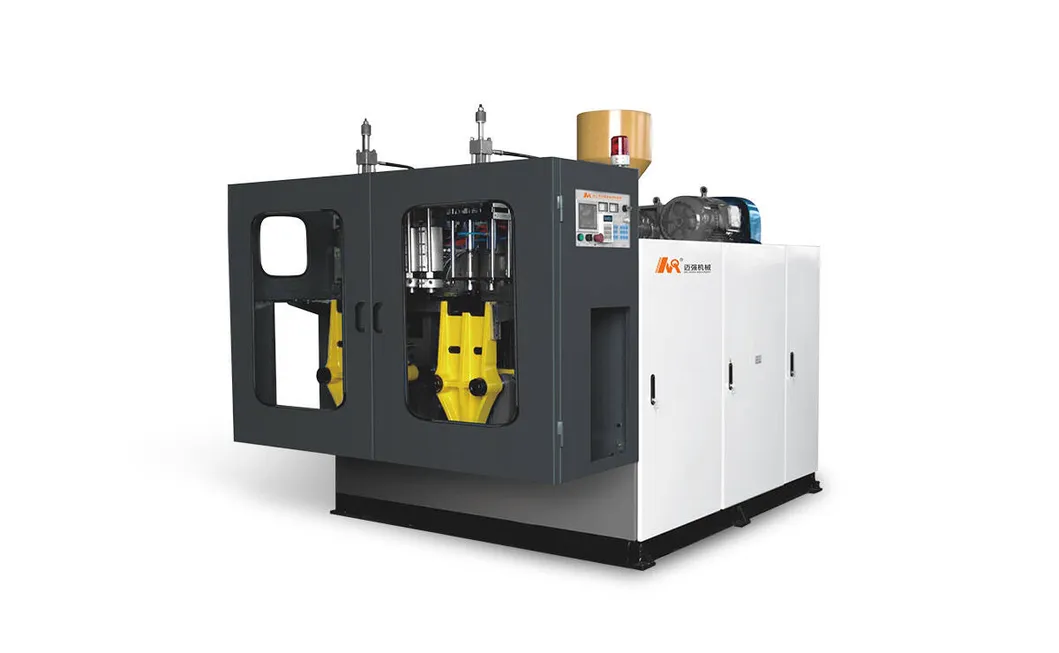

1L 2L 5L Automatic PE PP PVC Evc Hollow Blow Moding Machine
Machine specification: ITEMMQ-ZK1LMQ-ZK2LMQ-ZK5LRaw materialPE\PP\PVC\EVAPE\PP\PVC\EVAPE\PP\PVC\EVADiameter of screw55mm65mm75mmL/D of screw25:125:125:1Extrusion power11kw15kw18.5kwHeating power11kw13kw16kwHeating zones6 piece8 piece8 piecePlasticizing capacity60kg70kg85kgNumber of moulds2 piece2 p......
Send Inquiry
Product Description
Machine specification:| ITEM | MQ-ZK1L | MQ-ZK2L | MQ-ZK5L |
| Raw material | PE\PP\PVC\EVA | PE\PP\PVC\EVA | PE\PP\PVC\EVA |
| Diameter of screw | 55mm | 65mm | 75mm |
| L/D of screw | 25:1 | 25:1 | 25:1 |
| Extrusion power | 11kw | 15kw | 18.5kw |
| Heating power | 11kw | 13kw | 16kw |
| Heating zones | 6 piece | 8 piece | 8 piece |
| Plasticizing capacity | 60kg | 70kg | 85kg |
| Number of moulds | 2 piece | 2 piece | 2 piece |
| Mould thickness | 130-160mm | 140-180mm | 180-250mm |
| Open stroke | 250mm | 250mm | 350mm |
| Mould length | 100-300mm | 120-320mm | 150-350mm |
| Max.clamping force | 40KN | 50KN | 60KN |
| Number of molding head | 1-4 piece | 1-4 piece | (Single/Double)piece |
| Pressure of air source | 7bar | 7bar | 7bar |
| Air volume | 0.4m³/min | 0.5m³/min | 0.7m³/min |
| Water volume | 16-25L/min | 20-30L/min | 30-45L/min |
| Weight | 3.0T | 4.0T | 5.0T |
| Dimension(L*W*H) | 2.8*1.8*2.3m | 3.0*2.0*2.3m | 3.5*2.1*2.3m |
Machine Features:
1.Low labor and energy cost, high efficiency and profit, with automatic bottle embryo delivery process.
2.The blow molding machine has automatic alarm, automatic fault detection and judgment function, easy and fast maintenance.
3.Omron, Festo, Parkers are our accessories suppliers.
4.Easy operation and stable performance with Mitsubishi or Siemens human-computer interface control program.
5.Strong penetrability, even heating and energy saving with Philips infrared lamp.
6.The blow molding machines are widely used in the production of mineral water bottles, edible oil bottles, food packaging bottles, daily chemical bottles, agricultural medicine bottles, and many other plastic container packaging fields.

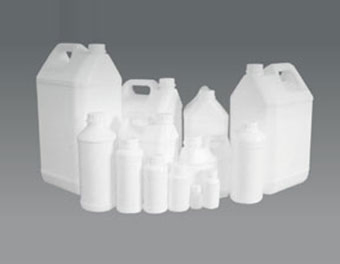

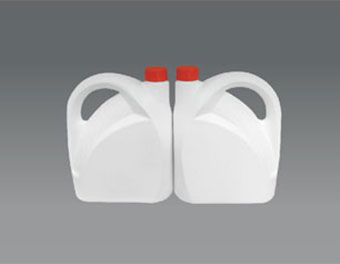

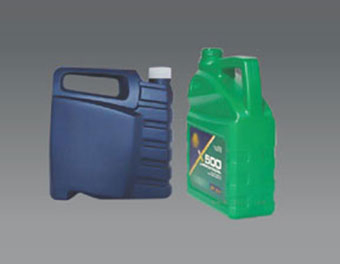

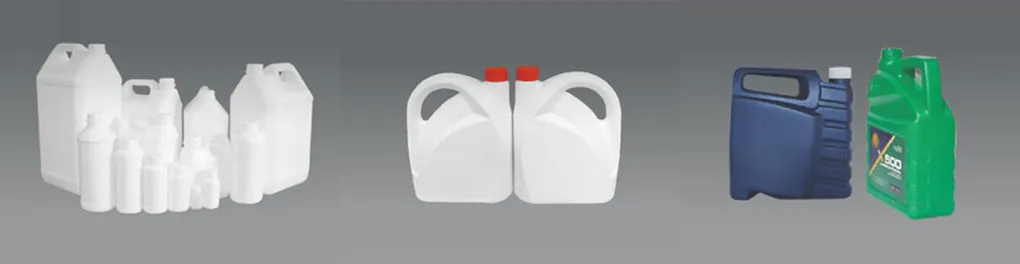

Part of the finished product:

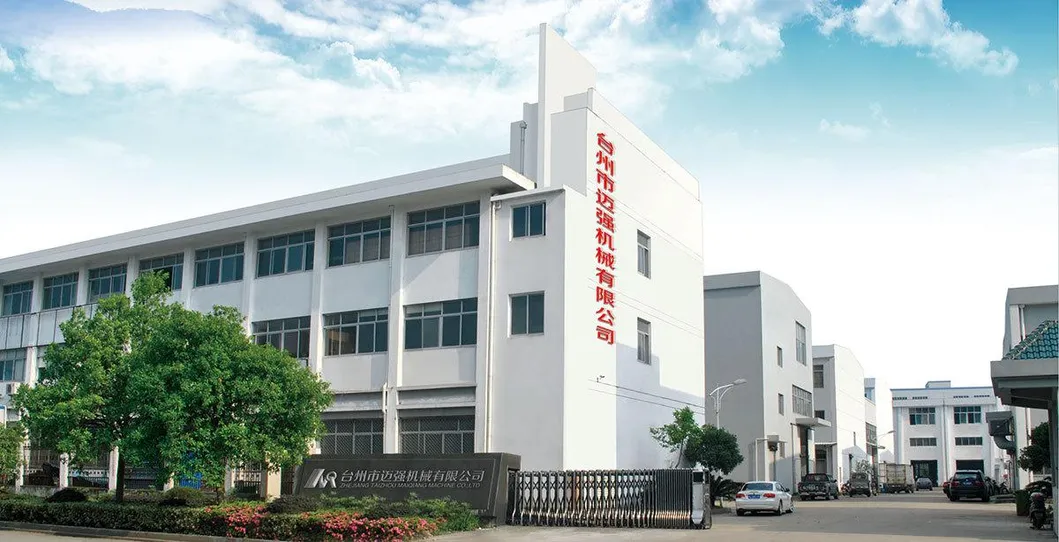

Company Introduction:
Taizhou Maiqiang Machinery Co., Ltd is located in Huangyan, Taizhou, Zhejiang Province, the hometown of mould in China. The company is manufacturing high speed automatic blow molding machine, automatic hollow blow molding machine, automatic high-capacity blow molding machine, semi-automatic blow molding machine and blow mold.
The blow molding machines are widely used in the production of mineral water bottles, edible oil bottles, food packaging bottles, daily chemical bottles, agricultural medicine bottles, and many other plastic container packaging fields. Taizhou Maiqiang Machinery Co., Ltd can provide a variety of bottle making equipments and very suitable technical solutions.
Taizhou Maiqiang Machinery Co., Ltd has professional design, production team, which provide a solid foundation for manufacturing excellent quality and performance blow molding machines. Our blow molding machines are exported to America, Europe, South korea, the Middle East, Southeast Asia, Central Asia, Africa and other countries and regions, they are well received and used by our customers.
Taizhou Maiqiang Machinery Co., Ltd will constantly improve the investment on research. With 20 years experience of manufacturing blow molding machine, we can provide users with stable, efficient, cost-saving bottle making equipments. Taizhou Maiqiang Machinery Co., Ltd will offer efficient after-sales service and product solutions to be your worthy partner.
Let's create a better tomorrow hand in hand!

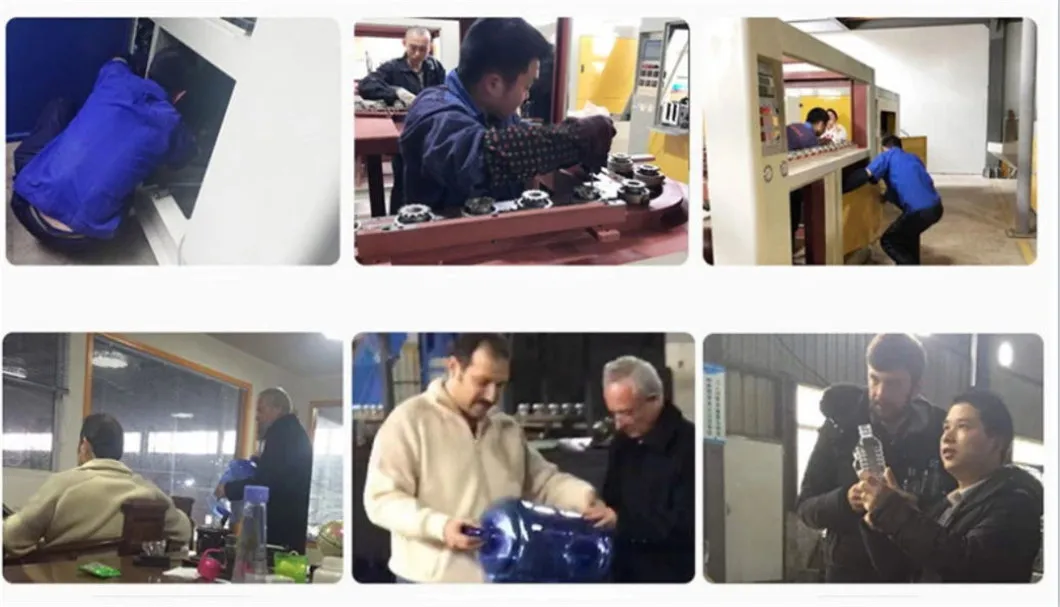

Customer site view:
FAQ:1.Are you a factory or trading company?
We are a factory, so the price is more favorable for you. Welcome to visit Taizhou Maiqiang Machinery Co., Ltd!
2.What is your payment term?
30% down payment against order confirmation, 70% balance when the machines are ready. Upon receipt all your payment, we will delivery the goods at once.
3.Is this price a single machine price?
Yes, this price is the price of the machine, and the auxiliary machine is extra.
4.What is your delivery time?
All the machines will be produced according to the order. Usually in 20 working days, depends on your projects.
5.What about installing in customer factory?
After the machines arrive at your factory, we can arrange engineer to install the machines and train your workers.
6.What is the guarantee time?
We offer a one-year warranty and a lifetime after-sales service.
