2 Gallon Water Bottle Maker Pet Blow Molding Machine
4 Cavity water bottle PET blow molding machineYCQ-2L-4 Water bottle blow molding machine with 4 cavities is specially designed to produce water bottole, PET bottle with high heat resistance for hot filling package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as r......
Send Inquiry
Product Description

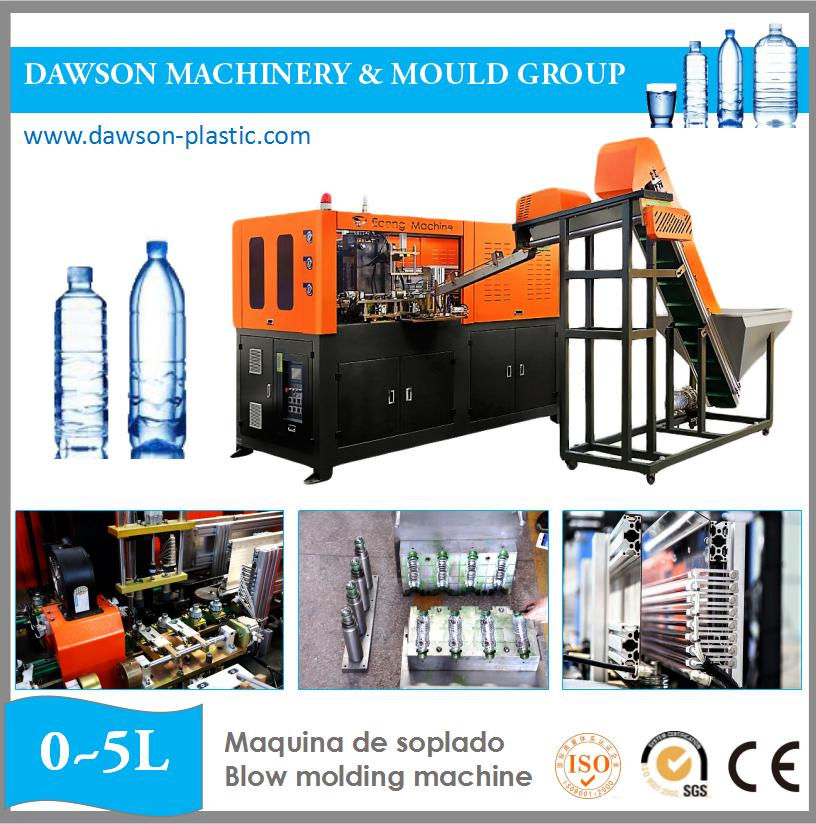

4 Cavity water bottle PET blow molding machine
YCQ-2L-4 Water bottle blow molding machine with 4 cavities is specially designed to produce water bottole, PET bottle with high heat resistance for hot filling package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has slight shrinkage during hot filling.

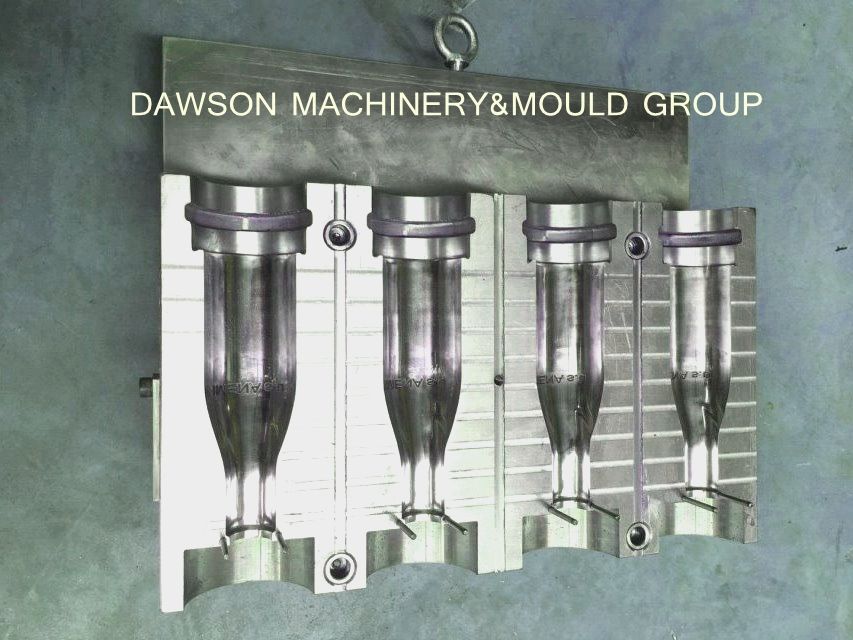

In addition, crystallization varies with different mold design, as a result, the PET bottle produced can stand temperature over 90°C depending on the type of PET material with different crystallization rate. The neck up blowing mode protects the bottle preform from damage during blowing and ensures stable performance. With high strength, good transparency and low production costs, abundant material resource, YCQ-2L-4 plays a big role in hot filling package market.
Machine Features
A. Stable performance with advanced PLC.

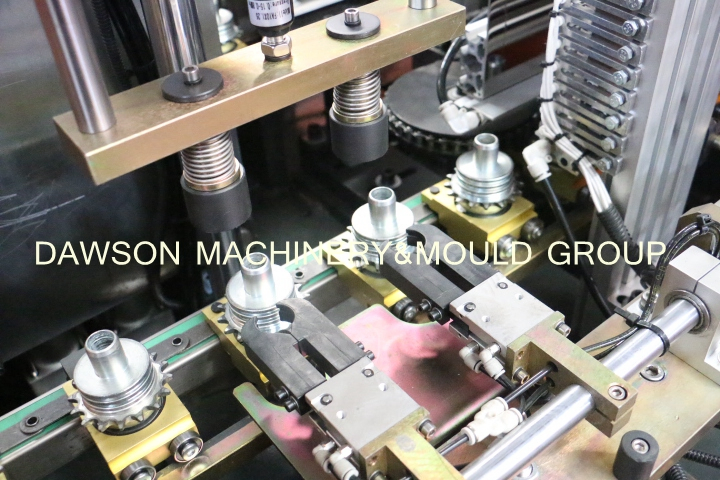

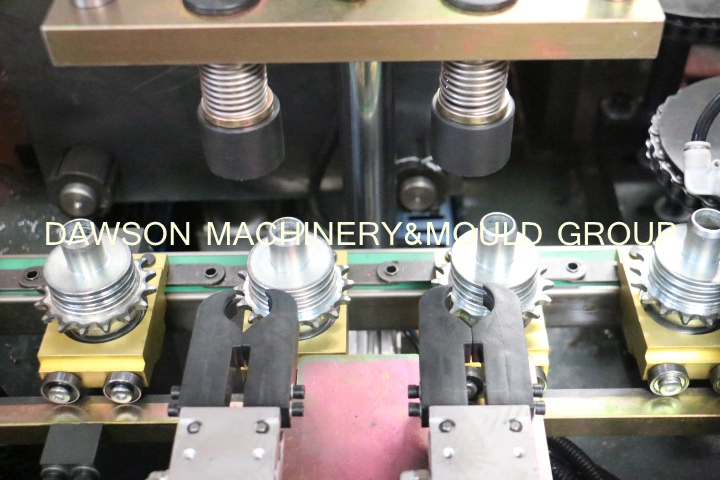

B. Conveying preforms automatically with conveyor.

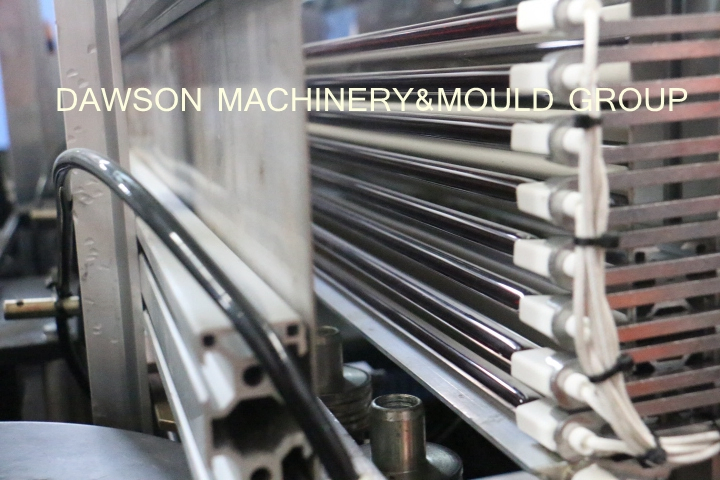

C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: Automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting.
O. Low rejection rate: Less than 0.3percent.
Machine Parts
Blowing Cylinder ----Festo (Germany)
Moulding Closing and Opening Cylinder ---- Festo (Germany)
Value ---- Festo (Germany)
Revolve Cylinder ---- SMC (Japan)
PLC ---- Mitsubishi (Japan)
Touch Screen ----Hitech (Taiwan)
Switch ----Omron (Japan)
