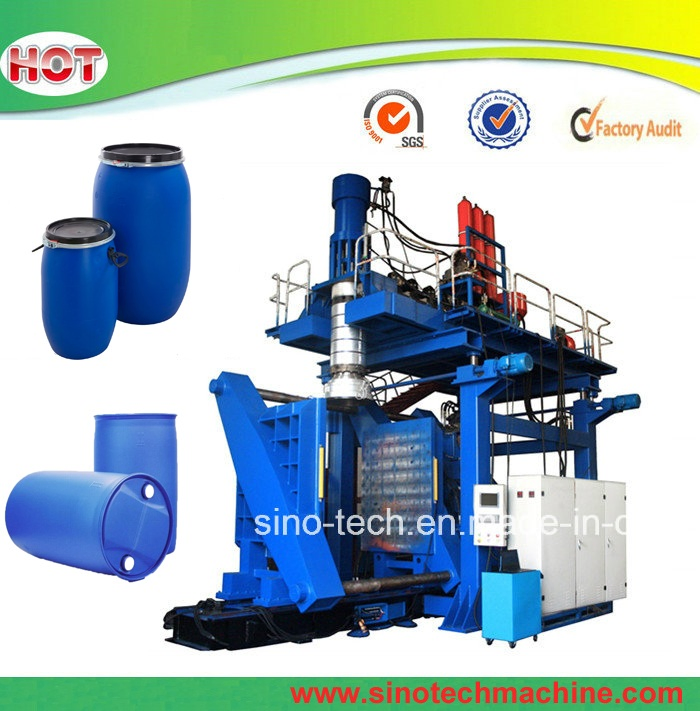

              200 Litre 55gallon Blue Plastic HDPE Drum Extrusion Molding Making Machine
              • 200 Litre 55gallon Blue Plastic HDPE Drum Extrusion Molding Making Machine200 Litre 55gallon Blue Plastic HDPE Drum Extrusion Molding Making Machine
              • 200 Litre 55gallon Blue Plastic HDPE Drum Extrusion Molding Making Machine200 Litre 55gallon Blue Plastic HDPE Drum Extrusion Molding Making Machine
              • 200 Litre 55gallon Blue Plastic HDPE Drum Extrusion Molding Making Machine200 Litre 55gallon Blue Plastic HDPE Drum Extrusion Molding Making Machine

              200 Litre 55gallon Blue Plastic HDPE Drum Extrusion Molding Making Machine

              200 litre 55Gallon blue plastic HDPE drum Extrusion Molding Making MachinePlastic Extrusion Blow Moulding Machine for 120L-160L-200L-250L Big Barrel (TDY120)Good quality and best price can make your needsTCY120 series, this is a blow molding machine with single accumulator die-head.Voltage: 380V/50H......

              Send Inquiry

              Product Description

              200 litre 55Gallon blue plastic HDPE drum Extrusion Molding Making Machine

              Plastic Extrusion Blow Moulding Machine for 120L-160L-200L-250L Big Barrel (TDY120)

              Good quality and best price can make your needs

              TCY120 series, this is a blow molding machine with single accumulator die-head.

              Voltage: 380V/50Hz
              ItemCode ItemStandard CodeManualNote
              Extruder
              (Main extruder)
                             		Max. Capacity250L
              Main screwφ 120mmHigh efficiency of mixing
              Screw L/D32: 1
              Screw material 38CrMoALA
              Max. Extruder consumption350KG/HrTake EHMWDPE for example, change with material density
              Twisting transition methodElectrical machinery, Gear box, DC MotorHard gear with DC motor
              Driving motor132KW
              Screw rotate speed5---60r/min
              Ahead/back adjustingYes
              Up/down adjustingYes
              Temperature control zone5Japan MTSUBISHI
              Heating power5φ 10KW
              Cooling for blower5
              Cooling functionYesCooling water
              Clamping unit    (Mold opening/closing unit)Structure With patented two-bar timing clamping structure in high speed and high force, to achieve quality products.
              Clamping directionsBall railFor high precise location for longer service life.
              Clamping speed250mm/sce; 15m/min
              Platen dimension1320*1650 mm(W*H)
              Max. Mold dimension1100*1720 mm(W*H)
              Mold opening stroke1000 mm
              Platen distance800~1800 mmMin. ~Max.
              Clamping force770 KN
              Mould thickness scope810~1000 mm
              Fixing pattern of moldMold press platen
              Mold opening/closing stroke controlInducing Switch+movingDiscriminate mold opening/ closing end, mold opening/ closing slow speed,

              Processing Machine200 Litre 55gallon Blue Plastic HDPE Drum Extrusion Molding Making Machine
              200 Litre 55gallon Blue Plastic HDPE Drum Extrusion Molding Making Machine
