200L Two Layer Double Ring Plastic Drum Chemical Barrel Blow Molding Machine /Extrusion Blow Molding Machine
Automatic Extrusion Blow Molding Machine for Chemical Barrel/Plastic Drum MakingIn extrusion blow molding, plastic is melted and extruded into a hollow tube (a parison). This parison is then captured by closing it into a cooled metal mold. Air is then blown into the parison, inflating it into the sh......
Send Inquiry
Product Description

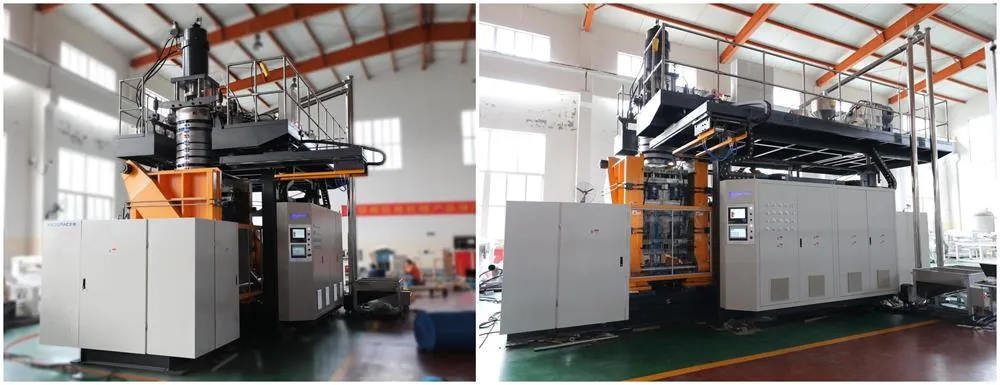

Automatic Extrusion Blow Molding Machine for Chemical Barrel/Plastic Drum Making
In extrusion blow molding, plastic is melted and extruded into a hollow tube (a parison). This parison is then captured by closing it into a cooled metal mold. Air is then blown into the parison, inflating it into the shape of the hollow bottle, container, or part. After the plastic has cooled sufficiently, the mold is opened and the part is ejected.

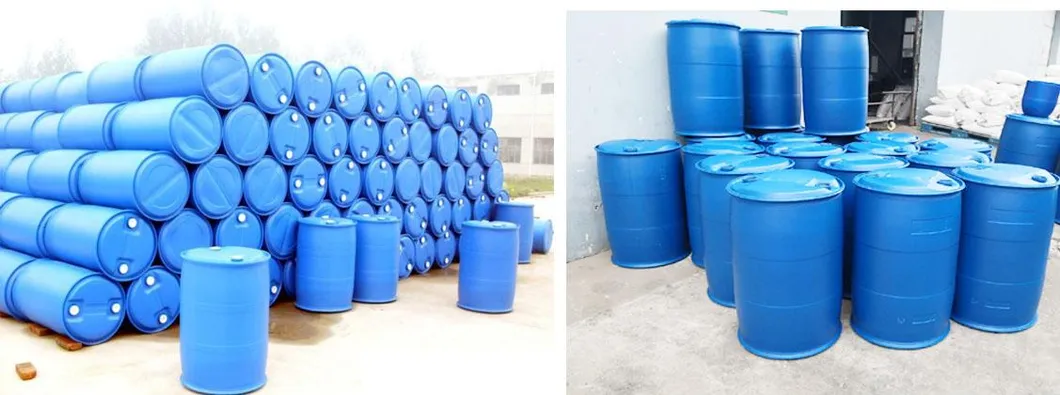

The blow molding machine can produce Chemical Barrel, Bottle, kettle, can, bucket,hollow plastic containers for foods etc, the volume can be from 10ml to 2000L. The machine is especially designed for producing with material such as PE, PP etc.The machines are low investment, high efficiency, quick and safe operation.
| KDZK-200L Double Ring Two Layer Chemical Drum Blow Molding Machine | ||
| System | Item | 2 Layer with two extruder co-extrusion |
Extruder | Screw diameter (mm) | 100/100 |
| L/D ration | 30:1 | |
| Driven motor power (KW) | 75/75 | |
| Heating motor power (KW | 40/40 | |
| Frequency converter brand | ABB/SIEMENS brand | |
| Material Storage type | Special designed for two layer type | |
| Die head Moulds | Material storage volume (L) | 22 |
| Parison control | MOOG wall thickness controller | |
| Heating power (KW) | 40 | |
| Mould clamping system | Mould frame size (mm) | H 1860 × W 1400 |
| Mould Clamping space (mm) | 900-1860 | |
| Electric control cabinet | Temperature control | SIMENS temperature control module |
| PLC | SIEMNS | |
| Touching screen | SIEMEMNS | |
| Hydraulic system | Main oil pump power (KW) | 37KW |
| Motor brand | Servo motor; INOVANCE; For energy saving | |
Features of Blow Molding Machine
(1) Die head: Continuous centre-feed extrusion type die head; two layer co-extrusion or three layer/five layer coextrusion die head can be designed as per customer's requirements.
(2) Extrusion system: Adopt imported automatic temperature controlling device,The high performance screw used on the machine assures thorough and homogeneous plasticization and mixing of plastics.
(3) Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder, crank arm clamping.
(4) Blowing device: with upper blowing type
(5) Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle. Servo energy saving system is optional.
(6) Air-blowing needle bracket:The air-blowing needle bracket is of solid L-square design.The sturdy bracket assures smoothness of the product cut.

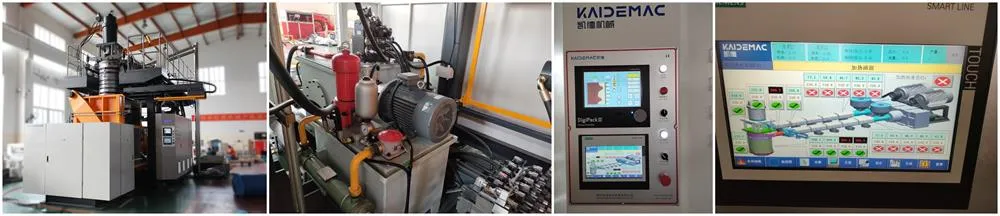

(7) Electrical control system: The machine works under the Siemens PLC control system, and American DigiPack III wall thickness adjustment system. The electric components adopt Schneider Brand.
Application Fields:
(1) Medicine & Cosmetic Packing,
(2) Food & Beverage Packing,
(3) Traffic & Highway Facilities Manufacturing,
(4) Furniture & Outdoor Products,
(5) Children Toys & Amusement Park Equipment,
(6) Turnover & Transportation Tools.
Auxiliary Equipment Required: Dryer, Mixer, Chiller, Crusher
