20L Jerry Can Servo Motor Blowing Shaping Machine
DAWSON MACHINERY & MOULD GROUP***EXTRUSION BLOW MOLDING MACHINE EXPERT***Our customers are all around the world. Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Ken......
Send Inquiry
Product Description
DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

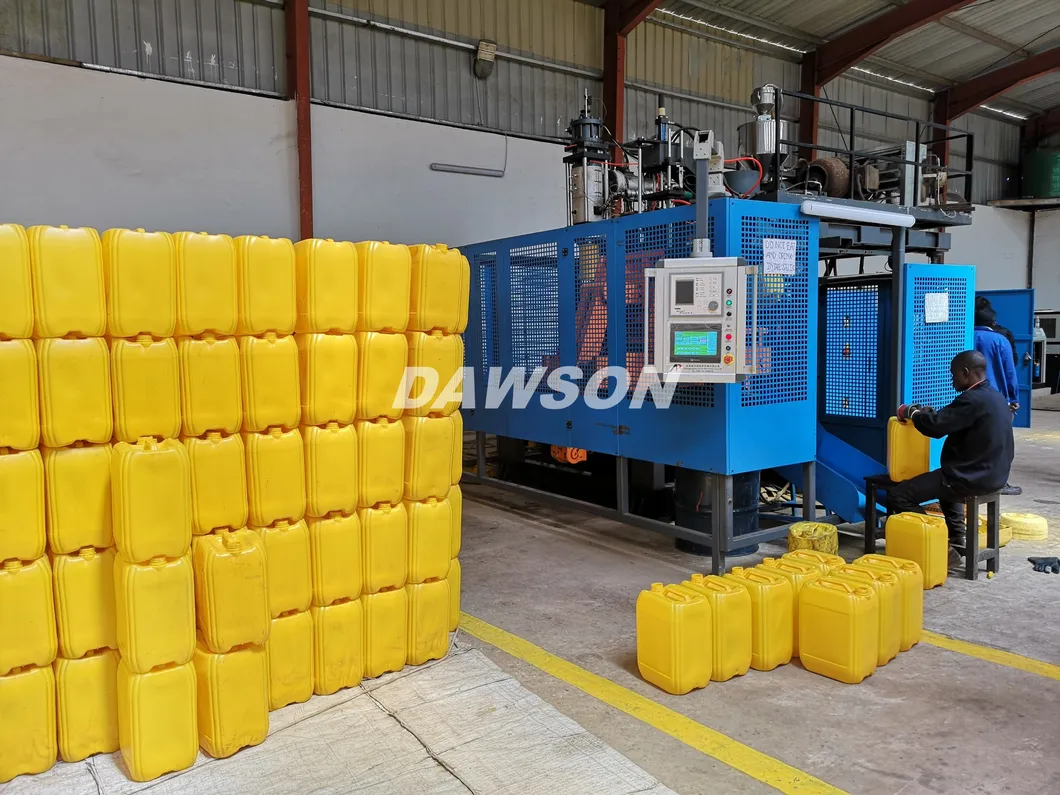

Automatic Extrusion Blow Molding Machine ABLB80-25L
Automatic Extrusion Blow Molding Machine ABLB80-25L
Product: 20L / 25L HDPE Jerry cans
Power supply: 380/220v 50/60 Hz Tri-phase
Output capacity:20~25L: 50~60 pcs/h (1200~1400 pcs/day)
Layer: Single layer
Lever line system: Available
Parison control: MOOG 100 points
Max volume: 25L (Single die head)
| Basic parameters | Suitable material | PE.PP,PVC,PS,PETG,so on | |
| Max volume | 25L | ||
| Output capacity | 50~60 PCS/H | ||
| Size | 4.4×3.4×3.6(M) | ||
| Weight | 11.3T | ||
| system | Specification | Parameters | Note |
| Plasticizion system | |||
| Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | ||
| Reducer | Hard finishing,High intension,Low noise reducer | ||
| Screw 1 | ∮80mm,L/D ratio 25,130kg/h 38CrMoALA | Cooling system available | |
| Heating Zone | 4 Aluminum Heater | Automatic heating | |
| Heating power | 10KW/H | ||
| Cooling Fan | Separate cooling system for heaters | Automatic cooling | |

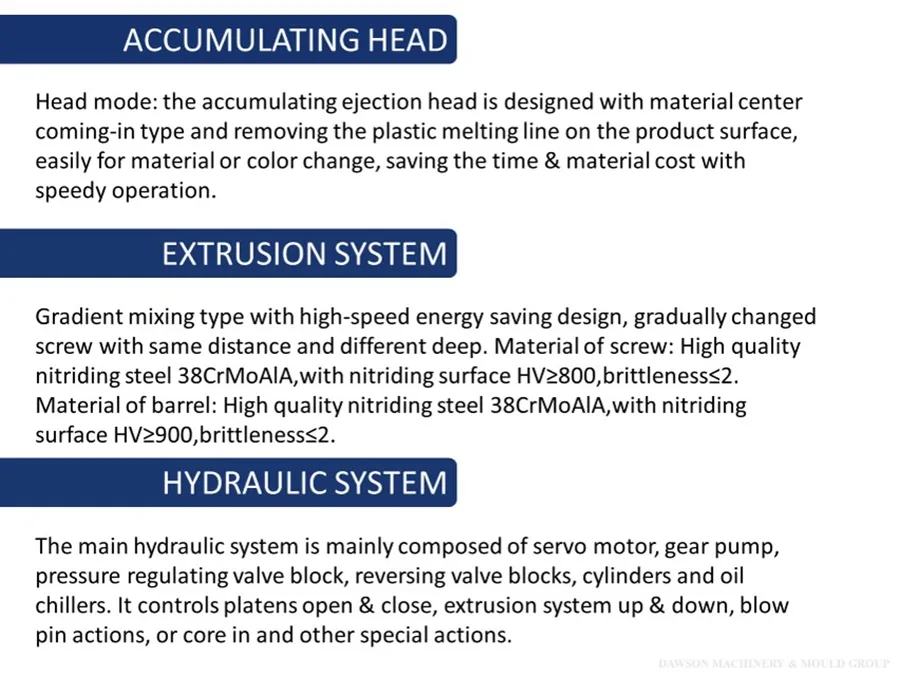

| Extrusion system | |||
| Summarize | High-grade alloy steel, center feeding | ||
| Die head number | 1 | ||
| Center distance of die heads | / | ||
| Max die mouth | 200 | ||
| Extruder Motor | 30kw SIEMENS MOTOR | ||
| Clamping system | |||
| Summarize | High intension, rigidity, center mold locking, stable mould opening and advanced clamping system | ||
| Clamping force | 270 KN | ||
| Distance between platens | 450~950mm | ||
| Mould template | 680× 660 | ||
| Mould material | S50C/Aluminium with beryllium copper |

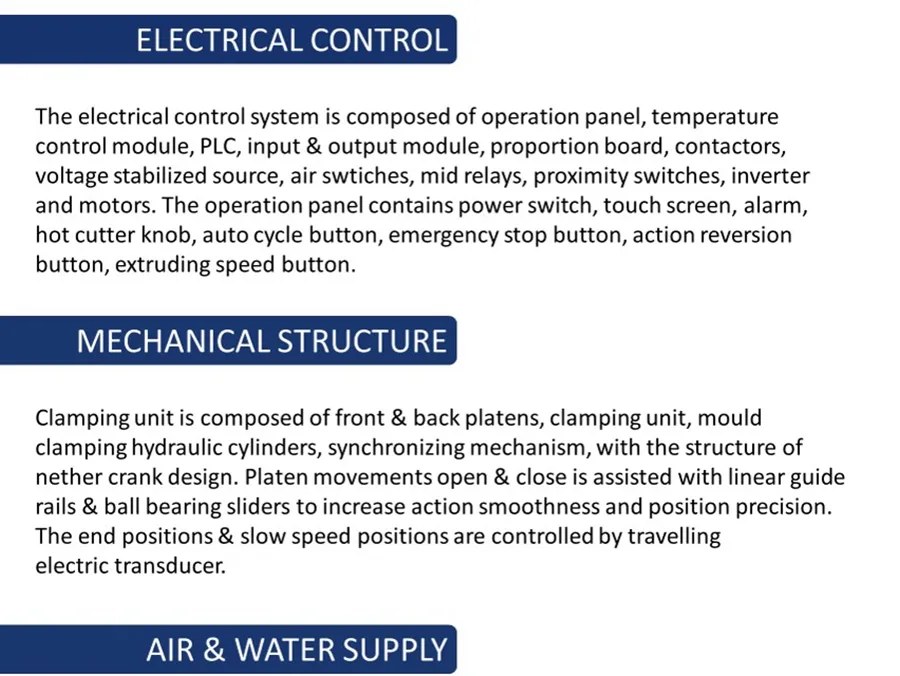

| Electricystem | |||
| Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) | | |
| Operate interface | Touch screen, automatic self-diagnose alarm system | ||
| Parison control | MOOG 100 points controller | ||
| Temperature control | Automatic temperature control module | ||
| Movement control | TECH-2/Mitsubishi, Chinese/English Version | ||
| Electric protection | Ampere overload, electric short circuit self-protection function | ||
| TOTAL rated power | 67kw | ||
| Average power consumption | 33 kw | ||
| Inverter | Delta | ||
| Hydraulic system | |||
| Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | ||
| Oil pump motor | 11kw motor (380V/220V,50/60HZ) | ||
| Oil pump | double vane pump | ||
| Valves | Imported oil pump valves and connections YUKEN | ||
| Oil pipes | Double layer overpressure resistant | ||
| System pressure | LP 100 bar / HP 130 bar Threads of hydraulic block use of screw joint GE(ISO 1179) | ||
| Cooling system | Post cooling by cooling air and cooling water with Aluminum Mask | ||
| Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | |
| Air pressure | 0.6~0.8Mpa | ||
| Air displacement | 2.2 M3/min | ||
| Electromagnetic valve | Taiwan AIRTAC | ||
| Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | |
| Cooling medium | Water | ||
| Water flow | 100L/min | ||
| Water pressure | 0.4-0.6MPa | ||
