220L Drum Bucket Plastic Bucket Plastic Water Tank Blow Molding /Moulding Machine
Performance and advantagesPerformance and advantages·Suitable for producing 100-220L open-top drums, dou ble L ring drums . ·Adopt high output extrusion system, accumulating die head. ·Optional hydraulic servo control system.Technical parrametersModelUnitL-Ring-DrumM......
Send Inquiry
Product Description
Performance and advantages
Performance and advantages

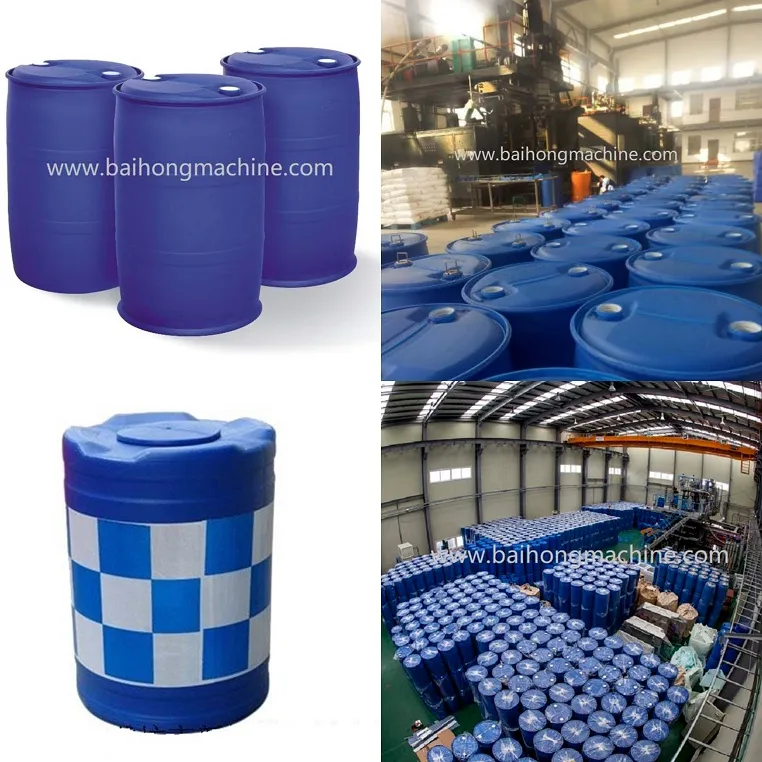

·Suitable for producing 100-220L open-top drums, dou ble L ring drums .
·Adopt high output extrusion system, accumulating die head.
·Optional hydraulic servo control system.
Technical parrameters
Note: Informations listed above are for reference only, the production line can be designed by customer's requirements.
Performance and advantages
·Suitable for producing 100-220L open-top drums, dou ble L ring drums .
·Adopt high output extrusion system, accumulating die head.
·Optional hydraulic servo control system.
Technical parrameters
| Model | Unit | L-Ring-Drum |
| Max product volume | L | 220 |
| Main screw diameter | mm | 150 |
| Max plasticizing capacity(PE) | kg/h | 500 |
| Screw Speed | rpm | 10-60 |
| Die head structure | Accumulating type | |
| Accumulating volume | kg | 20 |
| Heating power of die head | Kw | 30 |
| Claming force | KN | 800 |
| Platen size W*H | mm | 1500*1600 |
| space between platen | mm | 900-2300 |
| Max moild size | mm | 1300*1600 |
| Machine dimension L*W*H | m | 9*6*5.5 |
| Machine weight | T | 30 |
| Total power | Kw | 270 |
| Aversge power Consumption | Kw | 190 |
Note: Informations listed above are for reference only, the production line can be designed by customer's requirements.
