55gallon 220L Barrels Drums Making Machine Drums Blow Molding Machine
DAWSON MACHINERY & MOULD GROUP***EXTRUSION BLOW MOLDING MACHINE EXPERT***Our customers are all around the world. Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Ken......
Send Inquiry
Product Description
DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

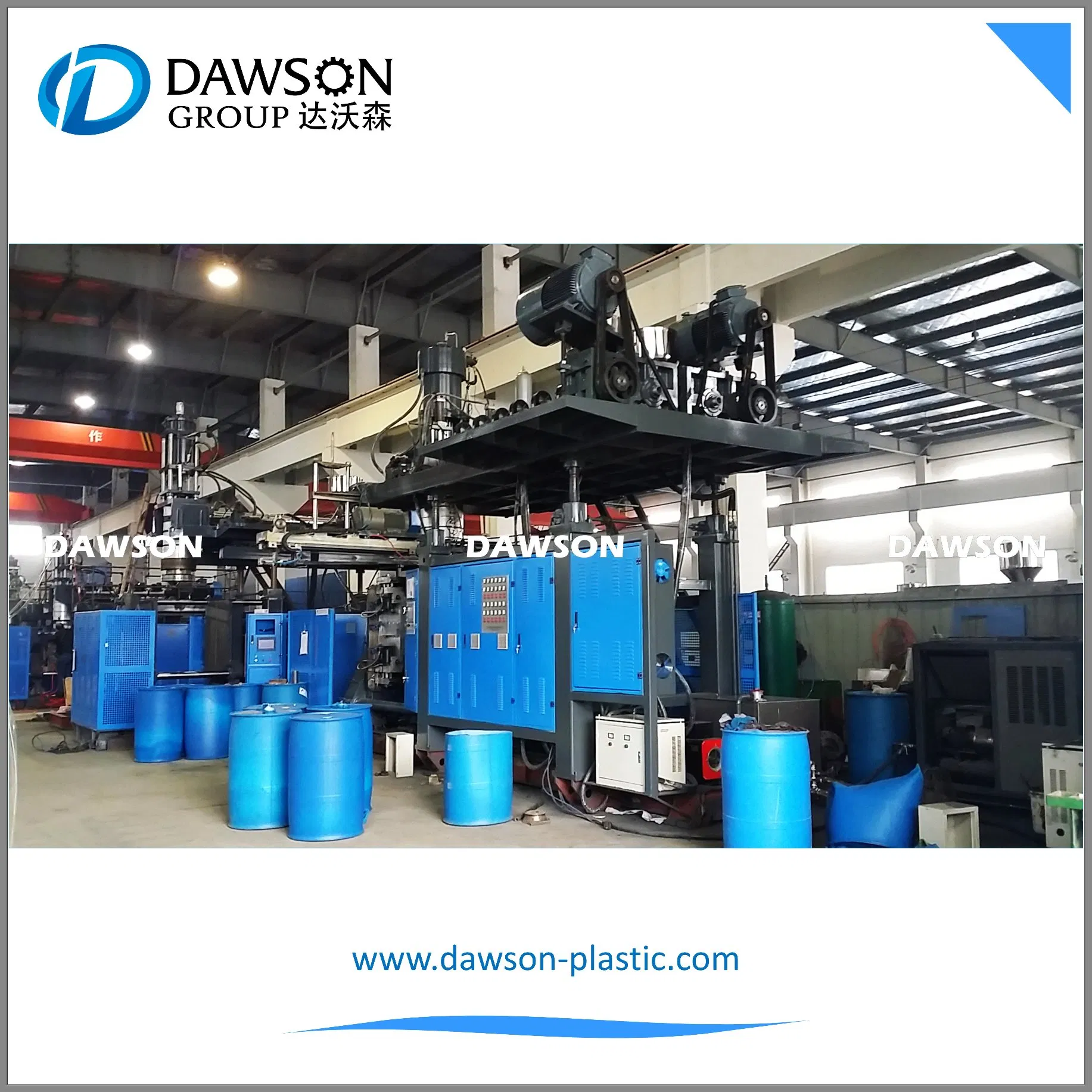

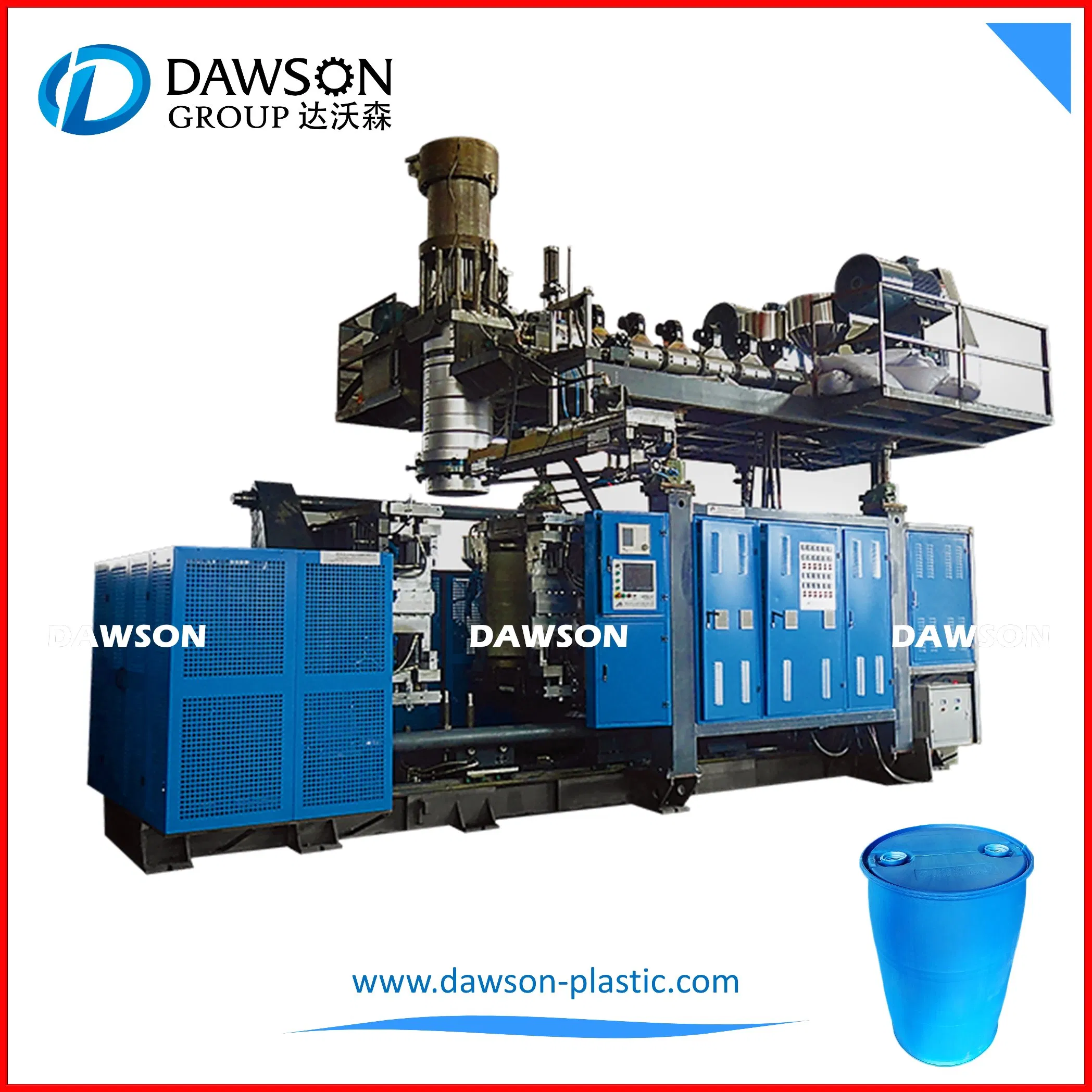

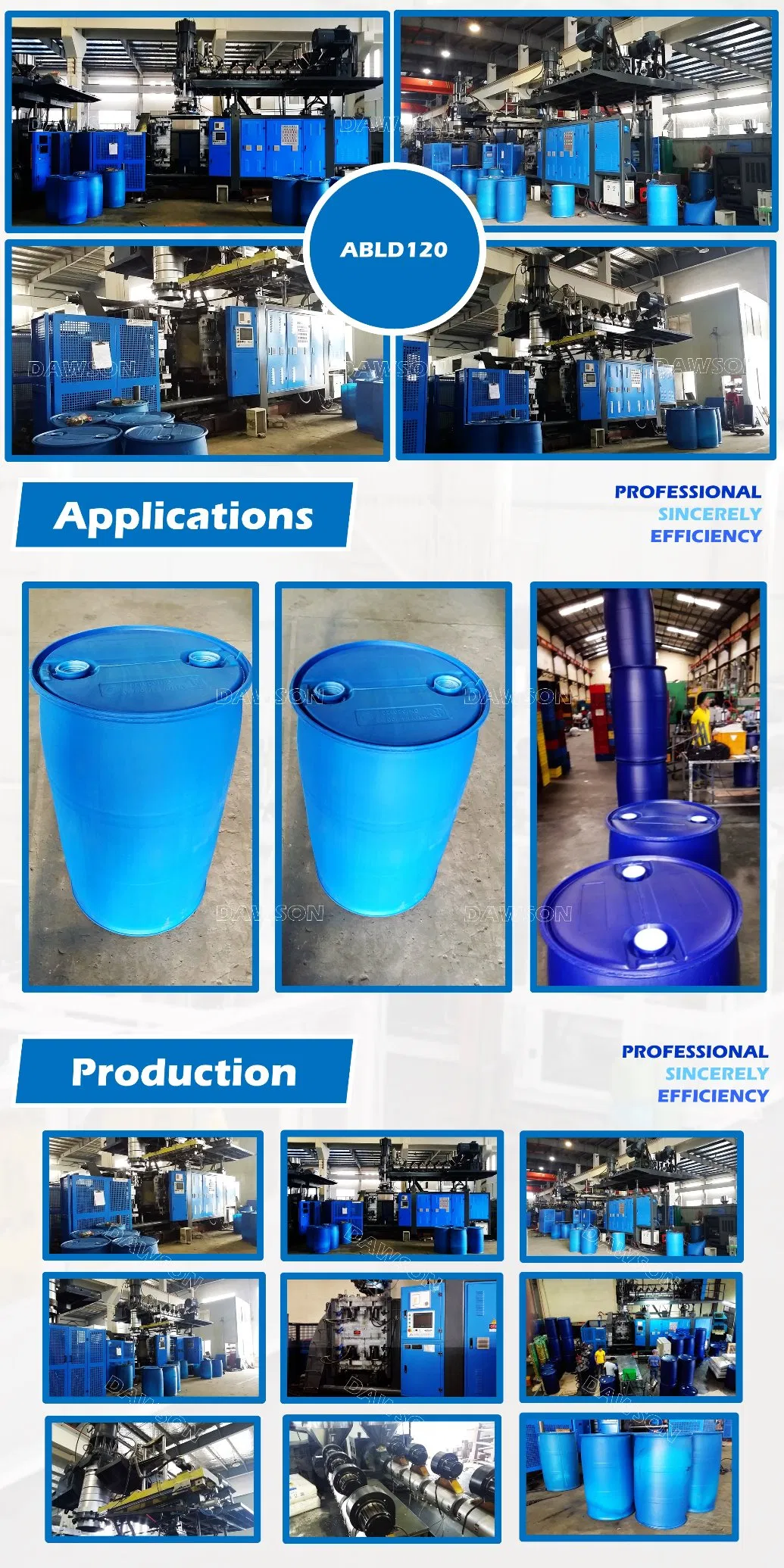

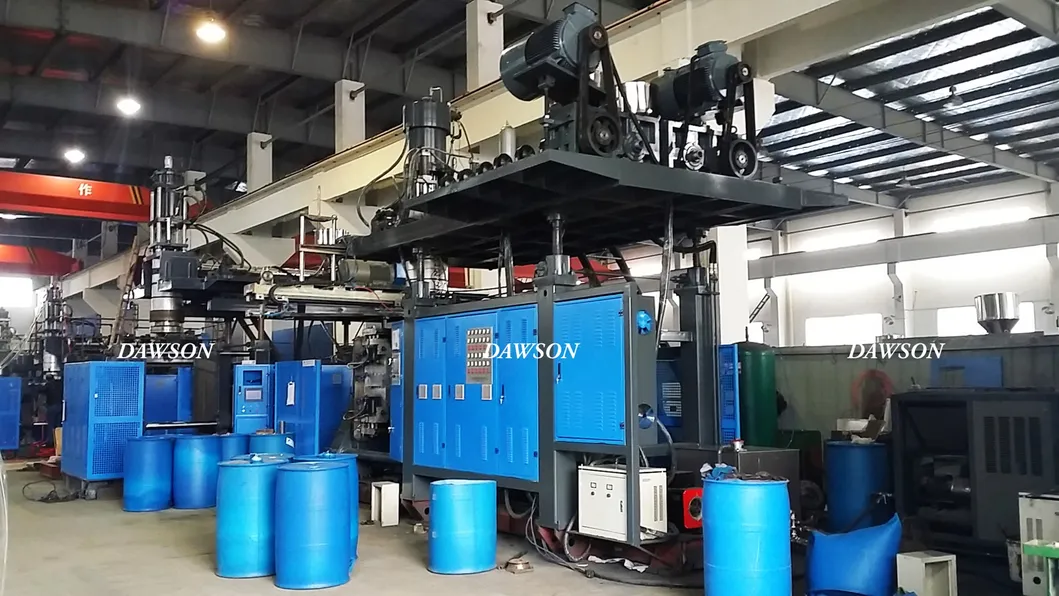

Accumulation Blow Molding Machine ABLD120
ABLD120 Accumulation Blow Molding Machine

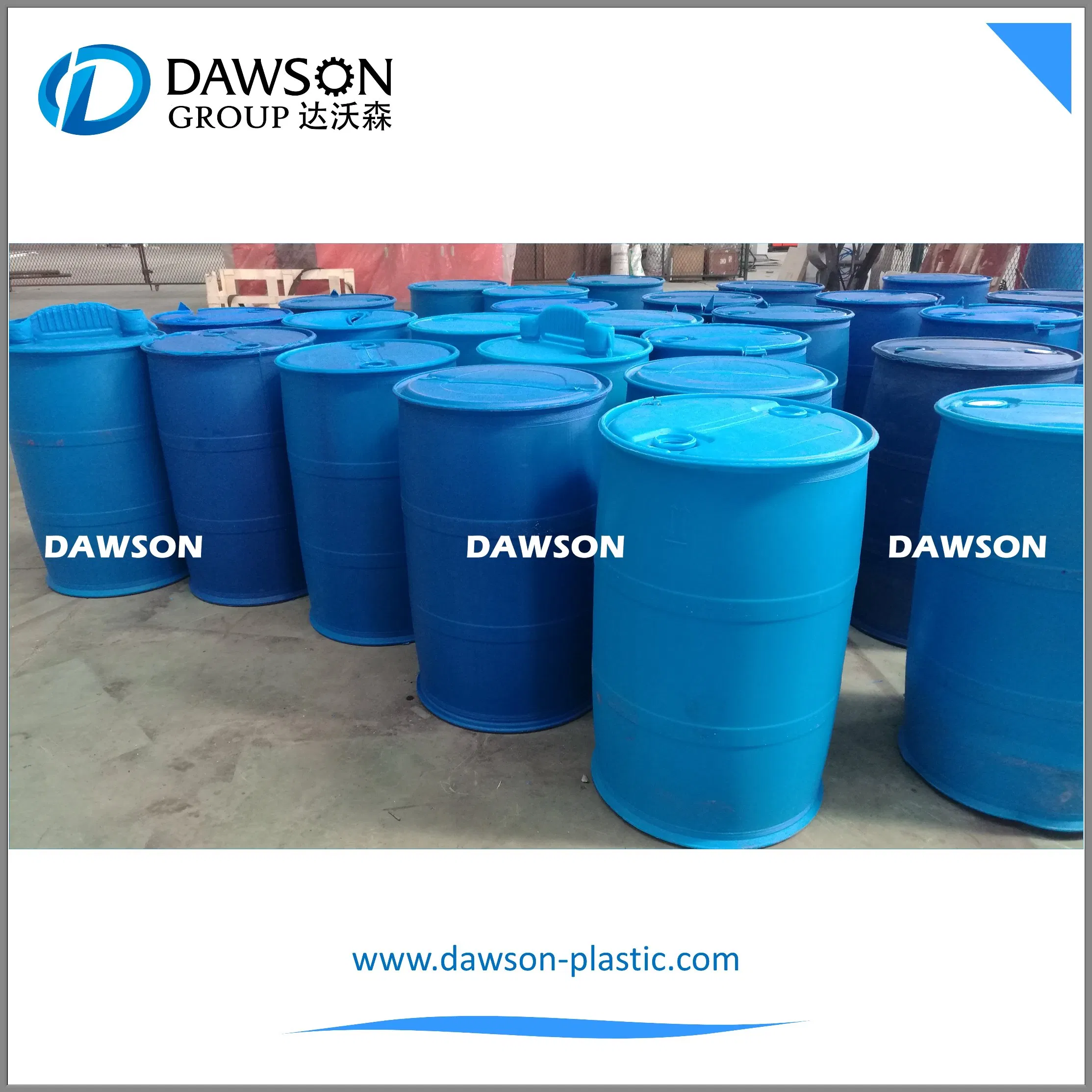

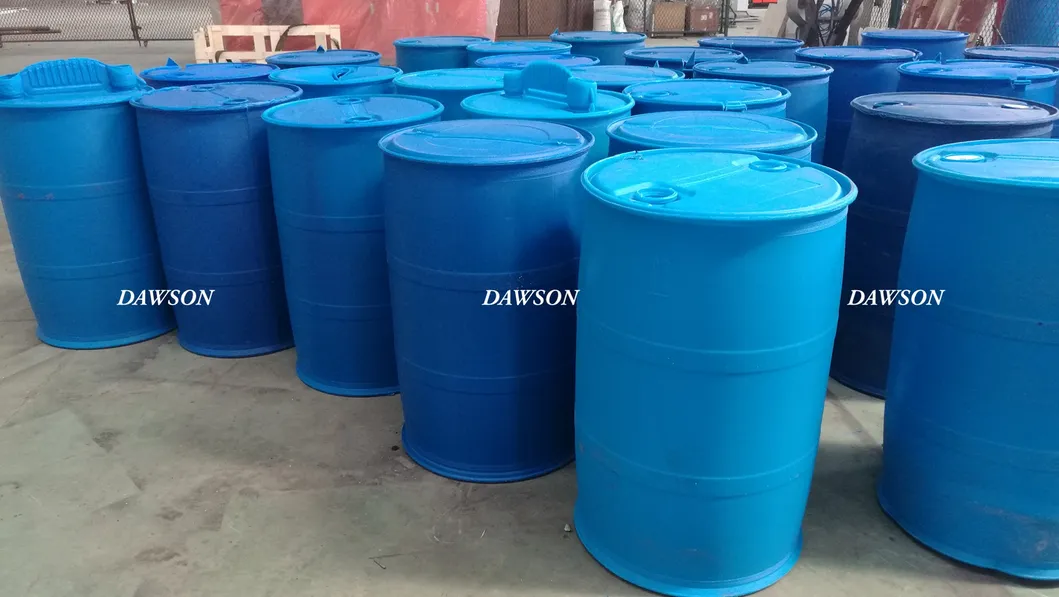

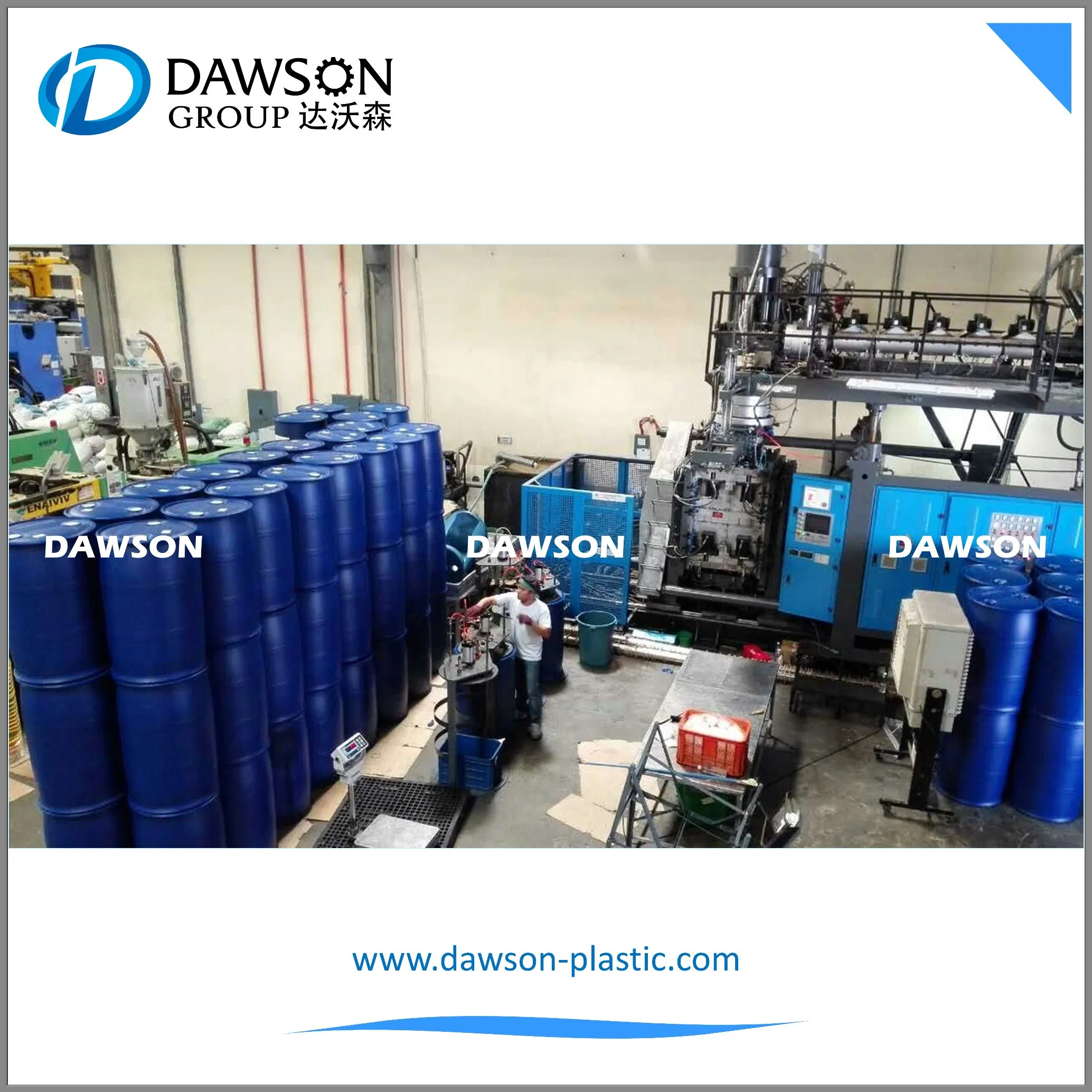

was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 250L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 250L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

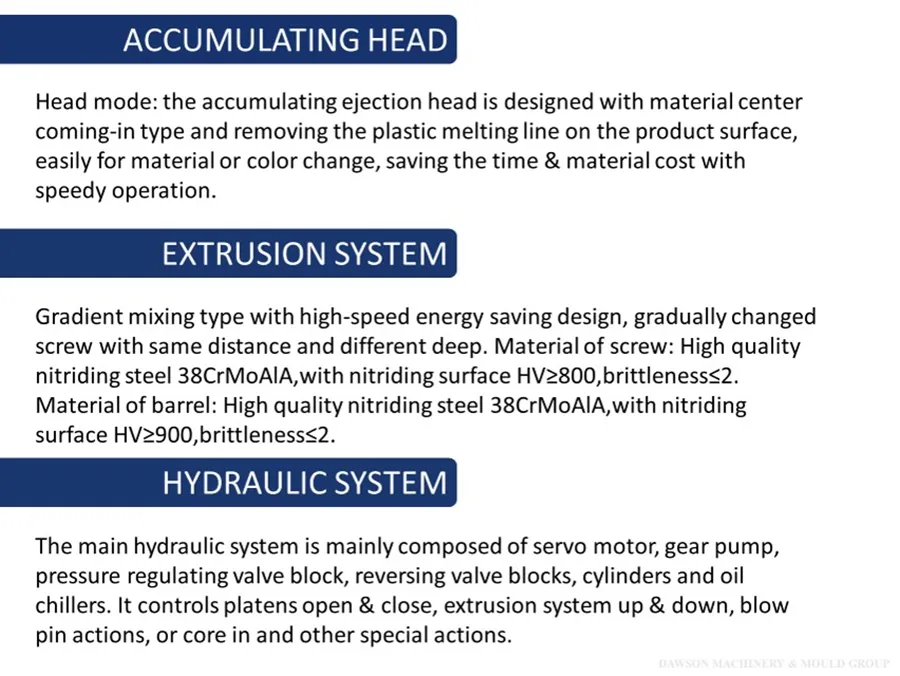

(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.

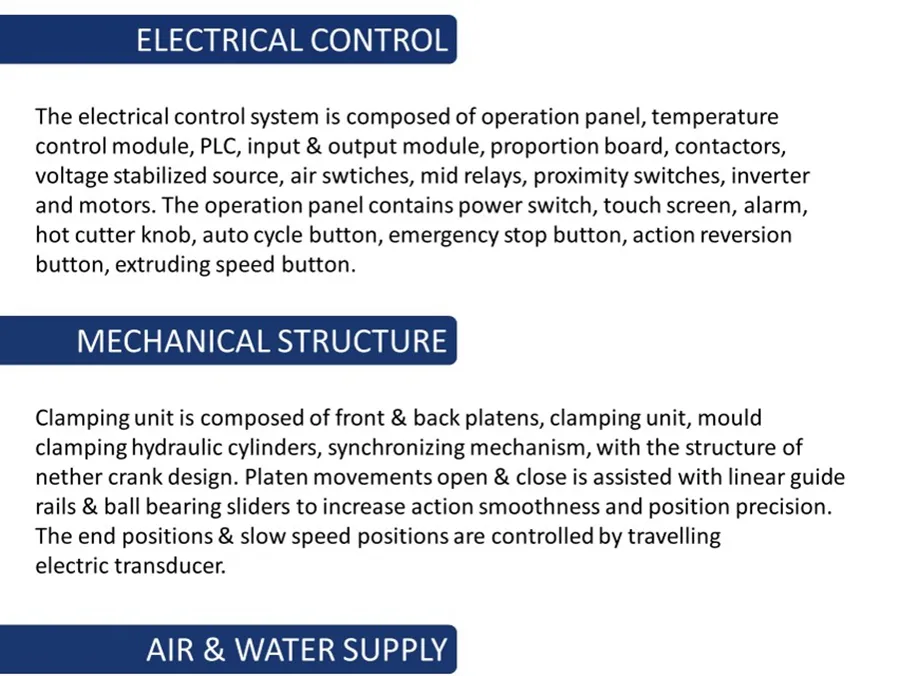

(7)Auto lubricant system controlled by PLC.
Blow Molding Machine ABLD120
| Max. Product volume | 250liters |
Output capacities | as per samples |
Screw diameter | 120mm |
Screw L/D ratio | 28 L/D |
Screw drive power | 75 KW |
Screw heating capacity | 30 KW |
No.of heating zone | 5 zones |
Output of HDPE | 240 KG/H |
Oil pump drive power | 45 KW |
Clamping force | 800 KN |
Max.size of mold | 1000X1500mm |
Mold stroke | 600-1500mm |
Max.die diameter | 520mm |
Die heating power | 12 KW |
Die heating segments | 5 zones |
Blowing pressure | 0.8mpa |
Air volume | 1.6 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 180 L/MIN |
