Bottles Injection Blow Molding Moulding Machine ( ZQ 60)
1ML---2000ML plastic bottle , machineEurope style ( machine manufacturer )Have 2 servo motor , save 30--40% power 100KM shanghai---zhangjiagang cityBottle cavityBottle (ML) 51020304060801001502004006508001500Cavity 1412 10 9 8 8 7 7 6 5 4 3 2 2 Machine configurationMain computer TECHMATIO......
Send Inquiry
Product Description

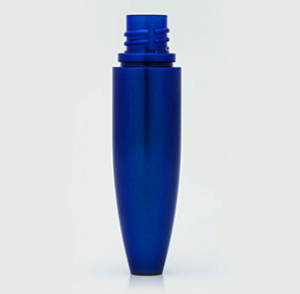

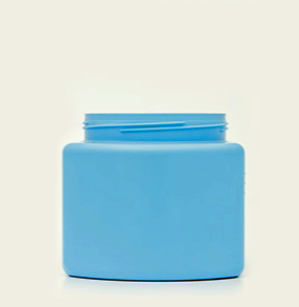

1ML---2000ML plastic bottle , machine
Europe style ( machine manufacturer )
Have 2 servo motor , save 30--40% power
100KM shanghai---zhangjiagang city
Bottle cavity
Machine configuration
60TON machine Main Technical parameters
Frequently Asked Question form customer
1:After sell machine oversea service
My company arrange engineer to customer factory install and debugding
2:Warranty period
13 months after engineer install machine at customer company
Please feel free send message to us
http://ziqiangmachine.en.made-in-china.com
Europe style ( machine manufacturer )
Have 2 servo motor , save 30--40% power
100KM shanghai---zhangjiagang city
Bottle cavity
| Bottle (ML) | 5 | 10 | 20 | 30 | 40 | 60 | 80 | 100 | 150 | 200 | 400 | 650 | 800 | 1500 |
| Cavity | 14 | 12 | 10 | 9 | 8 | 8 | 7 | 7 | 6 | 5 | 4 | 3 | 2 | 2 |
| Main computer | TECHMATION |
| Servo motor for hydraulic | Italy PHASE |
| hydraulic pump | Germany ECKERLE |
| SSR for heating | Japan FOTEK |
| Electric switch | Franch Schnelder |
| Servo controller for hydraulic | TECHMATION |
| Servo table servo controller | Inovance |
| Hydraulic valve | YUKEN |
| Screw add material motor | Intermot |
| O-ring | England HALLITE |
| Electric rule | Italy GEFREN |
| Pneumatic valve | FESTO |
| Machine housing( colour customer can choose ) | Aluminum or Iron use Spray plastic |
| Driving system | ||
| Hydraulic pressure | Mpa | 14 |
| Servo motor for oil pump(optional) | KW | 18.5 |
| Servo motor for rotation table(optional) | Kw | 1.75 |

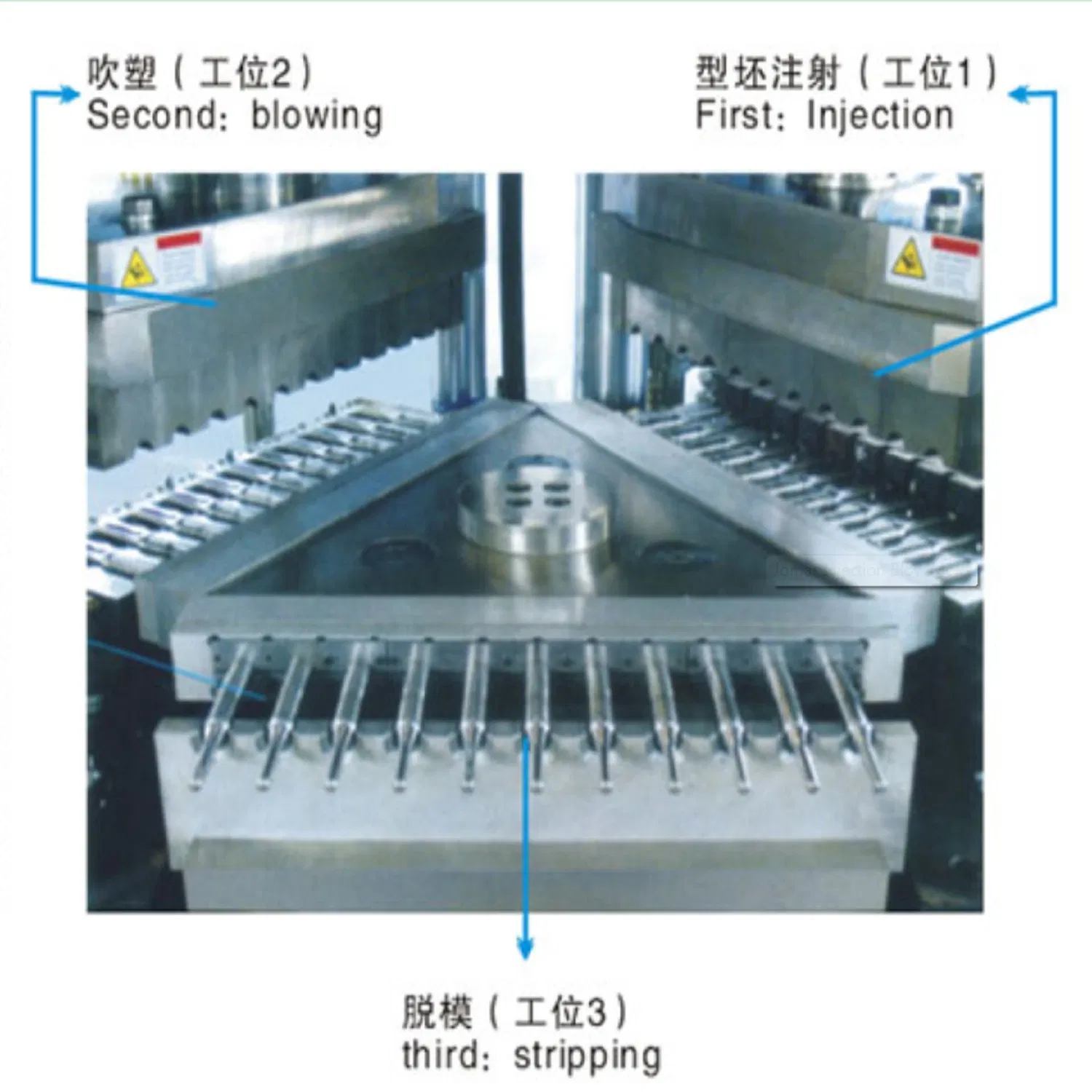

| Injection & blowing system | ||
| Clamping force of injection mold | KN | 600 |
| Clamping force of blowing mold | KN | 100 |
| Max Mold size(L×W) | mm | 600*390 |
| Mold heating | KW | 1.5 |
| Injection system | ||
| Screw Diameter | mm | 45 |
| Screw L/D ratio | 22:1 | |
| Injection weight | g | 260 |
| Max screw speed | rpm | 10--260 |
| Screw Heating capacity | KW | 6 |
| Stripping system | ||
| Stripping stroke | mm | 225 |
| Dry cycle | sec | 3 |
| Product range | ||
| Suitable bottle range | ml | 1---1500 |
| Max.bottle height | mm | 220 |
| Max.Diameter of bottle | mm | 120 |
| Machine size | M | 3.5*1.4*1.8 |
| Machine weight | TON | 5 |
1:After sell machine oversea service
My company arrange engineer to customer factory install and debugding
2:Warranty period
13 months after engineer install machine at customer company
Please feel free send message to us
http://ziqiangmachine.en.made-in-china.com
