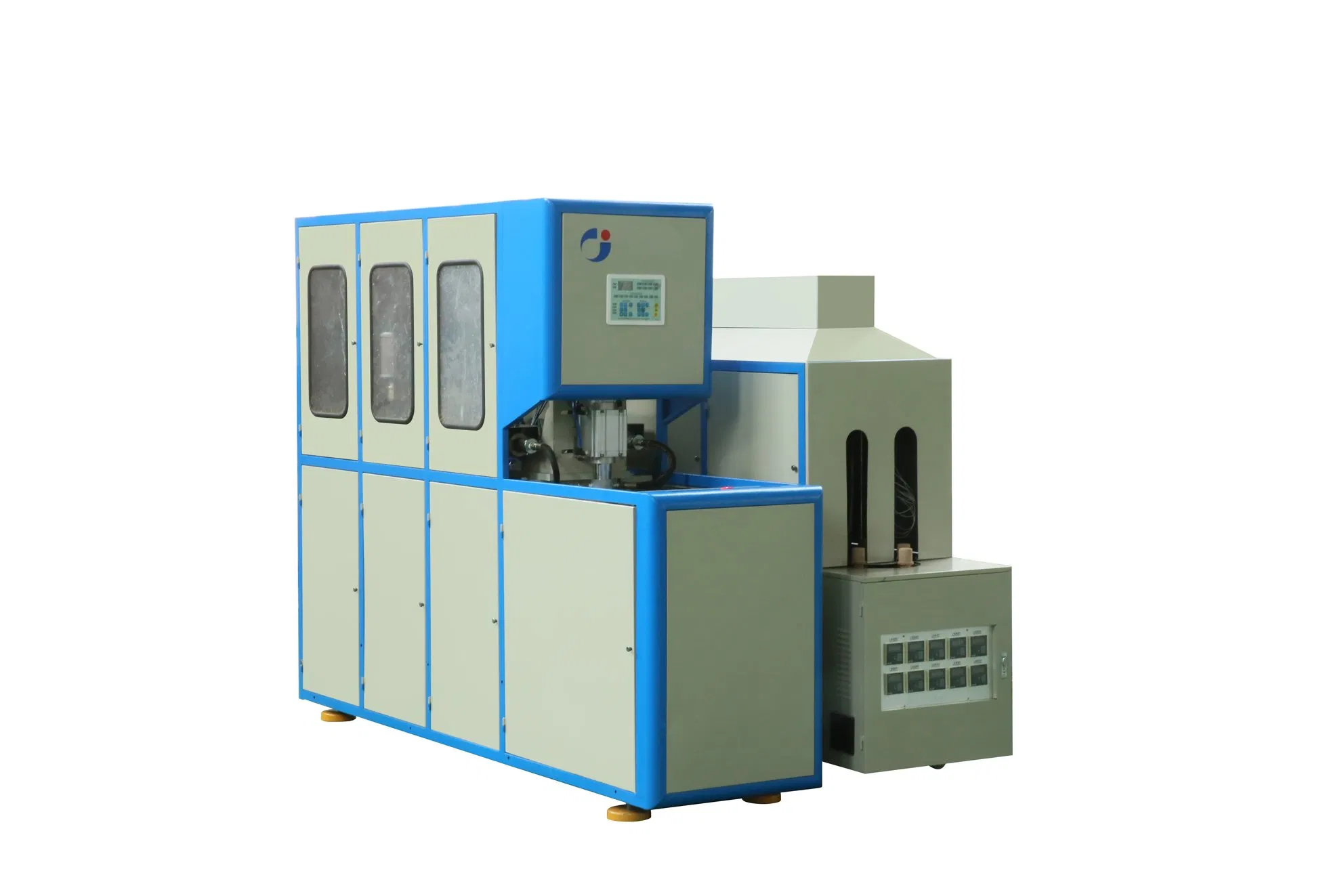

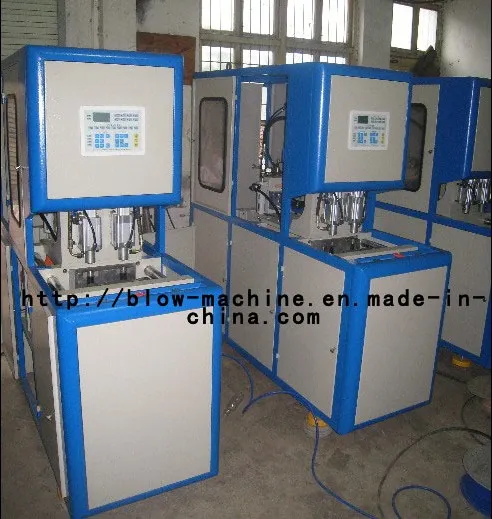

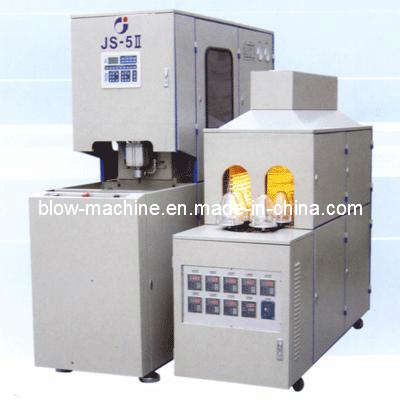

CE Approved Semi-Automatic Blowing Machine (JS- 5ll )

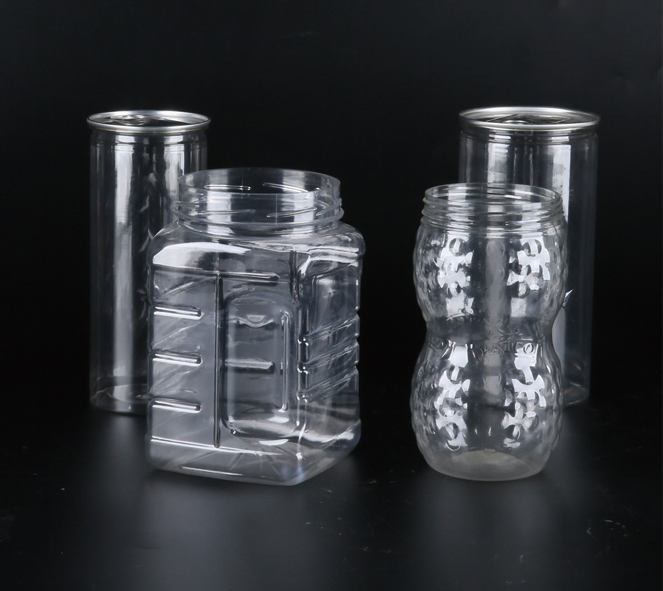

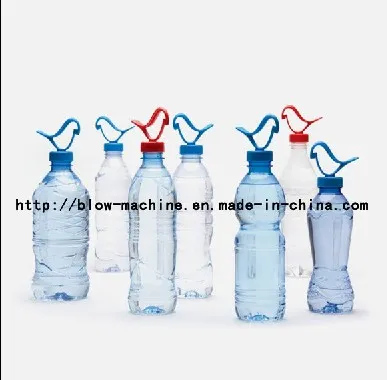

Semi-Automatic Blowing Machine JS-5II ( 2 cavity )blow moulding shaping machine can produce PET containers, including bottles for wine, drink, soybean, vinegar, and pesticide (less than 5 liters) according to the different bottle shapes and diameters. It has automobile system with high efficiency. The distant infrared ray heat pipe are used in the machine, It has high pressure protection with the feature of precisely removing mould, the machine has no noise It is easy to maintain It's the equipment for producing PET bottles.

Technical parameters:
A: Specifications:
1. Mold gathering strength (kN): 90
2. Mold traveling distance (mm): 235
3. Pulling rising traveling distance (mm): 450
4. Bottle spacing: 140-180
5. Mold hole number (cavity): 2

B: Bottle specifications:
1. Max. Bottle capacity (L): 5
2. Max. Tooth part size (mm): 120
3. Max. Bottle diameter (mm): 180
4. Max. Bottle body height (mm): 450

C: Theoretic production capacity (bph): 400-800

D: Electric power specifications:
1. Total power consumption (kW): 14
2. Thermal rating (kW): 12.8

E: Air pressure specifications:
1. Operating pressure (kg/cm2): 8
2. Low pressure gas consumption (L/min): 300
3. Bottle blowing pressure (kg/cm2): 25
4. High-pressured gas consumption (L/min): 350

F: Machine weight:
1. Machine size (m): 2 x 0.65 x 1.75
2. Machine weight (MT): 0.71
