Full Automatic Blow Molding Machine for Making 15L Bottles
DAWSON MACHINERY & MOULD GROUP***EXTRUSION BLOW MOLDING MACHINE EXPERT***Our customers are all around the world. Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Ken......
Send Inquiry
Product Description
DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

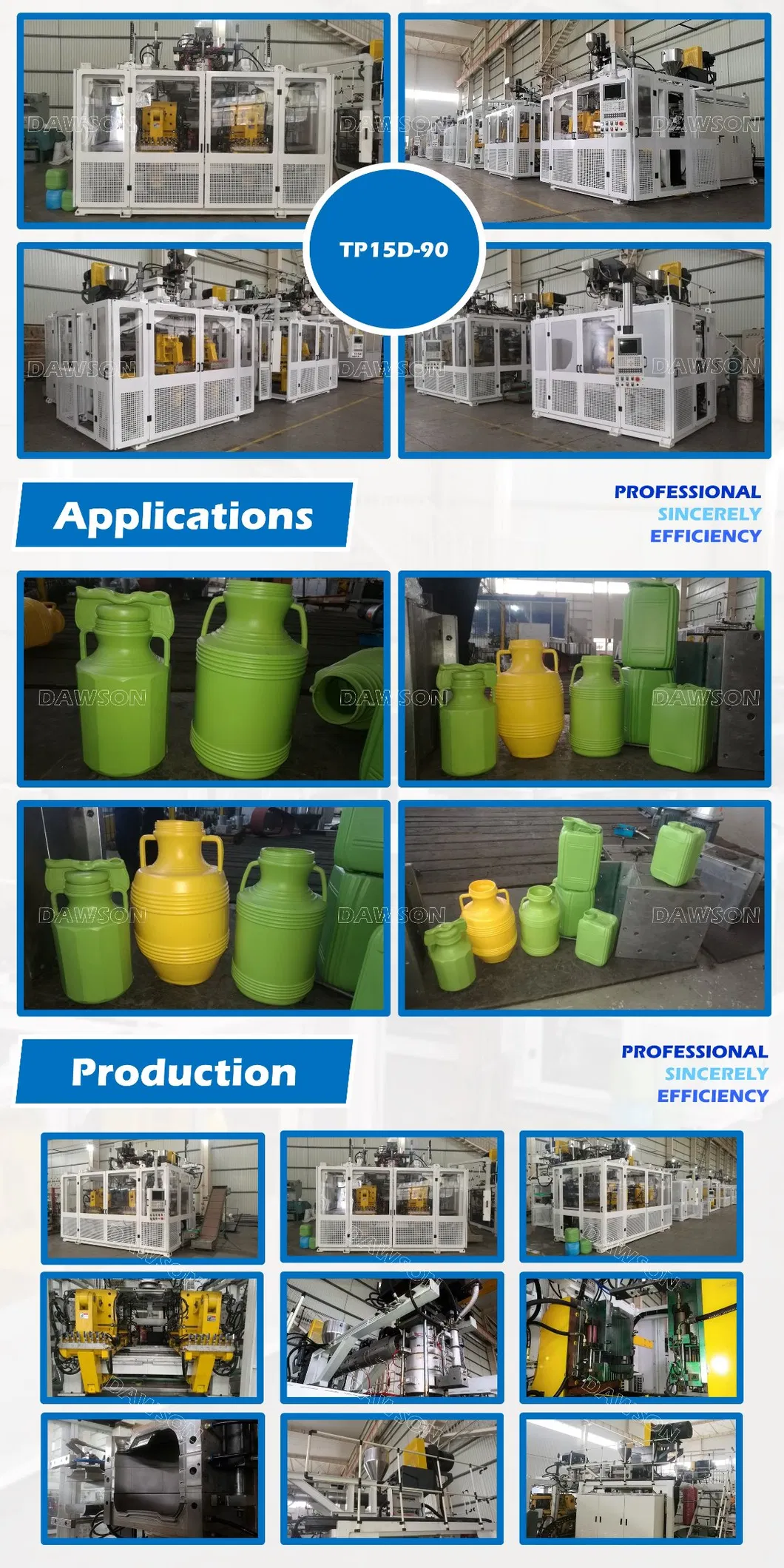

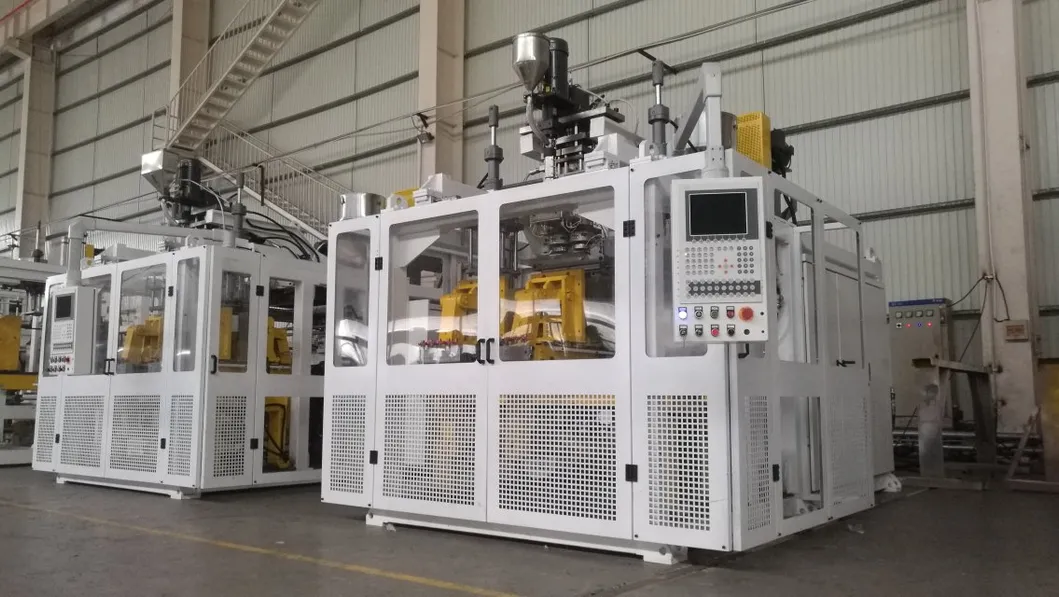

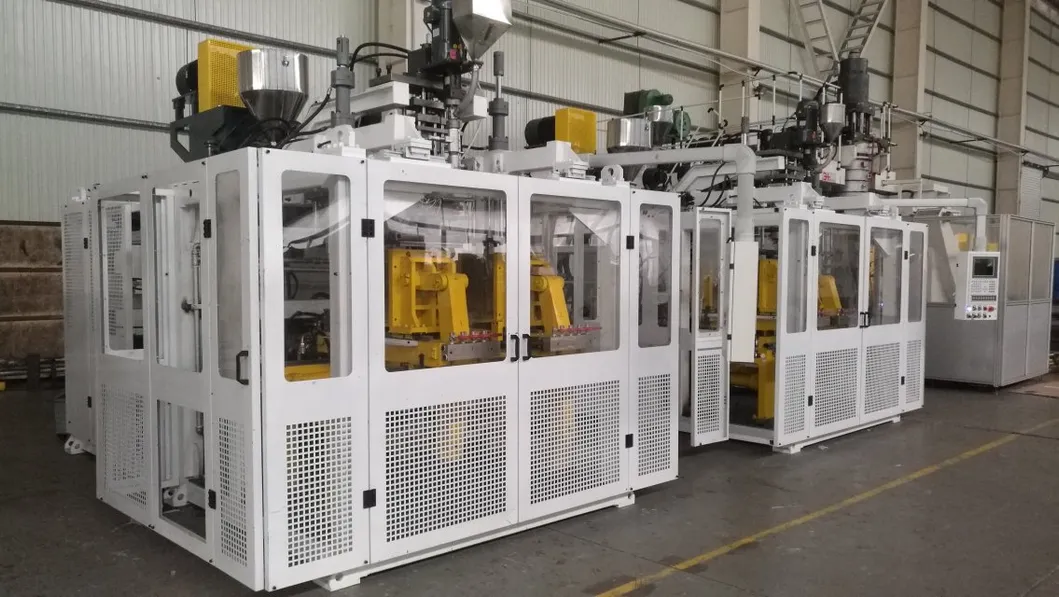

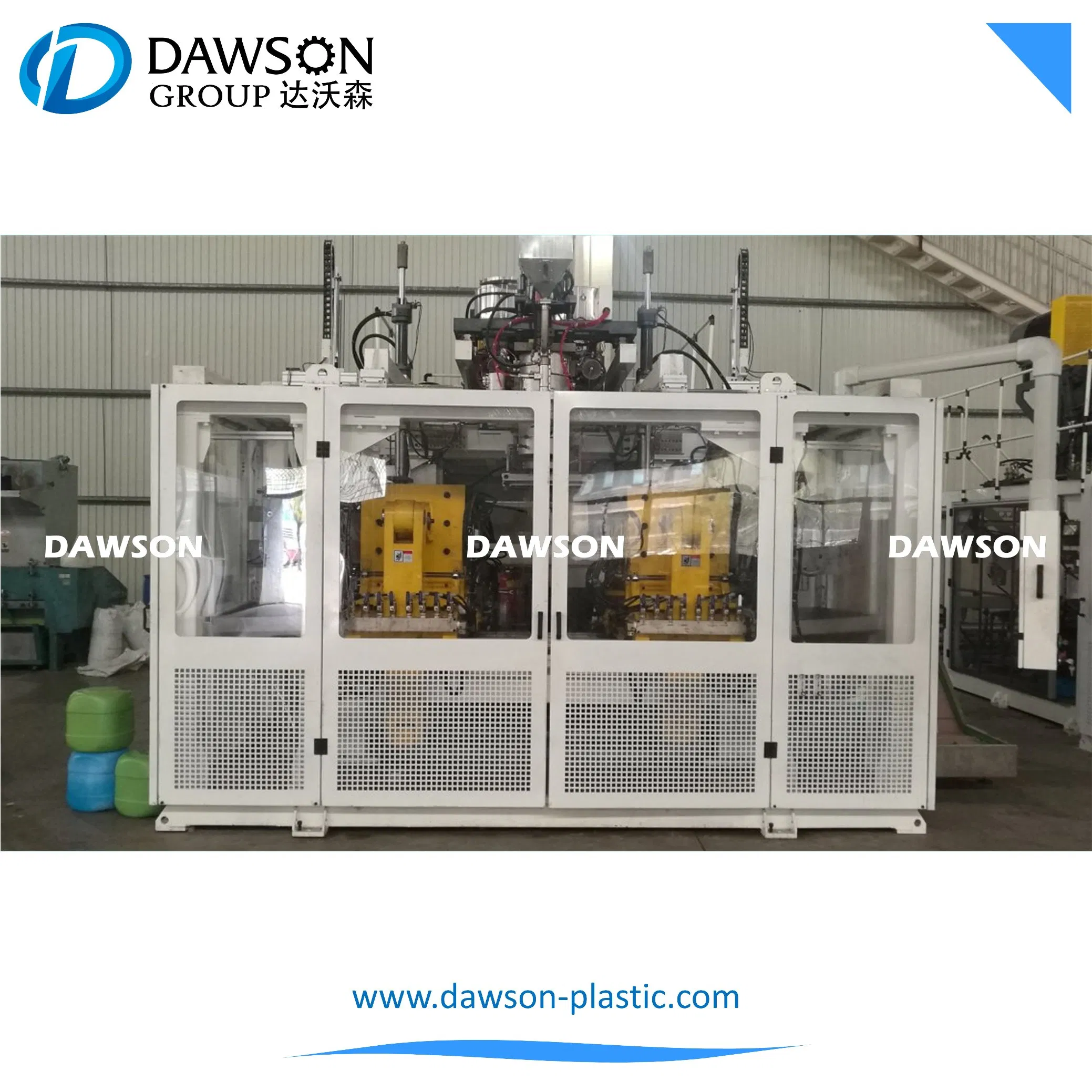

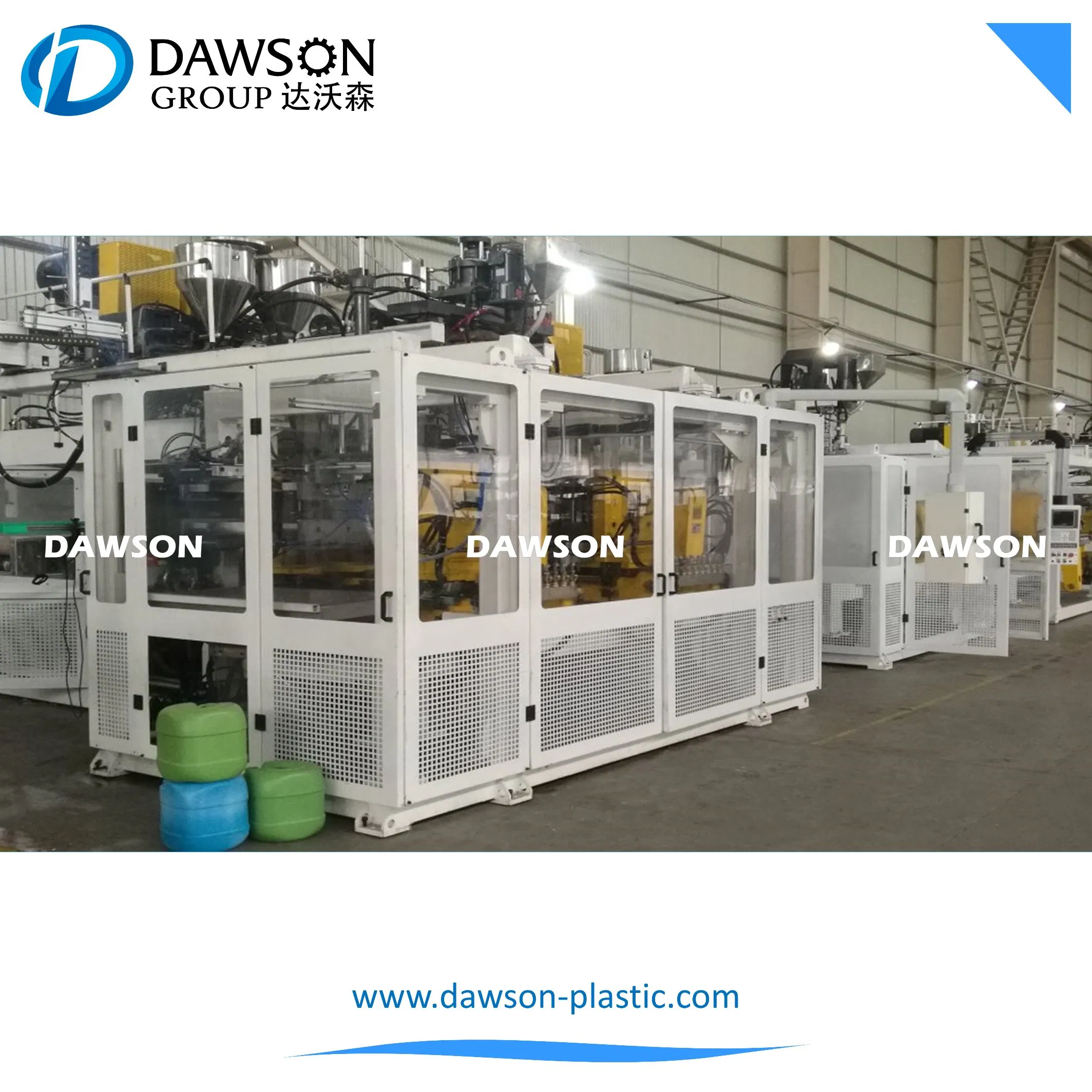

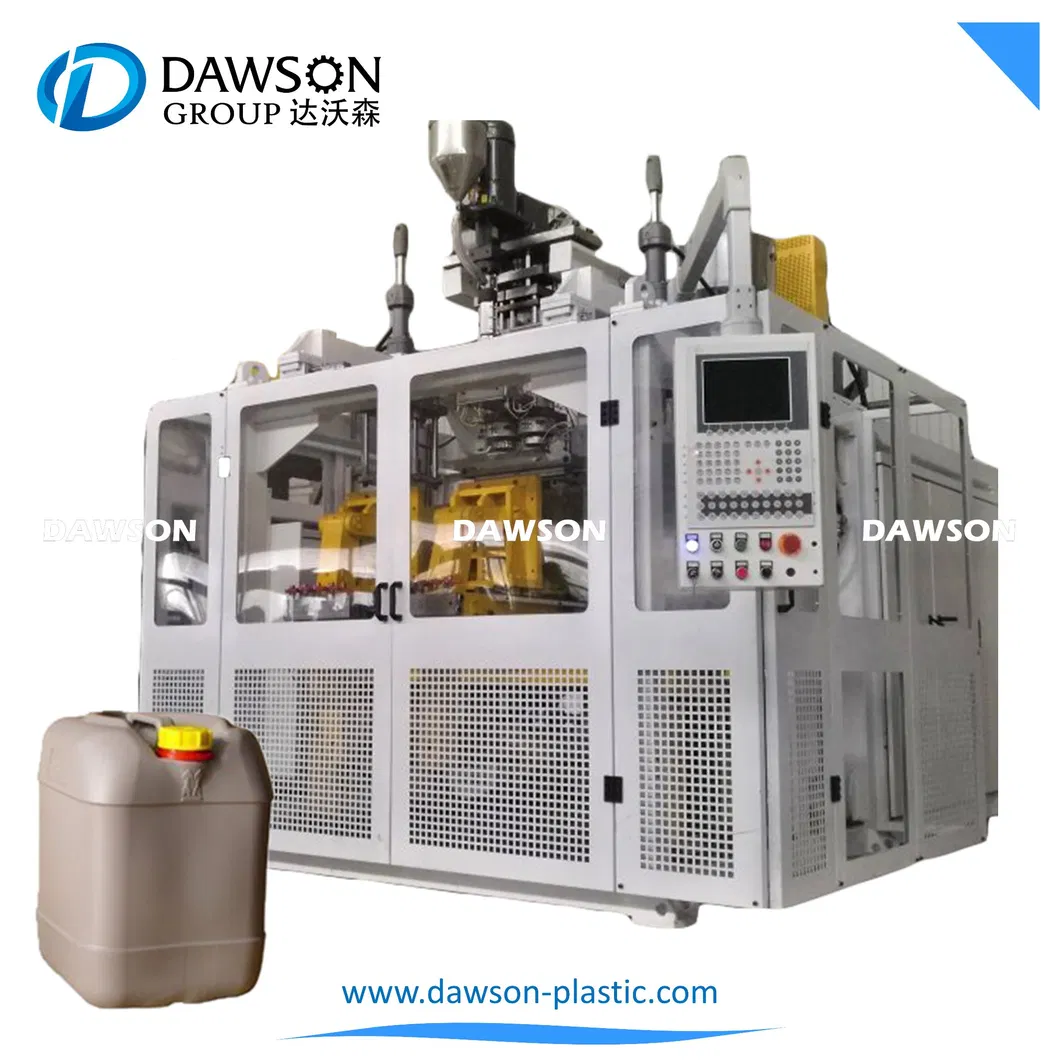

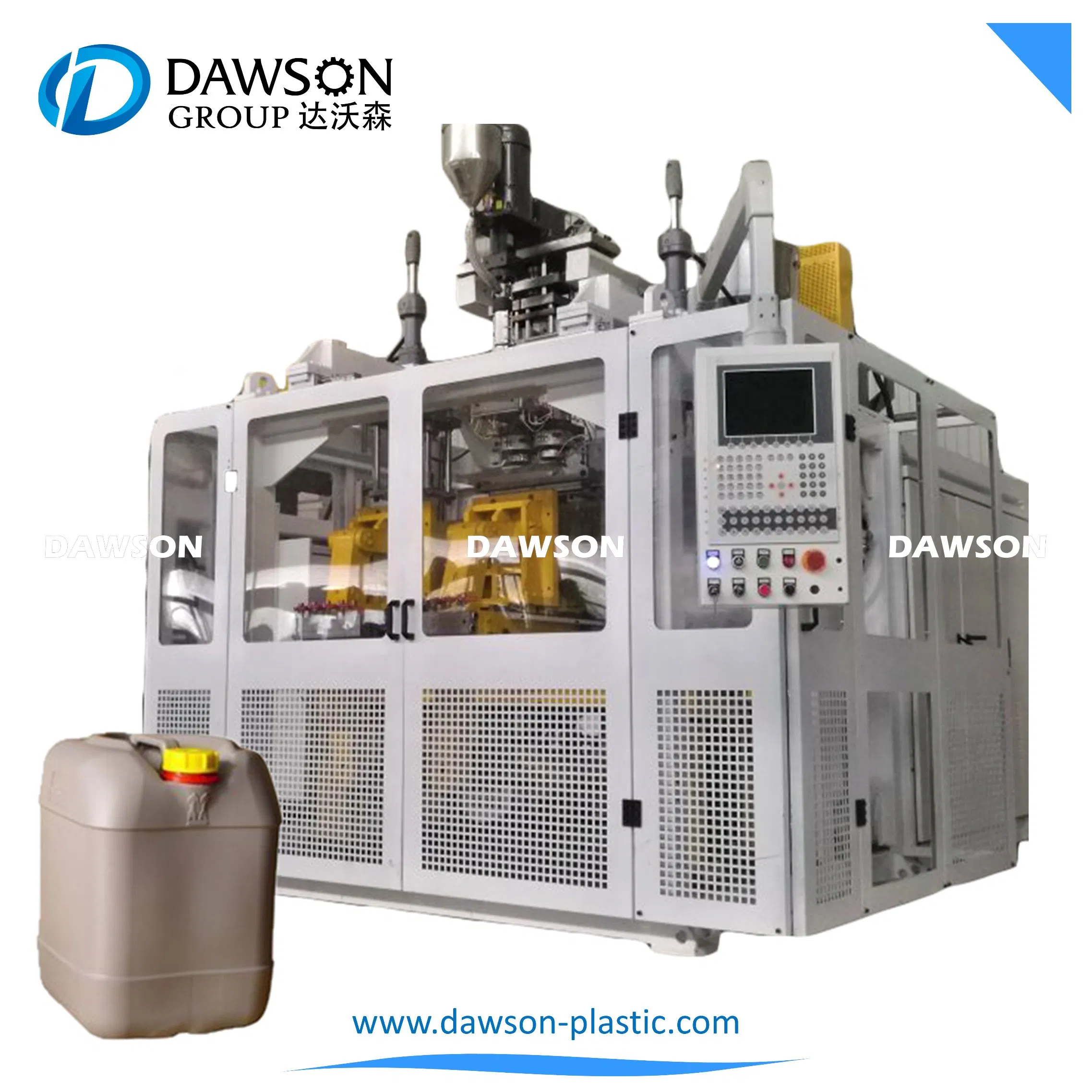

Double Station Extrusion Blow Molding Machine TP15D-90
Machine Model TP15D-90
Double station Extrusion Blow Molding Machine
( Single head for produce 5-15L bottles )
*Volume 15L
*Net Weight 1 Kg
*Output 95-100 pcs/hr.
- Single head for making 15L bottles
- Double head for making 10L bottles
- 3 die head for making max. 8L bottles
- 4 die head suitable for max. 5L bottles
( we also provide single station blow molding machine, customer can choose according to budget and output demands. )
Standard Features
1. Double station blow molding machine with 90mm grooved extruder.
2. Single, double triple and quadruple head capacity.
3. Reliable two-plate axes mould locking.
4. Processing HDPE, LDPE, PP capacity.
5. Multi-blow extrusion heads with quick color change.
6. In machine automatic deflashing and cooling station.
7. Nitrided screw and berrel.
8. Adopt hydraulic accumulators.
9. Low power consumption.
10. Up blowing system.
11. Machine control by microprocessor B&R
12. SERVO valve for hydraulic and 100/300 point Parison thickness.
13. Gripper for bottle take out inside machine.
14. Carriage fast movement by Prop Valve.
15. Safety ladder and rail protection.
Configuration
| Main Part | Brand | |
| Servo oil pump | REXROTH from Germany |  |
| High pressure oil pump | YUKEN from Japan | |
| Pneumatic | FESTO from Germany or SMC from Japan | |
| Proportional valves | REXROTH from Germany | |
| Directional valves | YUKEN from Japan | |
| Control system | B&R From Austria | |
| Frequency converter | ABB From Switzerland | |
| Contactor | SCHNEIDER From Franch | |
| Linear roller bearings | HIWIN from TAIWAN | |
| Motor | SIEMENS from Germany | |
| Gearbox | SEW from Germany | |
| Electronic ruler | Novotechnik from Germany | |
Our customers
Germany, Italy, United Kingdom, Spain, Russia, Ukraine, Aussie, Canada, Egypt, Nigeria, India, Thailand, ... etc.
| Type of Blow Molding Machine |
Extrusion blow molding In Extrusion Blow Molding (EBM), plastic is melted and extruded into a hollow tube (a parison). This parison is then captured by closing it into a cooled metal mold. Air is then blown into the parison, inflating it into the shape of the hollow bottle, container or part. After the plastic has cooled sufficiently, the mold is opened and the part is ejected. EBM processes may be either continuous (constant extrusion of the parison) or intermittent. Types of EBM equipment may be categorized as follows: 1. Continuous Extrusion Equipment
Basic polymers, such as PP, HDPE, PVC and PET are increasingly being co-extruded with high barrier resins, such as EVOH or Nylon, to provide permeation resistance to water, oxygen, CO2 or other substances. In dairy applications, it is possible to extrude a black light-blocking layer in the center layer of containers, with opaque white resin used in the inner and outer layers. Compared to injection molding, blow molding is a low pressure process, with typical blow air pressures of 25 to 150 psi. This low pressure process allows the production of economical low-force clamping stations, while parts can still be produced with surface finishes ranging from high gloss to textured. The resulting low stresses in the molded parts also help make the containers resistant to strain and environmental stress cracking. Accumulator Head Machinery is used for the extrusion blow molding of large industrial hollow parts. Examples of parts produced on this machinery include drums, trash cans, automotive panels, playground equipment, and large containers, such as Jerry Cans, for liquid storage. Most parts produced on accumulator head machinery are single layer; however, specialized machinery is capable of producing parts with up to seven unique layers of plastic - these machines are used primarily to manufacture automotive gasoline tanks with barrier layers. |
| Plastic machines we provide .... |
Extrusion Blow Molding Machine Injection Blow Molding Machine PET Blow Molding Machine Injeciton Molding Machine Injection Stretch Blow Molding Machine |
| Applictions .... |
Chemicals : Pesticide bottles and industrial buckets, chemical buckets and other hollow blow-molded buckets. Cosmetics&Pharmaceuticals : Vaccine bottles, medicine bottles, medical bed boards, cosmetic boxes, jars and vaseline bottles and other plastic machinery products used in cosmetic and medical fields. House hold : Plastic empty blow-molded bottles, plastic containers, such as shower gel bottles, shampoo bottles, body lotion bottles, laundry detergent bottles, cleaning supplies bottles, hand sanitizer bottle, disinfectant bottle, alcohol disinfectant bottle etc. that are often used in daily life. Indoor & outdoor : Plastic products are widely used, such as plastic hollow flower pots, plastic watering cans, plastic pet houses, plastic cold storage boxes, plastic children's toys, plastic-bus chairs, plastic tables and chairs, plastic trash cans, plastic traffic cones, plastic life buoys, plastic floats , Plastic buoys, plastic mannequins, etc., plastic machinery products can be seen everywhere. Food & Beverage : The common applications of plastic products in the food and beverage industry are ketchup bottles, soy sauce bottles, honey bottles, mustard sauce bottles, milk bottles, yogurt bottles, juice bottles, alcohol bottle etc. Baby bottles are also common in plastic machinery in the beverage and food industry Applications. Lubrication : The most common applications for hollow extrusion blow molding machines are lubricating oil barrels, 1L 2L lubricating oil bottles, 5L 10L cans, 10L 20L 25L to 30L lubricating oil Jerry can, and even 60L ~ 250L large barrels. Automotive : The application of plastic products also accounts for a large part of automobile parts, such as plastic parts in automobile engines, plastic automobile safety stalks, plastic door handles, plastic car lamp housings, etc. |
#blow molding machine #Extrusion Blow Molding #Injection blow molding machine #PET blow molding machine # injection molding machine # blowing mould # plastic bottle making machine #plastic bottle mould #bottle machine #plastic machinery #blow molding mould #moulding machine # moulding mould #China blow molding machine #blow molding machine made in China
