Fully Automatic Reheat Stretch Blow Moulding Machine ( ZQ -B5000-2)
Fully Automatic Reheat Stretch Blow Moulding Machine - PET bottleMax: 5000ml, 2 Cavity, 1200-1500 Bottles/hour.ZQ-B series full-automatic pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has one to two cavities and the maximum capacity of the p......
Send Inquiry
Product Description

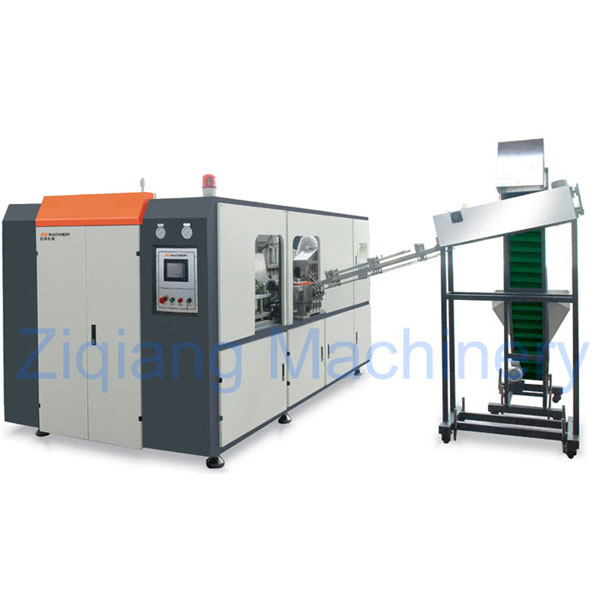

Fully Automatic Reheat Stretch Blow Moulding Machine - PET bottle
Max: 5000ml, 2 Cavity, 1200-1500 Bottles/hour.

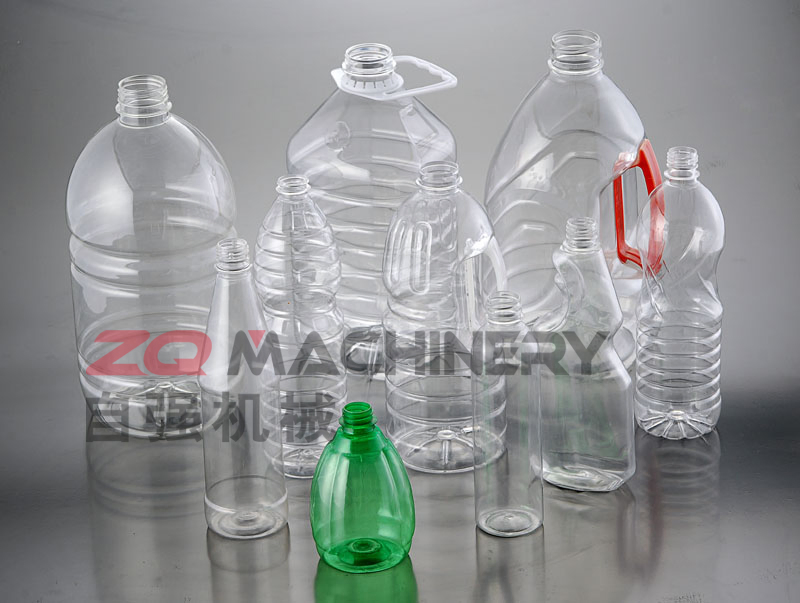

ZQ-B series full-automatic pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has one to two cavities and the maximum capacity of the products is 0.6L, 2.0L, 5L, 10L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
1). High Automatization
2). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
3). High Quanlity: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4). High Speed: 8000BPH(6-cavity).
5). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6). Low Cost: Low consumption of electricity, air and water.
7). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.
Fully Automatic Reheat Stretch Blow Moulding Machine - PET bottle,equipment information.
Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
Max: 5000ml, 2 Cavity, 1200-1500 Bottles/hour.
ZQ-B series full-automatic pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has one to two cavities and the maximum capacity of the products is 0.6L, 2.0L, 5L, 10L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
1). High Automatization
2). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
3). High Quanlity: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4). High Speed: 8000BPH(6-cavity).
5). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6). Low Cost: Low consumption of electricity, air and water.
7). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.
Fully Automatic Reheat Stretch Blow Moulding Machine - PET bottle,equipment information.
| TYPE | ITEM | ZQ-B5000-1 | ZQ-B5000-2 | ZQ-B5000-4 | ZQ-B10L-1 |
| CONTAINER | Number of cavity | 1cavities | 2cavities | 4cavities | 1cavities |
| Output | 650-800 pcs/hr | 1200-1500 pcs/hr | 2000-2200 pcs/hr | 400-500pcs/hr | |
| Max.container volume | 5L | 5L | 5L | 10L | |
| Max.neck diameter | 45-80mm | 45-80mm | 45-80mm | 45-80mm | |
| Max.container diameter | 180mm | 180mm | 180mm | 220mm | |
| Max.container height | 350mm | 350mm | 350mm | 400mm | |
| ELECTRICAL SYSTEM | Number of lamp | 24pcs | 36pcs | 60pcs | 36pcs |
| Max.heating power | 22kw | 36kw | 60kw | 36kw | |
| Installation power | 22kw | 60kw | 100kw | 40kw | |
| Actual power consumption | 18kw | 22kw | 36kw | 28kw | |
| AIR SYSTEM | Operatating pressure | 7-9kg/cm² | 7-9kg/cm² | 7-9kg/cm² | 7-9kg/cm² |
| Low pressure consuming | 1200Ltr/min | 1600Ltr/min | 2600Ltr/min | 1600Ltr/min | |
| Blowing pressure | 25-35kg/cm² | 25-35kg/cm² | 25-35kg/cm² | 25-35kg/cm² | |
| High pressure consuming | 1200-1600 Ltr/min | 2600-3000 Ltr/min | 4500-5000 Ltr/min | 1600-2000 Ltr/min | |
| CHILLER WATER | Operating pressure | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² |
| Temperatuer | 10ºC | 10ºC | 10ºC | 10ºC | |
| Consuming | 3600kcal/hr | 4600kcal/hr | 6600kcal/hr | 5600kcal/hr | |
| Flow rater | 20Ltr/min | 30Ltr/min | 45Ltr/min | 30Ltr/min | |
| MACHINE | Machine dimension | 3.0x2.1x2.1(m) | 4.3x2.1x2.1(m) | 5.6x2.1x2.1(m) | 4.3x2.0x2.0(m) |
| Machine weight | 2.3ton | 4.0ton | 5.5ton | 2.8ton |
Note: Custom production accepted. Any client idea tried.
