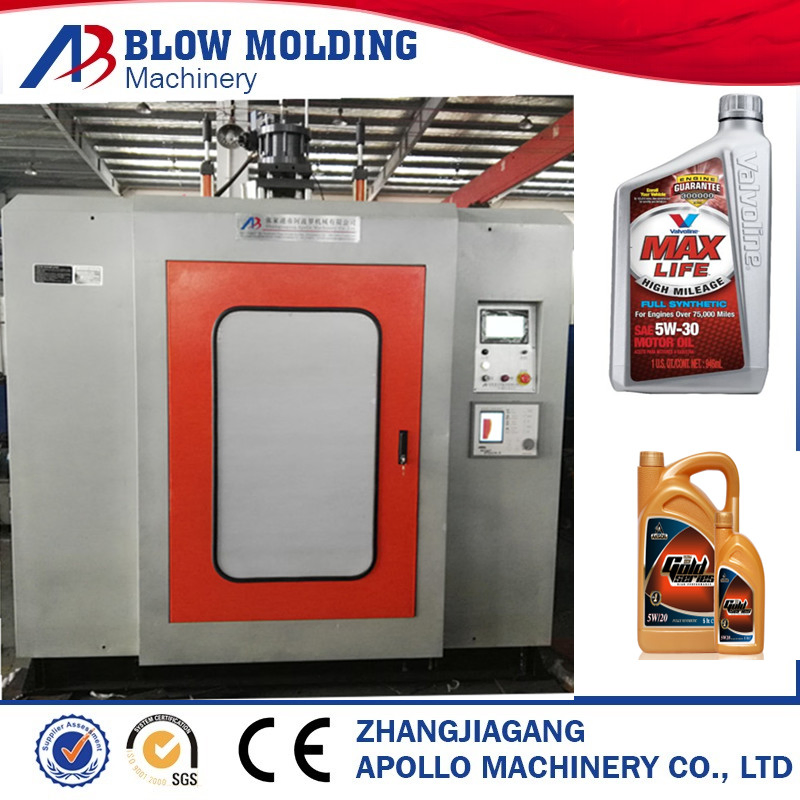

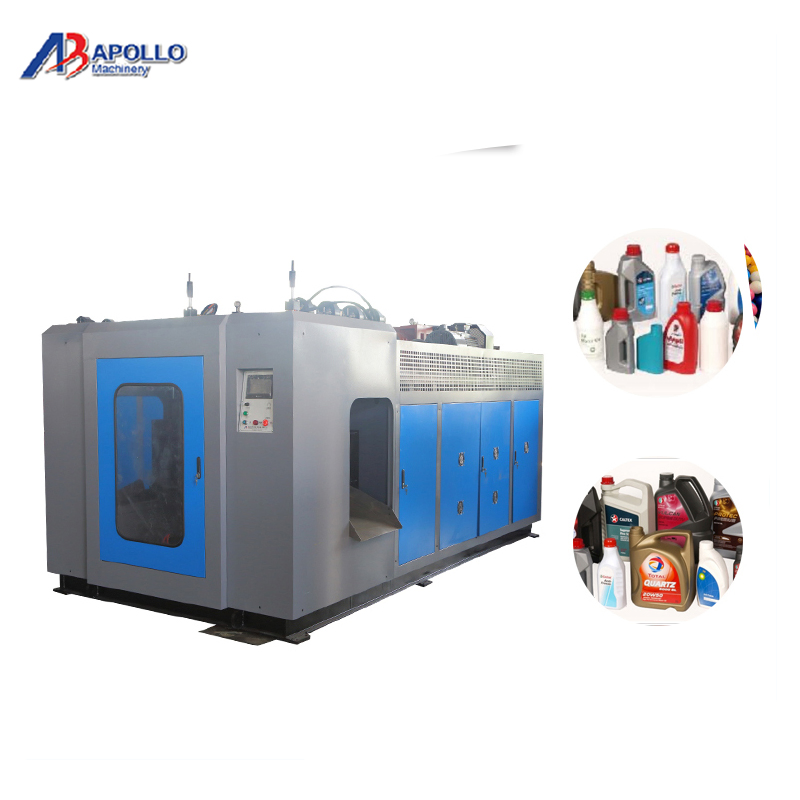

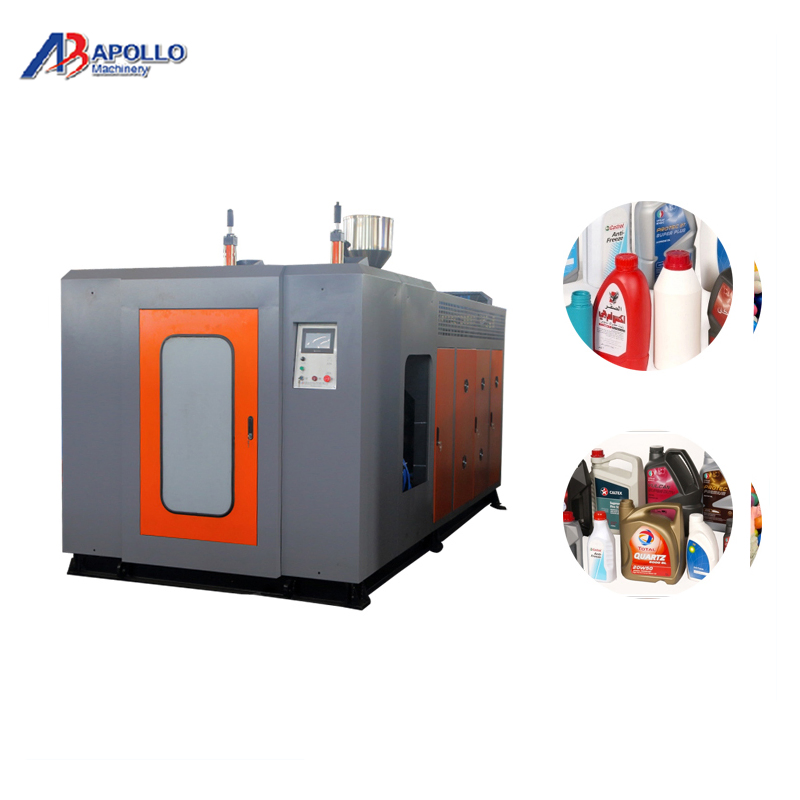

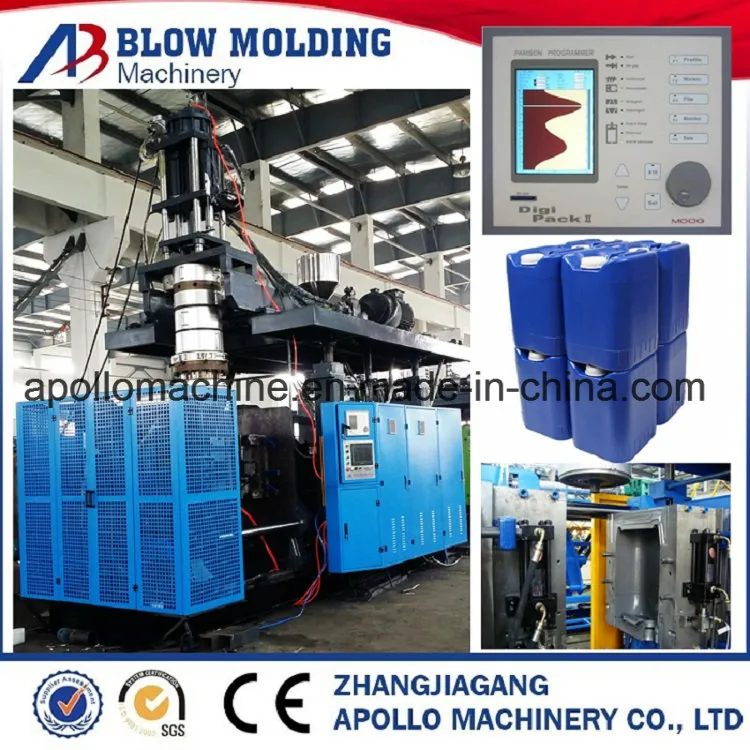

HDPE Plastic Drums Making Machine
CONFIGURATIONTEMPERATURE CONTROL MODULEMITSUBISHIJapanHYDRAULIC PUMPHAITEKETAIWANHYDRAULIC VALVEYUKENJAPANHYDRAULIC OIL SEALVALQUAJAPANINTERMEDIATE RELAYOMRONJAPANINVERTERDELTATAIWANPNEUMATIC VALVEAIRTACTAIWANHUMAN-MACHINE TOUCH SCREENRICHOTAIWANPNEUMATIC SWITCH & CONTACTORLGKOREAHYDRAULIC MOTOR......
Send Inquiry
Product Description
CONFIGURATION
TEMPERATURE CONTROL MODULEMITSUBISHIJapan
HYDRAULIC PUMPHAITEKETAIWAN
HYDRAULIC VALVEYUKENJAPAN
HYDRAULIC OIL SEALVALQUAJAPAN
INTERMEDIATE RELAYOMRONJAPAN
INVERTERDELTATAIWAN
PNEUMATIC VALVEAIRTACTAIWAN
HUMAN-MACHINE TOUCH SCREENRICHOTAIWAN
PNEUMATIC SWITCH & CONTACTORLGKOREA
HYDRAULIC MOTOR & SCREW MOTORENERGETIC-OXCHINA
PARAMETERS
SPECIFICATIONSUNITSBSM65I SERIERS
Max container capacityL5
Number of die headsSet1
Machine dimension (L*W*H)M3 *1.9 *2.4
Total weightTon3.5
CLAMPING UNIT
Clamping forceKN68
Platen opening strokemm150-500
Platen sizemm320*360
Max mould size (W*H)mm350*370/238*600
Mould thicknessmm153-500
POWER
Max driveKW32
Total powerKW32
Fan power for screwKW0.14*3
Air pressureMpa0.7
Air consumptionM3/min0.9
Average energy consumptionKW17
EXTRDER UNIT
Screw diameter mm65
Screw L/D ratioL/D24
Plasticizing capacityKg/hour70
Number of heating zoneZone3
Extruder heating powerKW13.8
Extruder driving powerKW15
DIE HEAD
Number of heating zoneZone3
Power of die heatingKW5.7
Max die pin diametermm135
Center distance of double diemm160
Center distance of tetra-die mm85
PRODUCT COVERAGE 0-5L
Suitable for:
Detergents bottles, liquid soap bottles, shampoo cosmetic bottles, chemical bottles, food packaging jars, jerry cans, oil bottles, milk bottles, pesticide bottles, kettles, water gallons, tanks, kettles, balls, toys ,daily household products so on.
The component of the machine:
| Electronic Parts | |
| Name | Trader |
| Micro Computer Control System | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Intermediate Relay | OMRON |
| Contactor | Schneider from France |
| Electric Motor | Simens Bede |
| Servosystem | Delta / MEGMEET |
| Power supply | TAIWAN MEANWELL |
| Transducer | ABB |
| Hydraulic Parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| Air Control System | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
