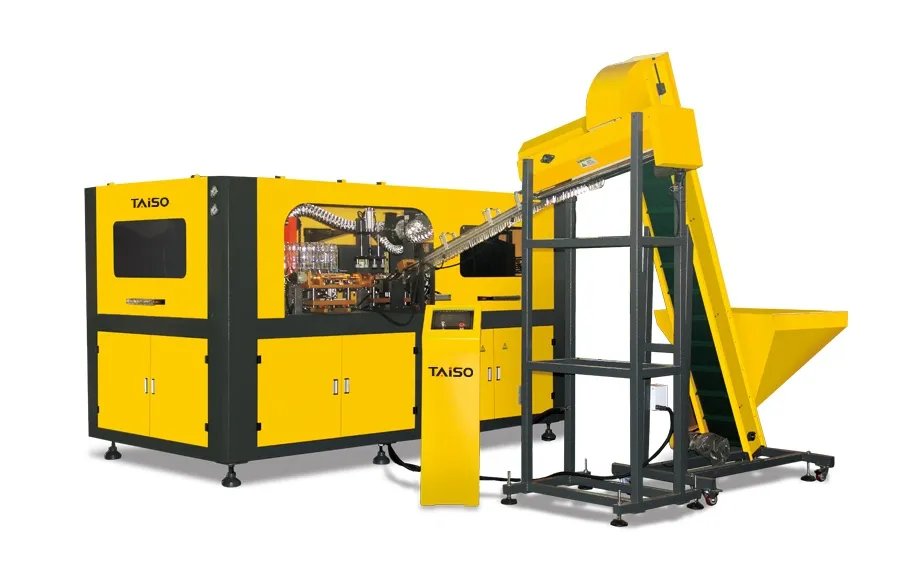

High Quality of Automatic Blow/Blowing Mould/Molding Machinery/Machine with Servo Motors
FeaturesApply to 100ml-0.6L mineral water, carbonated drink, cooking oil, wine, medicine, cosmetics bottles etc-Servo driving system, fast, stable and energy saving, optional servo clamping, preform loading and stretching system-Adopt pressurized plate to solve the mold swelling and big mold line pr......
Send Inquiry
Product Description
Features
Apply to 100ml-0.6L mineral water, carbonated drink, cooking oil, wine, medicine, cosmetics bottles etc

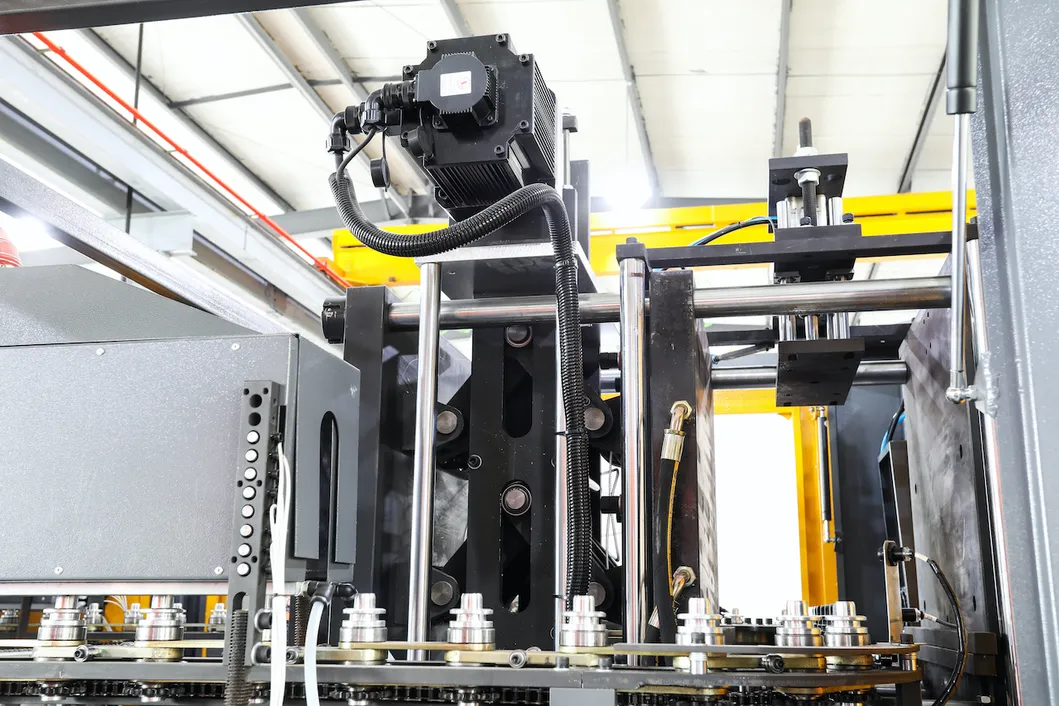

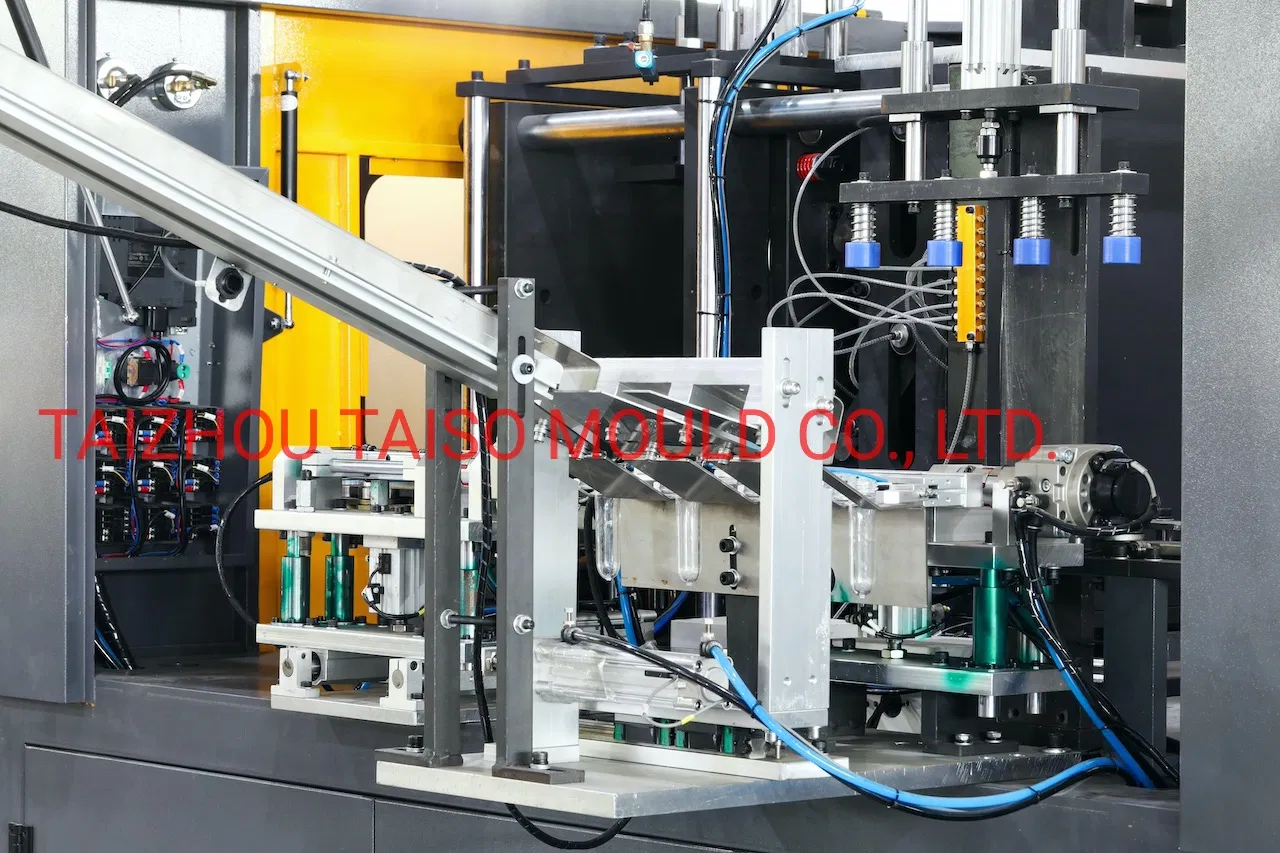

-Servo driving system, fast, stable and energy saving, optional servo clamping, preform loading and
stretching system
-Adopt pressurized plate to solve the mold swelling and big mold line problem

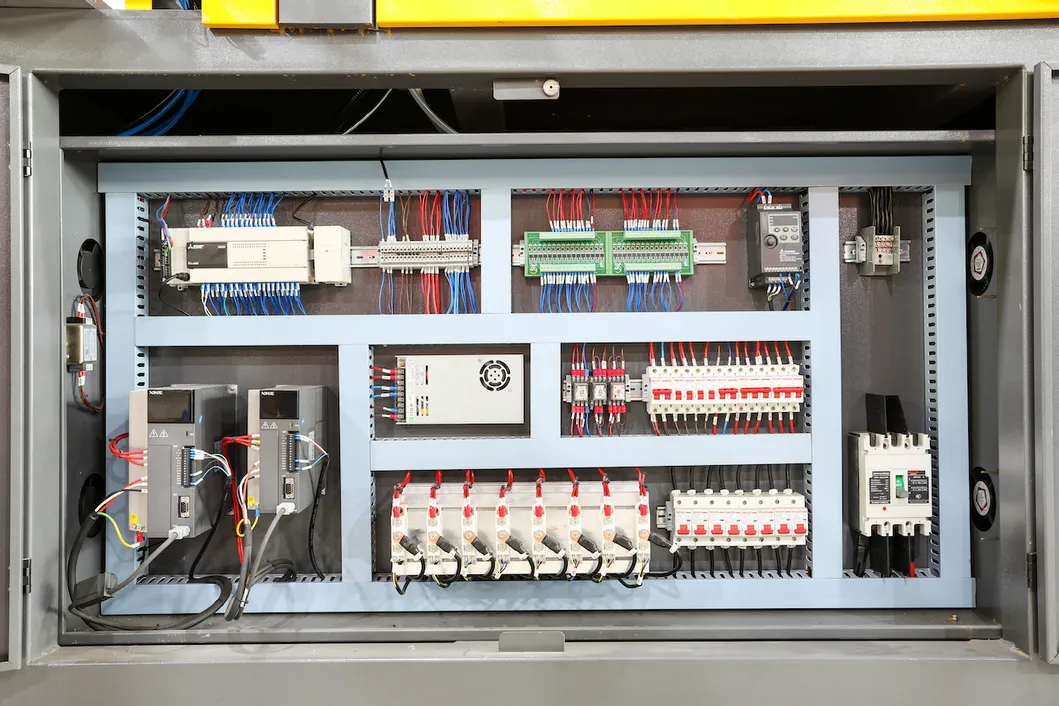

-Adpot human computer interface, PLC will automaticlly feedback fault point, easier maintain

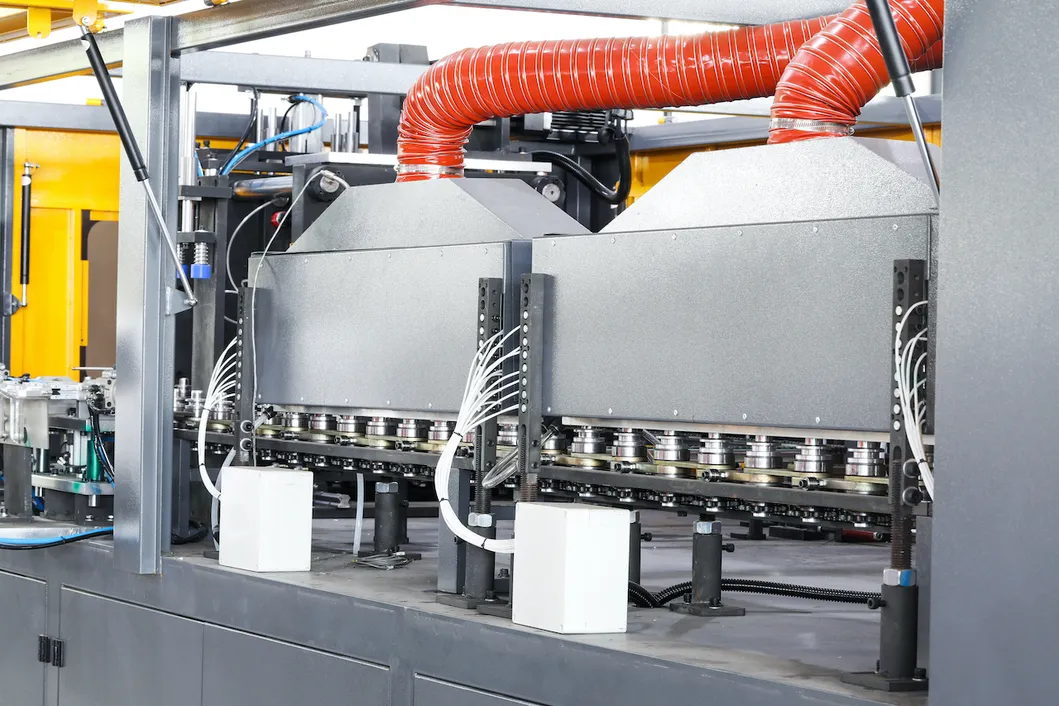

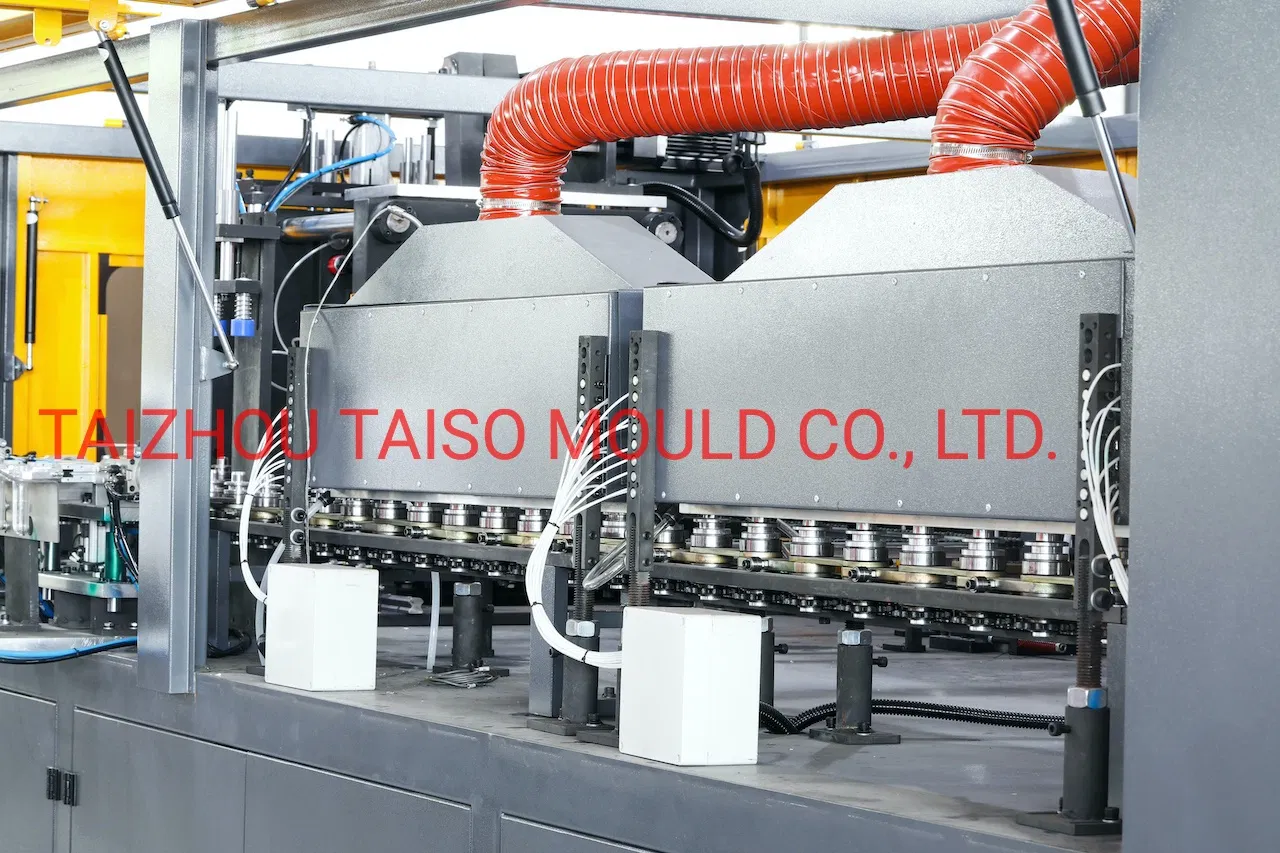

-Adjustable lamps design makes the preform heating in the best situation
-Automatic oil adding device, can avoid the pollution risk of manual adding
Technique Parameter of blow molding machine:
Apply to 100ml-0.6L mineral water, carbonated drink, cooking oil, wine, medicine, cosmetics bottles etc
-Servo driving system, fast, stable and energy saving, optional servo clamping, preform loading and
stretching system
-Adopt pressurized plate to solve the mold swelling and big mold line problem
-Adpot human computer interface, PLC will automaticlly feedback fault point, easier maintain
-Adjustable lamps design makes the preform heating in the best situation
-Automatic oil adding device, can avoid the pollution risk of manual adding
Technique Parameter of blow molding machine:
| ITEMS | Unit | TS-A2-2L | TS-A4-06L | TS-A4-2L | TS-A6-06L | TS-A6-2L | TS-E6 (All servo) | TS-E8 (All servo) |
| Number of cavities | cavities | 2 | 4 | 4 | 6 | 6 | 6 | 8 |
| Max. volume | L | 2 | 0.6 | 2 | 0.6 | 2 | 0.6 | 0.6 |
| Neck size | mm | 18-38 | 18-38 | 18-38 | 18-38 | 18-38 | 18-38 | 18-38 |
| Max. Bottle dia. | mm | 103 | 68 | 103 | 68 | 103 | 68 | 68 |
| Max. Bottle height | mm | 340 | 240 | 340 | 240 | 340 | 240 | 240 |
| Theoretical output | bph | 1800-2400 | 4500-5000 | 3800-4500 | 6500-7000 | 5000-5500 | 8000-8500 | 10000-11000 |
| Rated power | kw | 35 | 35 | 46 | 72 | 56 | 76 | 100 |
| Power consumption | kw | 12-20 | 15-20 | 20-25 | 25-30 | 30-35 | 28-35 | 45-52 |
| Main machine size | m | 2.7*1.8*2.1 | 3.3*1.85*2 | 4.5*1.9*2.1 | 4.5*1.9*2 | 5.3*2.1*2.1 | 4.5*1.9*2.3 | 5.5*2.15*2.3 |
| Preform loader size | m | 1.9*1.2*2.4 | 1.9*1.2*2.4 | 1.9*1.2*2.4 | 2*1.3*2.4 | 2*1.3*2.4 | 2*1.3*2.4 | 2*1.3*2.4 |
| Weight | kgs | 3500 | 4200 | 5200 | 5000 | 5800 | 5000 | 6200 |
