High Speed 5 Liter Plastic Pet Bottle Making Machine Price by CE
High Speed 5 Liter Plastic Pet Bottle Making Machine PriceZQ-B5000-4 is a two step fully automatic blow moulding machine specially designed for 5 liter edible oil bottleProduction, best choice for productions with big volume, high speed and full automation. It has 4 cavities with up to 5 liters for ......
Send Inquiry
Product Description
High Speed 5 Liter Plastic Pet Bottle Making Machine Price

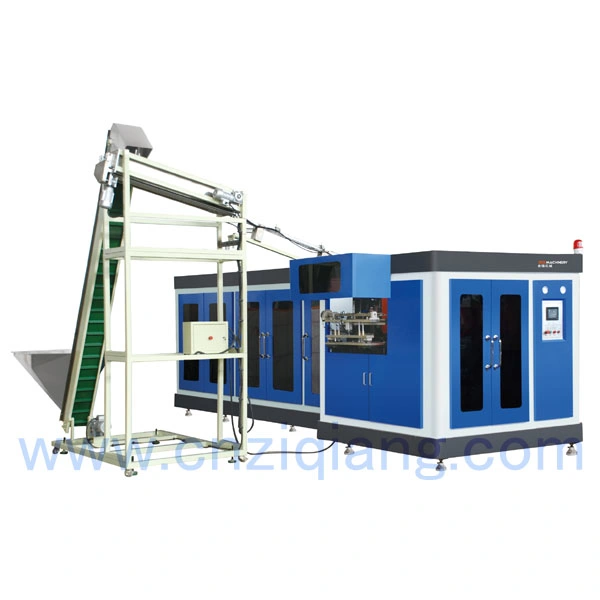

ZQ-B5000-4 is a two step fully automatic blow moulding machine specially designed for 5 liter edible oil bottle
Production, best choice for productions with big volume, high speed and full automation. It has 4 cavities with up to 5 liters for each cavity, suitable as welll for other bottles above 2 liters, like carbonated drinks, low-middle tempeprature juice beverage, mineral water and pestcide, etc.
High Speed 5 Liter Plastic Pet Bottle Making Machine Pricee, Advantages
1). High Automatization
2). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
3). High Quanlity: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4). High Speed: 2800-3500BPH(4-cavity).
5). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6). Low Cost: Low consumption of electricity, air and water.
7). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.
High Speed 5 Liter Plastic Pet Bottle Making Machine Price,equipment information.
Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
ZQ-B5000-4 is a two step fully automatic blow moulding machine specially designed for 5 liter edible oil bottle
Production, best choice for productions with big volume, high speed and full automation. It has 4 cavities with up to 5 liters for each cavity, suitable as welll for other bottles above 2 liters, like carbonated drinks, low-middle tempeprature juice beverage, mineral water and pestcide, etc.
High Speed 5 Liter Plastic Pet Bottle Making Machine Pricee, Advantages
1). High Automatization
2). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
3). High Quanlity: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4). High Speed: 2800-3500BPH(4-cavity).
5). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6). Low Cost: Low consumption of electricity, air and water.
7). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.
High Speed 5 Liter Plastic Pet Bottle Making Machine Price,equipment information.
| TYPE | ITEM | ZQ-B5000-4 |
| CONTAINER | Number of cavity | 4cavities |
| Output | 2800-3500 pcs/hr | |
| Max.container volume | 5L | |
| Max.neck diameter | 45-80mm | |
| Max.container diameter | 180mm | |
| Max.container height | 350mm | |
| ELECTRICAL SYSTEM | Number of lamp | 60pcs |
| Max.heating power | 60kw | |
| Installation power | 100kw | |
| Actual power consumption | 36kw | |
| AIR SYSTEM | Operatating pressure | 7-9kg/cm² |
| Low pressure consuming | 2600Ltr/min | |
| Blowing pressure | 25-35kg/cm² | |
| High pressure consuming | 4500-5000 Ltr/min | |
| CHILLER WATER | Operating pressure | 5-6 kg/cm² |
| Temperatuer | 10ºC | |
| Consuming | 6600kcal/hr | |
| Flow rater | 45Ltr/min | |
| MACHINE | Machine dimension | 5.6x2.1x2.1(m) |
| Machine weight | 5.5ton |
Note: Custom production accepted. Any client idea tried.
