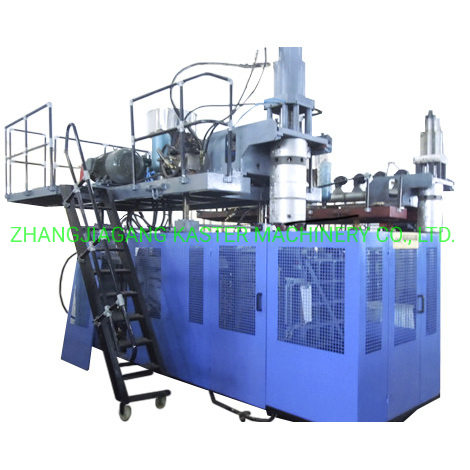

Jerrycan Extrusion Blow Moulding Machine
1. Specifications for Drum/Jerrycan Extrusion Blow Molding Machine:1. Screw diameter: 90mm2. L/D ratio: 30/13. Max capacity: 60LDry cycle: 180pc/hClamping force: 320KNPlaten open stroke: 450-1050mmPlasten size: 900*880mmMax platen size: 900*880mmOil Pump Power: 15kwExtrusion motor: 37KWPlasticizing ......
Send Inquiry
Product Description
1. Specifications for Drum/Jerrycan Extrusion Blow Molding Machine:
1. Screw diameter: 90mm
2. L/D ratio: 30/1
3. Max capacity: 60L
Dry cycle: 180pc/h
Clamping force: 320KN
Platen open stroke: 450-1050mm
Plasten size: 900*880mm
Max platen size: 900*880mm
Oil Pump Power: 15kw
Extrusion motor: 37KW
Plasticizing capacity: 140kg/h
Heating zone: 4 zones
Extrusion heating power: 21.3kw
Power of Die heating: 21.4kw
Max die pin diameter: 350mm
Accumulator head capacity: 6.6L
2. Advantages of this Drum/Jerrycan Extrusion Blow Molding Machine:
1). Adopt energy-saving system which can increase the 18% efficiency.
2). The capacity is about 55pcs/h which is15% higher than some others.
3). Power consumption is about 15% lower.
4). All process are well computerized which makes the operation more conenient.
5). Imported hydraulic components which gurantee the stable working for long time.
3. Main parameters for this Drum/Jerrycan Extrusion Blow Molding Machine:
1. Screw diameter: 90mm
2. L/D ratio: 30/1
3. Max capacity: 60L
Dry cycle: 180pc/h
Clamping force: 320KN
Platen open stroke: 450-1050mm
Plasten size: 900*880mm
Max platen size: 900*880mm
Oil Pump Power: 15kw
Extrusion motor: 37KW
Plasticizing capacity: 140kg/h
Heating zone: 4 zones
Extrusion heating power: 21.3kw
Power of Die heating: 21.4kw
Max die pin diameter: 350mm
Accumulator head capacity: 6.6L
2. Advantages of this Drum/Jerrycan Extrusion Blow Molding Machine:
1). Adopt energy-saving system which can increase the 18% efficiency.
2). The capacity is about 55pcs/h which is15% higher than some others.
3). Power consumption is about 15% lower.
4). All process are well computerized which makes the operation more conenient.
5). Imported hydraulic components which gurantee the stable working for long time.
3. Main parameters for this Drum/Jerrycan Extrusion Blow Molding Machine:
| extruder | ||
| 1 | Screw diameter | 90mm |
| 2 | L/D ratio | 24:1 |
| 3 | Screw speed | 50-85r.p.m. |
| 4 | Drive motor | AC 37Kw 3 Phase asynchronism motor |
| 5 | Inverter drive | America Amerson |
| 6 | Heating zone with cooling fan | 4 zones |
| 7 | Output/Throughout | 100(HDPE particle) |
| 8 | Heating capacity | 21.4KW |
| 9 | Vertical adjustment of head | 400mm |
| 10 | Forward/Backward adjustment of head | 400mm |
| 11 | Groove feed barrel cylinder | No |
| 12 | Gear box | Hard gear decelerator |
| 13 | Ladder and safety rails | fixed |

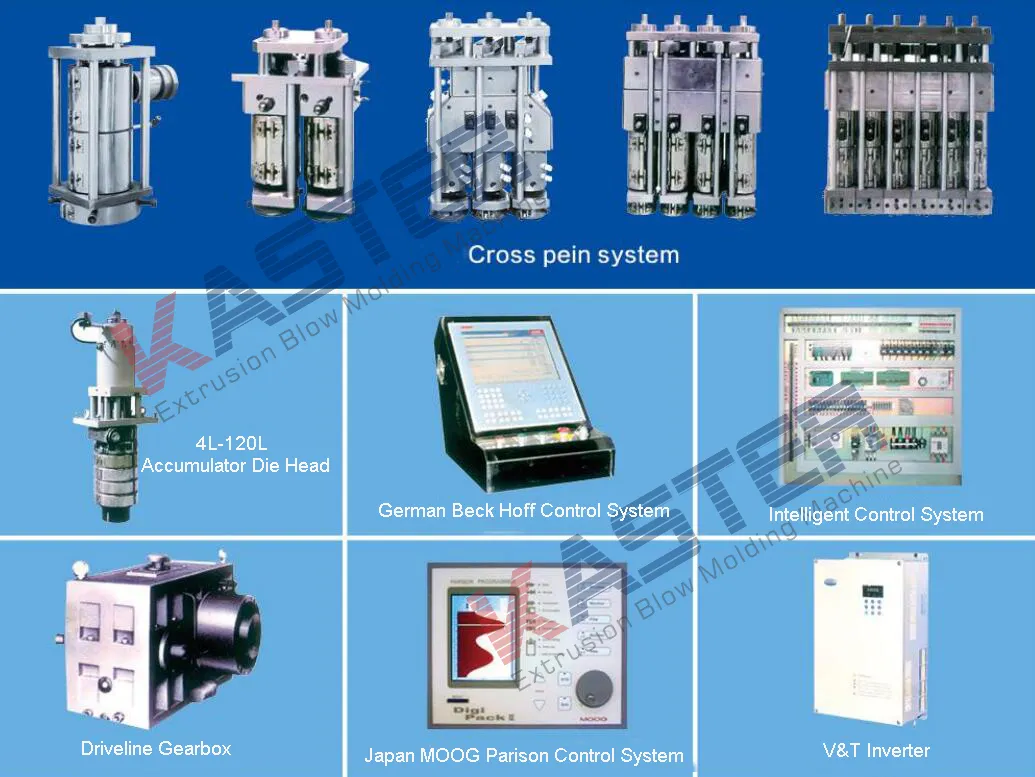

| DIE HEAD | ||
| 1 | Accumulator capacity | 5L(3.75kgHDPE) |
| 2 | Design | First in, first out |
| 3 | Heating zone | 4 zones |
| 4 | Heating capacity | 21.3kw |
| 5 | Max die$pin diameter | 350mm |
| 6 | Die head axis with pre-blow | 80mm |
| 7 | Accumulator push-out stroke measurement | Transducer Italy Gefran |
| 8 | Injection pressure | 12Mpa |
| 9 | Extruder stop | HAVE |
| CLAMPING UNIT | ||
| 1 | Tie bar | Two tie bar |
| 2 | Platen size | 880(W)X900(H) |
| 3 | Length of mold | 410-510mm |
| 4 | Clamping force | 230KN |
| 5 | Close/Open stroke | 400-1050mm |
| 6 | size of mold | 720×1200mm |
| 7 | Clamping stroke measurement | Proximal sensor TAIWAN RIKO |
| 8 | Hydraulic valve | YUKEN |
| 9 | Number of hydraulic cylinder | 1 |
| 10 | High pressure | 14mpa |
| 11 | Support parts for platen movement | Guide |
| HYDRAULIC SYSTEM | ||
| 1 | Drive motor | AC 11Kw 3 Phase asynchronism motor |
| 2 | Hydraulic valve | YUKEN |
| 3 | Hydraulic pump | Taiwan |
| 4 | Connector\Tuber | Japan PIONEER |
| 5 | Seal | Japan VALQUA |
| 6 | Oil tank capacity | 400L |
| 7 | Operating pressure | 14mpa |
| 8 | Cooling water for oil | fixed |
| 9 | Control of oil level & temperature | Checking oil temperature and abnormal alert be observed dipstick |
