              Large Blow Molding Machine, Suitable for Tank Canoeing IBC and So on

              Performance and advantages·Suitable for producing different kinds of safety barrel,traffic divided blocks pallet desktop float and Kayak. ·Optional bottom sealing,product eject,core-pulling movement elements. ·Adopt high output extrusion system,accumulating die head.......

              Send Inquiry

              Product Description

              Performance and advantages

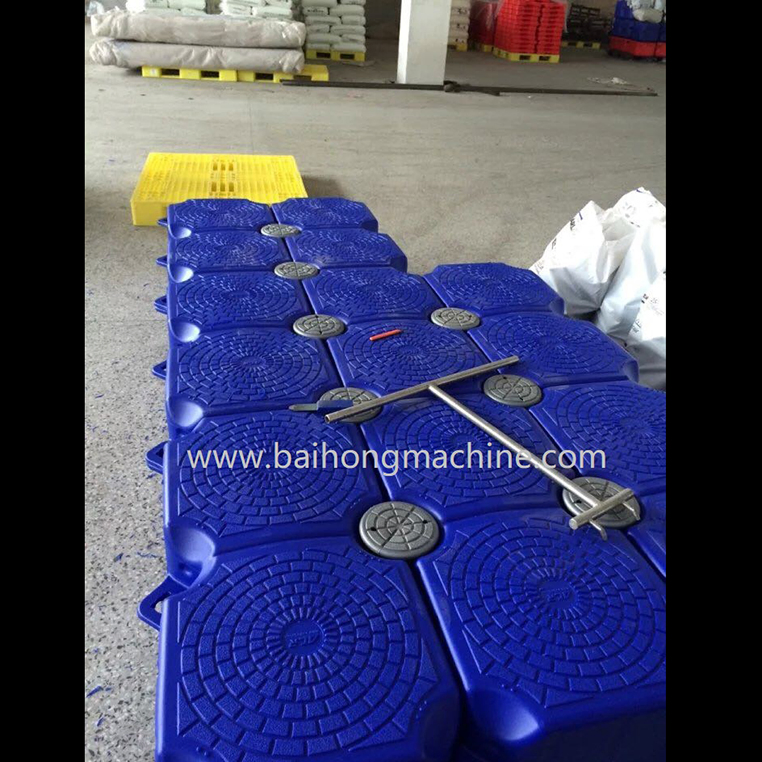

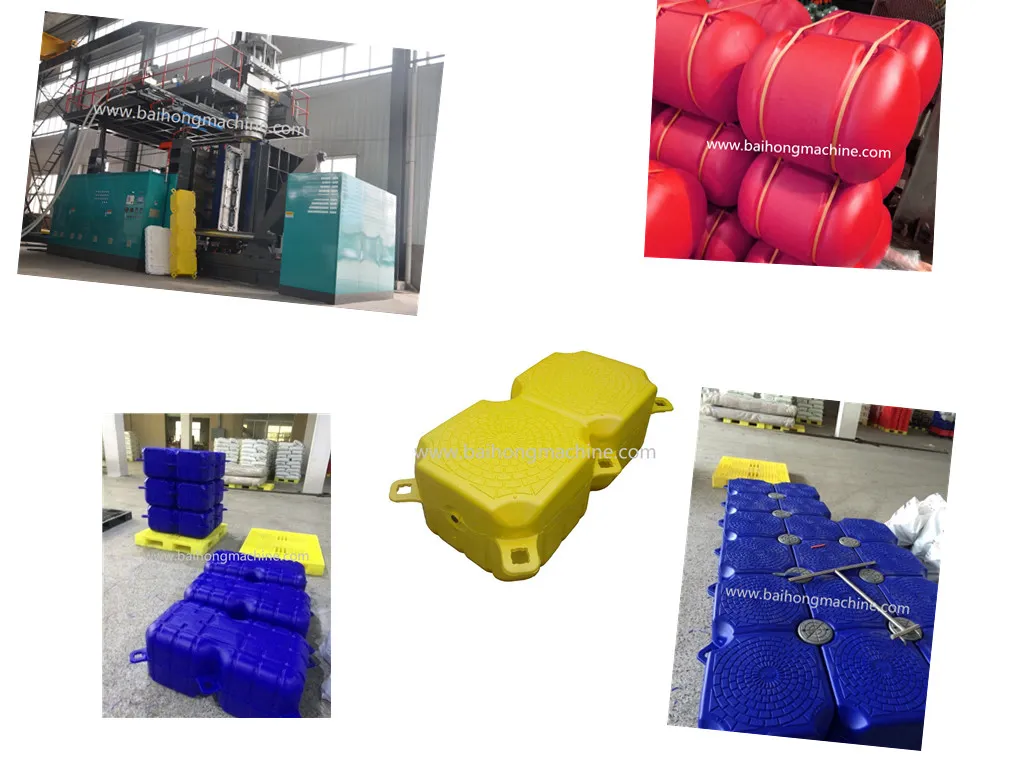

              ·Suitable for producing different kinds of safety barrel,traffic divided blocks pallet desktop float and Kayak.
              ·Optional bottom sealing,product eject,core-pulling movement elements.
              ·Adopt high output extrusion system,accumulating die head.
              ·Optional Hydraulic Servo control system.

              Large Blow Molding Machine, Suitable for Tank Canoeing IBC and So on

              Technical parrameters
              ModelUnitBM2000T
              Max product volumeL2000
              Main screw diametermm100/100/100
              Max plasticizing capacity(PE)kg/h550
              Screw Speedrpm10-60
              Die head structureAccumulating type
              Accumulating volumekg95
              Heating power of die headKw100
              Claming forceKN1800
              Platen size W*Hmm1800*2300
              space between platenmm1000-3100
              Max moild sizemm1500*2400
              Machine dimension L*W*Hm12*4.5*7
              Machine weightT60
              Total powerKw350
              Aversge power ConsumptionKw250
              Note: Informations listed above are for reference only, the production line can be designed by customer's requirements.
