New 30L (Double station & Single head & Toggle clamping & servo motor & High buffer movement cylinder) Blow Moulding Machine / Blow Molding Machine
BRIEF INTRODUCTION------------ZHANGJIAGANG KAIDOO PLASTIC TECHNOLOGY CO.,LTDKaidoo Technology is located in the beautiful Riverside City - Zhangjiagang. The company use European and American technology, supply automatic blow molding machines,(suitable for the production of 5ML-3000L plastic bottles,......
Send Inquiry
Product Description
BRIEF INTRODUCTION
------------ZHANGJIAGANG KAIDOO PLASTIC TECHNOLOGY CO.,LTD

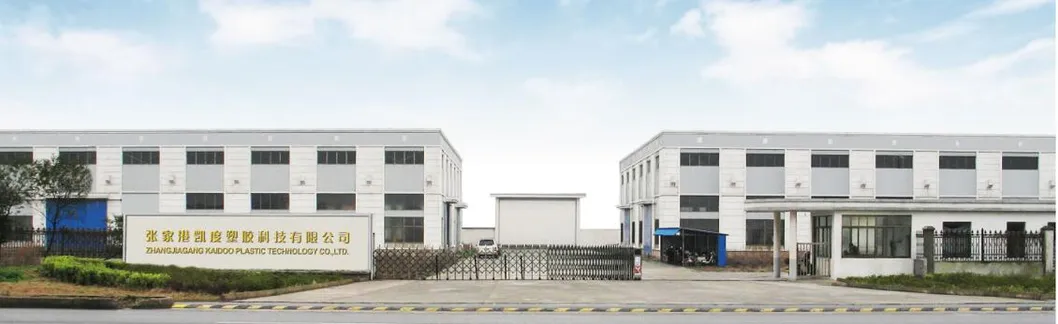

Kaidoo Technology is located in the beautiful Riverside City - Zhangjiagang. The company use European and American technology, supply automatic blow molding machines,(suitable for the production of 5ML-3000L plastic bottles, plastic buckets, drum,tool box, toys, fuel tanks,table panel,plastic pallet,automobile part and other products), and supply Blow mould ,Injection mould,Auxiliary equipment. The company has a a large number of outstanding skilled workers and engineers with more than 10 years of design and manufacture of various hollow equipment and maintenance services experience.
We firmly believe that only the innovation can promote development, and only through cooperation we can find win-win solution. We are sincerely looking forward to working with you full cooperation!
ENTREPRISE CULTURE
Kaidoo Technology persisted "the talented as well as the staff is the first resources" idea,and "the science and technology is the development of the enterprise source power, the innovation is enterprise's soul" the management idea,in the staff the positive initiative "the unity cooperation,grows together" the team idea ;The initiative " the good faith, is highly effective, is satisfied" the service idea,carries out "the autonomy from, asks really to strive for realism" the staff personal integrity. Through a serious of enterprise culture construction, establishes one to have the cohesive force and the team cooperation spirit, the study high quality staff troop.

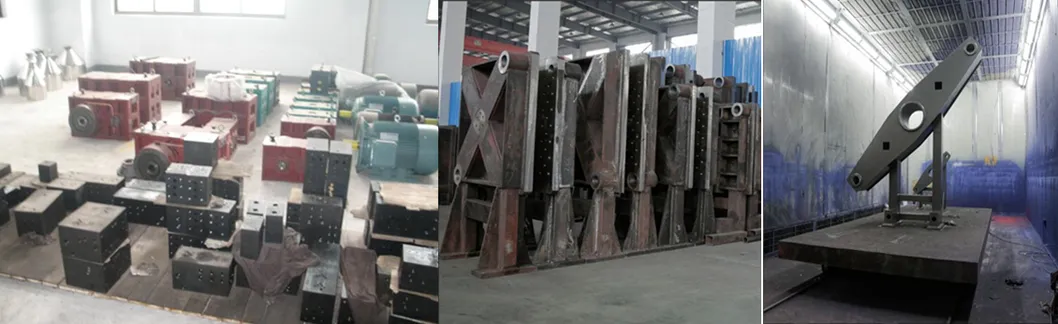

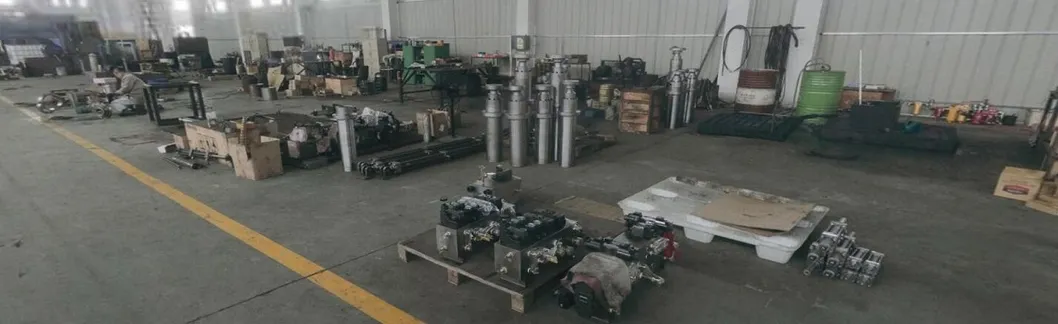

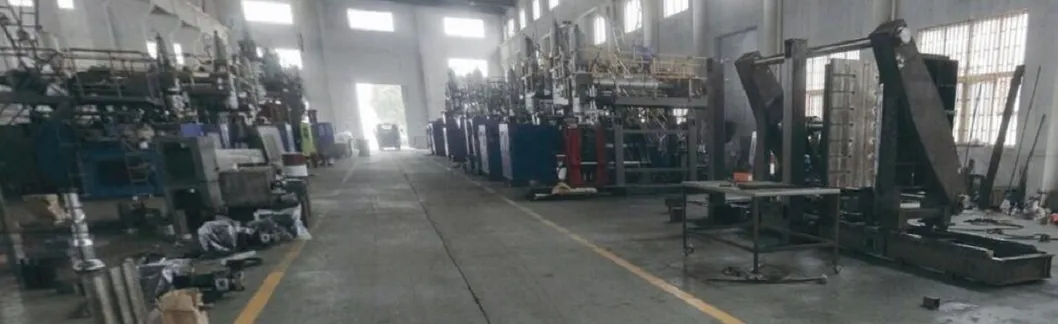

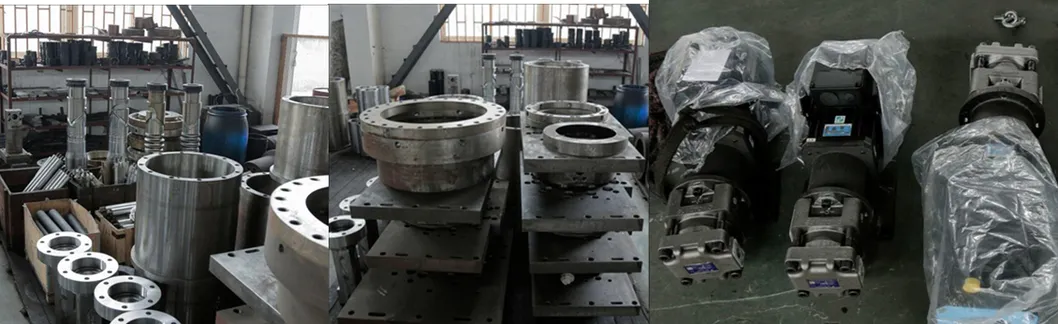

WORKSHOP
MACHINE SPECIFICATION

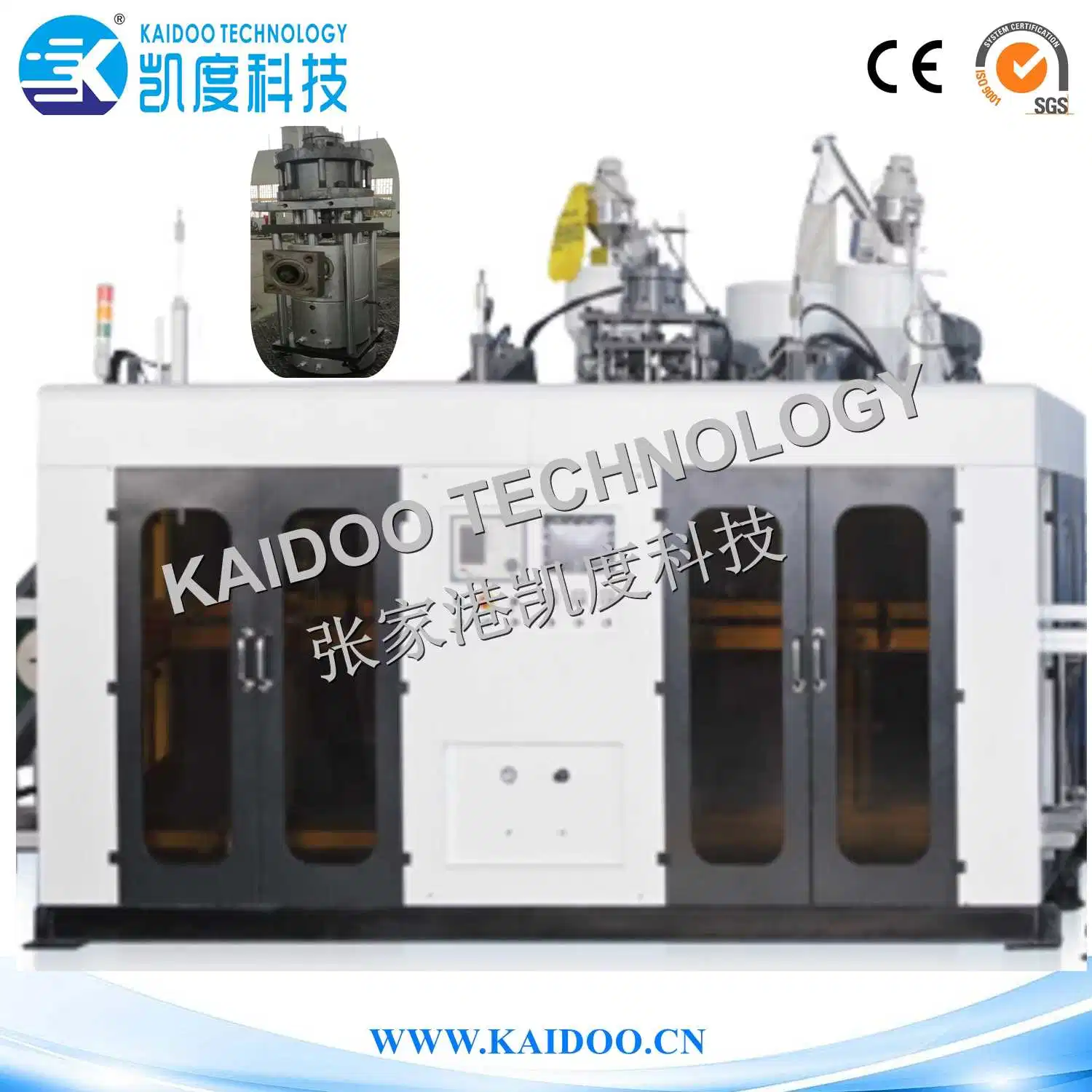

| MODEL | KDBS100-1 (Double station & Single head & Toggle clamping & servo motor & High buffer moverment cylinder ) |

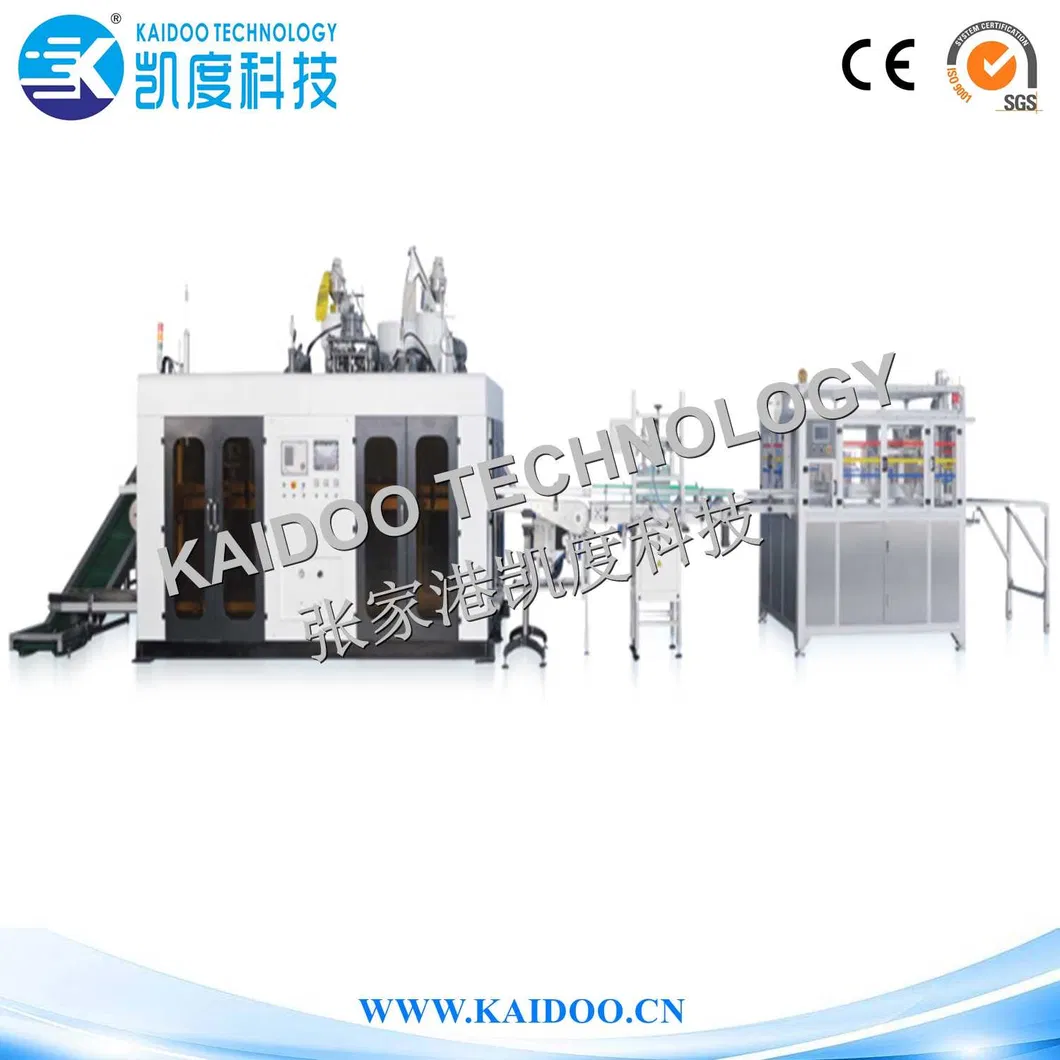

| The NEW series is Double station mold-moving machine, high efficiency and stability, suitable for making max 30L containers in small batch production. It adopts central-incoming extrusion die head which can be divided into single layer, double layer and transparent line type. ---Adopt toggle-clamping structure ; Even & strong clamping force and big mould-fixing plate ; ---Adopt high buffer movement hydraulic cylinder; High-speed and stable running ; ---Adopt servo motor hydraulic system ; High speed / Stability / Energy saving / Lower oil temperature; | |
 | |
  |
| Specification | Technical Parameter | |
| Machine model | KDBS100-1 | |
| Material | PE,PP | |

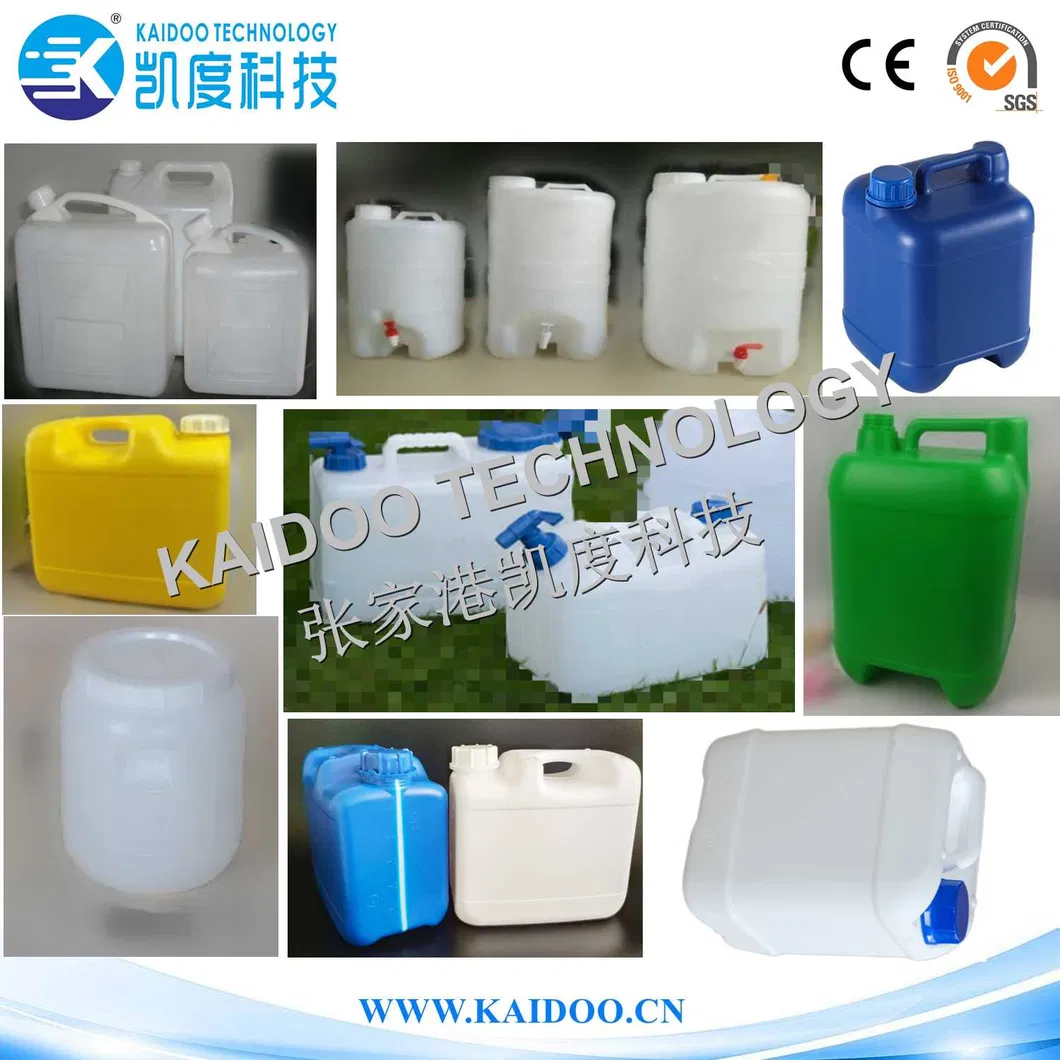

| Max container capacity | 30Liter | |
| Machine Dimension (LxWXH) | 4.9 x4.0x3.2 m | |
| Machine weight | 18.5T | |
| Clamping Unit | ||
| Mould platen size (WxH) | 600x650mm | |
| Platen opening stroke | 460-960mm | |
| Max mould size (WxH) | 610x660mm | |
| Clamping force | 180KN | |
| Power | ||
| Oil pump driving power | 15KW | |
| Max driving total power | 60KW | |
| Blow pressure | 0.7Mpa | |
| Air consumption | 0.8M3/min | |
| Cooling water pressure | 0.3Mpa | |
| Water consumption | 90L/min | |
| Average energy consumption | 45kw | |
| Extruder unit | ||
| Screw diameter | 100 | |
| Screw L/D ratio | 24:1 | |
| Melting capacity for HDPE | 150 kg/hour | |
| Number of heating zone | 4 zone | |
| Screw heating power | 25 kw | |
| Extruder motor power | 45 kw | |

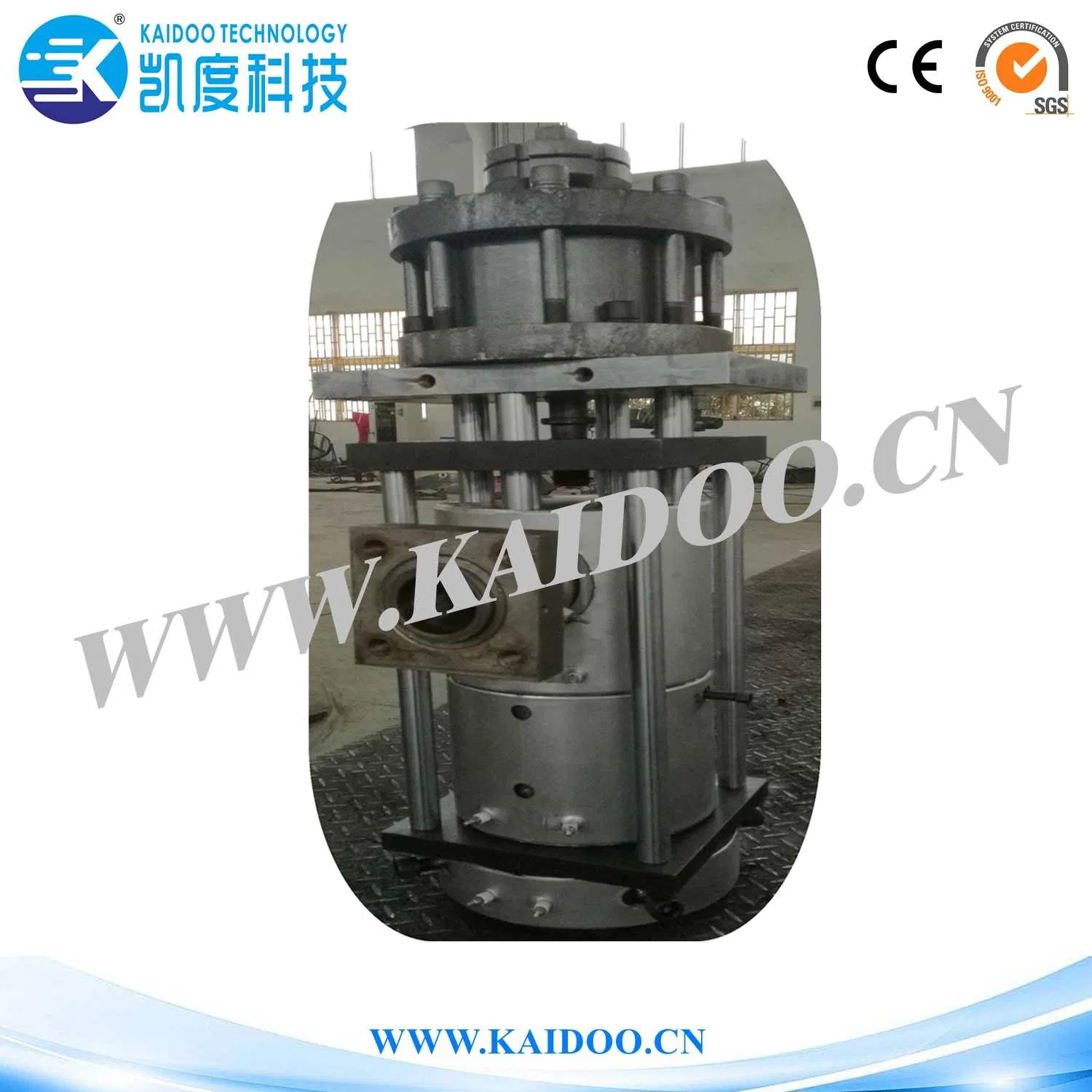

| Die head (single head) | ||
| Number of heating zone for single die head | 3 zone | |
| Heating power for single die head | 10KW | |
| Max die-pin diameter | 280mm | |
