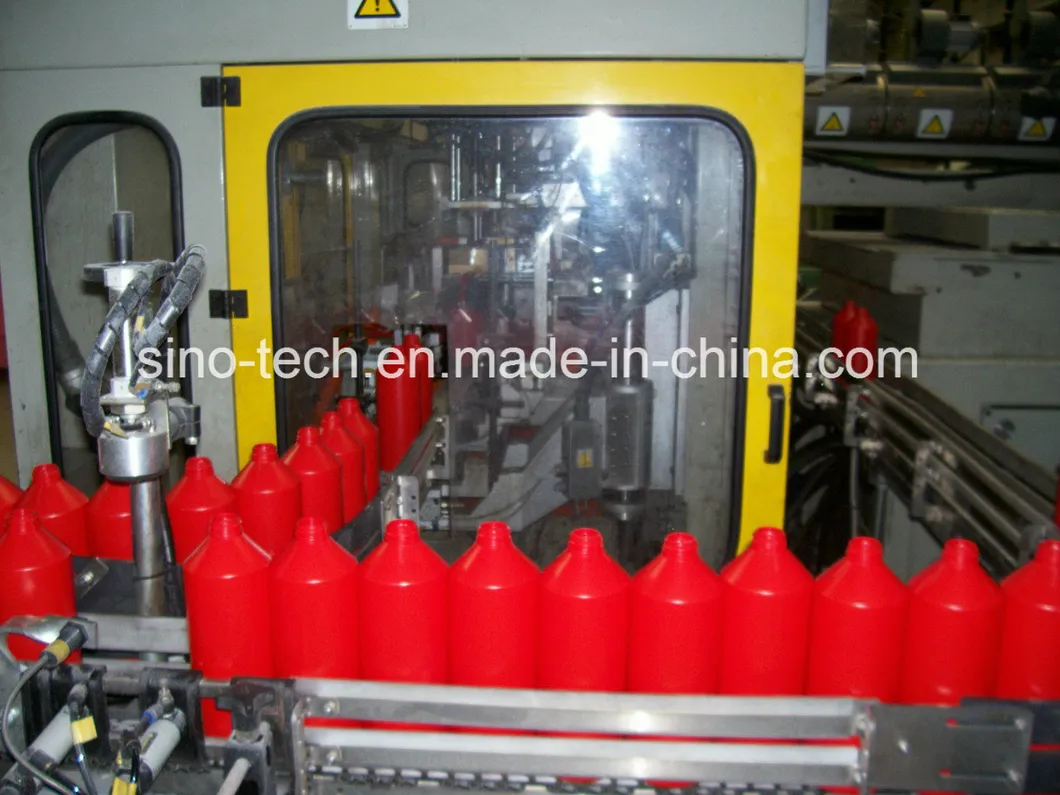

Plastic Bottle Automatic Extrusion Blow Molding Machine - Factory Price Good Quality
Plastic Bottle Automatic Extrusion Blow Molding Machine - Factory Price Good QualityHigh Speed Milk Bottles Blow making Machine (ST-FA)ST-FA series blow molding machine is with the features of low cost, energy save and high quality. Suitable for oil bottles, shampoo bottles, chemical bottles, milk ......
Send Inquiry
Product Description
Plastic Bottle Automatic Extrusion Blow Molding Machine - Factory Price Good Quality

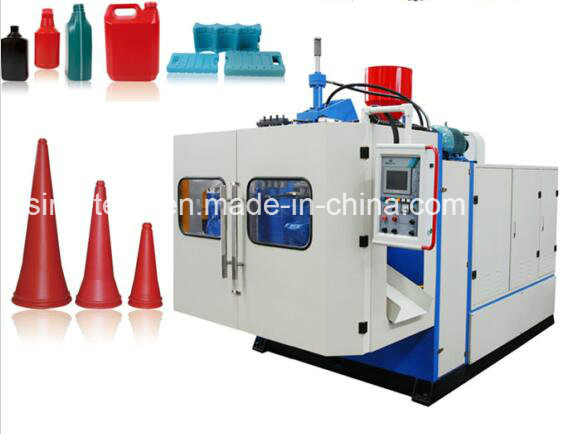

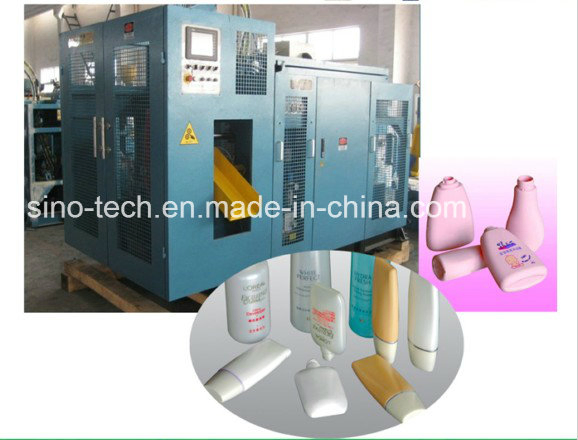

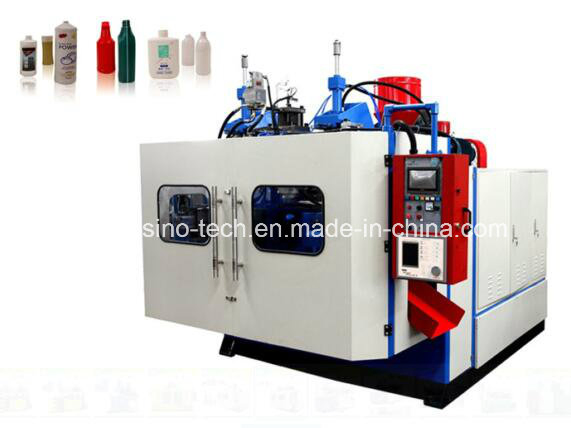

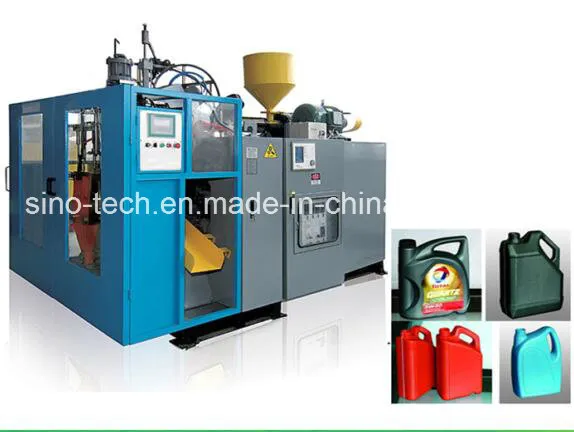

High Speed Milk Bottles Blow making Machine (ST-FA)
ST-FA series blow molding machine is with the features of low cost, energy save and high quality. Suitable for oil bottles, shampoo bottles, chemical bottles, milk bottles and related product not over 5L. Adopt high quality mico computer PLC controler and temperature controler from mitisubishi japane to ensure the good funciton of the mico system equip with sliencer and oiling system to reduce noise and friction.
Machine model: ST-FA (double station with single head)
Production capacity: 150-180PCS per hour
Suitable material: PP, PE, HDPE and etc.
Max. Products volume: 5L
Screw diameter: Φ 70mm l/d=24

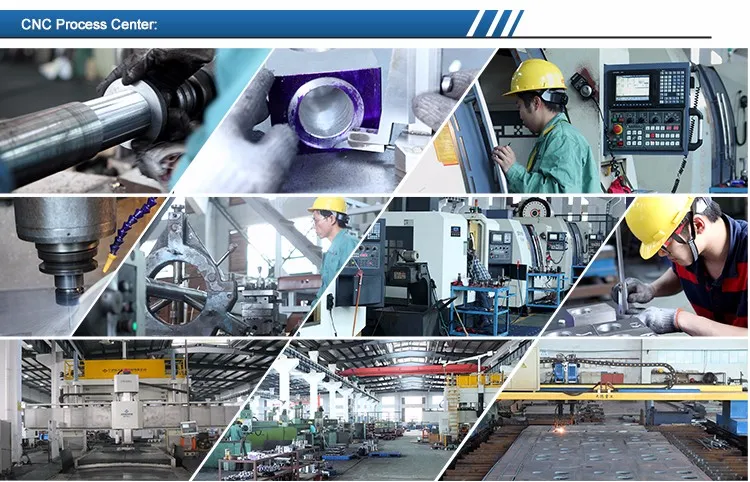

Our company
Why choose us
Any question,please call me.
MOB&waspp: +8613773240086
High Speed Milk Bottles Blow making Machine (ST-FA)
ST-FA series blow molding machine is with the features of low cost, energy save and high quality. Suitable for oil bottles, shampoo bottles, chemical bottles, milk bottles and related product not over 5L. Adopt high quality mico computer PLC controler and temperature controler from mitisubishi japane to ensure the good funciton of the mico system equip with sliencer and oiling system to reduce noise and friction.
Machine model: ST-FA (double station with single head)
Production capacity: 150-180PCS per hour
Suitable material: PP, PE, HDPE and etc.
Max. Products volume: 5L
Screw diameter: Φ 70mm l/d=24
| Specifications | ST-FA | |
| Material | HDPE | |
| Max container volume | L | 5 |
| Number of die | Set | 1 |
| Number of station | Set | 2 |
| Output(dry Cycle) | Pc/hr | 500*2 |
| Dimension(L*W*H) | M | 3.53*2.25*2.6 |
| Weight | Ton | 7.5 |
| Clamping Unit | ||
| Clamping force | KN | 70 |
| Platen opening stroke | MM | 188-538 |
| Platen size | MM | 338*430 |
| Max mould size(W*H) | MM | 360*450 |
| Mould thickness | MM | 190-320 |
| Power | ||
| Max drive | KW | 27.5 |
| Total power | KW | 47.5 |
| Fan power for screw | KW | 0.48 |
| Air pressure | Mpa | 0.7 |
| Air consumption | m³/min | 0.9 |
| Average energy consumption | KW | 23 |
| Extruder system | ||
| Screw diameter | MM | 70 |
| Screw L/D ratio | L/D | 24 |
| Plasticizing capacity | Kg/hr | 70 |
| Number of heating zone | Zone | 3 |
| Extruder heating power | KW | 14.2 |
| Extruder driving power | KW | 22 |
| Die head | ||
| Number of heating zone | Zone | 3..5 |
| Power of die heating | KW | 5.7 |
| Max die-pin diameter | MM | 150 |
