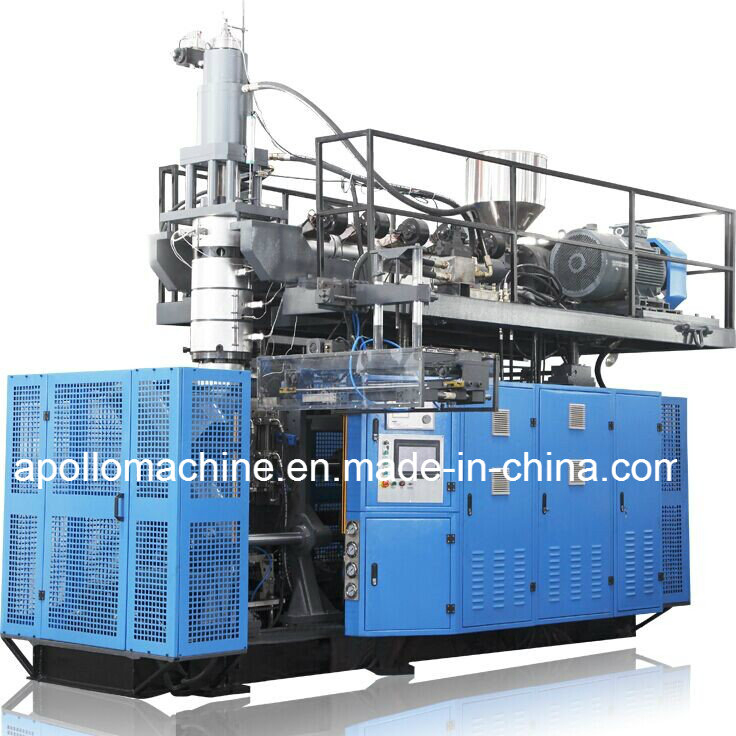

Plastic Toolbox Blow Molding Machine ( ABLD80 )
Model No.: ABLD80 (Single station single die head)This type of blow molding machine ABLD80 can produce plastic oil drums, containers, jerry cans, barrels, plastic tools, auto parts, etc.Basic installation includingDie head: Center-feed die headExtrusion system: Adopt world-famous brand automatic tem......
Send Inquiry
Product Description
Model No.: ABLD80 (Single station single die head)

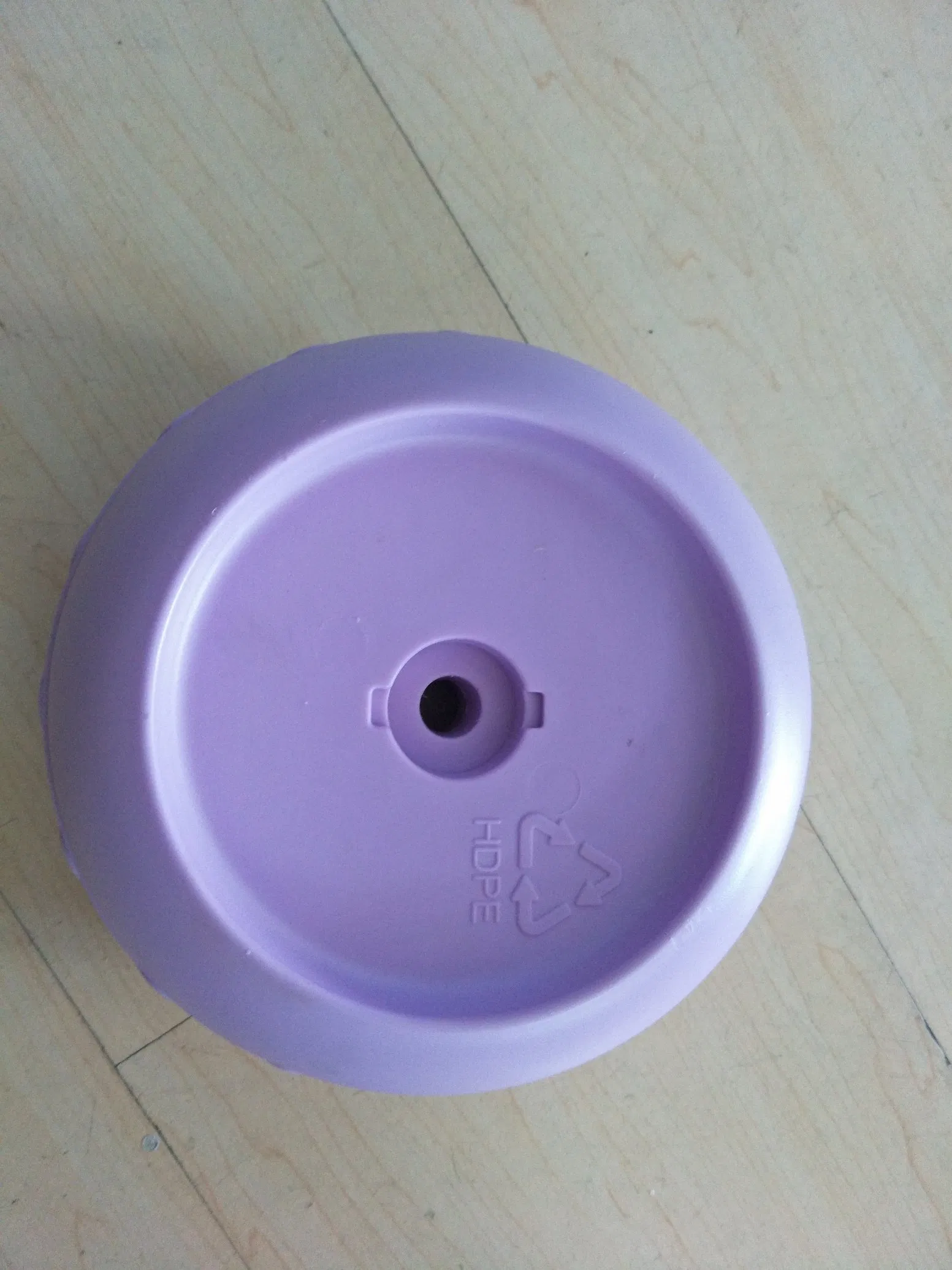

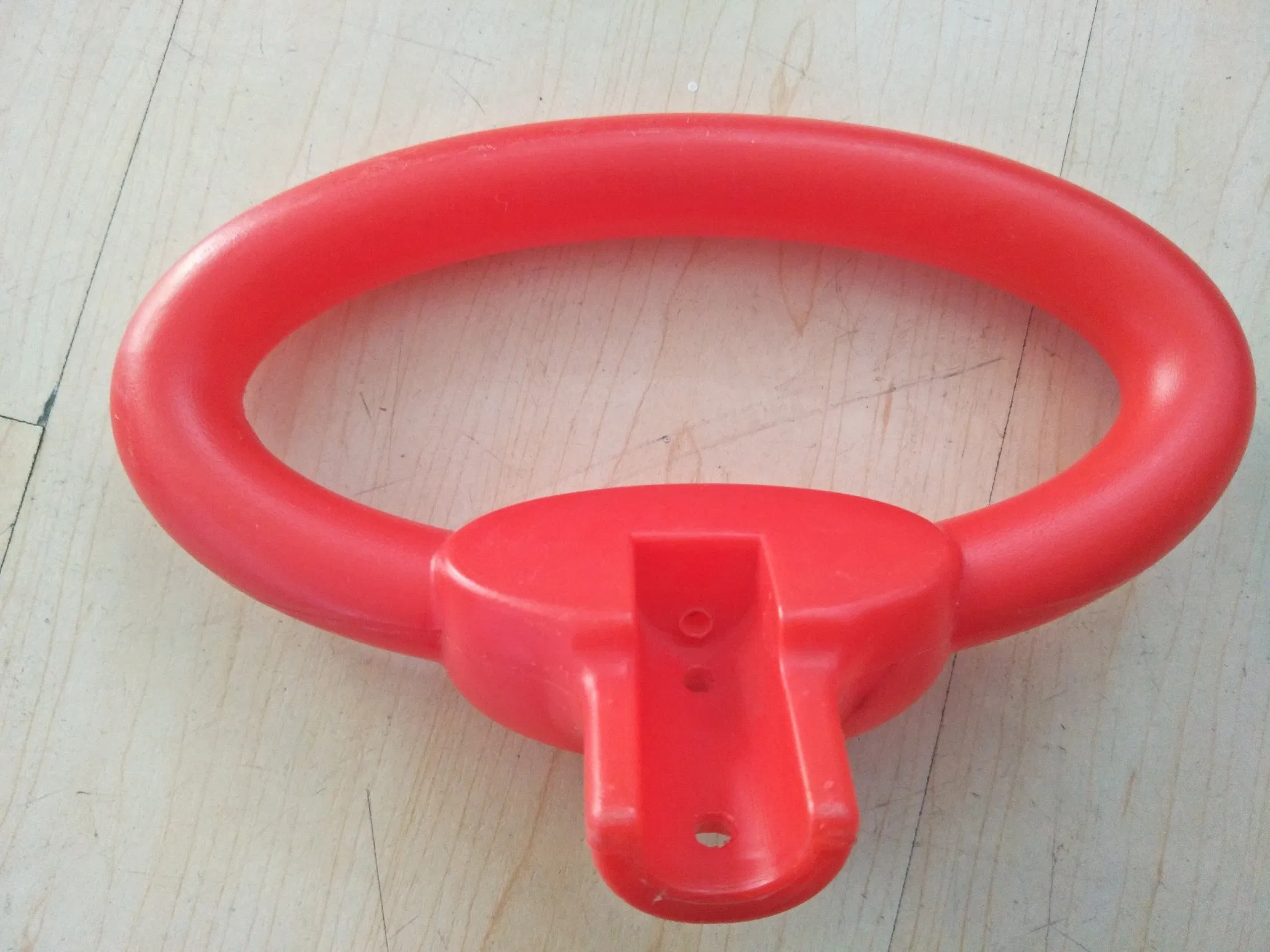

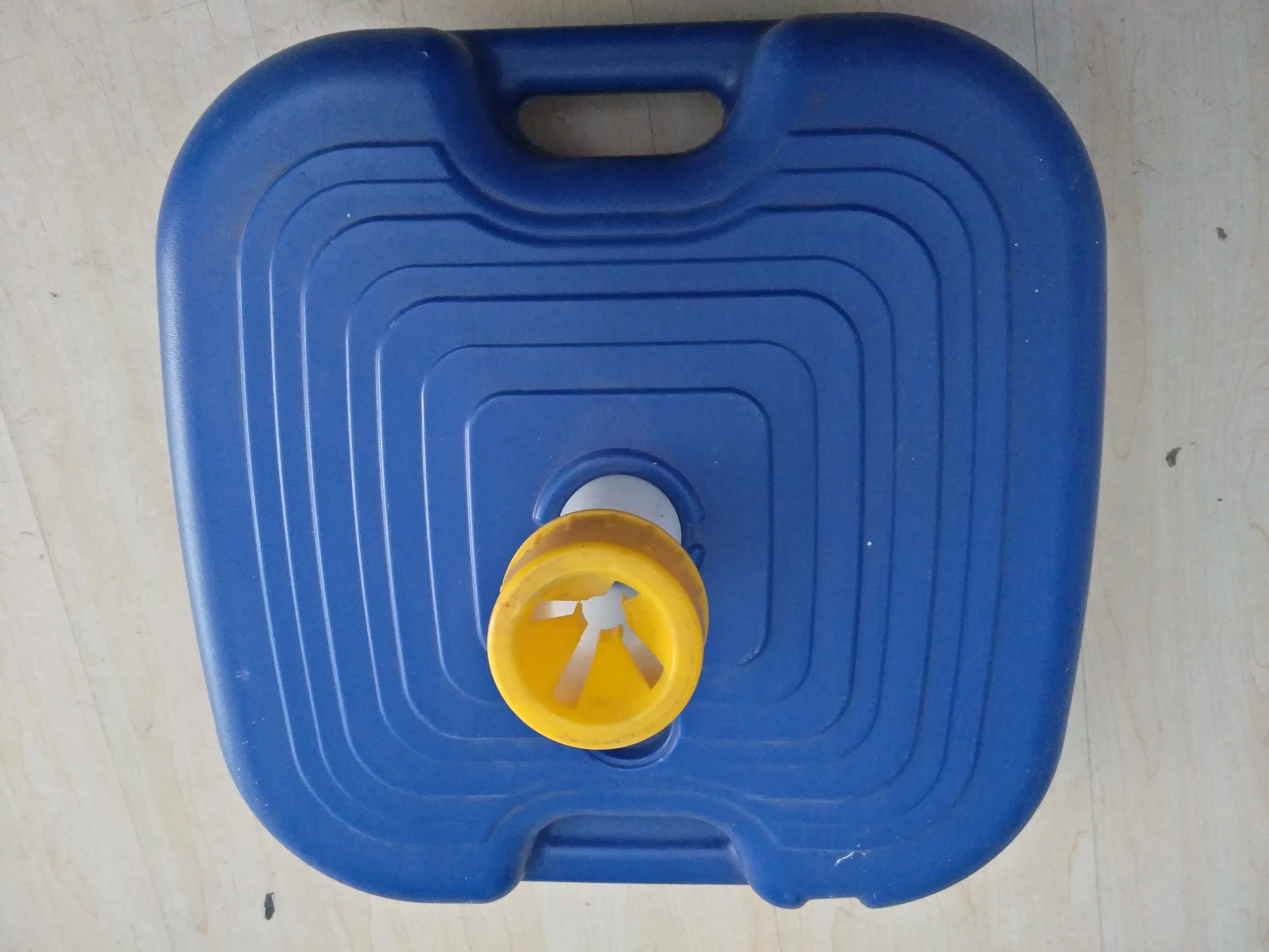

This type of blow molding machine ABLD80 can produce plastic oil drums, containers, jerry cans, barrels, plastic tools, auto parts, etc.
Basic installation including
Die head: Center-feed die head
Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.
Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well
Blowing device: With upper blowing type
Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circleElectric controlling system: Adopt programmable controller made in Mitisubishi, Japan. Every electric component is of world-famous brand.
Electric controlling system: Adopt programmable controller made in Mitisubishi, Japan. Every electric component is of world-famous brand.
This type of blow molding machine ABLD80 can produce plastic oil drums, containers, jerry cans, barrels, plastic tools, auto parts, etc.
Basic installation including
Die head: Center-feed die head
Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.
Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well
Blowing device: With upper blowing type
Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circleElectric controlling system: Adopt programmable controller made in Mitisubishi, Japan. Every electric component is of world-famous brand.
Electric controlling system: Adopt programmable controller made in Mitisubishi, Japan. Every electric component is of world-famous brand.
| Basic parameters | Suitable material | PE. PP, PVC, ABS so on | |
| Max volume | 30L | ||
| Output capacity | 50pcs/h | ||
| Size | 4.1× 2.2× 3.5(M) | ||
| Weight | 11T | ||
| system | Specification | Parameters | Note |
| Plasticizion system | Summarize | High efficient low power consumption plasticizion system, transducer control, self-protect function when started at low temperature | |
| Reducer | Hard finishing\High intension\Low noise reducer | ||
| Screw | 80, L/D ratio 25, 38CrMoALA | Cooling system available | |
| Plasticization | 100Kg/H | HDPE | |
| Heating Zone | 4 Aluminum Heater | Automatic heating | |
| Heating power | 16KW/H | ||
| Extrusion Motor | Threephase asynchronous motor(380V\50HZ) | ||
| Cooling Fan | 4zone | Automatic cooling | |
| Extrusion system | Summarize | High-grade alloy steel, center feeding | |
| Die head number | 1 | ||
| Max die mouth | 280mm | ||
| Heating zone | 4 Stainless steel heating cycle | ||
| Heating power | 5~7KW | ||
| Clamping system | Summarize | High intension, rigidity, center mold locking, stable mould opening and clamping system | |
| Clamping force | 210KN | ||
| Template distance | 350~780mm | ||
| Max mould size | 70X800m | ||
| Mould material | High grade 50# steel | ||
| Electric system | Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting, auxiliary function available) | Japanese MitsubishiPLC system |
| Operate interface | Touch screen, automatic self-diagnose alarm system | ||
| Temperature control | Automatic temperature control module | ||
| Movement control | Japanese Mitsubishi, Chinese/English Version | ||
| Electric protection | Ampere overload, electric short circuit self-protection function | ||
| Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | |
| Oil pump motor | Threephase asynchronous motor(380V/220V, 50/60HZ) | ||
| Oil pump | Imported double pump | ||
| Valves | Imported oil pump valves and connections | ||
| Oil pipes | Double layer overpressure resistant | ||
| System pressure | 60Kg/cm² | ||
| Cooling system | Separate water cooling cycle, oil cooler cooling system | ||
| Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | |
| Air pressure | 0.6Mpa | ||
| Air displacement | 0.8M3/min | ||
| Electromagnetic valve | Taiwan AIRTAC | ||
| Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | |
| Cooling medium | Water | ||
| Water flow | 60L/min | ||
| Water pressure | 0.3-0.6MPa | ||
