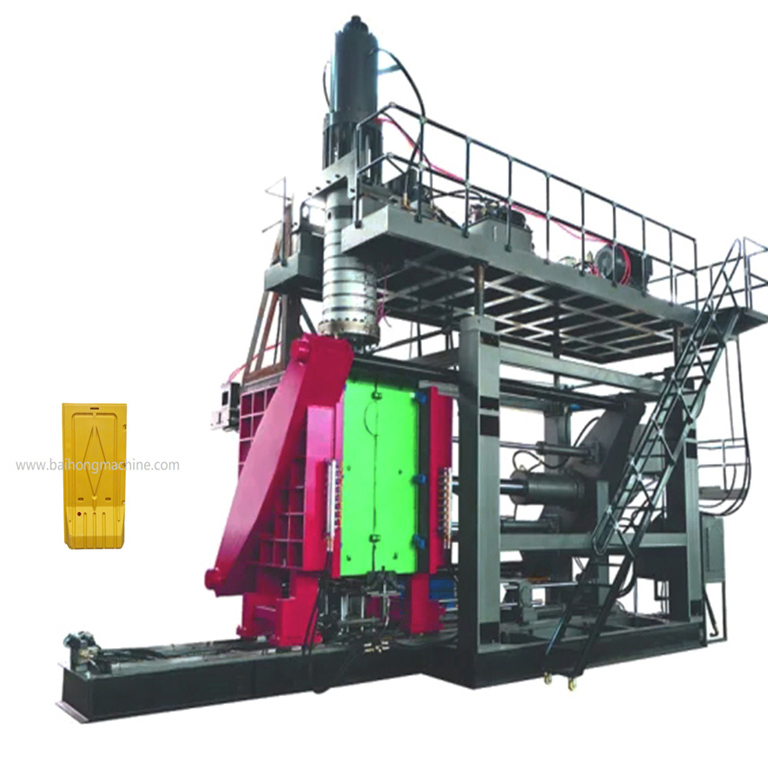

Road Safety Roadblock Blowing Machine
Performance and advantages·Suitable for producing different kinds of safety barrel,traffic divided blocks pallet desktop float and Kayak. ·Optional bottom sealing,product eject,core-pulling movement elements. ·Adopt high output extrusion system,accumulating die head.......
Send Inquiry
Product Description
Performance and advantages

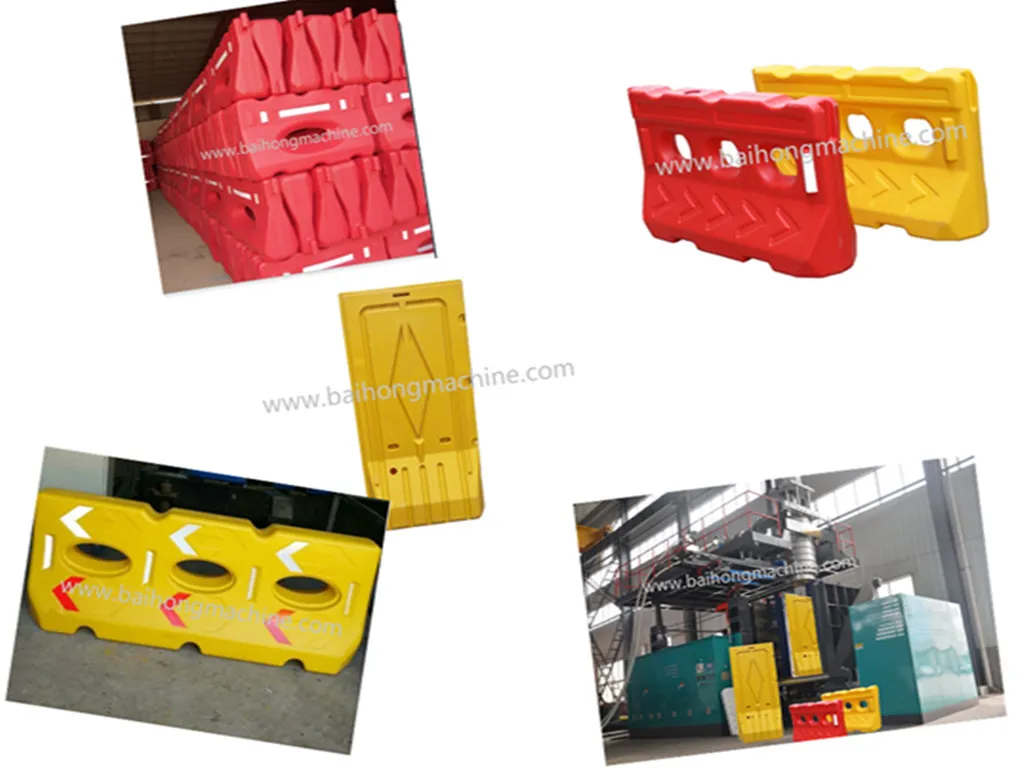

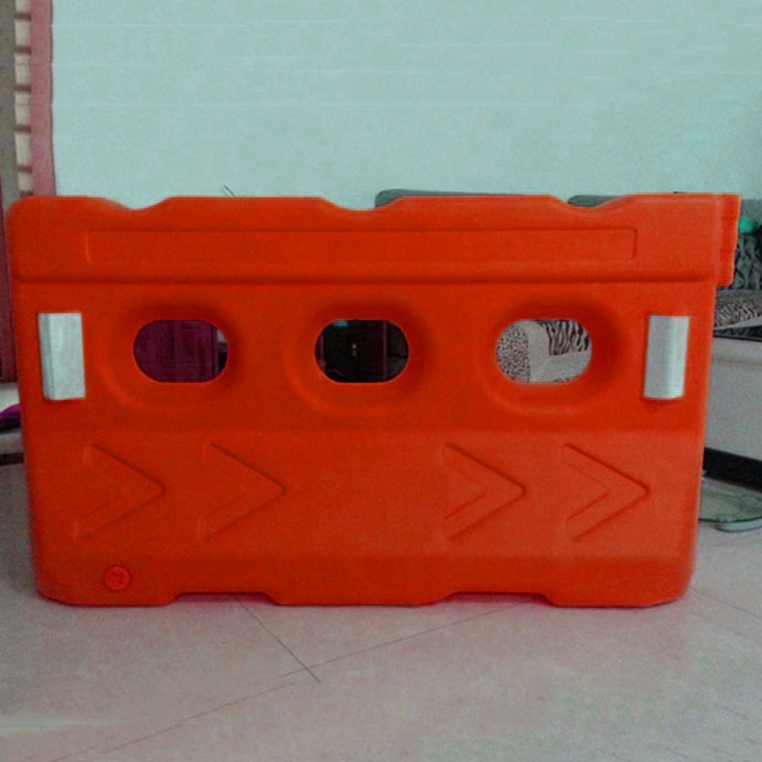

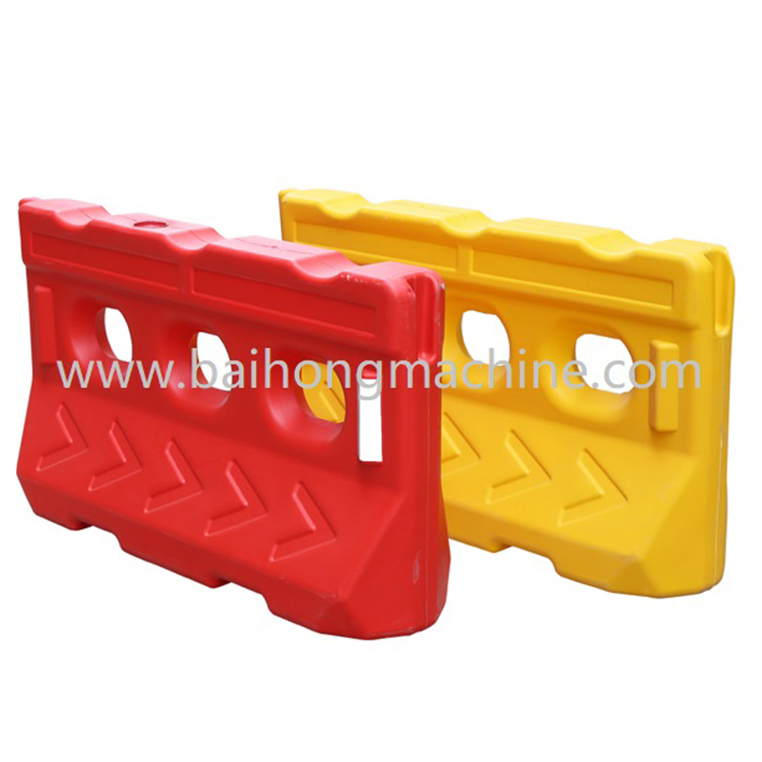

·Suitable for producing different kinds of safety barrel,traffic divided blocks pallet desktop float and Kayak.
·Optional bottom sealing,product eject,core-pulling movement elements.
·Adopt high output extrusion system,accumulating die head.
·Optional Hydraulic Servo control system.
Technical parrameters
Note: Informations listed above are for reference only, the production line can be designed by customer's requirements.
our partner
·Suitable for producing different kinds of safety barrel,traffic divided blocks pallet desktop float and Kayak.
·Optional bottom sealing,product eject,core-pulling movement elements.
·Adopt high output extrusion system,accumulating die head.
·Optional Hydraulic Servo control system.
Technical parrameters
| Model | Unit | BM2000T |
| Max product volume | L | 2000 |
| Main screw diameter | mm | 100/100/100 |
| Max plasticizing capacity(PE) | kg/h | 550 |
| Screw Speed | rpm | 10-60 |
| Die head structure | Accumulating type | |
| Accumulating volume | kg | 95 |
| Heating power of die head | Kw | 100 |
| Claming force | KN | 1800 |
| Platen size W*H | mm | 1800*2300 |
| space between platen | mm | 1000-3100 |
| Max moild size | mm | 1500*2400 |
| Machine dimension L*W*H | m | 12*4.5*7 |
| Machine weight | T | 60 |
| Total power | Kw | 350 |
| Aversge power Consumption | Kw | 250 |
