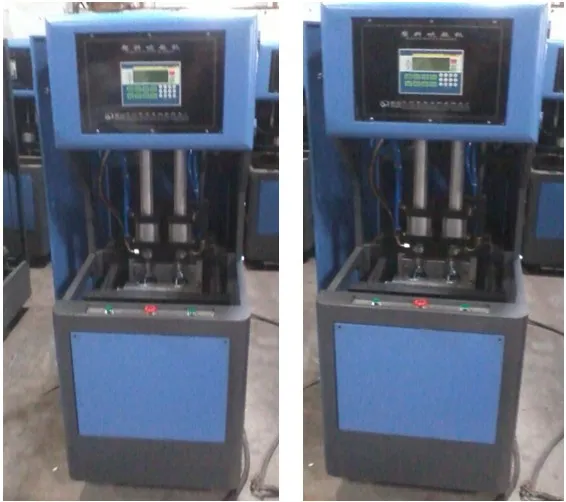

Semi Automatic Pet Bottle Blow Moulding Machine (19)

Semi Automatic PET Bottle Blow Moulding Machine

Specifications
Semi Automatic PET Bottle Blow Moulding Machine
1. Factory: YS Machine
2. Volume: 100ml-25L



Specification

YS SEMI Automatic Bottle blowing machine is suitable for blowing PET bottles of various shapes, volume from 50 ml to 2000 ml, wide application for blowing mineral water bottles, soda bottles, cola bottles...
1, New double crank four pull-up bar clamping structure, cross balance fixed slide
2, Sealing, stretch adapts parallel bars (CIS) design, combined, good for products molding
3, Advanced gas path design, single, dual air intake can be; Low-pressure mechanical clamping, sealing, stretching; High pressure blowing molding
4, Programmable PLC controller automatically control, microcomputer touch screen convenient operation
5, Bottle embryo heated by infrared, controllable constant pressure control, so as to achieve the best blowing precision
6. Low cost: Low consumption of electrcity, air and water.
7. No contamination: Closed production zone, good self-cubrication system avoid contamination.

Blowing part use Festo pneumatic, Germany
Can be operate step by step or semi automatic mode
Wide mouth jar and hot fill bottle can be made
2 main blows and 1 enlarge preheater can save energy and worker

Specifications of the machine:
Volume: 0.05-2L (2CAV); 3-6 L (1CAV)
Theoretical output: 0.05-2L: 2, 000PCS/ hr; 3-6L: 1000PCS/hr
Clamping force: 90kN
High press compressor: 1.2/30MPa
Power: 6kW
Voltage/frequency: 220/380V, 50-60Hz
Machine dimension: 1.53 x 0.6 x 2.0m
Machine weight: 12MT (2 unit main blow)
Preheater dimension: 1.80 x 0.50 x 1.16m
Preheater weight: 0.30kg
