Product Description
Dawson machinery and mould group

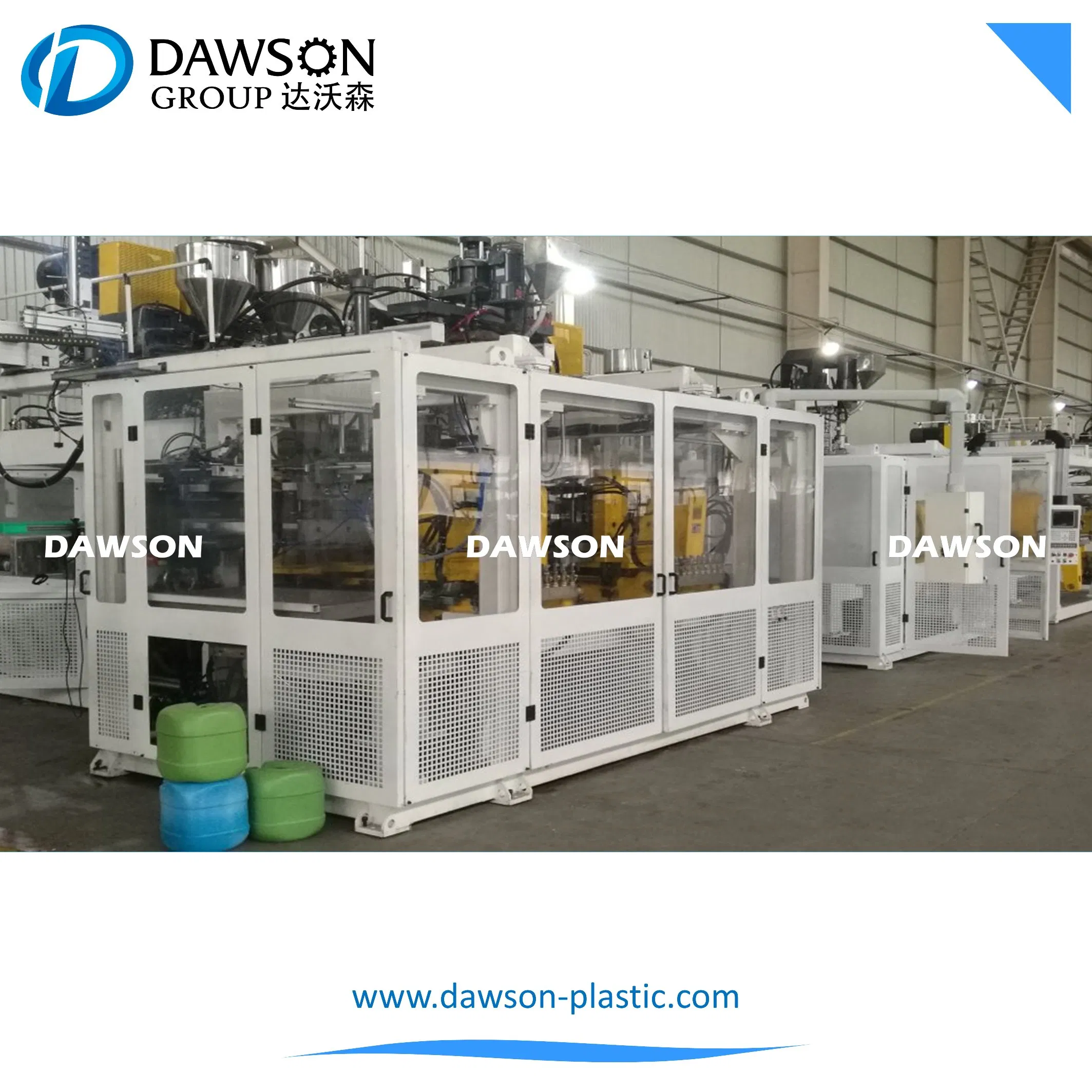

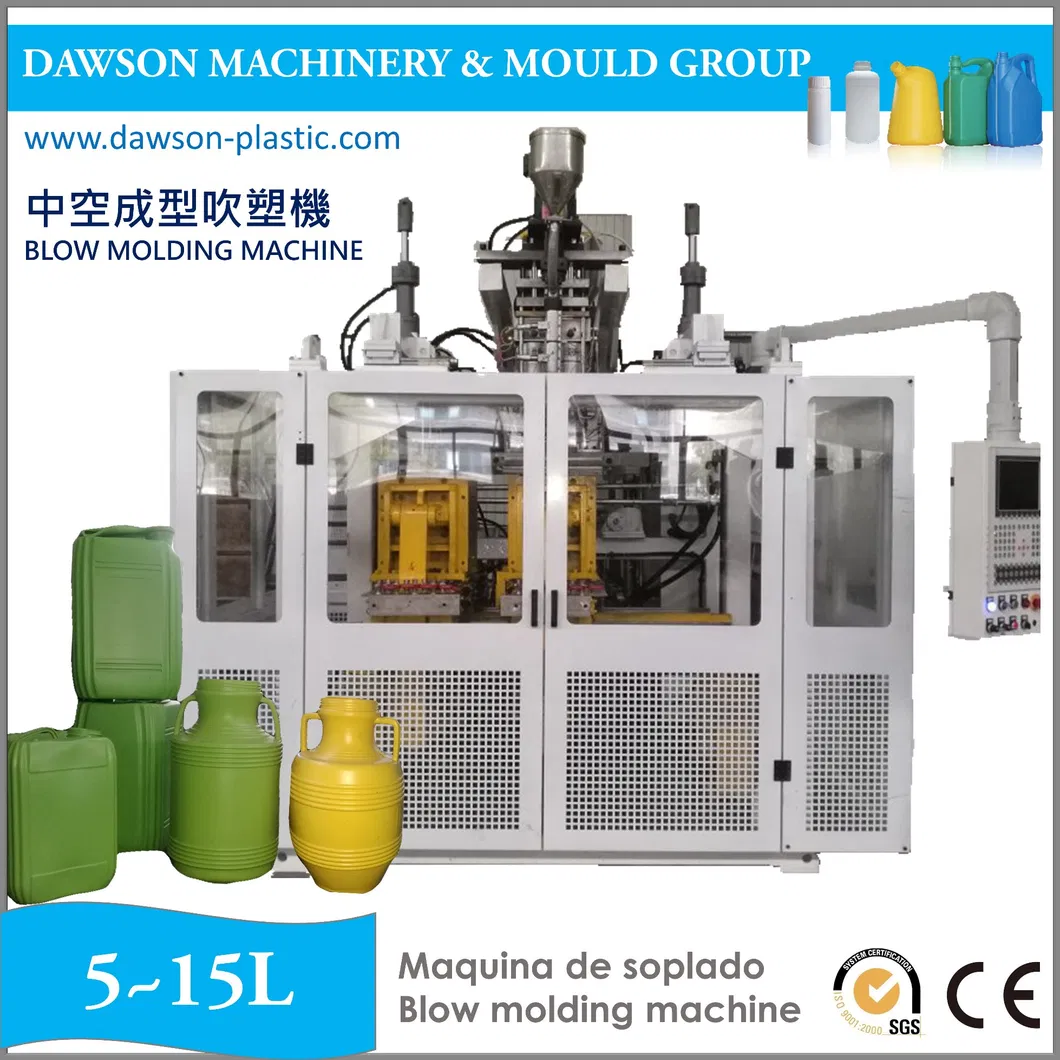

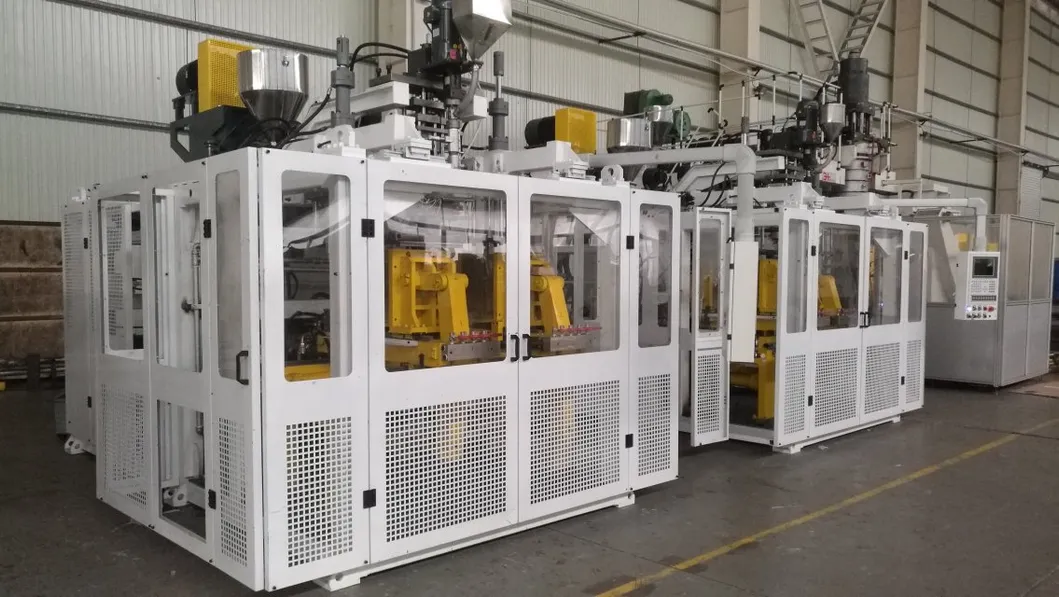

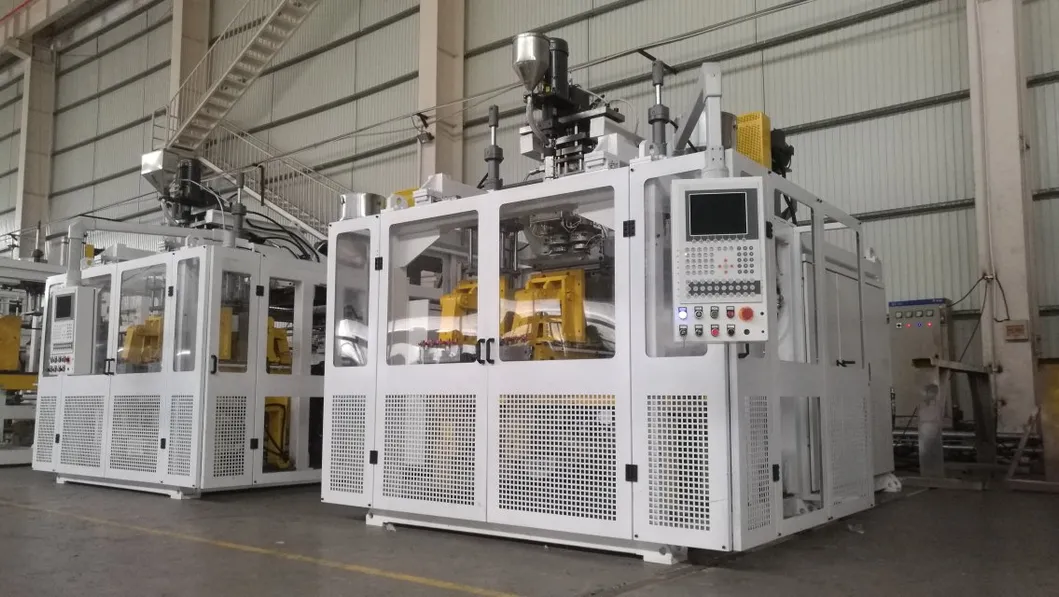

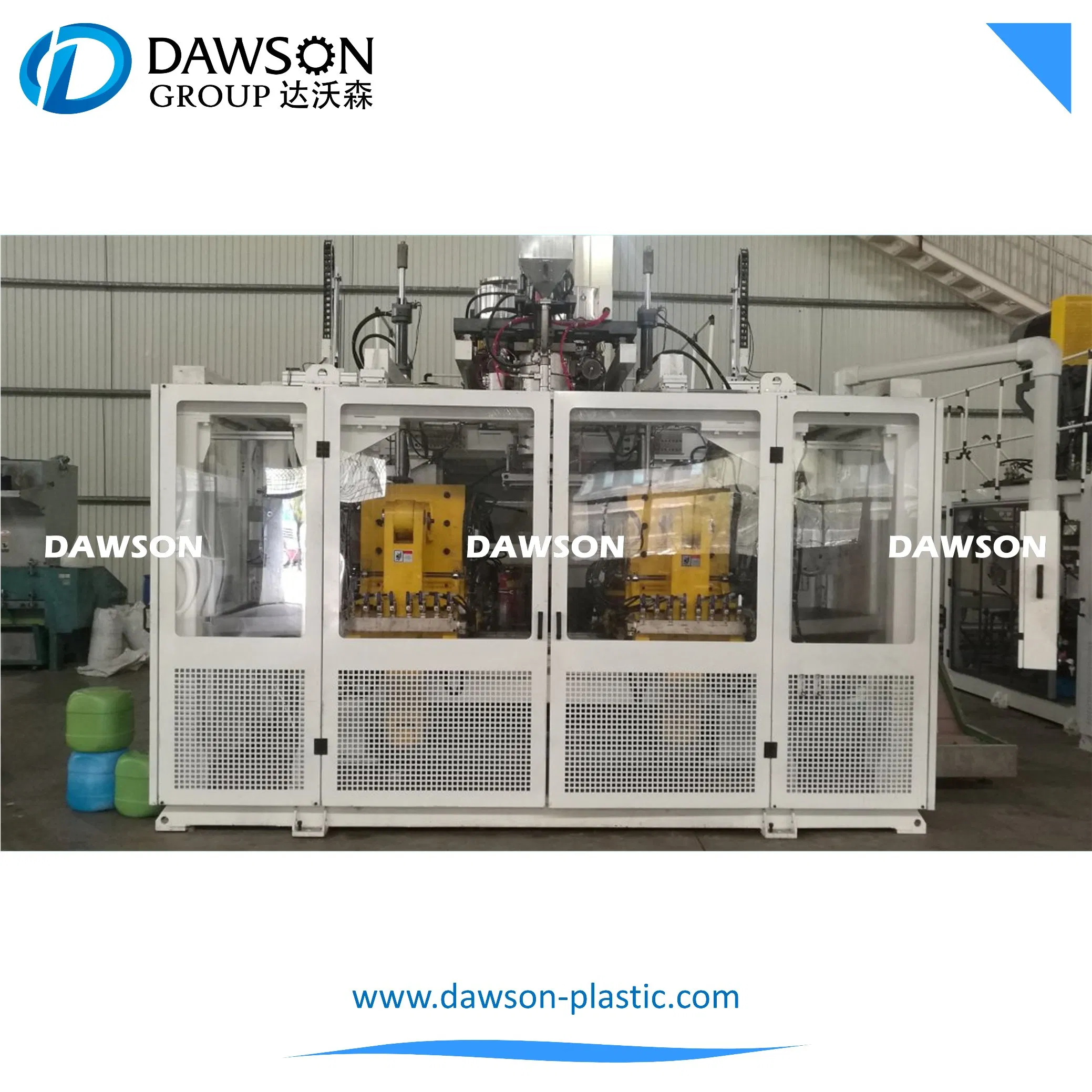

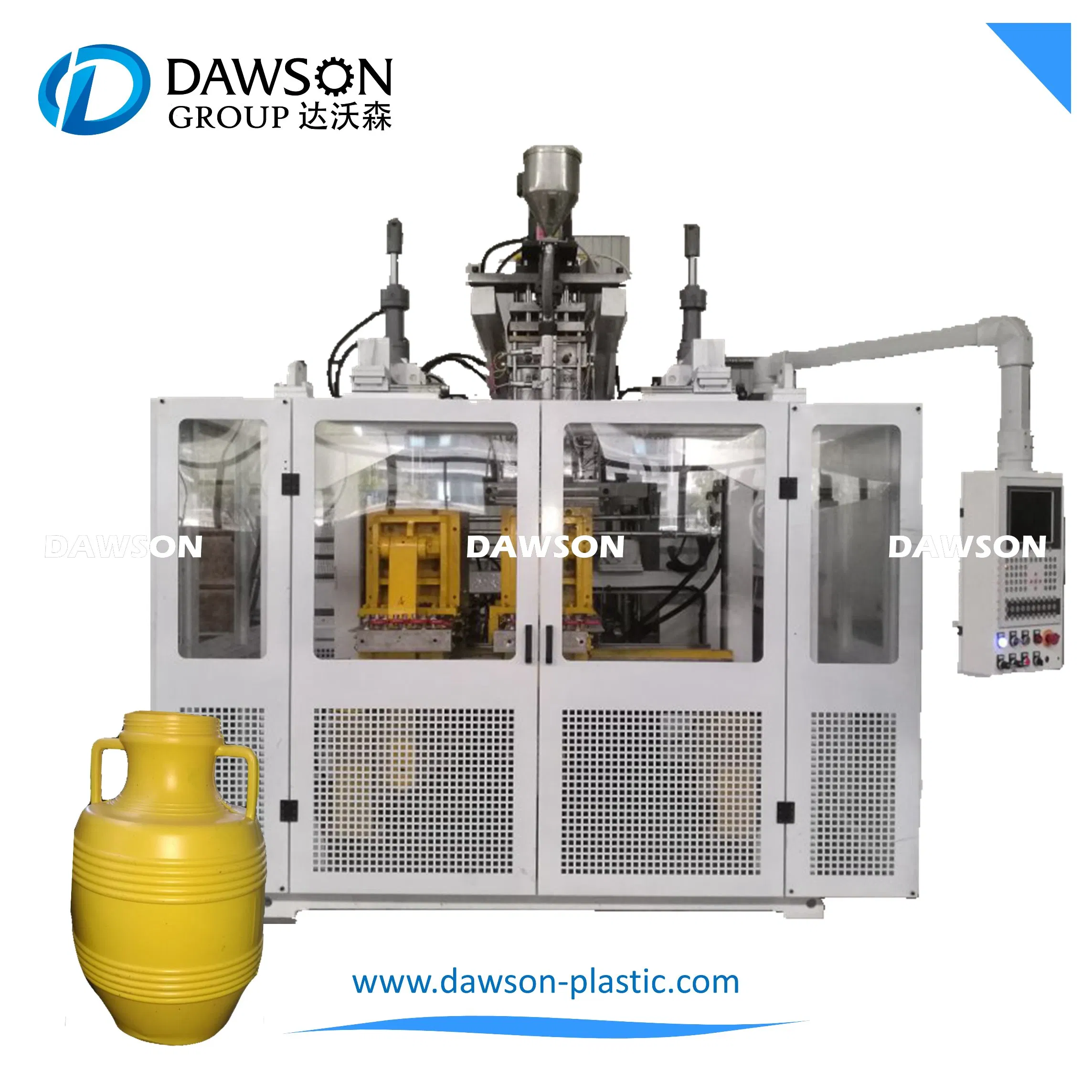

Double Station Extrusion Blow Molding Machine TP15D-90
Double Station Extrusion Blow Molding Machine TP15D-90
Machine Model TP15D-90
Double station Extrusion Blow Molding Machine
( Single head for produce 5-15L bottles )

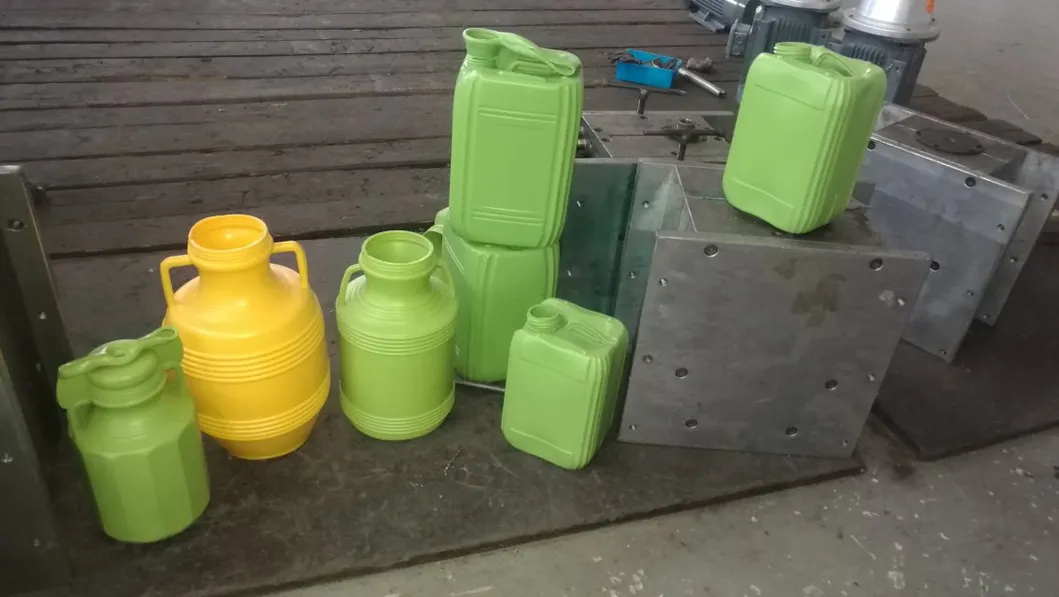

*Volume 15L
*Net Weight 1 Kg
*Output 95-100 pcs/hr.

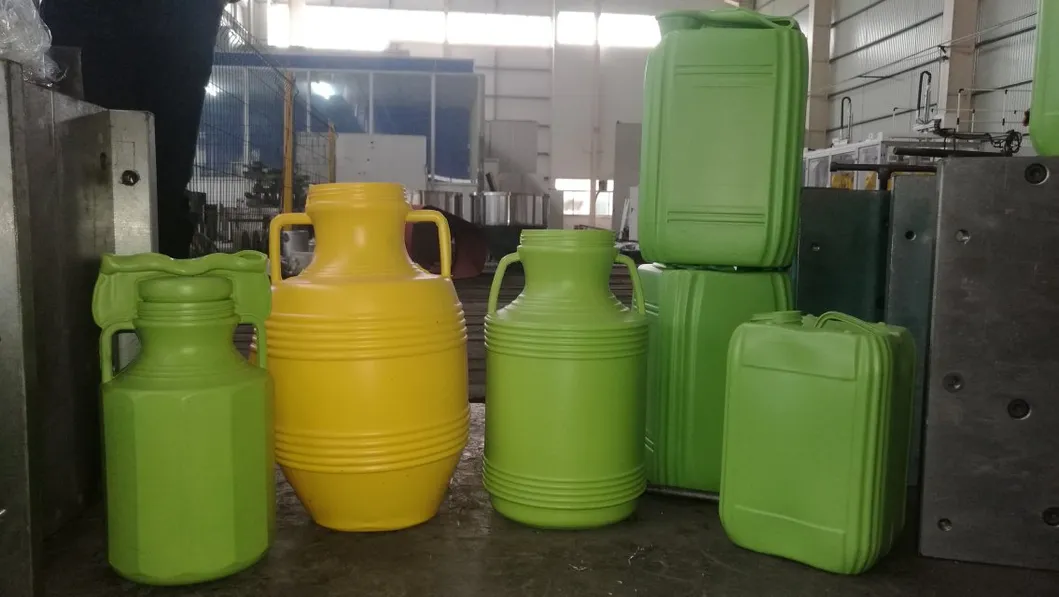

- Single head for making 15L bottles
- Double head for making 10L bottles
- 3 die head for making max. 8L bottles
- 4 die head suitable for max. 5L bottles
( we also provide single station blow molding machine, customer can choose according to budget and output demands. )
Standard Features
1. Double station blow molding machine with 90mm grooved extruder.
2. Single, double triple and quadruple head capacity.
3. Reliable two-plate axes mould locking.
4. Processing HDPE, LDPE, PP capacity.
5. Multi-blow extrusion heads with quick color change.
6. In machine automatic deflashing and cooling station.
7. Nitrided screw and berrel.
8. Adopt hydraulic accumulators.
9. Low power consumption.
10. Up blowing system.
11. Machine control by microprocessor B&R
12. SERVO valve for hydraulic and 100/300 point Parison thickness.
13. Gripper for bottle take out inside machine.
14. Carriage fast movement by Prop Valve.
15. Safety ladder and rail protection.
Configuration
| Main Part | Brand | |
| Servo oil pump | REXROTH from Germany |  |
| High pressure oil pump | YUKEN from Japan | |
| Pneumatic | FESTO from Germany or SMC from Japan | |
| Proportional valves | REXROTH from Germany | |
| Directional valves | YUKEN from Japan | |
| Control system | B&R From Austria | |
| Frequency converter | ABB From Switzerland | |
| Contactor | SCHNEIDER From Franch | |
| Linear roller bearings | HIWIN from TAIWAN | |
| Motor | SIEMENS from Germany | |
| Gearbox | SEW from Germany | |
| Electronic ruler | Novotechnik from Germany | |
Our customers
Germany, Italy, United Kingdom, Spain, Russia, Ukraine, Aussie, Canada, Egypt, Nigeria, India, Thailand, ... etc.
