Small Tank Manufacturing 12000bph Pet Blow Moulding Machine
small tank manufacturing 12000bph Pet Blow Moulding Machinemodel:Q12000Machine picturesTECHNICAL PARAMETER itemQ12000 Bottle type specification cavity9theory output (PCS/HR)12000 -15000Max. volume (L)750MLBottle mouth maximum overall diameter (mm)28-38mmBottle biggest diameter65mmBottle maximum h......
Send Inquiry
Product Description
small tank manufacturing 12000bph Pet Blow Moulding Machine
model:Q12000

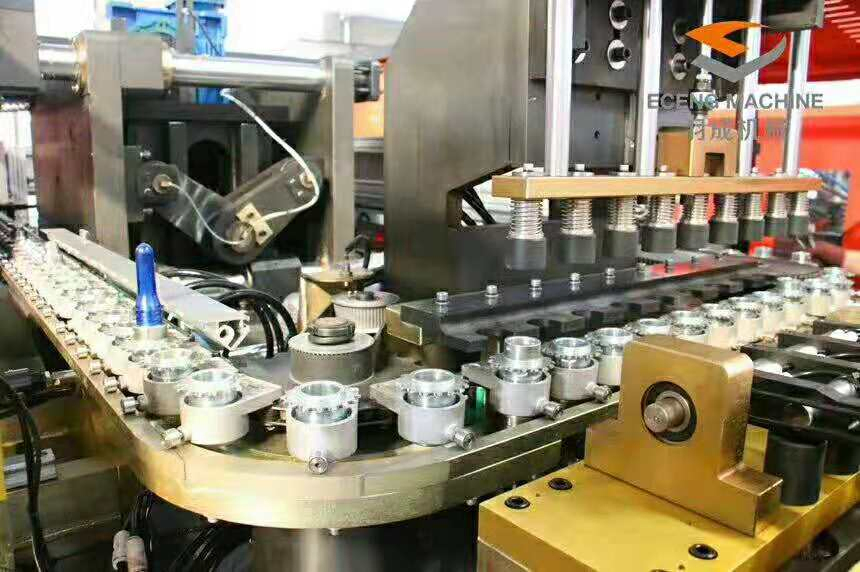

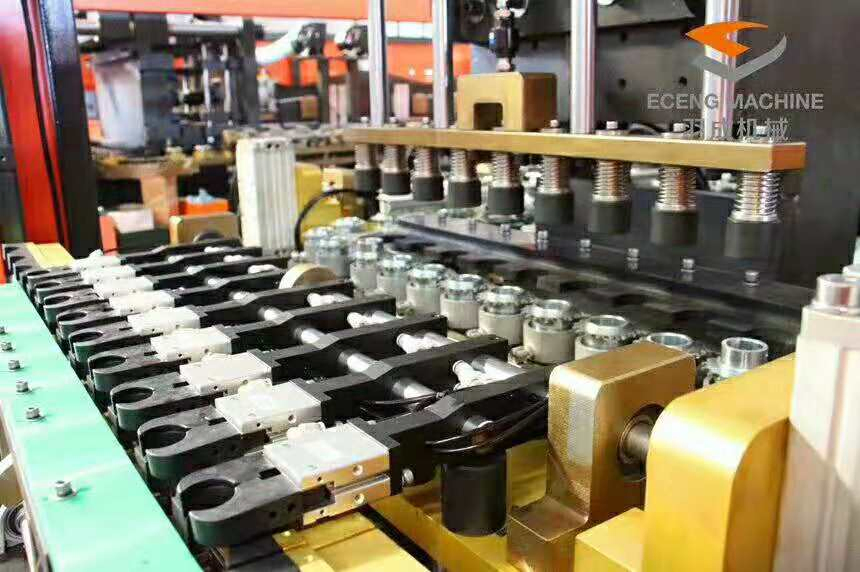

Machine pictures
TECHNICAL PARAMETER
FAQ:
Q1:Are you a trading company or a manufacturer?
A1:We have our own factory for 10 years,will try our best to provide you service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines?A2:We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,
Life long after service. Mean while, our engineers can go to your factory assist you installing and testing machine to normal working condition.we also have a technical team support for after service.
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:What's the delivery time?
A5:45 days after the T/T deposit or L/C.
warmly welcome to visit our factory!
model:Q12000
Machine pictures
TECHNICAL PARAMETER
| item | Q12000 | |
| Bottle type specification | cavity | 9 |
| theory output (PCS/HR) | 12000 -15000 | |
| Max. volume (L) | 750ML | |
| Bottle mouth maximum overall diameter (mm) | 28-38mm | |
| Bottle biggest diameter | 65mm | |
| Bottle maximum height | 240mm | |
| Power specifications | Light tube quantity | 32pcs |
| Light tube power | 1.5kw | |
| Maximum heating power | 54kw | |
| All electric machine installation | 57kw | |
| Actual consumption | 40kw | |
| Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1600Ltr/min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Higher -pressure gas consumption | 4800 Ltr/min | |
| Frozen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10 | |
| Consumption | 12000kcal/hr | |
| Frozen water flow | 88Ltr/min | |
| Machine specification | Size of the machine | 8.45x1.6x1.9 (m) |
| Weight of the machine | 7ton |
FAQ:
Q1:Are you a trading company or a manufacturer?
A1:We have our own factory for 10 years,will try our best to provide you service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines?A2:We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,
Life long after service. Mean while, our engineers can go to your factory assist you installing and testing machine to normal working condition.we also have a technical team support for after service.
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:What's the delivery time?
A5:45 days after the T/T deposit or L/C.
warmly welcome to visit our factory!
