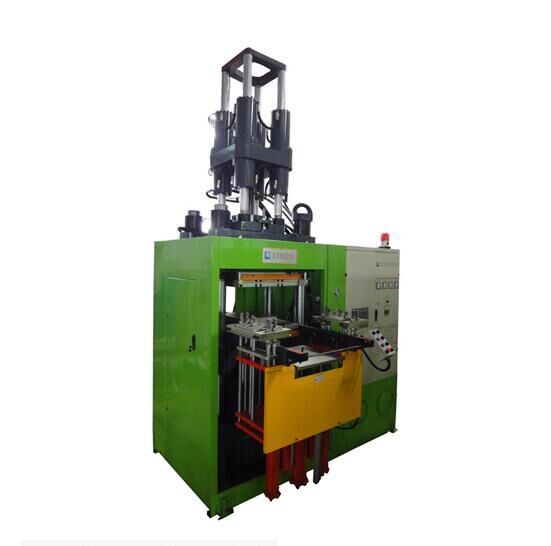

Transfer Type Rubber Molding Machine
Transfer type molding machine for rubberIt is an advanced rubber pressure molding equipment with compact structure, wide applicability and high degree of automation, especially, it is suitable for producing rubber model products with metallic insert, complex shape, big cross-section and thick-wall.,......
Send Inquiry
Product Description

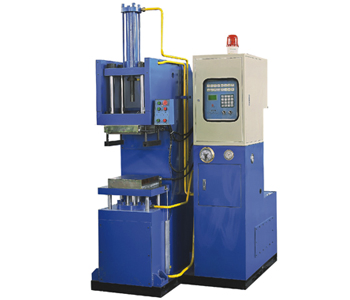

Transfer type molding machine for rubber
It is an advanced rubber pressure molding equipment with compact structure, wide applicability and high degree of automation, especially, it is suitable for producing rubber model products with metallic insert, complex shape, big cross-section and thick-wall., these products' process is complex and more difficult to form. Among them "the multi-purpose rubber transfer type molding machine (semiautomatic rubber injection molding machine) based on the frequency conversion technology" was established as National Science and Technology Ministry innovation fund project of technology type medium and small enterprises.
Feature:
Clamping cylinder clamps mould first, then injection
Cylinder press rubber material into mould cavity uniformly.
Few fin, precision geometric size, physical mechanical
Performances are uniform and stable.
The main moving platen raises rapidly, clamps slowly, declines rapidly, production efficiency is improved and the mould isprotected
It uses automatic in-out mould and ejection mechanism, reduces labor intensity and avoids the artificial damage to mould
It has two working mode of point moving and semi automation.
Users can choose PLC control and 5.7-inch touch-control screen imported from Siemens or Mitsubishi
Ningbo Mengkwa Machinery Co.,Ltd is an experienced and professional manufacturer of plastic extruder and extrusion lines for years. We can produce various equipments, including plastic pipe extrusion lines, plastic profile extrusion lines, plastic sheet/plate extrusion lines and also some recycling and pelletizing machines etc. According to different requirement s of each customer, our engineers will provide most professional mechanical design and manufacturing, and the complete processing technology to meet their special application requirements.
If you want to know any information about us and machine or equipment, please contact with us at any time .
Ningbo Mengkwa Machinery Co. Ltd
Ningbo, China
web: mengkwa.en.made-in-china.com
mengkwa.en.made-in-china.com
After-sale service
1. 24 hours technical support by email, call, video.
2. Warranty for one year after 12 months of shipment
3. Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.
Terms of payment
1.after receiving the deposit 40%, our company will arrange production;
2.After the customer check and accept compression machine, before delivery, customer need to pay off the balance payment;
It is an advanced rubber pressure molding equipment with compact structure, wide applicability and high degree of automation, especially, it is suitable for producing rubber model products with metallic insert, complex shape, big cross-section and thick-wall., these products' process is complex and more difficult to form. Among them "the multi-purpose rubber transfer type molding machine (semiautomatic rubber injection molding machine) based on the frequency conversion technology" was established as National Science and Technology Ministry innovation fund project of technology type medium and small enterprises.
Feature:
Clamping cylinder clamps mould first, then injection
Cylinder press rubber material into mould cavity uniformly.
Few fin, precision geometric size, physical mechanical
Performances are uniform and stable.
The main moving platen raises rapidly, clamps slowly, declines rapidly, production efficiency is improved and the mould isprotected
It uses automatic in-out mould and ejection mechanism, reduces labor intensity and avoids the artificial damage to mould
It has two working mode of point moving and semi automation.
Users can choose PLC control and 5.7-inch touch-control screen imported from Siemens or Mitsubishi
| Model | XZB-D400*400/630 | XZB-D500*500/1000 | XZB-D550*600/2000 | XZB-D650*700/3000 | XZB-D850*1000/4000 | XZB-D1000*1200/6000 |
| Clamping force | 630KN | 1000KN | 2000KN | 3000KN | 4000KN | 6000KN |
| Heating plate size | 400*400mm | 500*500mm | 550*600mm | 650*700mm | 850*1000mm | 1000*1200mm |
| Heating plate distance | 250-350mm | 200-400mm | 180-480mm | 300-500mm | 80-1200mm | 400-500mm |
| Material cylinder spec. | φ 70*215mm | φ 80*255mm | φ 90*290mm | φ 110*355mm | φ 130*445mm | φ 160*780mm |
| Injection stroke | 305mm | 380mm | 450mm | 580mm | 680mm | 1060mm |
| Ejector stroke | 250mm | 250mm | 300mm | 350mm | ||
| Max. ejector force | 40KN | 60KN | 60KN | 60KN | ||
| Motor power | 5.5KW | 5.5kw | 5.5kw | 5.5kw | 7.5+4kw | 11+11kw |
| heating power | 6.4KW | 9.8kw | 12.6kw | 19kw | 34kw | 52kw |
| Dimension(L*W*H) | 1550*1850*(2500-2600)mm | 1660*2100*(2800-3000)mm | 1900*2400*(3000-3200)mm | 2100*2700*(3650-3850)mm | 2500*3500*94800-5200)mm | 2700*4100*(5780-5880)mm |
| Weight | 2300kgs | 3500kgs | 4800kgs | 8200kgs | 16000kgs | 26000kgs |
Ningbo Mengkwa Machinery Co.,Ltd is an experienced and professional manufacturer of plastic extruder and extrusion lines for years. We can produce various equipments, including plastic pipe extrusion lines, plastic profile extrusion lines, plastic sheet/plate extrusion lines and also some recycling and pelletizing machines etc. According to different requirement s of each customer, our engineers will provide most professional mechanical design and manufacturing, and the complete processing technology to meet their special application requirements.
If you want to know any information about us and machine or equipment, please contact with us at any time .
Ningbo Mengkwa Machinery Co. Ltd
Ningbo, China
web: mengkwa.en.made-in-china.com
mengkwa.en.made-in-china.com
After-sale service
1. 24 hours technical support by email, call, video.
2. Warranty for one year after 12 months of shipment
3. Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.
Terms of payment
1.after receiving the deposit 40%, our company will arrange production;
2.After the customer check and accept compression machine, before delivery, customer need to pay off the balance payment;
