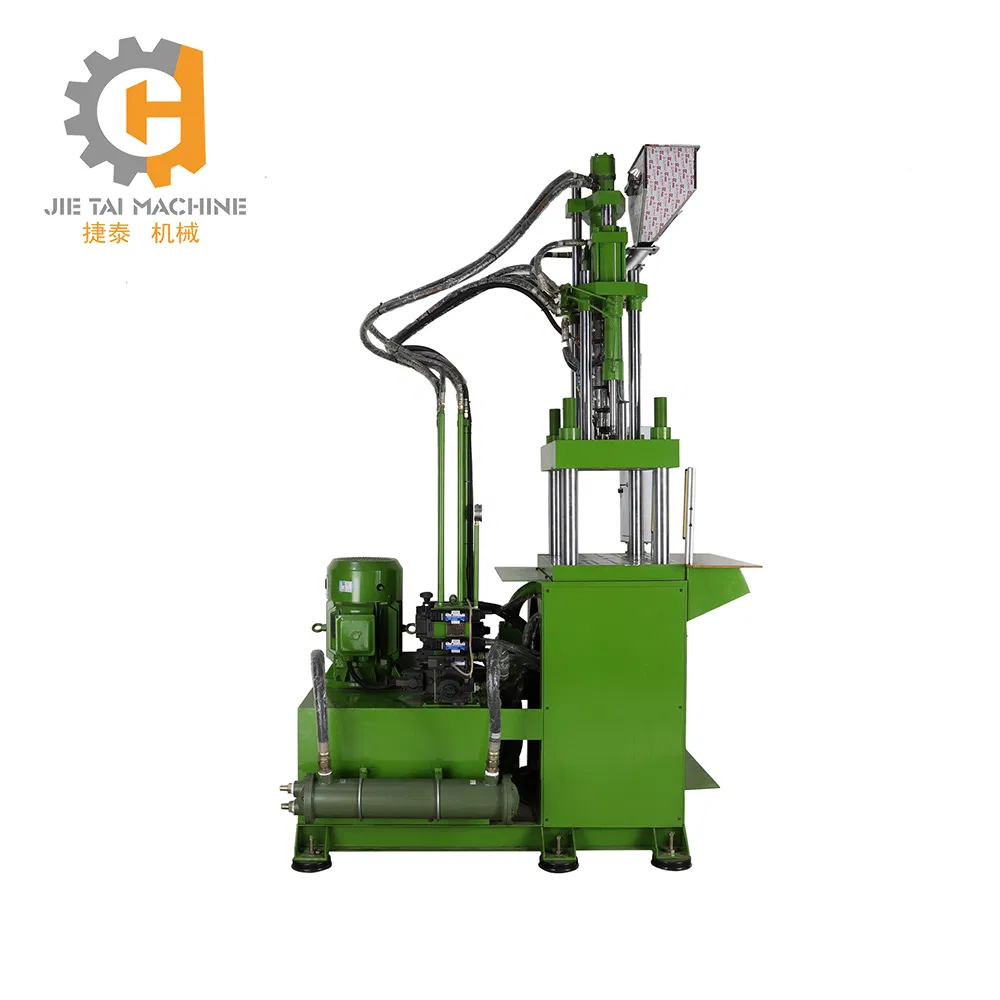

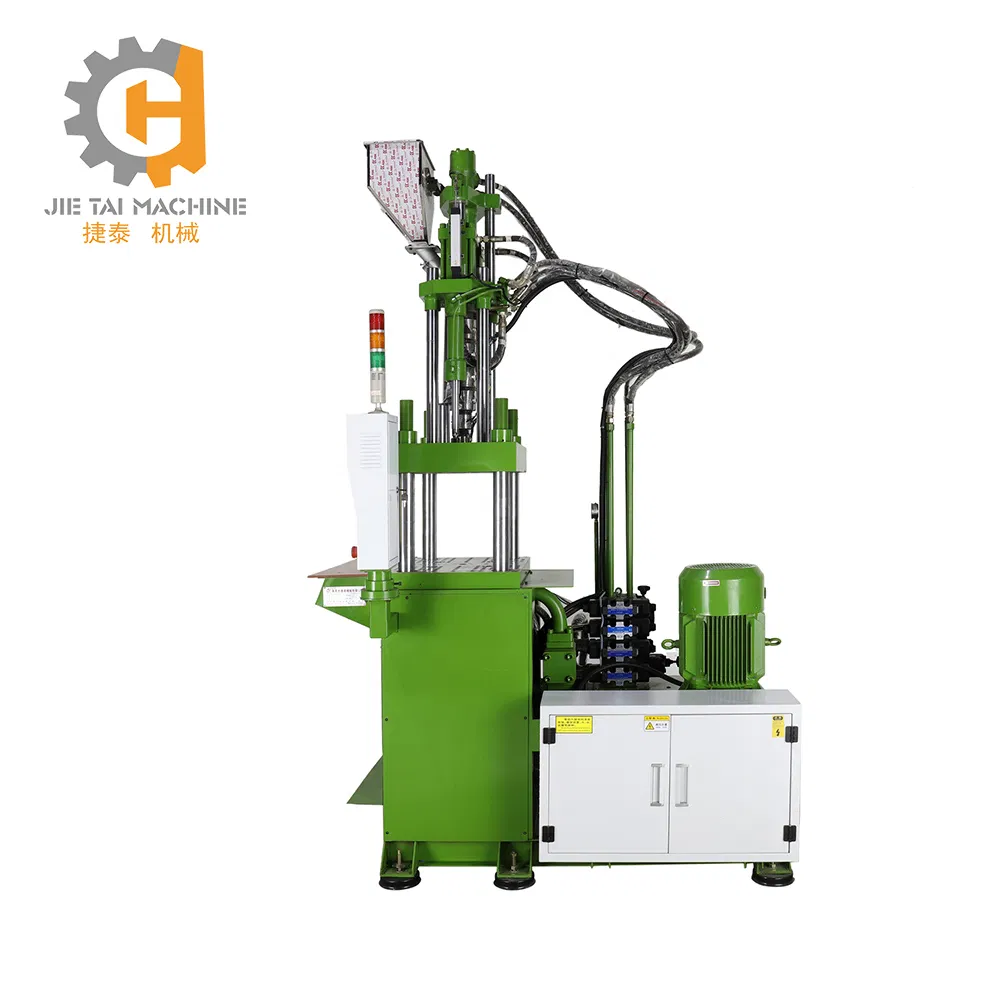

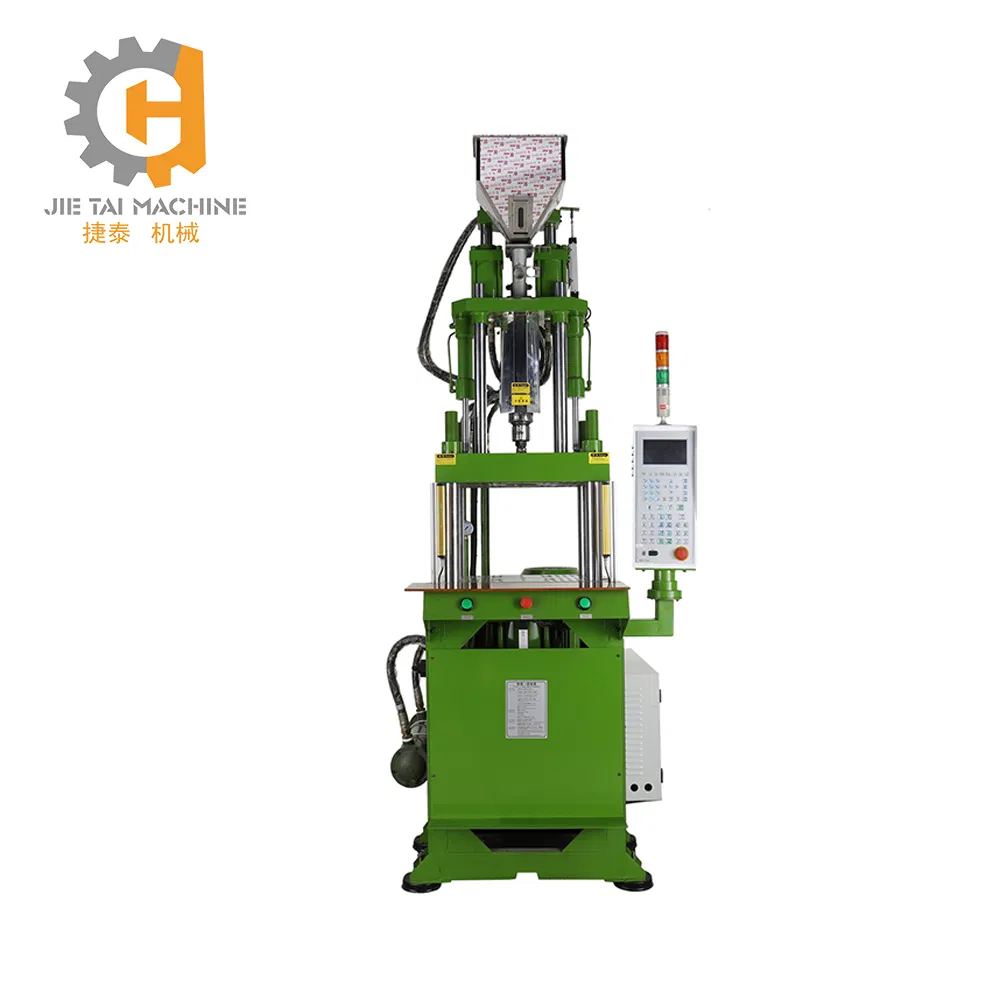

2021 Custom Mold Standard LED Modules Resin Injection Machine 120ton

Product Description

2017 custom mold standard led modules resin injection machine 120ton

The features of rotary table plastic molding machine as followings :

1)Chinese/English LCD display, can memorize 60 groups of mold data.

2)Double and three position platen runs smoothly and is suitable for producing various kinds of pocket inserts. It greatly improves work efficiency and saves labor.

3)It is safe because the product and delivery and inserting is not performed in molding station but the same work station. Moreover, automatic device can be used onto the machine.

4)Adopting double(pressure,flux)proportional control, the machine runs with low noise and at a high speed, it is equipped with low-voltage protective function.

Specifications:

	Model	Unit	JT-1200ST-R			JT-1600ST-R
Injection Unit	Screw Barrel Diameter	mm	45	48	52	48	52	55
	Injection Pressure	kg/cm2	1280	1125	1080	1495	1370	1295
	Max. Shot Weight	gram	228	260	280	285	363	420
	Max. Shot Speed	cm3/sec	129	183	265	295	389	446
	Screw Barrel Route	mm	200			210
	Screw Barrel Rotary Speed	rpm	0-200			0-210
	Nozzle Contact Force	tons	7.5			8.5
	Nozzle Retraction Nozzle	mm	210			220
	Number of Temperature Control	pcs	4			5
Clamping Unit	Clamping Force	tons	120			160
	Disk Staion	pcs	2/3			2/3
	Disk Diameter	mm	1300			1400
	Min. Mold Height	mm	200			530/330
	Opening Stroke	mm	250			300
	Max. Opening Mold Distance	mm	450/200			890/690
	Ejetor Force	tons	2.2			2.45
	Ejetor Stoke	mm	150			170
Power/Heading Unit	Max. Hydraulic Pressure	kg/cm2	140			140
	Pump Output	L/min	56			63
	Oil Resservoir Capacity	Liter	200			230
	Cooling Water Consumption	L/hr	1000-1200			1200-1400
	Pump Motor Power	kw/hp	14.5/22HP			16/23
	Barrel Heating Power	kw	6			7
	Total Power	kw	20			24
Other	Machine Weight	tons	6			7.6
	Machine Dimension(LxWxH)	meter	2.72.13.2			31.922.8
	Shipping Weight	tons	6.5			8.4
	Shipping Measurements(LxWxH)	meter	3.02.33.4			3.22.153.0

2017 Custom Mold Standard LED Modules Resin Injection Machine 120ton

Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

FAQ:
