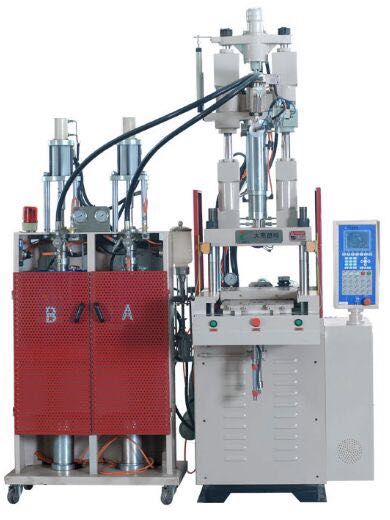

2021 New Model at-Rotary Type Injection Molding Machine
Plastic Injection Molding MachineClamping Force: 85TInjection Quantity: 160g-230gModel Units AT-850 2R Injection system Screw Diameter mm 36 42 Injection Pressure Kg/cm2 1732 1266 Theoretical Shot Volume cm3 182 249 Max. Shot Weight(P.S) g/Oz 162/5.7 222/7.8 Injection Rate cm3/sec 87 119 Temperat......
Send Inquiry
Product Description
Plastic Injection Molding Machine
Clamping Force: 85T
Injection Quantity: 160g-230g
Clamping Force: 85T
Injection Quantity: 160g-230g
| Model | Units | AT-850 2R | ||
| Injection system | Screw Diameter | mm | 36 | 42 |
| Injection Pressure | Kg/cm2 | 1732 | 1266 | |
| Theoretical Shot Volume | cm3 | 182 | 249 | |
| Max. Shot Weight(P.S) | g/Oz | 162/5.7 | 222/7.8 | |
| Injection Rate | cm3/sec | 87 | 119 | |
| Temperature Control Zone | ZONE | 4 | ||
| Material Hoppper Capacity | L | 30 | ||
| Clamping System | Clamping Force | T | 85 | |
| Opening Force | T | 10.8 | ||
| Distance Between Tie Bars | mm | - | ||
| The Biggest Mold Contain Space | mm | 400×400 | ||
| Min Mold Height | mm | 200 | ||
| Opening Stroke | mm | 250 | ||
| Max. Open Daylight | mm | 450 | ||
| Ejector Force | T | 3.9 | ||
| Ejector stroke | mm | 60 | ||
| Sliding System | Sliding Platen Size | mm | - | |
| Sliding Platen Stroke | mm | - | ||
| Round Set Diameter | mm | 1210 | ||
| Hydraulic Electric System | Max. Hydraulic Pressure | Kg/cm2 | 140 | |
| Pump Output | L | 380 | ||
| Pump Motor Power | Kw | 11 | ||
| Barrel Heating Power | Kw | 4.5 | ||
| Total Wattage | Kw | 15.5 | ||
| Others | Machine Weight | T | 3.8 | |
| Machine Dimensions(LxWxH) | m | 2.5×1.8×2.9 | ||
