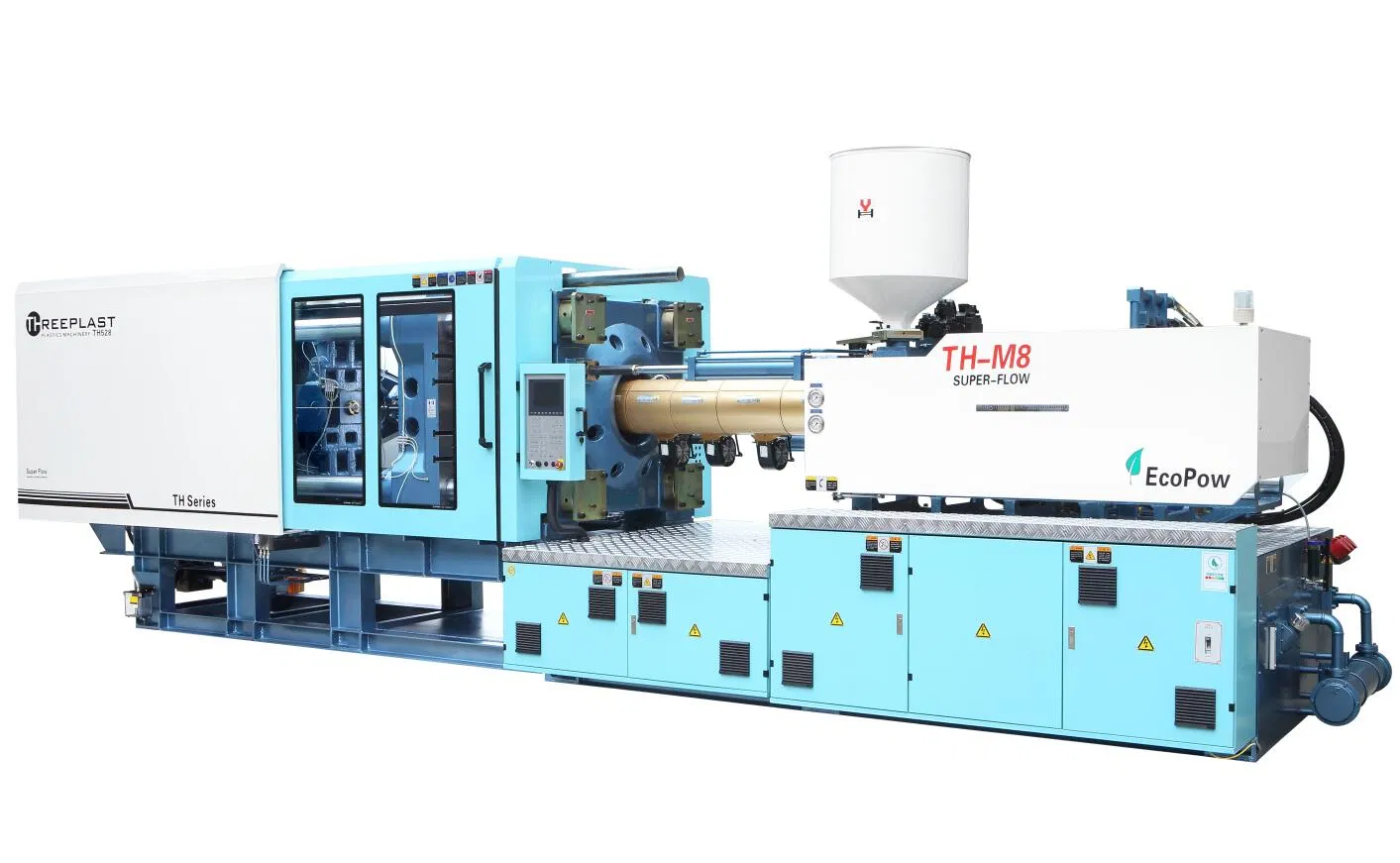

320t High Qualtiy Top Brand Servo Energy Saving Plastic Injection Molding Machine for Sale/ Sell Supplier Manufacturer China

Product Description

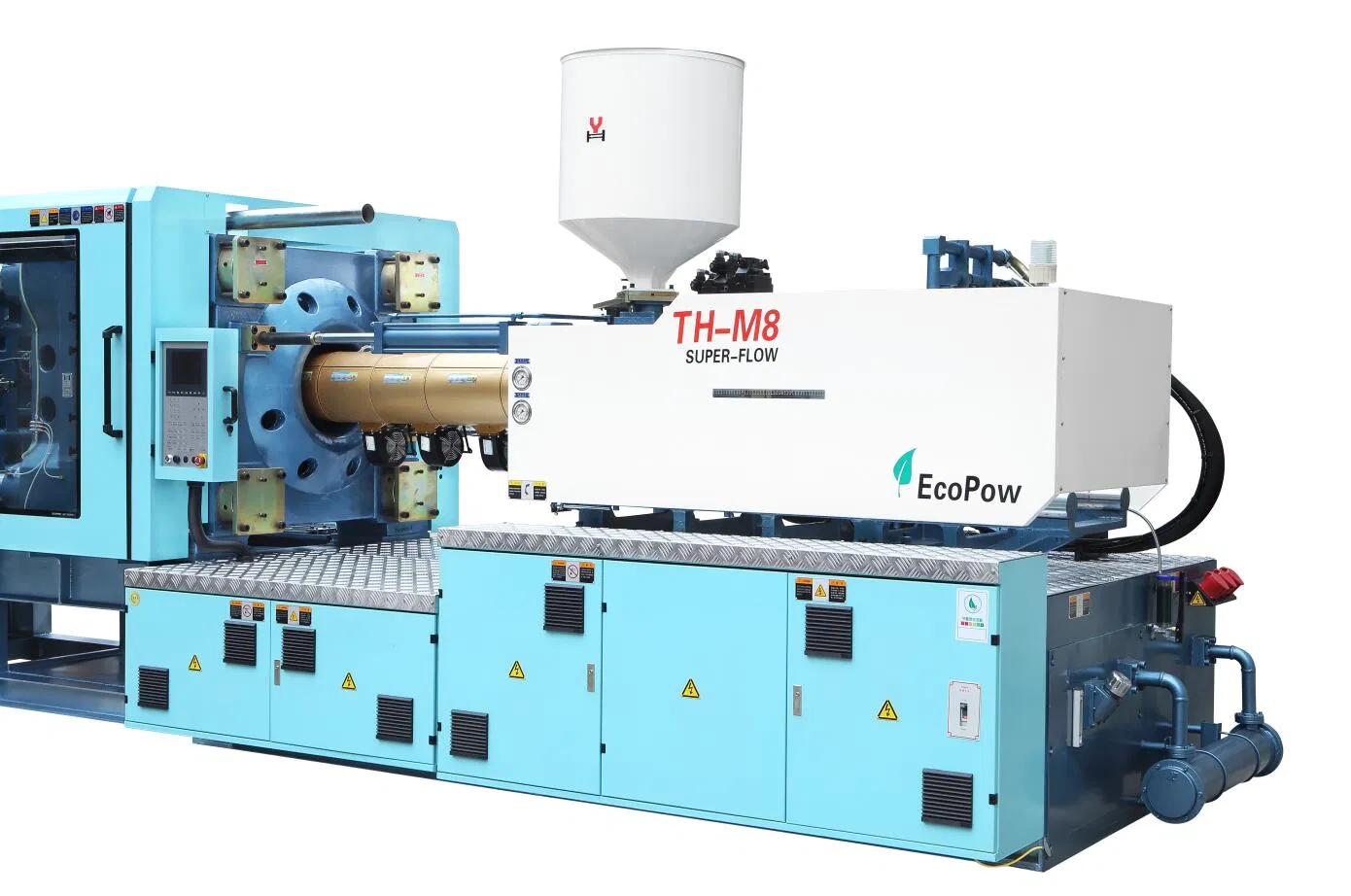

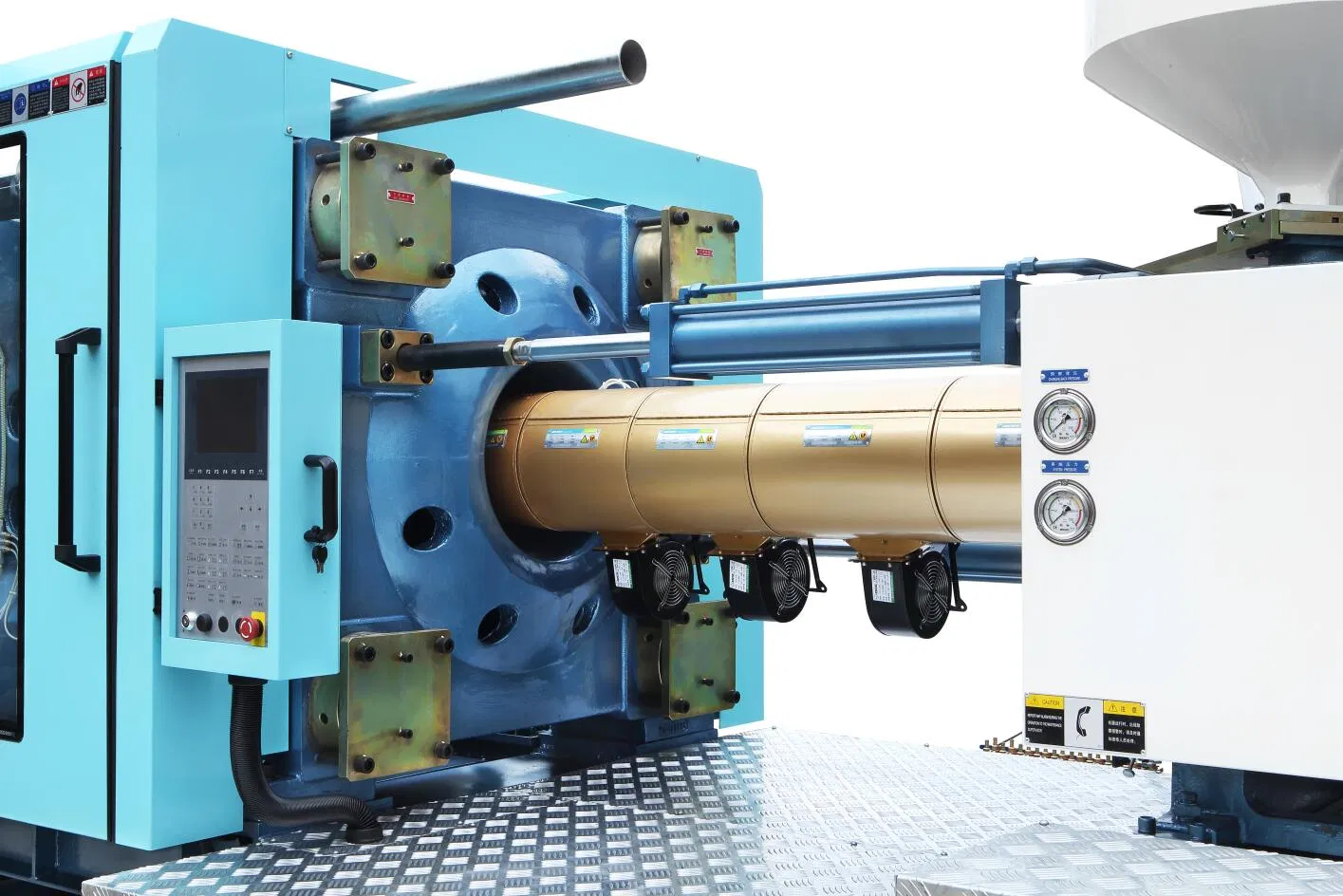

This Servo drive machine is designed For your Universal Processing applications this series of machinery is fast ,accurate and has Excellent Repeatability .This THREEPLAST injection molding machine can help you reach a maximum producibility on a wide range of materials . with a Nitrided +Alloy screw & barrel . wear-resistant screw tip. High strength tie-bars and rigid platens . it all adds up to a unit ,that will stay the course ,giving consistently high quality and output with a wide range of materials and with the most complex of molds .

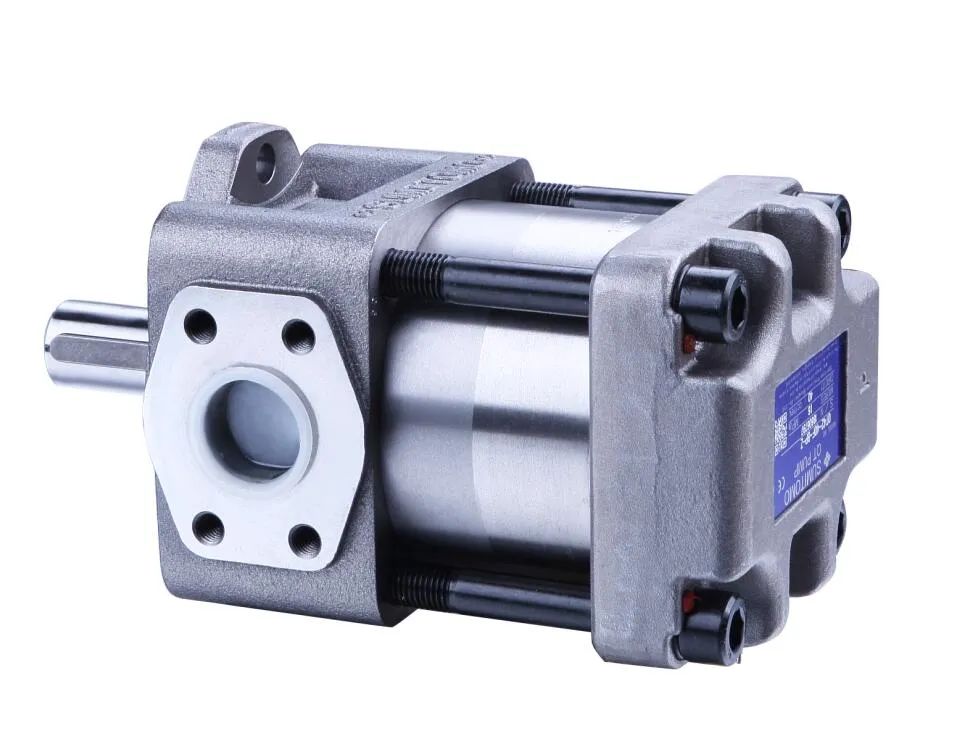

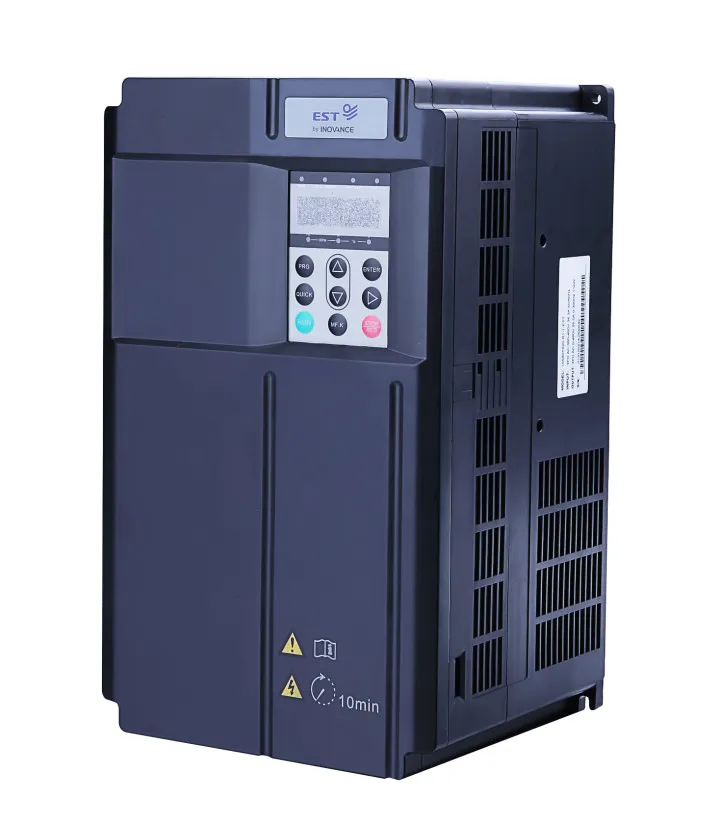

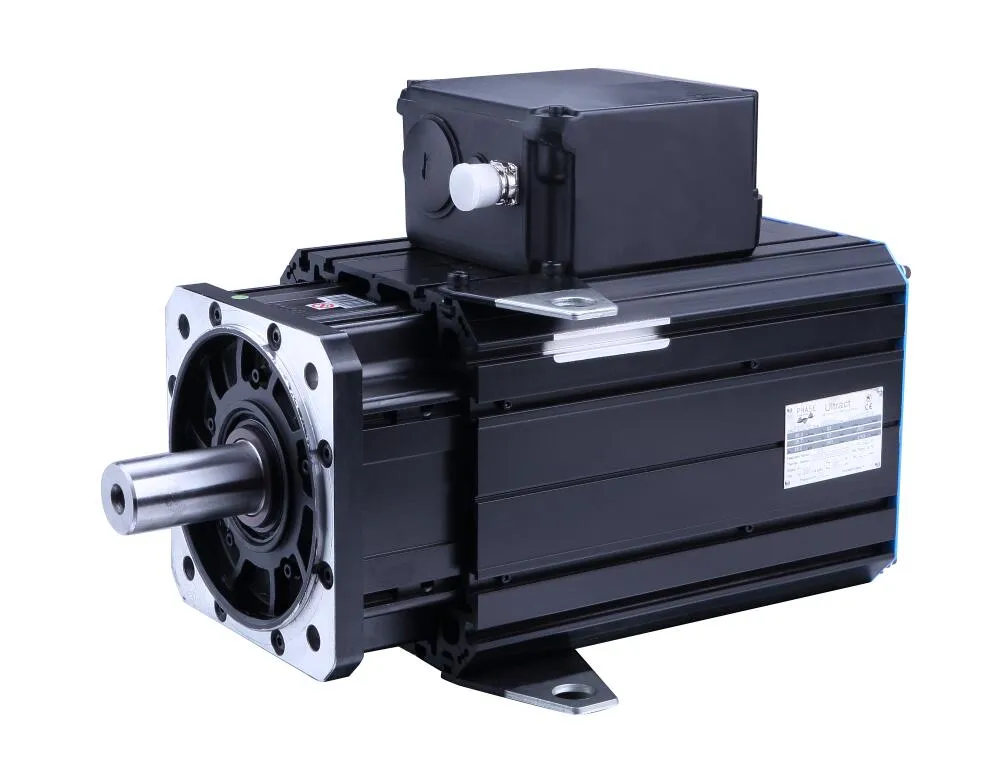

Inovance Servo Drive Sumitomo Servo Pump Phase Servo Pump

TH328
Injection Unit		A	B	C
Screw Diameter	In	2.56	2.76	2.96
	mm	65	70	75
Screw L/D ration	L/D	22	20	19
Shot volume	in3	70.82	80.82	94.31
	Cm3	1161	1347	1546
Shot weight (PS)	g	1057	1226	1407
	oz	37.28	43.25	54.53
Injection Pressure	psi	30160	25955	22620
	Mpa	208	179	156
Max screw speed	rpm	192

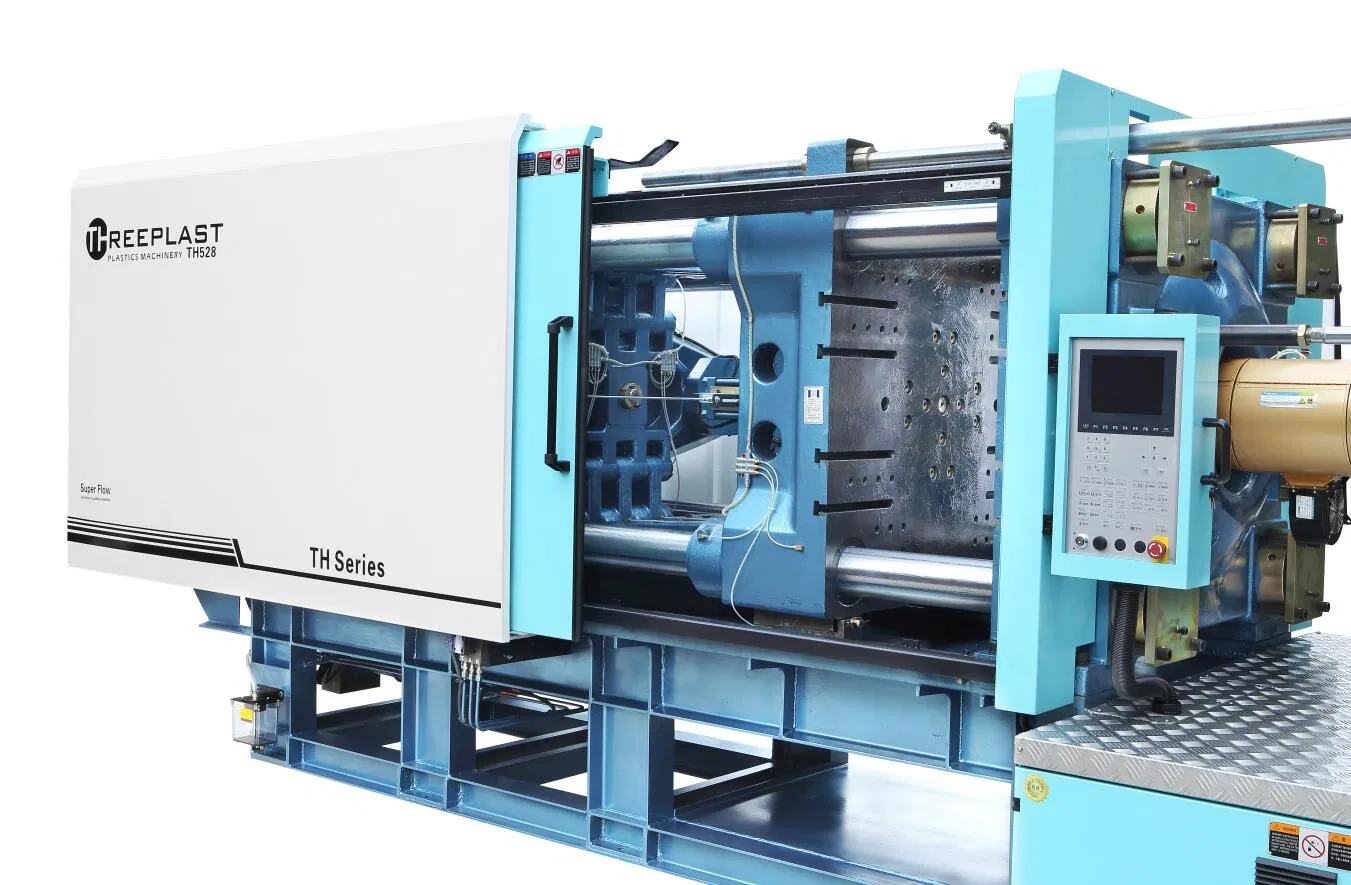

Clamping Unit
Clamping Force	KN / T	3200 / 320
	U.S.ton	352
Opening stroke	In	25.98
	mm	660
Tie-bars distance	In	25.98 X 25.98
	mm	660 X 660
Max.mold height	In	26.77
	mm	680
Min.mold height	In	9.84
	mm	250
Ejector Stroke	In	6.3
	mm	160
Ejector force	KN	62
	U.S. ton	6.82
General
Pump power	Kw	45
	HP	60.30
Heating capacity	Kw	22.8
	HP	30.55
Oil tank Capacity	Litre	690
Machine Dimensions	In	271.65 X 72.83 X 92.52
	m	6.90 X 1.85 X 2.35
Machine weight	Kg	12000
	Lbs	26400
