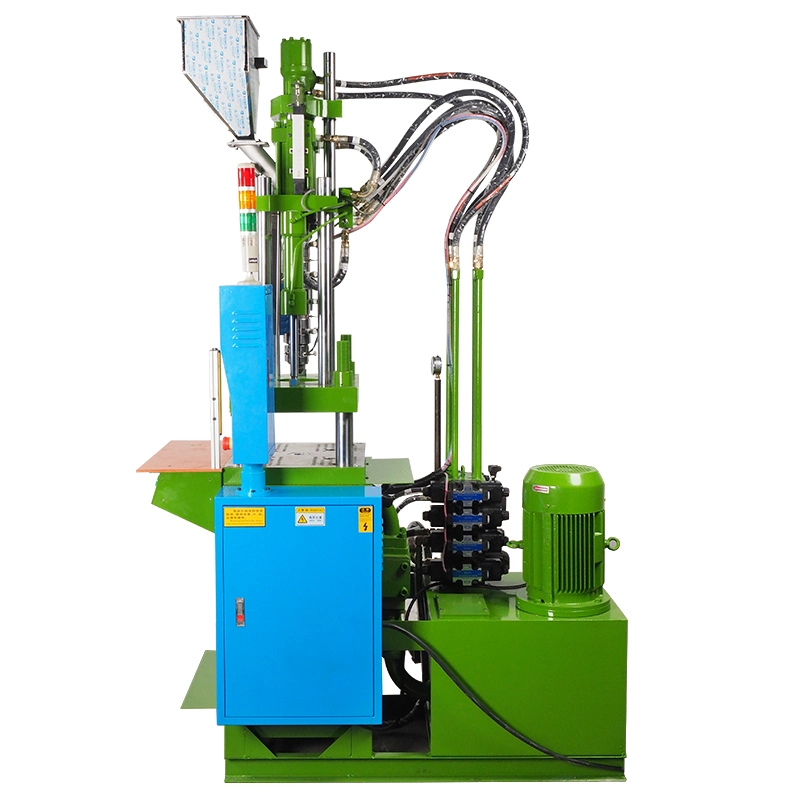

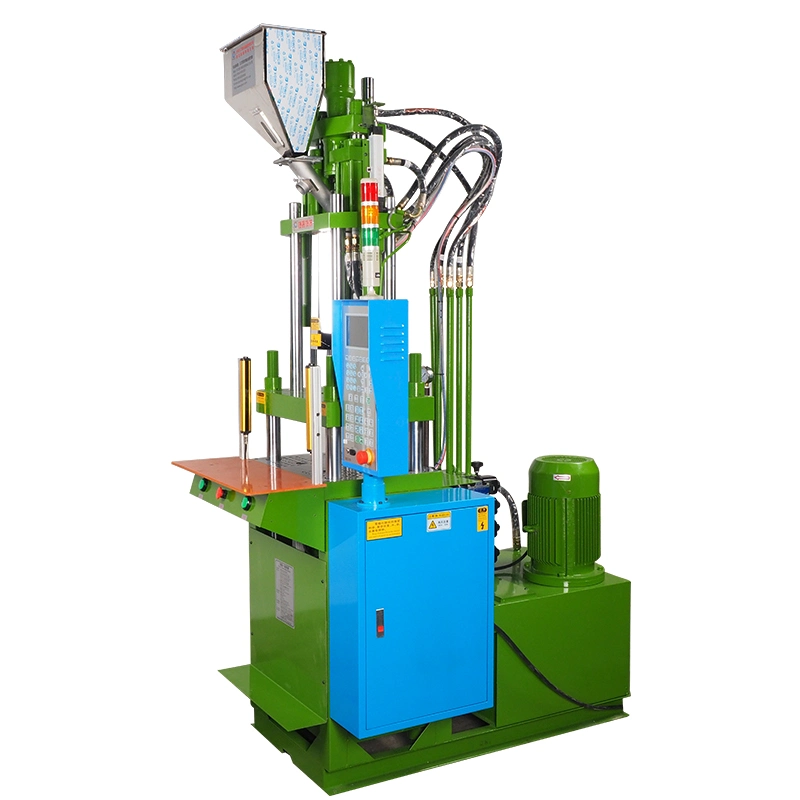

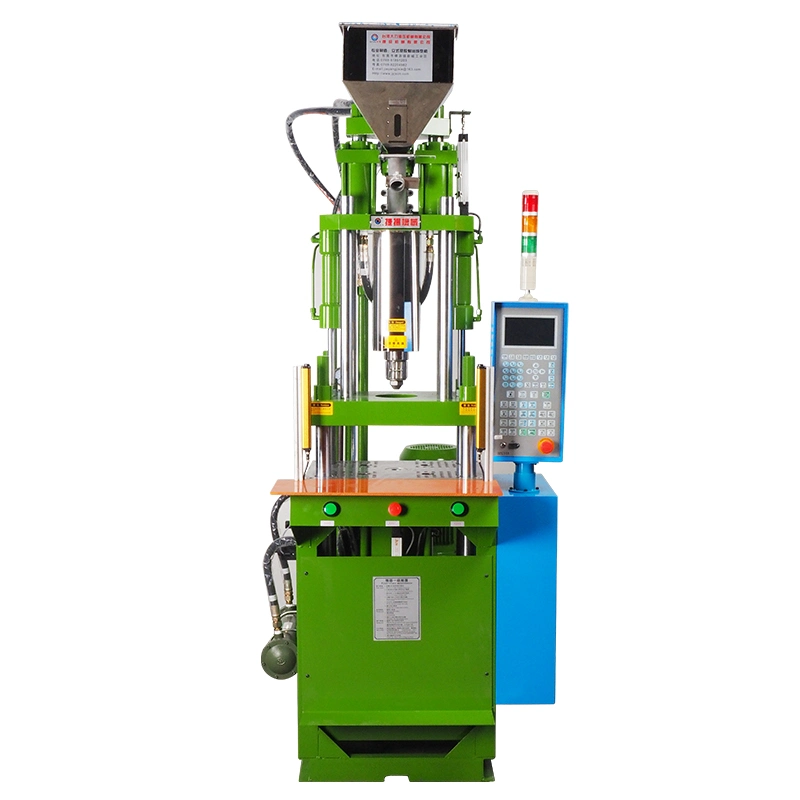

45 Tons Plastic Injection Moulding Machine for Wiring Plug
Product Description Main Features1)Straight screw ejected assembly.2)Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.3)Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has ......
Send Inquiry
Product Description
Product Description
Main Features
1)Straight screw ejected assembly.
2)Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3)Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4)Low-pressure closed die assembly can protect the safety of die.
5)Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6)Can be installed a single mold or double shuttle table.

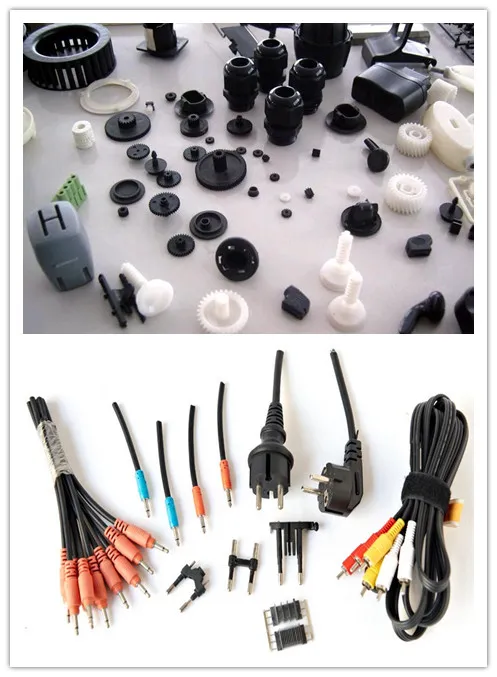

Machine Application
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
Product Details
Company Information
Dongguan JieYang Machinery Co., Ltd established on 2010, located in Xincheng Industrial Zone of Hengli Town. Our factory is about 2,000 square meters. We have more than 20years manufacturing experiences of vertical plastic injection molding machines with precision machining equipment & professional team. We do our best to provide the solution with competitive cost to our customers and it is recognized by all our customers.
We warmly welcome you to visit our factory, we are waiting for you at JieYang!
Packaging & Shipping
Package
1.The standard package is wooden box without fumigation.
2. We can also pack it according to customers special request.
Delivery Time
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service and low price.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 year warranty .
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Main Features
1)Straight screw ejected assembly.
2)Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3)Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4)Low-pressure closed die assembly can protect the safety of die.
5)Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6)Can be installed a single mold or double shuttle table.
Machine Application
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
Product Details
| Model | Unit | JY-450ST | ||
| Screw Barrel Diameter | mm | 30 | 32 | 34 |
| Injection Pressure | kg/cm2 | 1171 | 996 | 820 |
| Max. Shot Weight | gram | 74 | 84 | 106 |
| Max. Shot Weight | cm3/sec | 62.5 | 71 | 95 |
| Screw Barrel Route | mm | 115 | ||
| Screw Barrel Rotary Speed | rpm | 0-190 | ||
| Nozzle Contact Force | tons | 4.45 | ||
| Nozzle Retraction Nozzle | mm | 190 | ||
| Number of Temperature Control | pcs | 3 | ||
| Clamping Force | tons | 45 | ||
| Platen Size | mm | 580*430 | ||
| Distance Between Tie Bere | mm | 410*250 | ||
| Min. Mold Height | mm | 220/70 | ||
| Opening Stroke | mm | 200 | ||
| Max. Opening Mold Distance | mm | 420/270 | ||
| Ejetor Force | tons | 1.76 | ||
| Ejetor Stoke | mm | 35 | ||
| Max. Hydraulic Pressure | kg/cm2 | 140 | ||
| Pump Output | L/min | 37.2 | ||
| Oil Resservoir Capacity | Liter | 130 | ||
| Cooling Water Consumption | L/hr | 600-800 | ||
| Pump Motor Power | kw/hp | 5.5/7.5HP | ||
| Barrel Heating Power | kw | 2.8 | ||
| Total Power | kw | 9 | ||
| Machine Weight | tons | 1.8 | ||
| Machine Dimension(LxWxH) | meter | 1.7*1.2*3 | ||
| Shipping Weight | tons | 1.9 | ||
| Shipping Measurements(LxWxH) | meter | 1.82*1.18*2.45 | ||
Company Information
Dongguan JieYang Machinery Co., Ltd established on 2010, located in Xincheng Industrial Zone of Hengli Town. Our factory is about 2,000 square meters. We have more than 20years manufacturing experiences of vertical plastic injection molding machines with precision machining equipment & professional team. We do our best to provide the solution with competitive cost to our customers and it is recognized by all our customers.
We warmly welcome you to visit our factory, we are waiting for you at JieYang!
Packaging & Shipping
Package
1.The standard package is wooden box without fumigation.
2. We can also pack it according to customers special request.
Delivery Time
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service and low price.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 year warranty .
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
