Product Description

Detailed Information of Automatic Plastic Injection Molding Machine
SAMPLE PLASTIC FRUIT BOX & CRATE

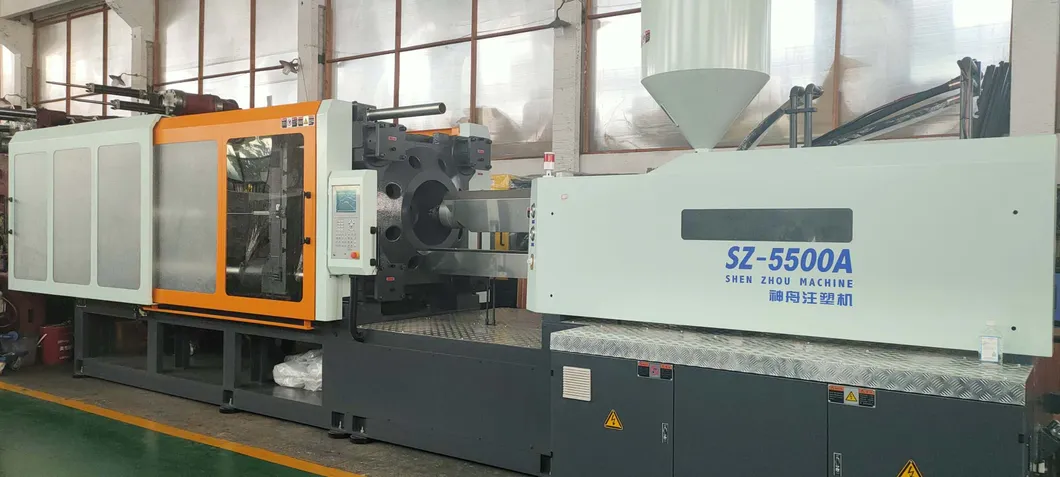

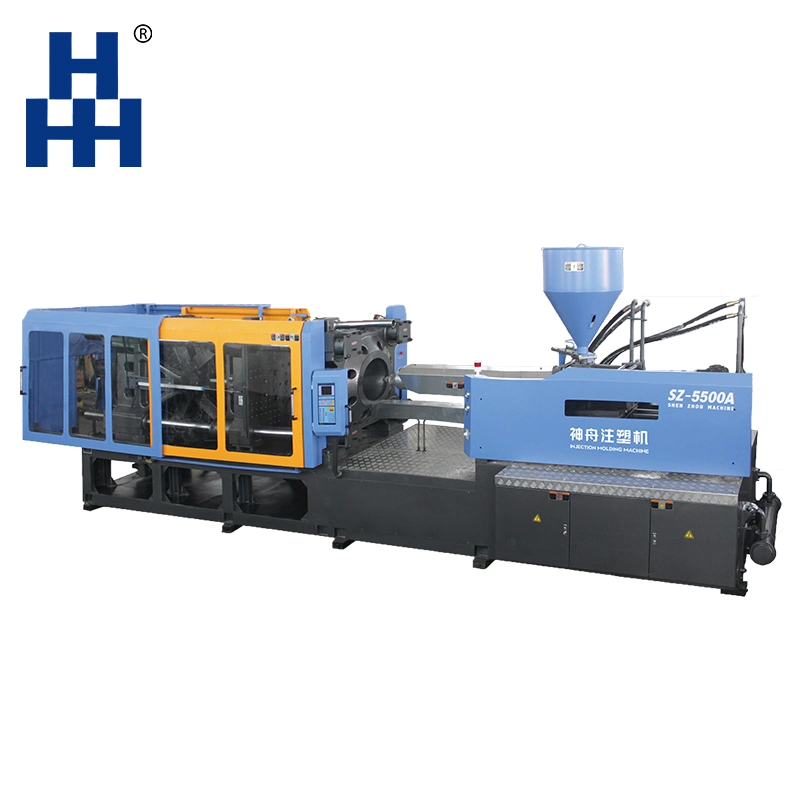

550ton Manufacturer Price of Horizontal Crate Bucket Basin Basket Plastic Injection Molding Machine

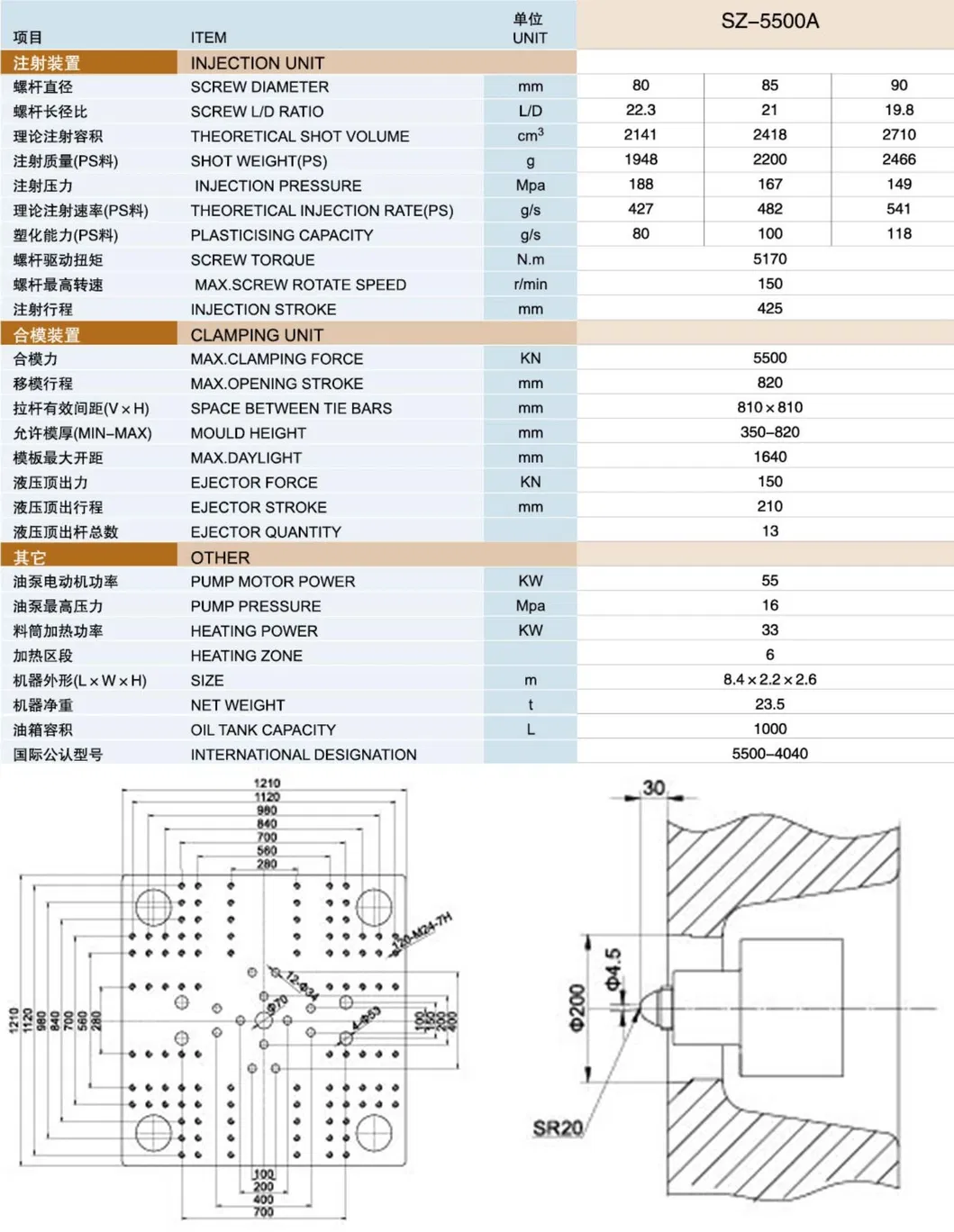

Technical Parameter of Automatic Plastic Injection Molding Machine

Item	unit	SZ-5500A
Screw diameter	mm	80	85	90
Screw L/D ratio	L/D	22.3	21	19.8
Theoretical injection capacity	cm3	2141	2418	2710
Shot weight (PS)	g	1948	2200	2466
Injection pressure	MPa	188	167	149
Injection stroke	mm	425
Screw speed	rpm	0-150
Heating power of barrel	Kw	33
Clamping force	kn	5500
Space between tie bars(H×V)	mm	810×810
Max. Mould height	mm	820
Min. mould height	mm	350
Opening stroke	mm	820
Distance between mould platens	mm	1640
Ejector stroke	mm	210
Ejecting force	kn	150
Ejectors number	pc	13
Power of pump motor	Kw	55
Volume of oil tank	L	1000
Dimension(L×W×H)	m	8.4×2.2×2.6
weight	ton	23.5

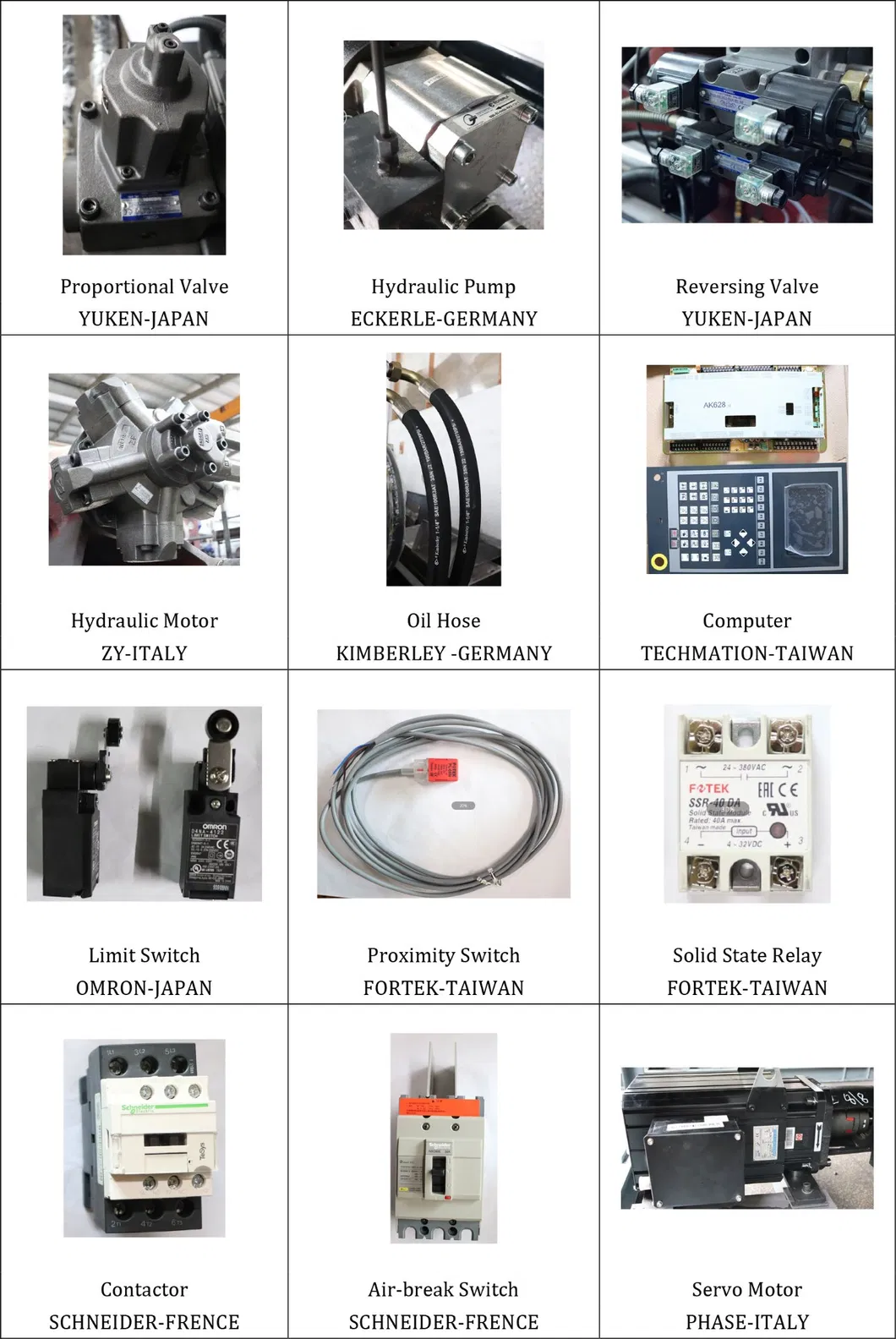

SZ-Series Injection Molding Machine Component List

Q & A:
Q1: How long can it be delivered after the order is placed?
If all the ordered goods are in stock, they can be delivered within 10 days after the order is placed;
In case of no inventory of the order goods, the goods can be delivered within 50-120 days after the order is placed.

Q2: What should I do if I find quality problems in the process of using my product?
If you need to replace the parts, we will provide them to you in the first time through international express. You will get new parts in 10-15 days.

Q3: Can I choose to buy equipment through Made-In-China company?
We have a professional international trade team, can provide you with certificate, shipping, customs clearance services, please feel free to buy.

Q4: Does the machine have an English manual and warranty card?
Each machine has a professional English operation manual and warranty card.
In addition, we can provide electronic version of the English manual.

Q5: The delivery time of products without stock is too long for 45 days.
First of all, we will speed production to meet your needs.
In addition, we recommend that you have similar equipment in stock to meet your needs as soon as possible.

Q6: What if I choose the wrong machine?
We have pre-sales engineers with rich professional knowledge. According to your products, we provide the most suitable machines and solutions.

Q7: Who is responsible for the installation and debugging of the machine I purchased?
We the seller are fully responsible to send our engineers within two weeks from the date of the containers arrival to the buyers factory to commissioning the machine and training the staff of the buyer, the buyer should be responsible for a round trip economy ticket, a hotel and any other necessary accommodations for the seller''s engineers, and engineer cost USD 80.00 per day.

Q8: Do you have an aftermarket warranty for your products?
Warranty: General one year for whole injection molding machines.
General one year for other types of whole machines.
All customers that have bought SHENZHOU injection molding machines would be provided with a lifetime repair service of the machines.
