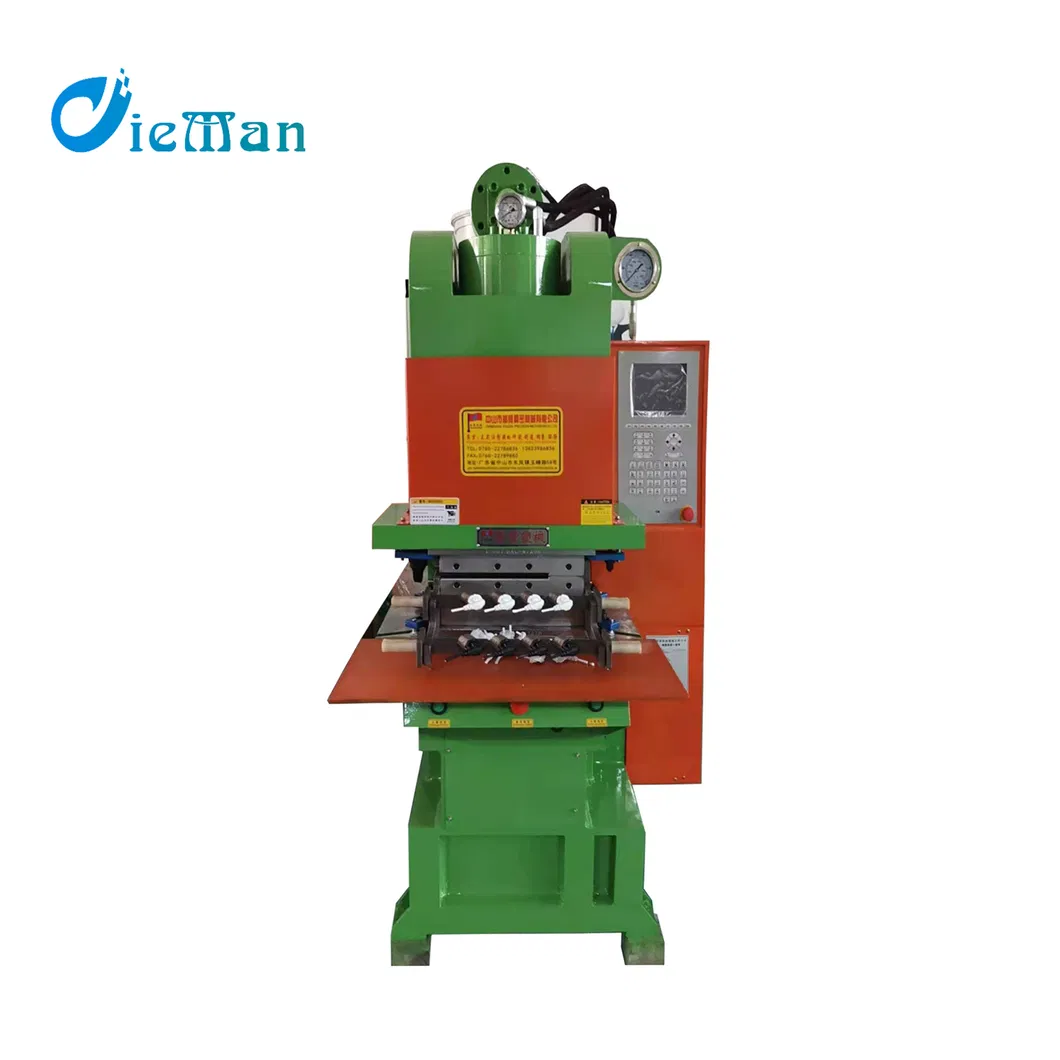

55ton Saving Energy Fix Pump Plastic Injection Molding Machine
Product Picture Product Description Model:HZ-550CUnit Injection Unit Screw Diameter mm42 Injection Pressure kgf/cm²870 Injection Capacity cm³263 Injection Weight(PVC) gr239 Injection Weight(PVC) oz8.4 Injection Rate cc/s 92 Screw Speed r.p.m 0-180 Screw Stroke mm140 Nozzle Stroke......
Send Inquiry
Product Description
Product Picture
Product Description
| Model:HZ-550C | Unit | |
| Injection Unit | ||
| Screw Diameter | mm | 42 |
| Injection Pressure | kgf/cm² | 870 |
| Injection Capacity | cm³ | 263 |
| Injection Weight(PVC) | gr | 239 |
| Injection Weight(PVC) | oz | 8.4 |
| Injection Rate | cc/s | 92 |
| Screw Speed | r.p.m | 0-180 |
| Screw Stroke | mm | 140 |
| Nozzle Stroke | mm | 170 |
| Nozzle Contact Force | tf | 3.5 |
| Clamping Unit | ||
| Clamping System | / | Hydraulic |
| Clamping Force | tf | 55 |
| Clamping Stroke | mm | 200 |
| Max. Mould Space | mm | 450 |
| Min. Mould Height | mm | 250 |
| Overall Size Of Platens(LxW) | mm | 700x300 |
| Space Between Columns(HxV) | mm | / |
| Hydraulic Ejector Force | tf | 2.3 |
| Ejector Stroke | mm | 70 |
| Radio Tsui Center Height | 150±30 | |
| From Theecenter to State Radio Tsui Min | 75 | |
| Electrical Equipment General | ||
| Drive Motor | kw | 7.5(10HP) |
| Heater | kw | 5.0 |
| Dimension Of Machine(LxWxH) | m | 2.9x1.5x2.5 |
| Weight Of Machine | t | 4.2 |
| Shipping Size(LxWxH) | m | 3.0x1.6x2.8 |
| Shipping Weight | t | 4.8 |
| Oil Tank Capacity | l | 220 |
| Cooling Water | l/hr | 600-800 |
