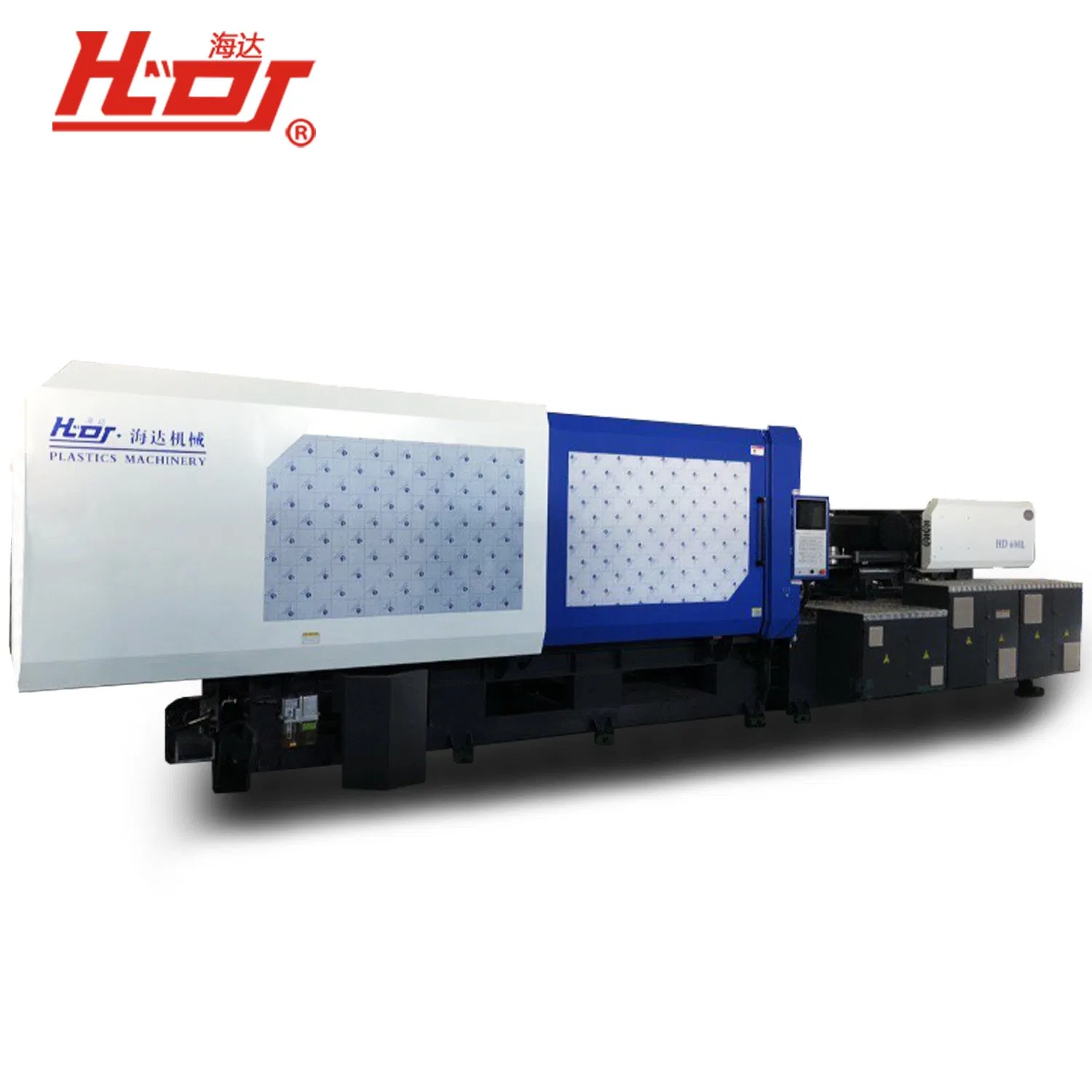

600ton Servo Precise Trash Dustbin Making Plastic Injection Moluding Machine
Product PictureProduct DescriptionModel: HD600LUnit Injection UnitScrew Diameter mm808590Screw L/D RatioL/D22.821.520.3Injection Volume cm³221224972799 Injection Weightg201322722547 Injection PressureMpa184163146 Clamping UnitClamping TonnagekN6000Opening Strokemm900 Space between Tie Bars......
Send Inquiry
Product Description
Product Picture
Product Description
| Model: HD600L | Unit | |||
| Injection Unit | ||||
| Screw Diameter | mm | 80 | 85 | 90 |
| Screw L/D Ratio | L/D | 22.8 | 21.5 | 20.3 |
| Injection Volume | cm³ | 2212 | 2497 | 2799 |
| Injection Weight | g | 2013 | 2272 | 2547 |
| Injection Pressure | Mpa | 184 | 163 | 146 |
| Clamping Unit | ||||
| Clamping Tonnage | kN | 6000 | ||
| Opening Stroke | mm | 900 | ||
| Space between Tie Bars | mm | 880x880 | ||
| Mould Thicknesss(Min-Max) | mm | 380-880 | ||
| Hydraulic Ejection | KN | 181 | ||
| Ejector Stroke | mm | 240 | ||
| Others | ||||
| System Pressure | Mpa | 16 | ||
| Motor power | kW | 60 | ||
| Heater | kW | 32.5 | ||
| Machine dimension (l × w × h) | M | 9.02x2.3x2.26m | ||
| Machine weight | T | 24.9 | ||
| Mold Location Recess Diameters | mm | 160 | ||
| Nozzle Radius | mm | SR15 | ||
