Home > Products > Injection Molding Machine > 90V-UPVC Plastic Injection Moulding Molding Machine ( 90ton IMM)
90V-UPVC Plastic Injection Moulding Molding Machine ( 90ton IMM)
FCE-uPVC SeriesuPVC special machine is new developed machine based on FST series which has advantages of efficiency, precision, power-saving and stability from FST series machine. Our FCE-uPVC series is best solution for uPVC material and for uPVC production.Please contact us for more details.Techni......
Send Inquiry
Product Description
FCE-uPVC Series
uPVC special machine is new developed machine based on FST series which has advantages of efficiency, precision, power-saving and stability from FST series machine. Our FCE-uPVC series is best solution for uPVC material and for uPVC production.
Please contact us for more details.
uPVC special machine is new developed machine based on FST series which has advantages of efficiency, precision, power-saving and stability from FST series machine. Our FCE-uPVC series is best solution for uPVC material and for uPVC production.
Please contact us for more details.
Technical Parameter

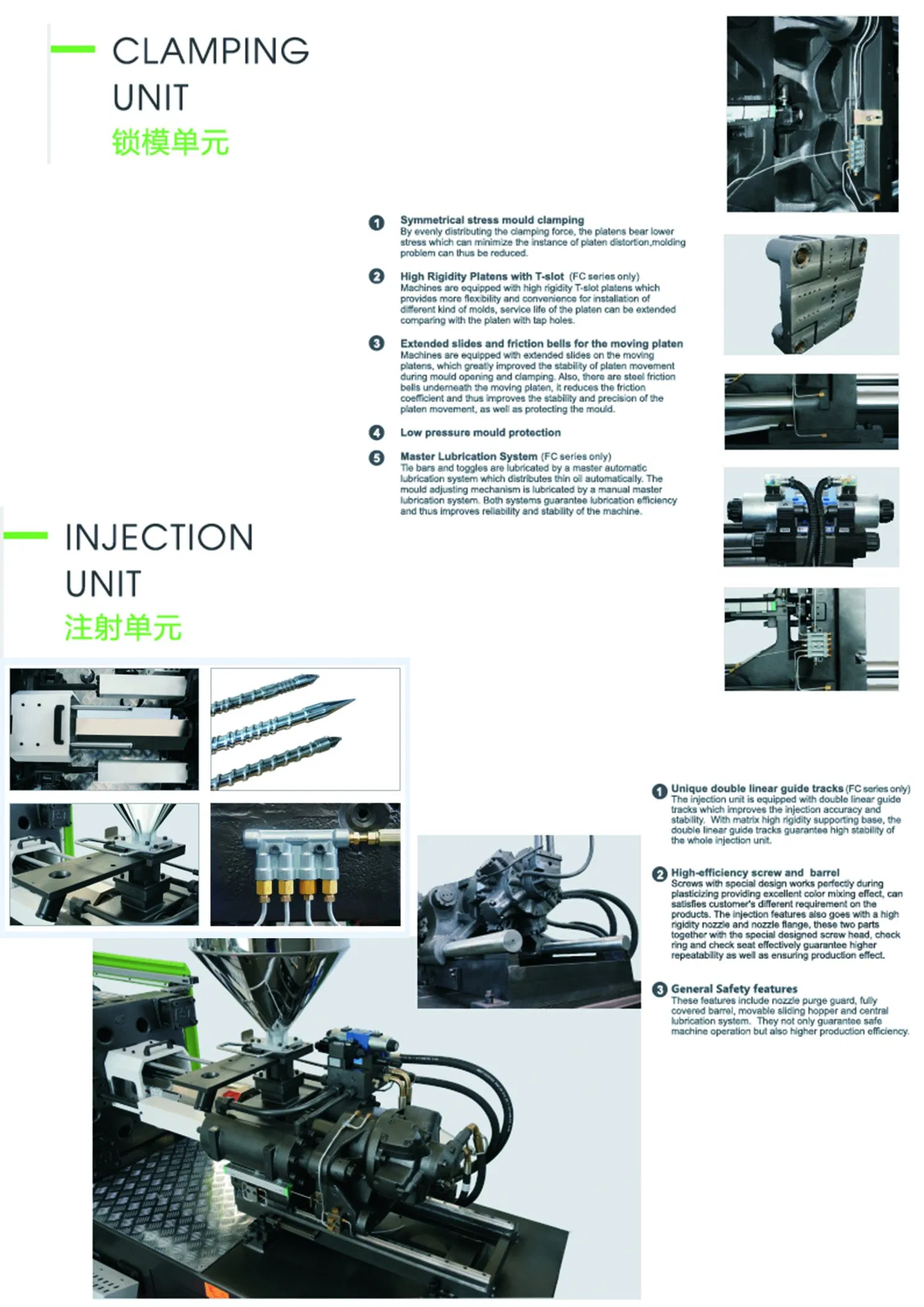

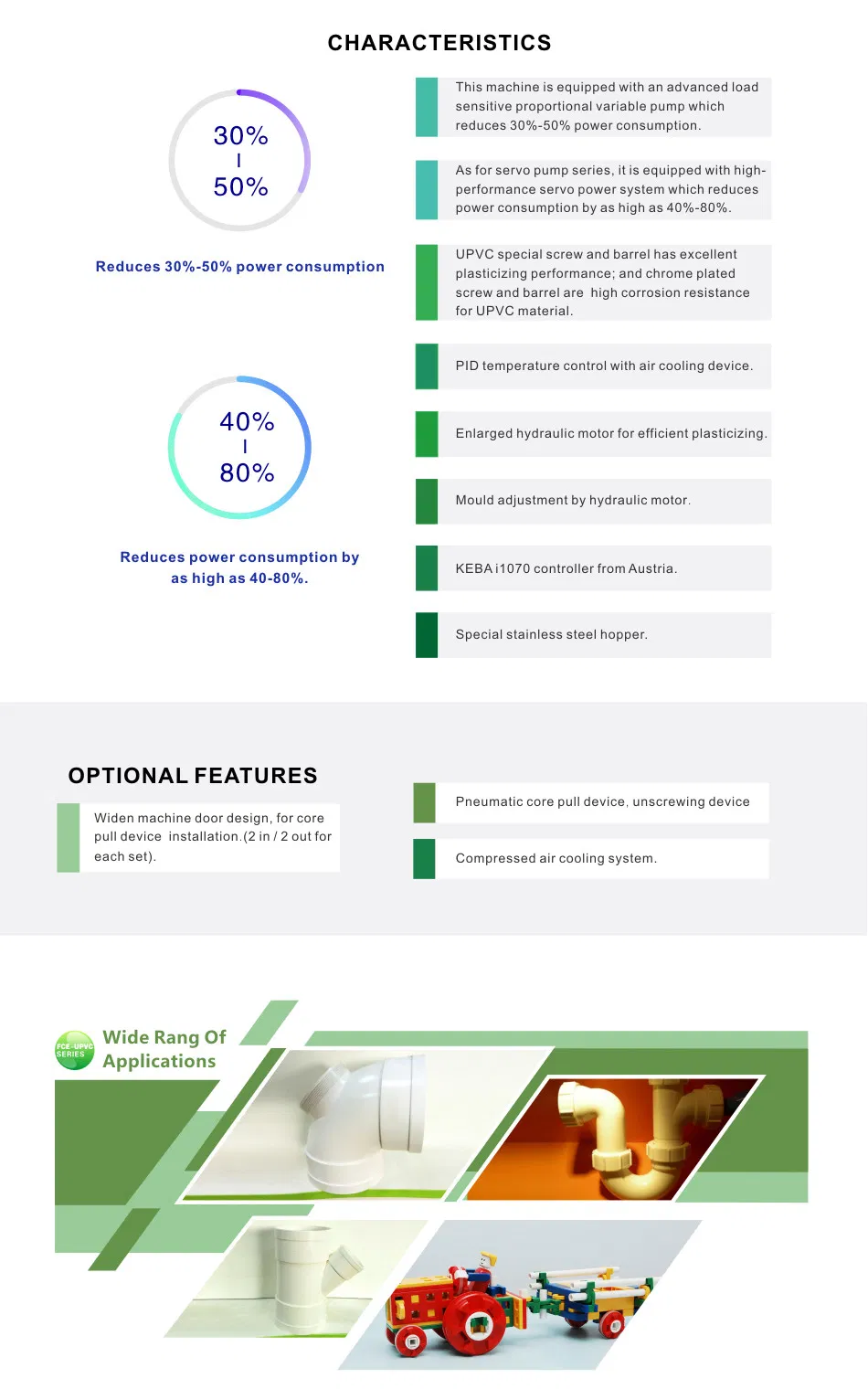

Technical Characteristics

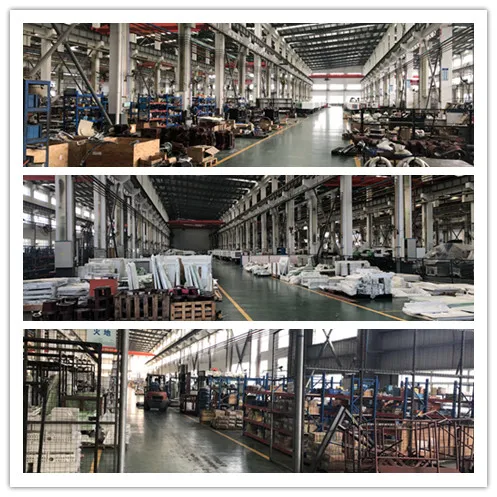

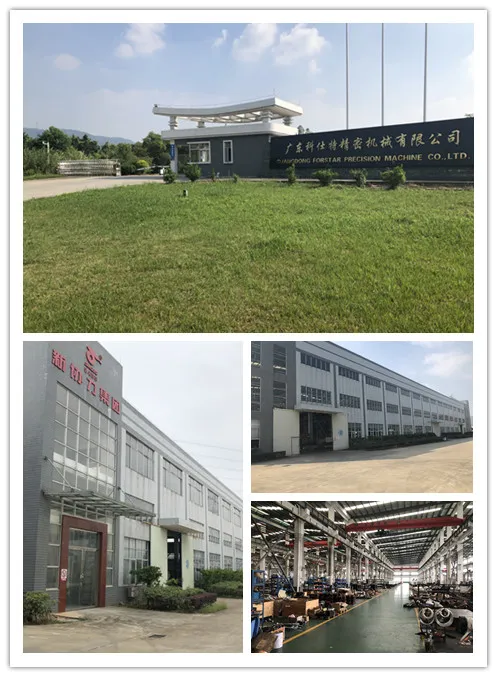

Our Factory
FORSTAR Injection Moulding Machine for Crate
FC, FCE series is a high-end plastic injection moulding machine newly developed by Forstar after uears of R&D and practical experiment. It is developed on the basis of the FST series with introduction of advanced European technique and apperance style. It keeps the advantages of efficiency, precision, energy conservation and stability of FST series while optimized thoroughly.
The features includes,
* Advance Control system
* High Rigidity Platens with T-slots (FC series)
* Extended slides fand friction bells for the moving platen
* Symmetrical Stress Mould Clamping
* Master Lubrication System (FC series)
Latest Information--2019
Our Services & Other
1. Reply the email and take action in 24 hours.
2.100% Quality inspection before the shipment.
4. Auxiliary machines for complete line.
5. Customized design as requirements
| FCE-FC 90V | ||||
| INJECTION UNIT | ||||
| A | B | C | ||
| Screw Diameter | mm | 31 | 35 | 41 |
| Theoretical Shot Volume | cm2 | 122 | 156 | 213 |
| Actual Shot Werght(PS) | g | 113 | 143 | 198 |
| Injection Pressure | mpa | 236 | 185 | 135 |
| Screw L:D ratio | 22.6;1 | 20;1 | 17.1;1 | |
| Screw Stroke | mm | 162 | ||
| CLAMPING UNIT | ||||
| Clamping Force | KN | 900 | ||
| Opening Stroke | mm | 330 | ||
| Platen Size | mm*mm | 520*520 | ||
| Space Between Tie Bars | mm*mm | 360*360 | ||
| Max.Daylight | mm | 690 | ||
| Mold Thickness(Min.Max) | mm | 130-360 | ||
| Hydraulic Ejection Strike | mm | 100 | ||
| Hydraulic Ejection Force | kn | 34 | ||
| Unmber of Ejector | 5 | |||
Technical Characteristics
Our Factory
FORSTAR Injection Moulding Machine for Crate
FC, FCE series is a high-end plastic injection moulding machine newly developed by Forstar after uears of R&D and practical experiment. It is developed on the basis of the FST series with introduction of advanced European technique and apperance style. It keeps the advantages of efficiency, precision, energy conservation and stability of FST series while optimized thoroughly.
The features includes,
* Advance Control system
* High Rigidity Platens with T-slots (FC series)
* Extended slides fand friction bells for the moving platen
* Symmetrical Stress Mould Clamping
* Master Lubrication System (FC series)
Latest Information--2019
Our Services & Other
1. Reply the email and take action in 24 hours.
2.100% Quality inspection before the shipment.
4. Auxiliary machines for complete line.
5. Customized design as requirements
