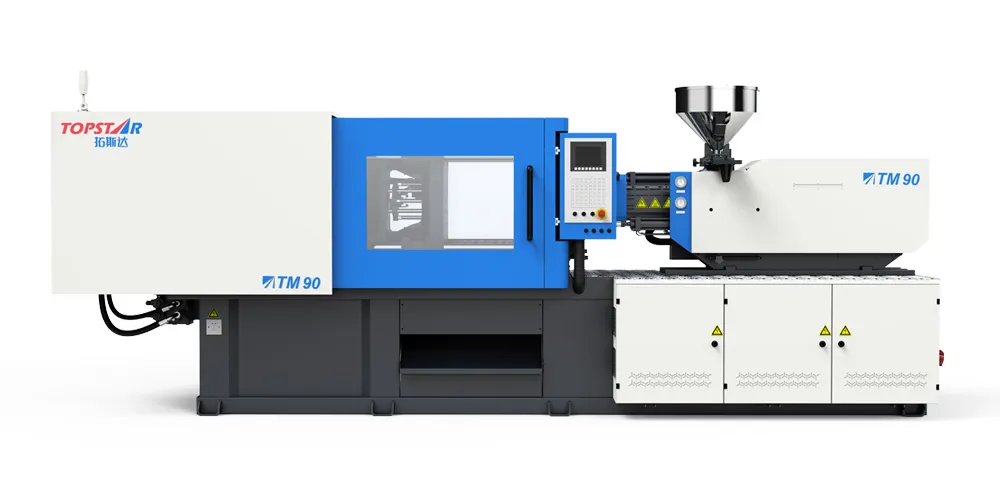

All New 90ton Injection Molding Machine Plastic Machinery for Pet Preform

Product Description:
The TM series injection molding machine has the ability to mold dense plastic products with complex appearance, precise dimensions or metal inserts in one go. It's widely used in electronics, packaging, 3C, auto parts and FMCG industries, etc.

Product Features:
1. Stable and sturdy, simple and practical.
2. High reliability and easy to operate.
3. Easy to process and install.
4. Easy to repair and maintain.

Accessory Introduction:
1. Advanced oil circuit design with European professional controller makes the machine action stable, combined with high product yield, fast response time, precise control, easy operation, and meet a variety of process requirements.
2. Diagonal double injection mold shift oil cylinder and linear guide, more accurate and stable injection.
3. Optimized and upgraded platen, with reliable structure and small deformation, can effectively protect the equipment and improve the service life of mold.
4. Focus on the actual customer experience, including industrial design, human-machine interaction and other details optimization.
5. Standard screw: high performance nitride steel, durable and efficient, wide application.
High color mixing/high mixing screw: to meet the high color mixing products, easy to change color.
Custom screw: specially customized plasticizing components for different products, such as PC, PA, etc.
6. Professional matching of plasticizing components to meet the plasticizing requirements and color mixing performance of different materials.

Parameter Table:

INJECTION UNIT	UNITS	TM90
Screw Diamete	mm	32	36	40
Screw L/D Ratio	L/D	22.5	20.0	18.0
Screw Stroke	mm	150	150	150
Shot Volume	cm3	121	153	188
Shot Weight(ps)	g	110	139	172
Shot Weight(ps)	oz	3.9	4.9	6.0
Injection Pressure	kgf/cm3	2393	1890	1531
Injection Rate	cm3/s	79	100	123
Injection Rate	mm/s	98	98	98
Screw Speed	rpm	240
Nozzle Contact Force	t	4.2
Nozzle Stroke	mm	260
CLAMPING UNIT	UNITS	TM90
Clamping Force	t	90
Opening Stroke	mm	330
Platen size(H×V)	mm	530*530
Space Between Tie Bars(H×V)	mm	560*360
Mlould Thickness (Min)	mm	125
Mlould Thickness (Max)	mm	400
Max. Daylight	mm	730
Ejector Force	t	3.4
Ejector Stroke	mm	120
Locating Ring	mm	100
POWER/HEATING UNIT	UNITS	TM90
System Pressure	kgf/cm3	175
Pump Power	kw	13
Heating Power	kw	7
Number of Temp Control Zones	-	3+1
0THERS	UNITS	TM90
Machine Dimensions(LxWxH)	m	4.65x1.23x1.88
Oil Tank Capacity	L	150
Machine Weight	t	3.3

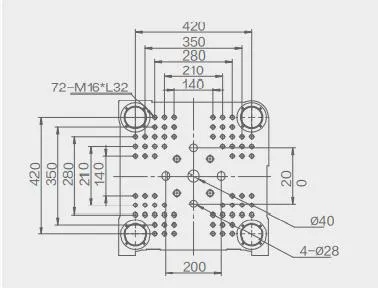

Platen Dimensions
Platen Dimensions

Note: The company reserves the right to modify the technical parameters without prior notice.
