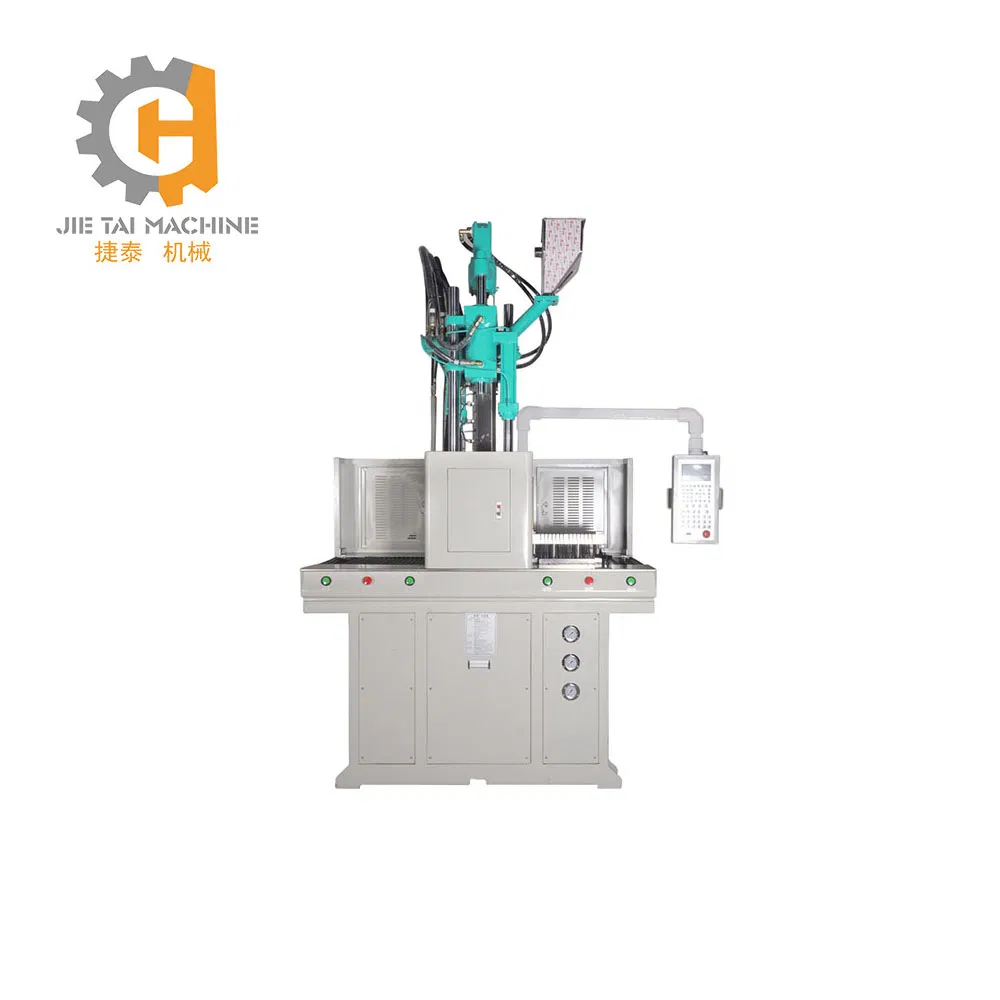

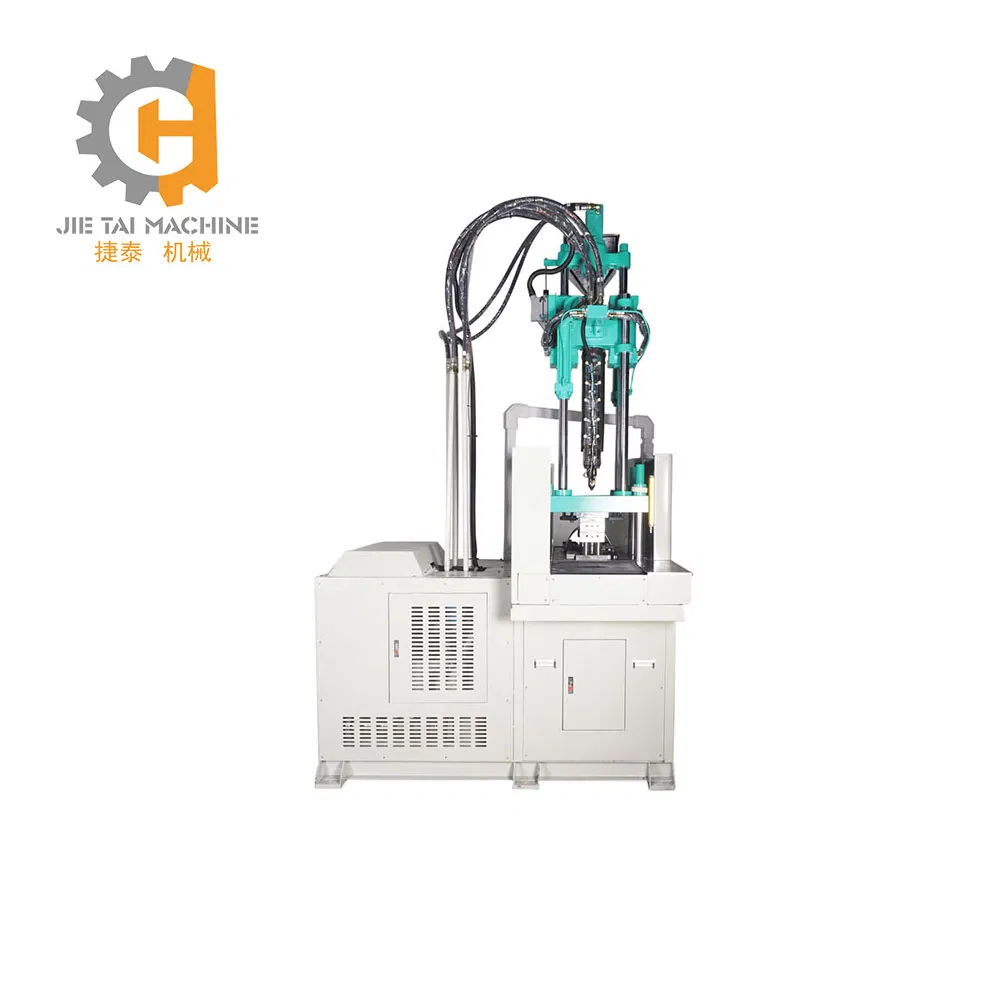

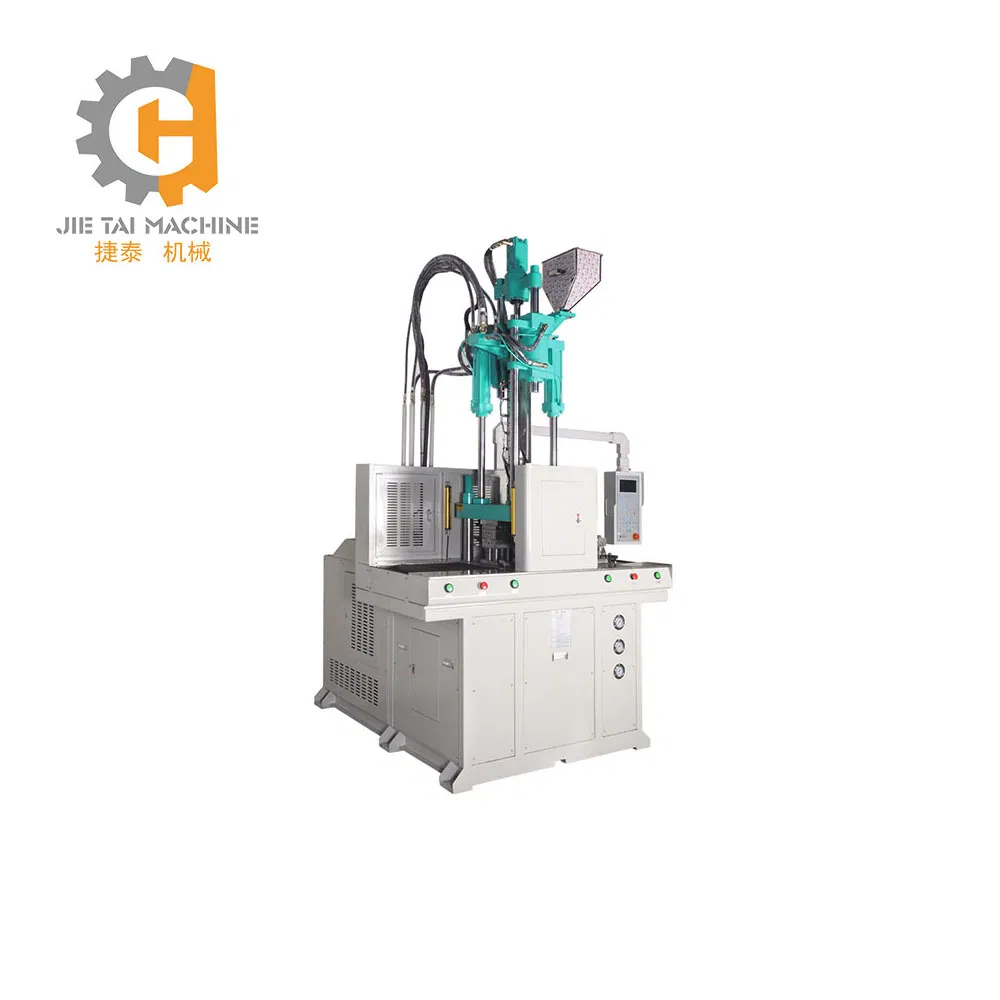

Factory price vertical automatic injection sole machine

Main Features
1)Straight screw ejected assembly.
2)Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confection.
3)Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4)Low-pressure closed die assembly can protect the safety of die.
5)Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6)Can be installed a single mold or double shuttle table.

Function:
1.Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take out products and molding finish at the same time, which is more safe and efficient for production , then reduce the cost of production.

2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend machine
& mold life.

3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavy duty double cylinder injection unit is maintenance friendly and free of oil leaks.

4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%.

5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.

Specification:

	Model	Unit	JT-350STDM			JT-450STDM
Injection Unit	Screw Barrel Diameter	mm	26	28	30	30	32	34
	Injection Pressure	kg/cm2	1530	1278	886	1171	996	820
	Max. Shot Weight	gram	56	64	74	74	84	106
	Max. Shot Weight	cm3/sec	57	66	75.5	62.5	71	95
	Screw Barrel Route	mm	115			115
	Screw Barrel Rotary Speed	rpm	0-205			0-190
	Nozzle Contact Force	tons	4.45			4.45
	Nozzle Retraction Nozzle	mm	170			190
	Number of Temperature Control	pcs	3			3
Clamping Unit	Clamping Force	tons	35			45
	Platen Size	mm	700*350			800*400
	Distance Between Tie Bere	mm	375*205			410*250
	Min. Mold Height	mm	150/100			200/150
	Opening Stroke	mm	180			200
	Max. Opening Mold Distance	mm	330/280			400/350
	Ejetor Force	tons	1.51.052.45			1.5
	Ejetor Stoke	mm	135			135
Power/Heading Unit	Max. Hydraulic Pressure	kg/cm2	140			140
	Pump Output	L/min	34.5			37.2
	Oil Resservoir Capacity	Liter	100			130
	Cooling Water Consumption	L/hr	400-600			600-800
	Pump Motor Power	kw/hp	3.75/5HP			5.5/7.5HP
	Barrel Heating Power	kw	2.4			2.8
	Total Power	kw	6.3			9
Other	Machine Weight	tons	1.7			2.6
	Machine Dimension(LxWxH)	meter	1.51.152.52			1.81.253.08
	Shipping Weight	tons	2			2.9
	Shipping Measurements(LxWxH)	meter	1.81.32.3			21.452.3

Application:

Factory Price Vertical Automatic Injection Sole Machine

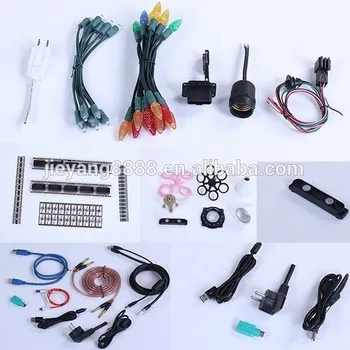

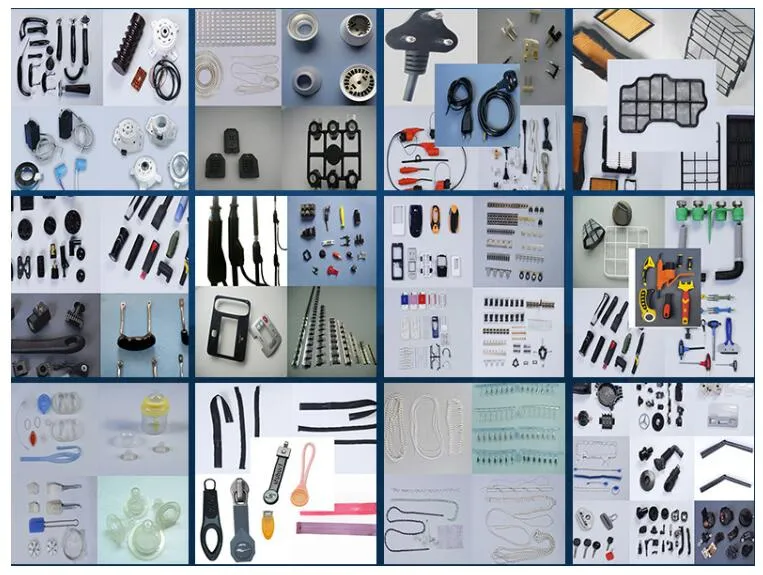

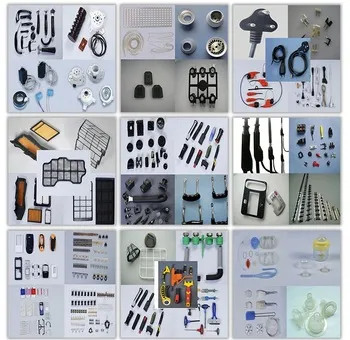

Machine can produce:
Factory Price Vertical Automatic Injection Sole Machine

Our Services:

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 30 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A:1.Alibaba Secure payment. Reliable and safe, Alibaba will charge a little handling fee,if meet some problem with
supplier,Alibaba will help customer to deal with.
2.T/T, means international bank transfer. 30% deposit, we produce the machine for you. 70% before shipping.
It is convenient and fast.
3.L/C (at sight)
