Product Description

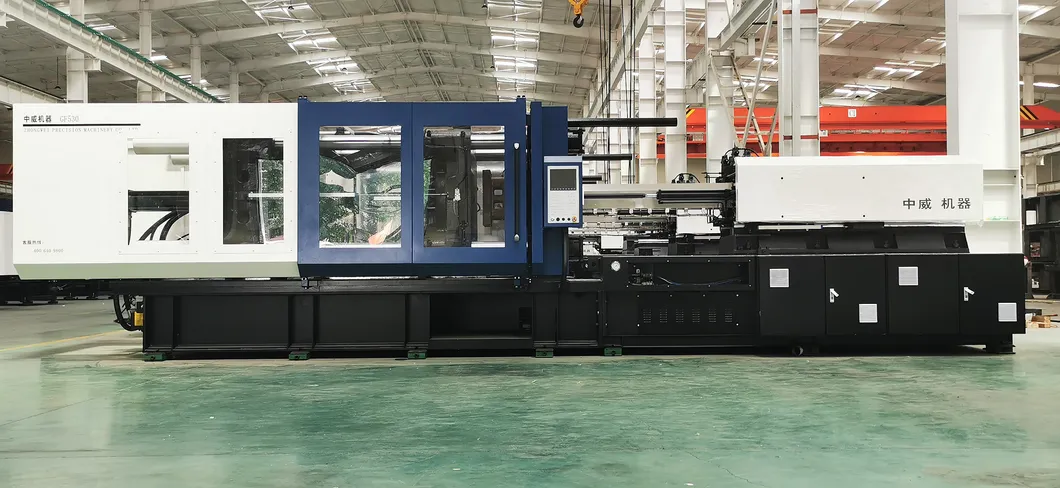

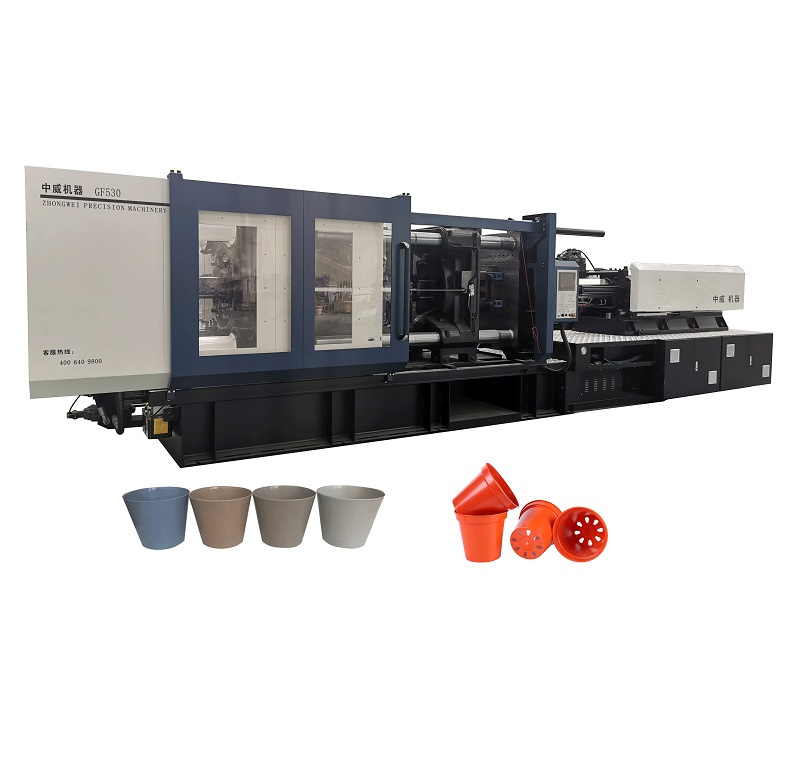

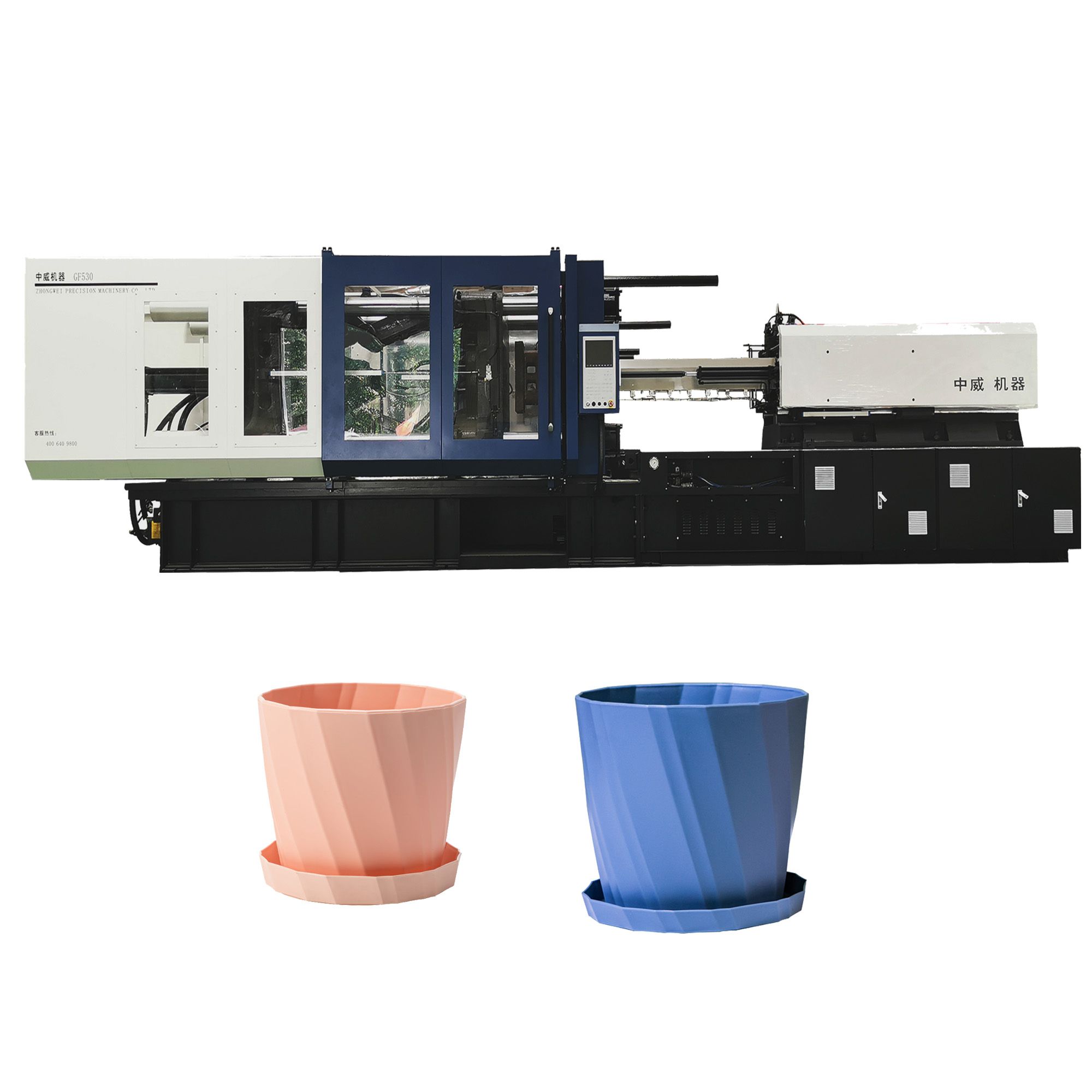

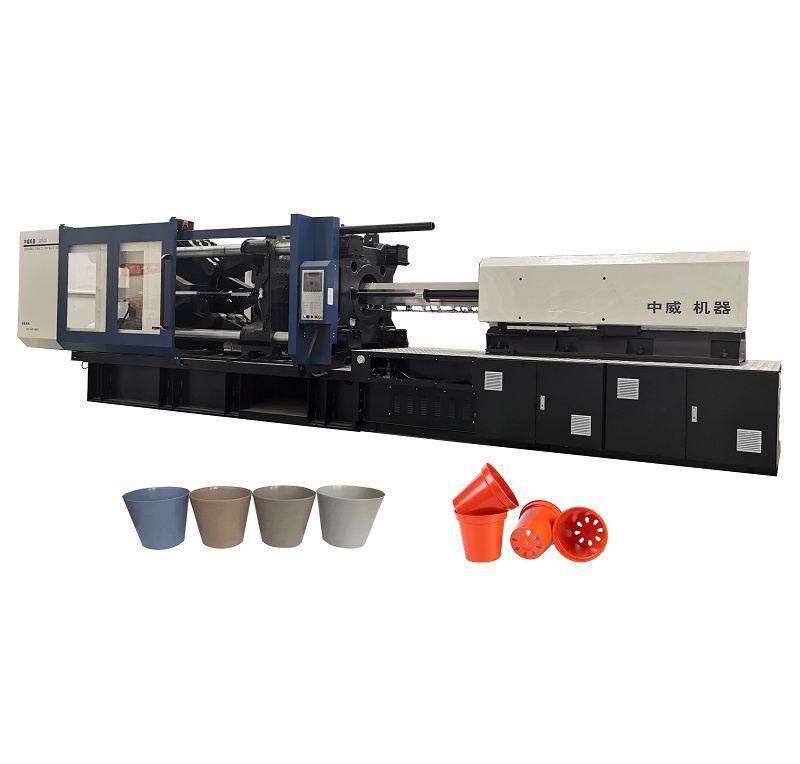

GF 530eh Automatic Household Products Plastic Flowerpot Making Injection Molding Machine

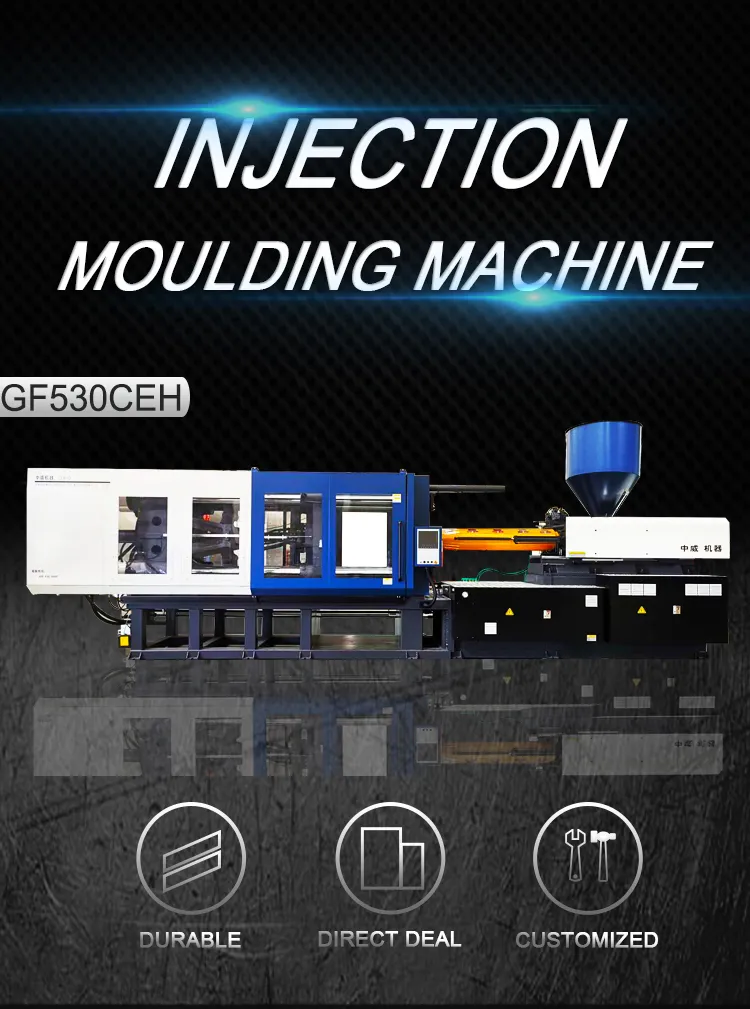

ZOWEI GF530CEH with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.

GF 530eh Automatic Household Products Plastic Flowerpot Making Injection Molding Machine

00:15Mahi

Technical Parameter			GF260EH	GF400CEH	GF530CEH	GF650CEH	GF780CEH
Parameter	Screw Diameter	mm	55	75	85	90	95
	Max. Shot Weight(PS)	g	575	1507	2292	2974	3223
	Clamping Force	KN	2600	4000	5300	6500	7800
	Opening Stroke	mm	550	720	790	900	990
	Space Between Tie Bars(W*H)	mm	590X590	740X700	820X800	920X868	960X940
	Mold height	mm	220~600	345~720	370~820	400~950	600~1140
	Diemension	m	6.1X1.6X2.5	7.5X1.7X2.5	8.2X2.3X2.6	9.5X2.4X2.8	10.5X2.2X2.6
	Machine Weight(approx.)	ton	8	16	21	28	33

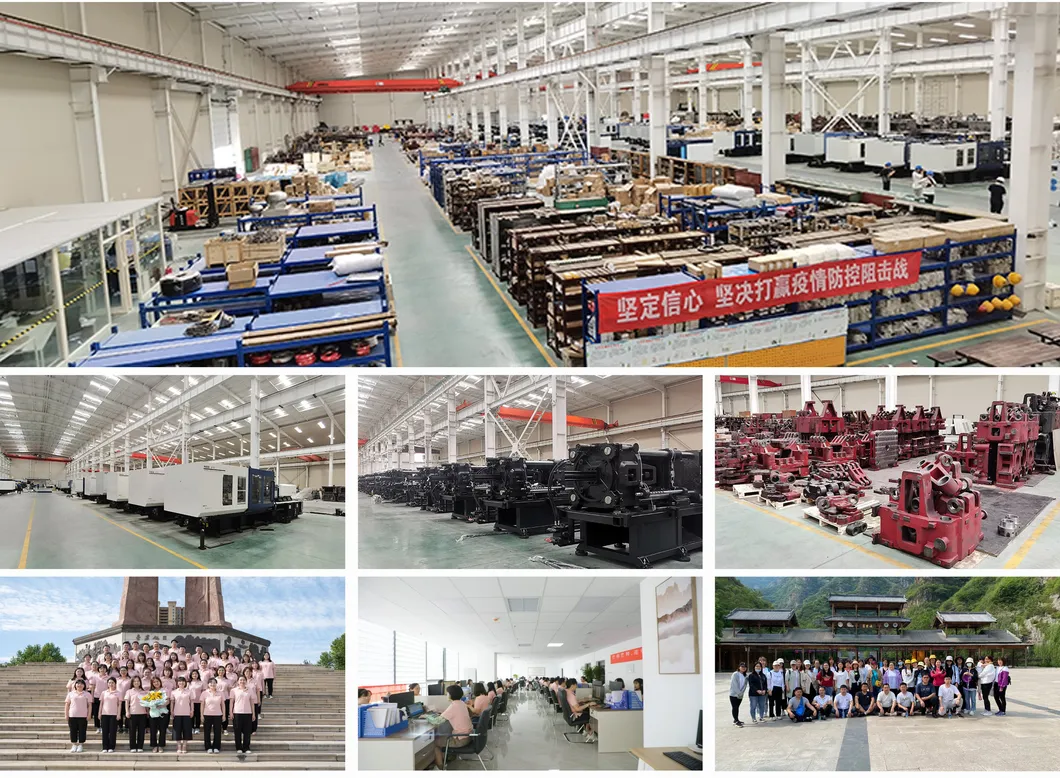

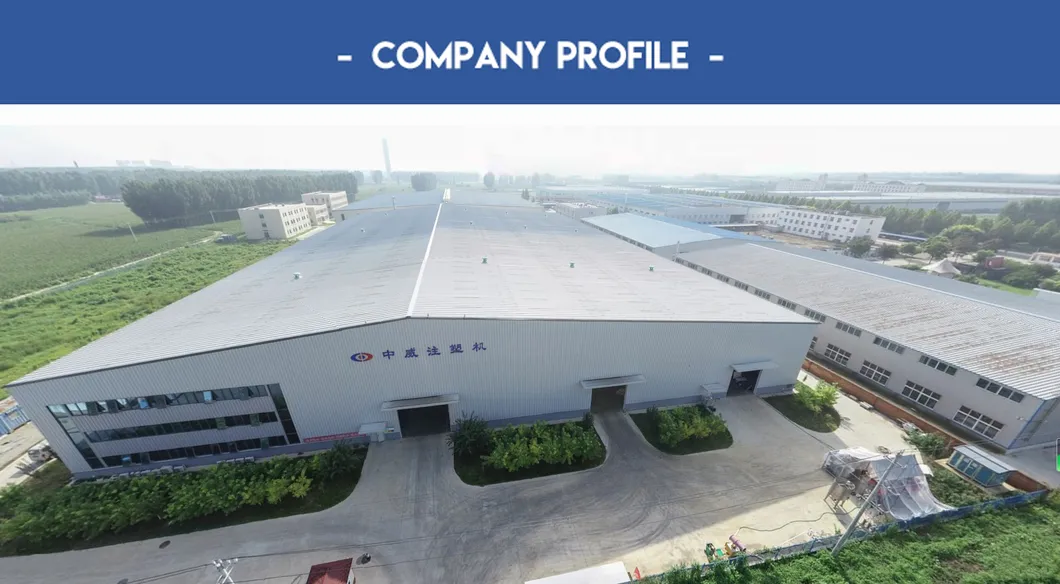

Tianjin Zowei Precision Machinery Co., Ltd is a high-tech enterprise specialized in designing, manufacturing and selling various types of high-precision, energy saving, stable performance injection molding machines in China and overseas.

Mission, meeting the needs of customers and promoting customer growth. Helping customers to obtain strong competitiveness and sustained profitability.

Vision, to develop injection molding machines for helping our society and our planet.

Over the past 30 years in injection molding machines industry, Zowei won the trust from our professional customers.With its strong R&D, design and innovation capabilities, Zowei continues to provide customers with personalized machines that adapt to different products requirements.

1.Can we visit your factory?
Sure. We are in Tianjin. For overseas customers, you can fly to Tianjin Binhai International Airport. We can
pick you up in the Airport. Or Beijing Capital International Airport. Currently we provide visit online by video

2.How can we get the exact price of injection molding machine?
Contact us with the products weight, drawing, annual quantity. We can recommend our machine models
with quotation.

3.Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

4.How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online
support, video technical support or field installation assist.

5.What is the lead time?
For customized machine, it takes about 25-50 days after deposit. For stock machine, fast shipment.

6.What is the warranty period for your machine ?
12 months warranty for components and technical support .

7.Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the
machines according to customers products, thus with short cycle time, high production, therefore with
higher profit.

8.How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission
the machine, also train the customer's employees.

9.What's ZOWEI'S advantage?
Zowei can provide customers with turnkey projects. Including plant design, injection molding machine and
mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the
full set of machines after testing in our factory. It will save a lot of cost and time.
