              High Performance 170ton 1700kn 160t Ce Plastic Clothes Peg Hanger Small TPU Injection Molding Machine

              This Servo drive machine is designed For your Universal Processing applications this series of machinery is fast ,accurate and has Excellent Repeatability .This THREEPLAST injection molding machine can help you reach a maximum producibility on a wide range of materials . with a Nitrided +Alloy scre......

              Send Inquiry

              Product Description

              This Servo drive machine is designed For your Universal Processing applications  this series of machinery is fast ,accurate and has Excellent Repeatability .This THREEPLAST injection molding machine can help you reach a maximum producibility on a wide range of materials . with a Nitrided +Alloy screw & barrel . wear-resistant screw tip. High strength tie-bars and rigid platens . it all adds up to a unit ,that will stay the course ,giving consistently high quality and output with a wide range of materials and with the most complex of molds .

              High Performance 170ton 1700kn 160t Ce Plastic Clothes Peg Hanger Small TPU Injection Molding Machine                                      High Performance 170ton 1700kn 160t Ce Plastic Clothes Peg Hanger Small TPU Injection Molding Machine                                                       High Performance 170ton 1700kn 160t Ce Plastic Clothes Peg Hanger Small TPU Injection Molding Machine

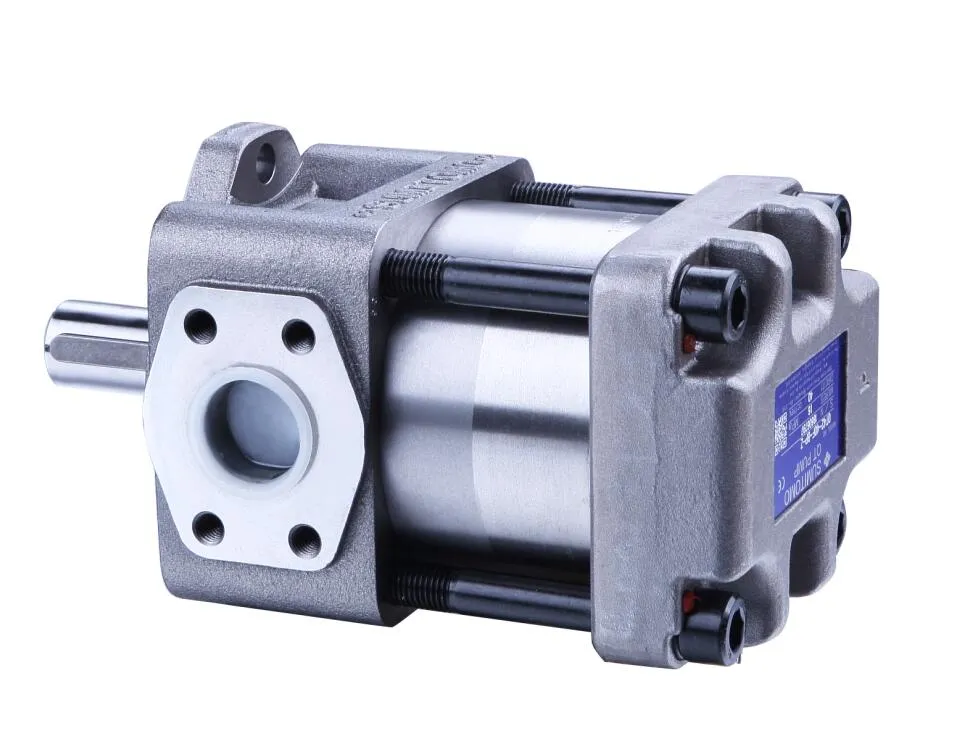

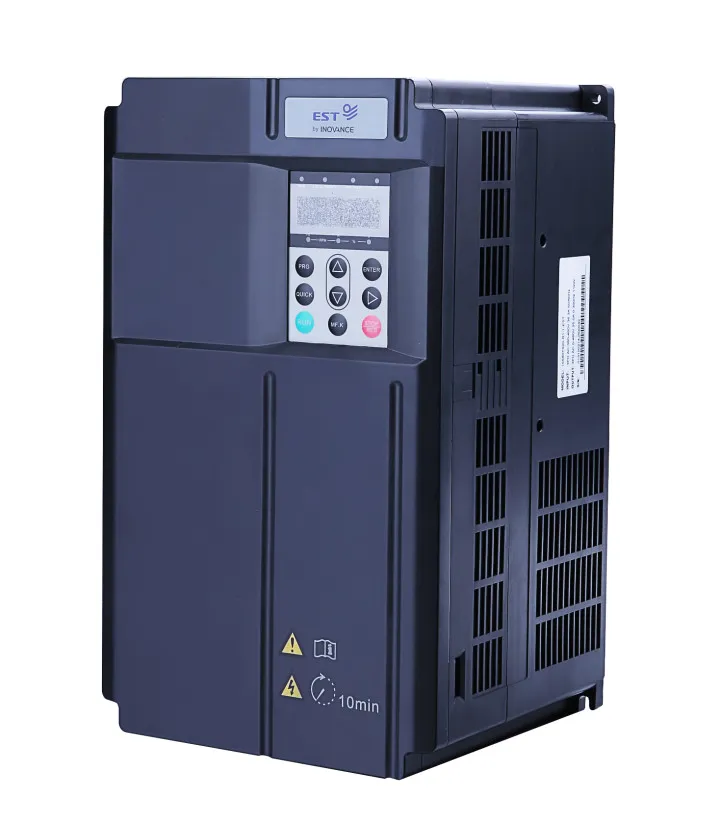

                  Inovance Servo Drive                          Sumitomo Servo Pump                                                        Phase Servo Pump

                   High Performance 170ton 1700kn 160t Ce Plastic Clothes Peg Hanger Small TPU Injection Molding Machine



              TH178

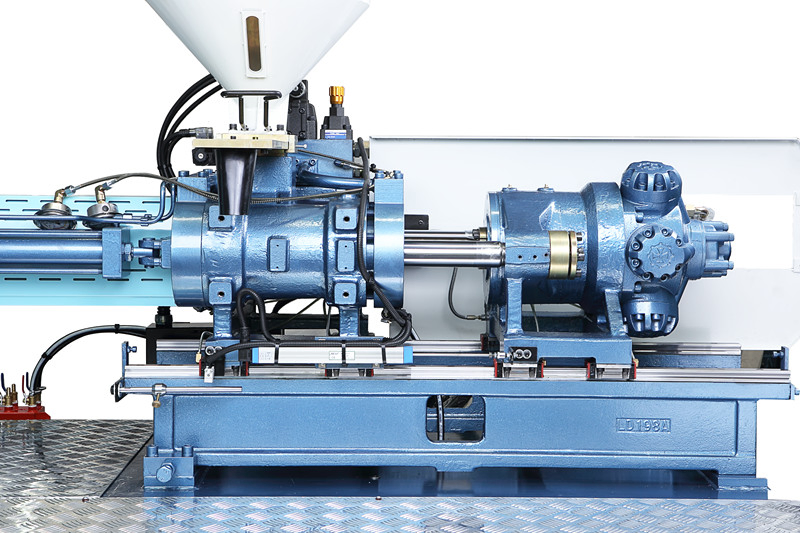

              Injection UnitABC
              Screw DiameterIn 1.651.771.97
              mm424550
              Screw L/D rationL/D222018.5
              Shot volume in3 19.0321.8426.96
              Cm3312358442
              Shot weight (PS)g284326402
              oz10.0211.5014.18
              Injection Pressurepsi294352566520735
              Mpa203177143
              Max screw speedrpm200

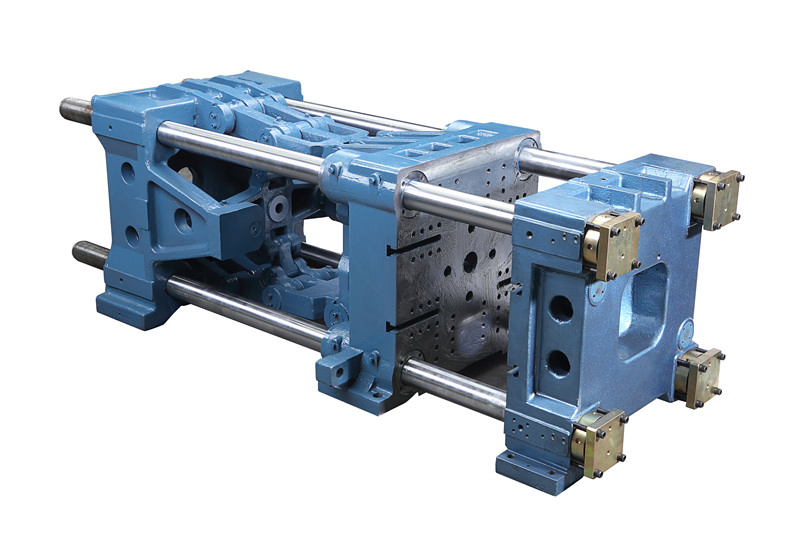

              Clamping Unit
              Clamping ForceKN / T 1700 / 170
              U.S.ton187
              Opening strokeIn 17.13
              mm435
              Tie-bars distanceIn 18.30 X 18.30
              mm465 X 465
              Max.mold heightIn 21.65
              mm550
              Min.mold height In 7.87
              mm200
              Ejector StrokeIn 5.31
              mm135
              Ejector forceKN46
              U.S. ton5.06
              General
              Pump powerKw22
              HP29.48
              Heating capacityKw9.9
              HP13.27
              Oil tank Capacity Litre300
              Machine DimensionsIn200.79 X 55.12 X 86.61
              m5.10 X 1.40 X 2.20
              Machine weightKg5300
              Lbs11660
