Product Description

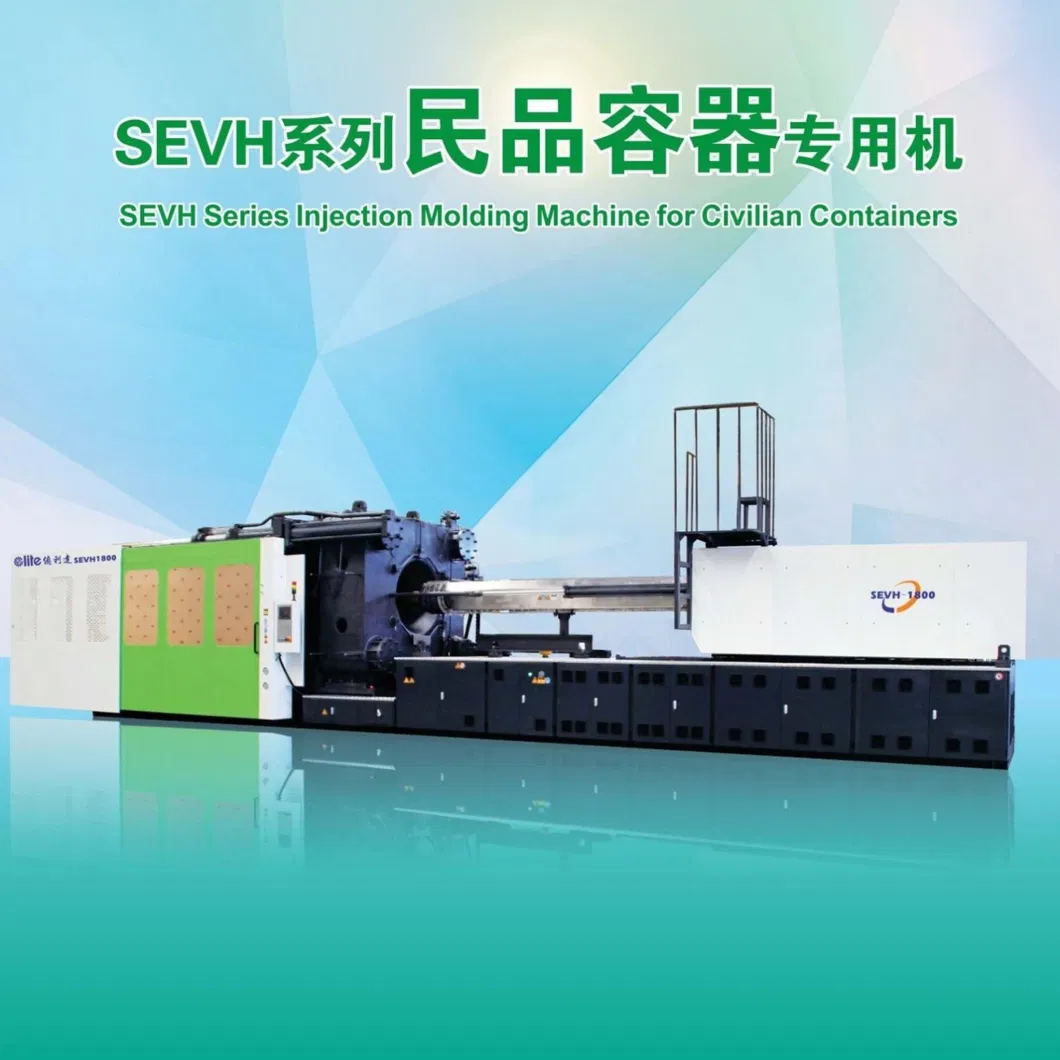

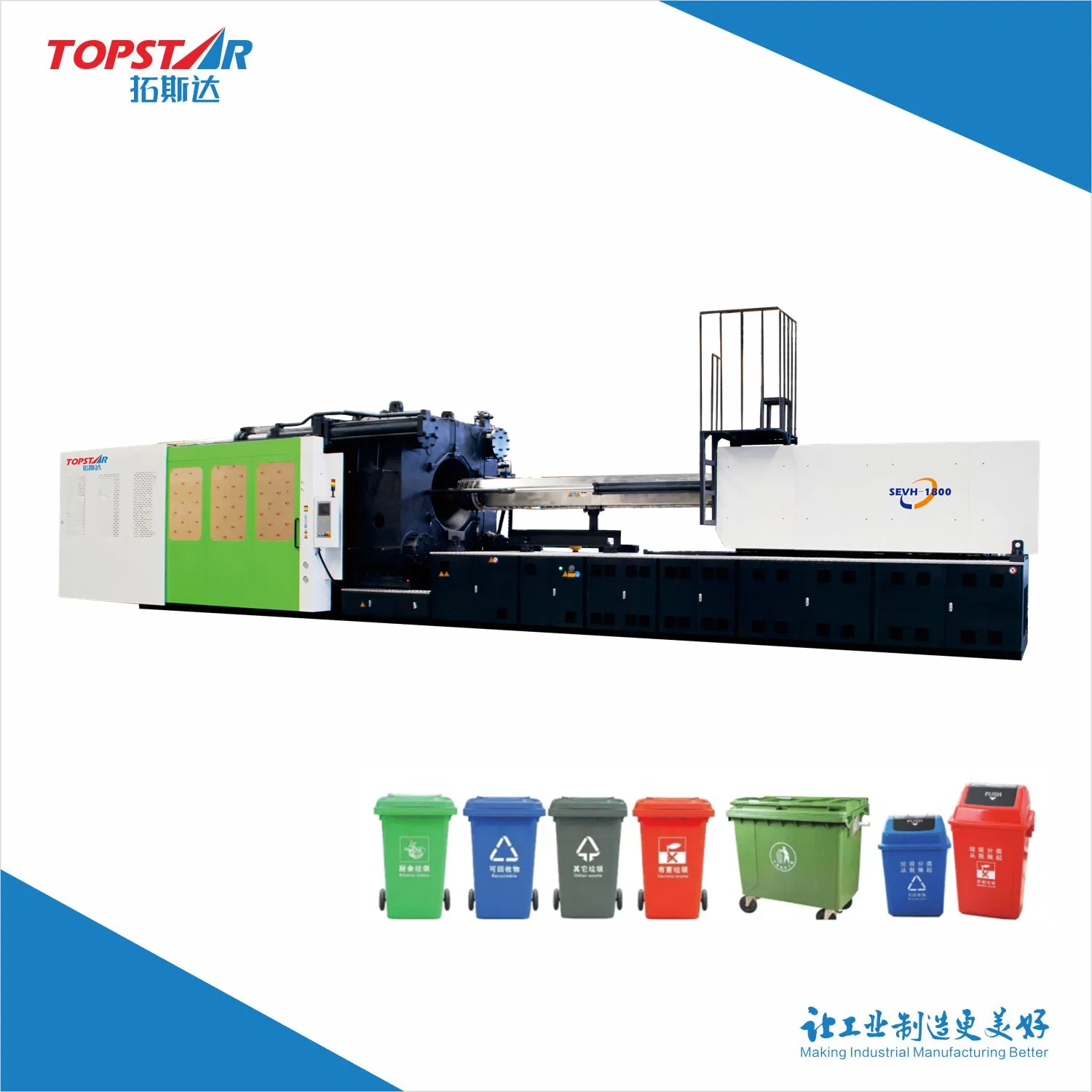

550~3300ton SEVH Series Injection molding Machine for Cvilian Contatiners
High Quality Injection Molding Machine for Painting Bucket with CE

High Quality Injection Molding Machine for Painting Bucket with CE

Product Description:
Excellent design features make Elite machinery very versatile to use high productivity, durability, and easy to maintain.
Elite utilizes key components from the world-renowned manufacturing of Servo system, Microprocessor controller hydraulic systems electrical parts and lubrication parts.
The design utilizes very sturdy mechanical components.
Ability to process all types of Thermoplastic and Thermoset materials with a wide range of Screw and Barrel for each application.
Machine range from 550 Ton to 3300 Ton and Immediately available range from 550Ton to 3300Ton.
Elite machine offers the best combination of ROI (Return of Investment) and COW (Cost of Ownership).

Accessory Introduction:
1. European KEBA brand controller, high speed response, precision control.
2. Rexroth or Yuken solenoid directional valve for precise metering.
3. Phase, Inovance, Modrol servo motor, energy saving more than 50%.
4. Inovance, Modrol, Techmation servo motor driver, to achieve accurate control.
5. Germany imports eckerle gear pump.
6. INTERMOT, STAFFA brand melt motor, torque, overload capacity, long life.
7. Sealtech, NOK brand oil seal, durable, sealed well.

Parameter Table:

Model	Unit	SEVH550	SEVH650	SEVH800	SEVH1000	SEVH1400	SEVH1800	SEVH2200	SEVH2800	SEVH3300
Internation Designation	mm	5358/550	3469/650	5588/800	7058/1000	17443/1400	28848/1800	28848/2200	64263/2800	78777/3300
Screw Diameter	mm	95	85	95	110	140	170	170	210	210
Theoretical Injection Pressure	kg/cm2	1483	1650	1714	1457	1650	1445	1445	1439	1481
Theoretical Injection Volume(PS)	g	3260	2150	2910	4372	8740	18017	18017	40303	48005
Theoretical Injection Volume(PS)	oz	115	75.9	102.8	154.5	308.8	636	636	1422	1696
Screw L:D	-	22	22	22	22	22	22	22	22	22
Screw Stroke	mm	510	420	460	510	630	880	880	1290	1400
Theoretical Injection Speed	mm/s	97	96	84	91	82	82	82	67.4	62.7
Screw Speed	r.p,m	119	139	117	91	94	62	62	52.5	48.5
Shot Thrust	ton	9.8	9.8	12.8	12.8	21	26	26	26	26
Theoretical Injection Rate	cc/sec	687	543	595	864	1285	1869	1869	2333	2835
Theory Plasticizing Capacity	g/sec	93	92	91.8	94	180	195	195	240	289
Clamping Form	-	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Clamping Force	ton	550	650	800	1000	1425	1800	2200	2800	3300
Clamping Stroke	mm	1700-	1850-	2130-	2750-	2900-	3700-	3700-	3700-	4000-
The Maximum Open-Spacing	mm	1700	1850	2130	2750	2900	3700	3700	3700	4000
Yung Modulus (min-max)	mm	400~900	450~1000	450~1180	500~1290	590~1490	700~1700	800~1800	900~1900	1000~2000
Lever From Inside (W*H)	mm*mm	860*860	920*920	980*980	1120*1020	1400*1120	1650*1400	1830*1600	2030*1700	2200*1900
Platen Dimensions	mm	1220*1220	1310*1310	1380*1380	167081570	2060*1780	2390*2140	2620*2390	2870*2485	3120*2730
Hydraulic Ejector Force	ton	13	17	17	26	32	42	46	52	55
Ejection Stroke	mm	250	300	300	320	350	380	450	500	550
Thimble Quantity	point	13	21	21	21	25	25	33	33	33
Oil Pressure System Pressure	kg/cm2	175	175	175	175	175	175	175	175	175
Pump Motor Power	KW	64	64	87	55.4*2	55.4*3	70*3	70*3	280	330
Electric Power	KW	53.3	53.3	67.8	83	103	143	143	181	237
Power Requirements	A	208	208	277	347	488	636	636	802	1019
Temperature Control Area	zones	8	8	8	9	10	11	11	11	11
Fuel Tank Capacity	L	1000	1000	1210	1350	1800	2160	2650	3000	3900
Weight	ton	20.5	25	29	40.9(10.1+30.8)	62(16+46)	88(26+62)	118(28+90)	139(39+100)	198(48+150)
Dimensions	mmm	7.72.22.3	8.72.42.54	8.92.42.6	11.152.63	12.93,23.3	143.53.6	15.53.83.8	17.24.44.4	18.84.94.1

Note: The company reserves the right to modify the technical parameters without prior notice.

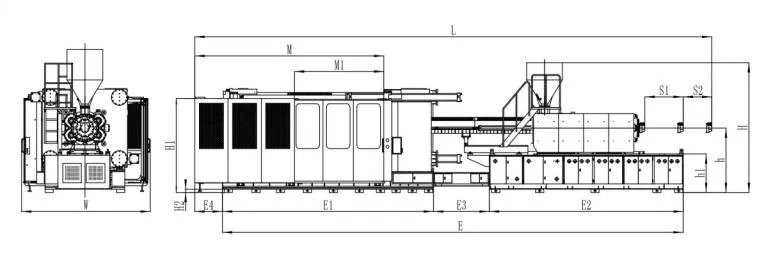

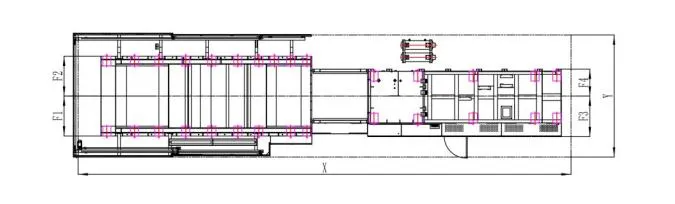

Overall Dimension:

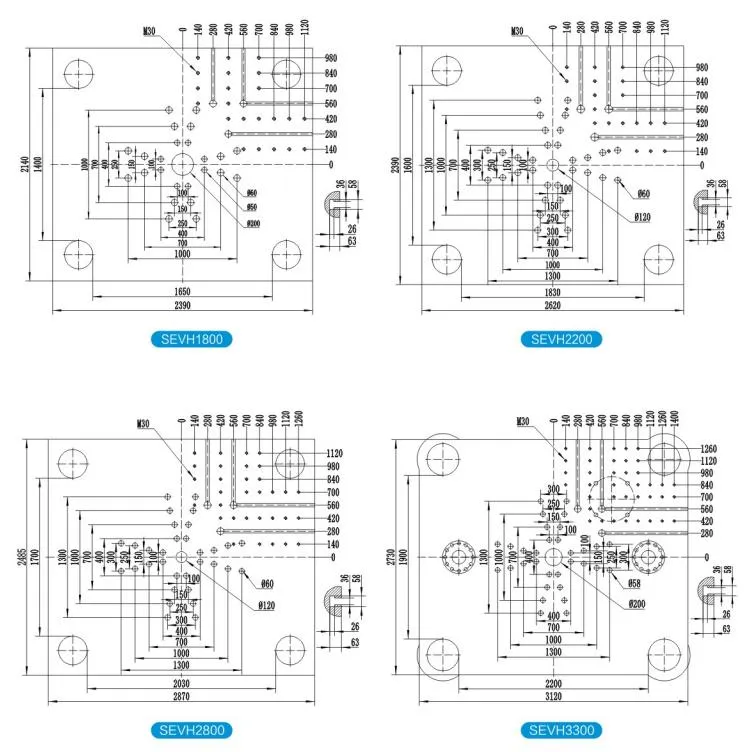

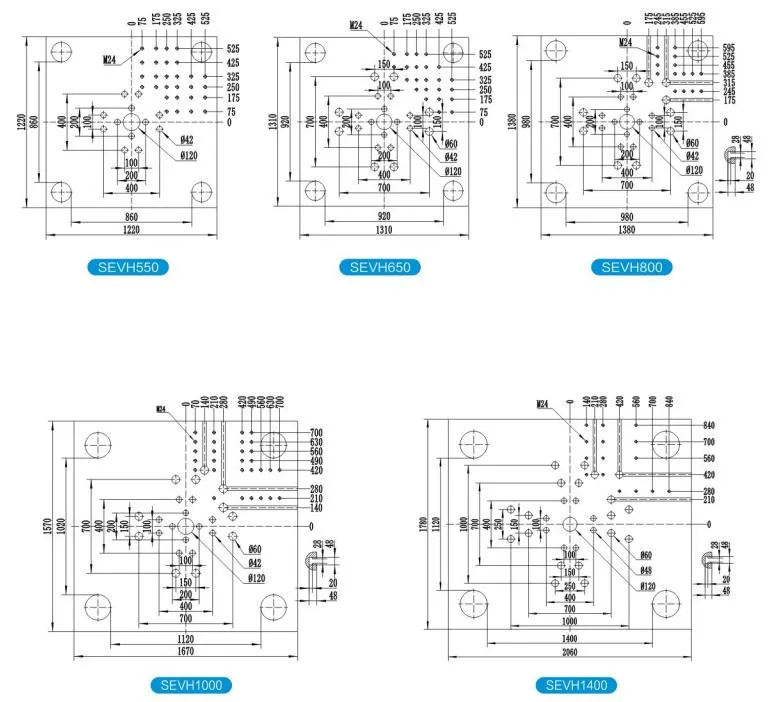

Template Size:
