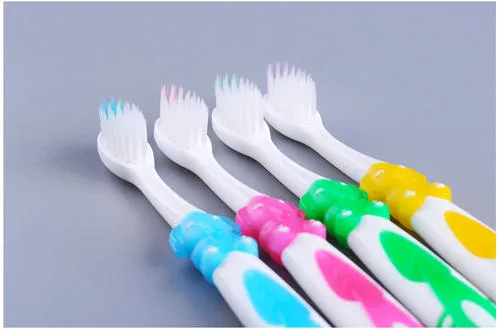

High Speed Injection Molding Machine for Plastic Toothbrush Handle
high speed injection molding machine for plastic toothbrush handleFunction:1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish at the same ......
Send Inquiry
Product Description
Function:

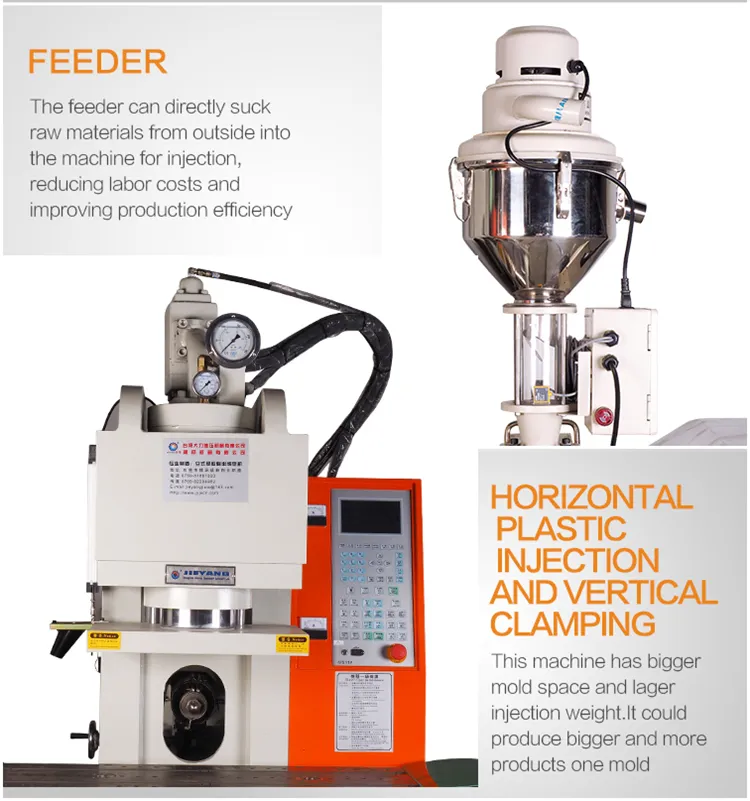

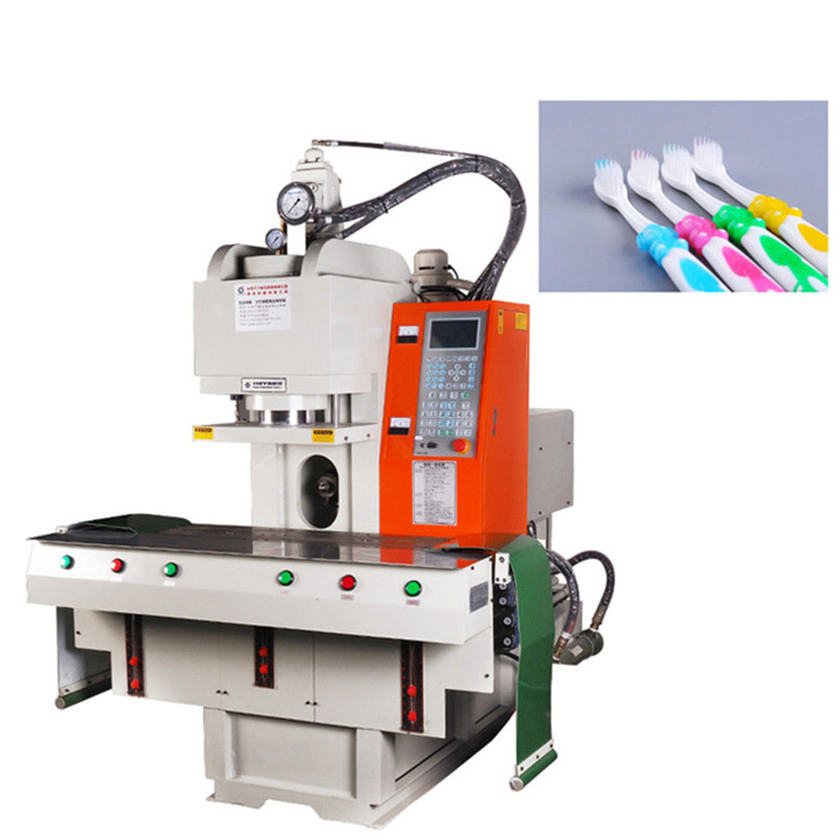

1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish at the same time, which is more safe and
efficient for production , then reduce the cost of production.
2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend
machine & mold life.
3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavyduty double cylinder injection unit is maintenance friendly and free of oil leaks.
4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.
Parameter of Machine:
| JY-550C-DM Technique specification | ||||
| Model | Units | JY-550C-DM | ||
Injection System | Screw Diameter | mm | Φ38 | Φ42 |
| Injection Pressure | Kg/cm2 | 1454 | 1190 | |
| Theoretical Shot volume | cm3 | 215.4 | 263 | |
| Max. Shot Weight(P.S) | g/Oz | 203.5/7.17 | 248.6/8.77 | |
| Injection Rate | cm3/s | 100/122.2 | ||
| Max.Screw speed | rpm | 0-180 | ||
| Temperature Control | ZONE | 4 | ||
Clamping System | Clamping Force | T | 55 | |
| Platen Size | mm | 1200*280 | ||
| Max. Mold Size | mm | 500*250 | ||
| Min Mold Height | mm | 175 | ||
| Opening Stroke | mm | 200 | ||
| Max. Open Daylight | mm | 375 | ||
| Ejector Force | T | 1.5 | ||
| Ejector stroke | mm | 100 | ||
Hydraulic System | Max. Hydraulic Pressure | Kg/cm2 | 140 | |
| Oil Tank Capacity | L | 160 | ||
| Pump Motor Power | Kw | 7.5 | ||
| Barrel Heating Power | Kw | 4.35 | ||
| Total Wattage | Kw | 11.85 | ||
Others | Machine Dimensions (L*W*H) | m | 3.1*2*2.25 | |
| Machine Weight | T | 3.3 | ||
Send me inquiry, We promise to give an additional six month free warranty.
Total 18 months warranty.
We can customize according to your requirements.
If you require any further information, feel free to contact me.
Machine Main Products:
RFQ:
Q1: Are you a trading company or a manufacturer? |
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements |
Q2: What's your warranty for the machine? |
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance. |
Q3: What's your Delivery Time? |
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season. |
Q4: Where is your factory? How can visit you? |
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station. |
Q5: Why choose Jieyang Machinery Co., Ltd.? |
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service. |
high speed injection molding machine for plastic toothbrush handle
Welcome to visit our factory to view more details.
