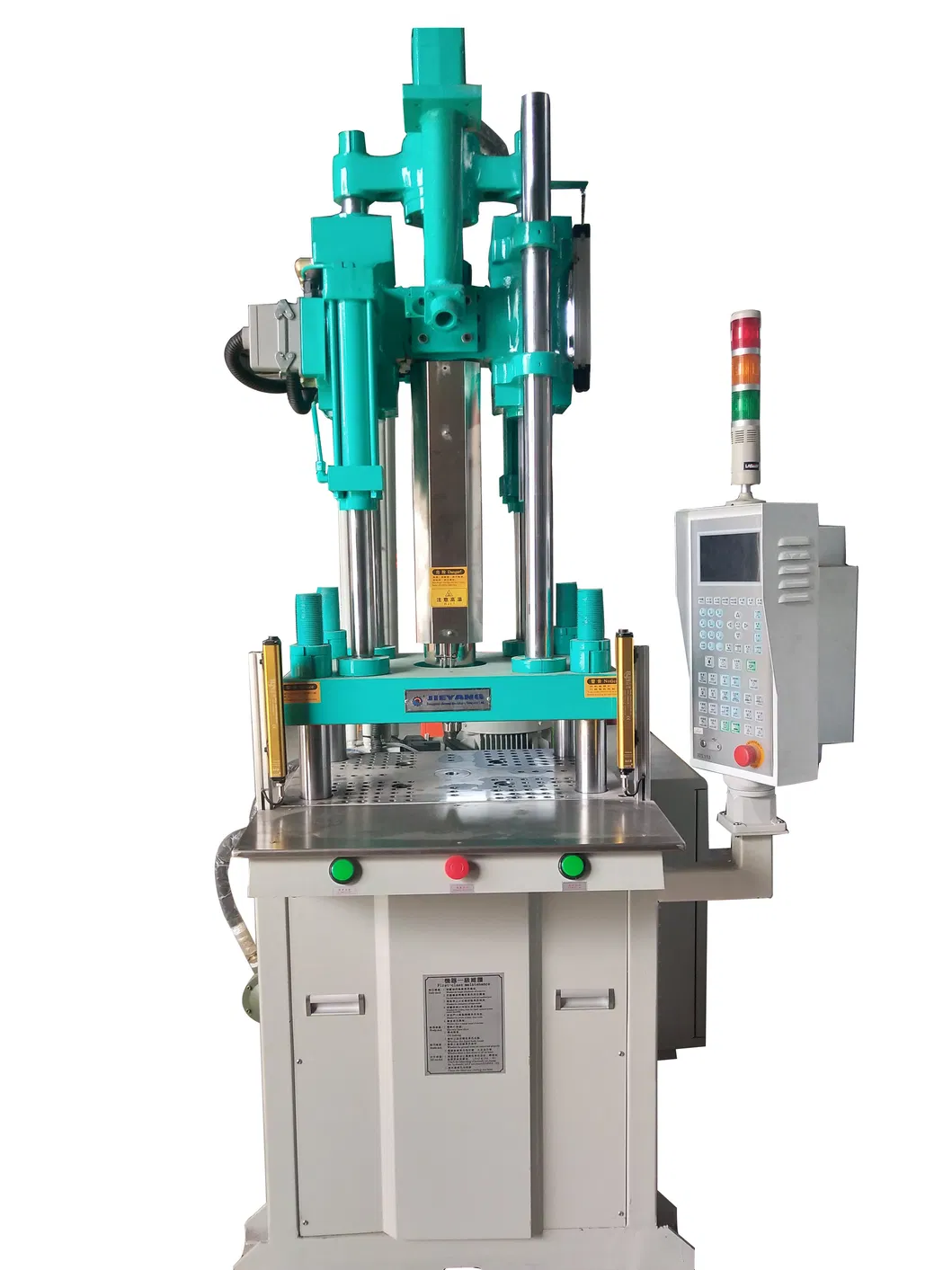

High Speed Vertical Tooth Brush Tools Handle Injection Molding Machine Plastic Price

Product Description

High speed vertical tooth brush Tools handle injection molding machine plastic price

Application:
Vertical injection machine have the advantage of low noise, low energy consumption, high efficiency and long life time, it's widely apply to produce various terminal blocks, connectors, cables,auto parts, Plug ,etc.

High Speed Vertical Tooth Brush Tools Handle Injection Molding Machine Plastic Price

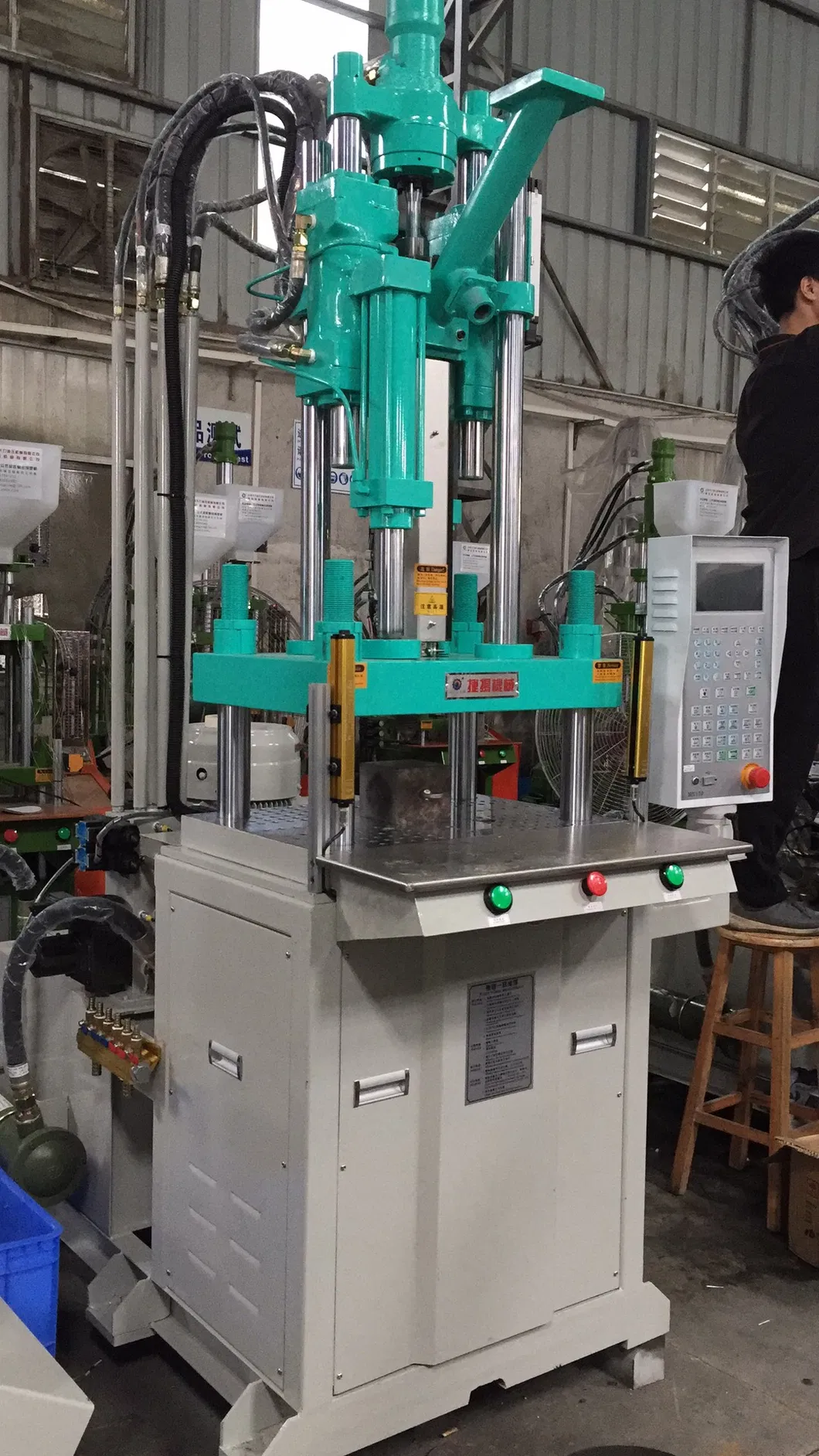

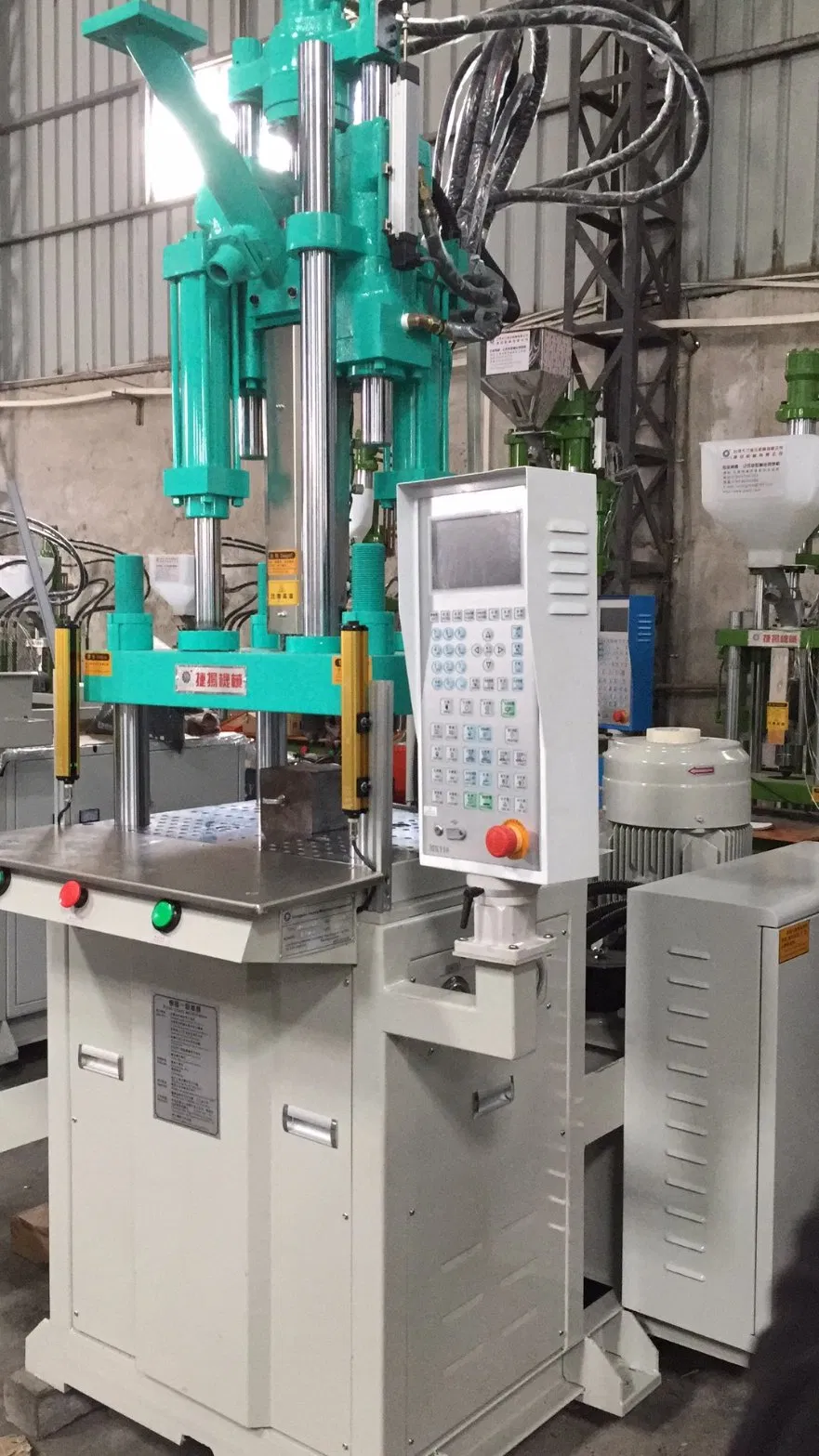

Detailed Images:

Parameter of Machine:

JY-5000ST/JY-850ST Technique specification
Model		Units	JY-550ST			JY-850ST
Injection System	Screw Diameter	mm	Φ32	Φ34	Φ42	Φ42	Φ44	Φ48
	Injection Pressure	Kg/cm2	1642	1385	960	1027	895	790
	Theoretical Shot volume	cm3	113	134	194	194	223	253
	Max. Shot Weight(P.S)	g	102	123	176	176	201	227
	Injection Rate	mm	140			140
	Max.Screw speed	rpm	0-175			200
	Temperature Control	ZONE	3			4
Clamping System	Clamping Force	T	55			85
	Platen Size	mm	670*480			740*545
	Distance Between Tie Bare	mm	470*280			525*325
	Min Mold Height	mm	270/70			430/230
	Opening Stroke	mm	200			255
	Max. Open Daylight	mm	470/270			685/485
	Ejector Force	T	1.76			2.1
	Ejector stroke	mm	35			45
Hydraulic System	Max. Hydraulic Pressure	Kg/cm2	140			140
	Pump Output	L	40			47
	Pump Motor Power	Kw	7.5/10HP			11/15HP
	Barrel Heating Power	Kw	4.5			5
	Total Wattage	Kw	12			16
Others	Machine Dimensions (LWH)	m	1.851.23.0			2.01.33.2
	Shipping Measurement (LWH)	m	2.11.42.3			2.21.42.5
	Machine Weight	T	3.0			5.4
	Shipping Weight	T	3.4			1.3

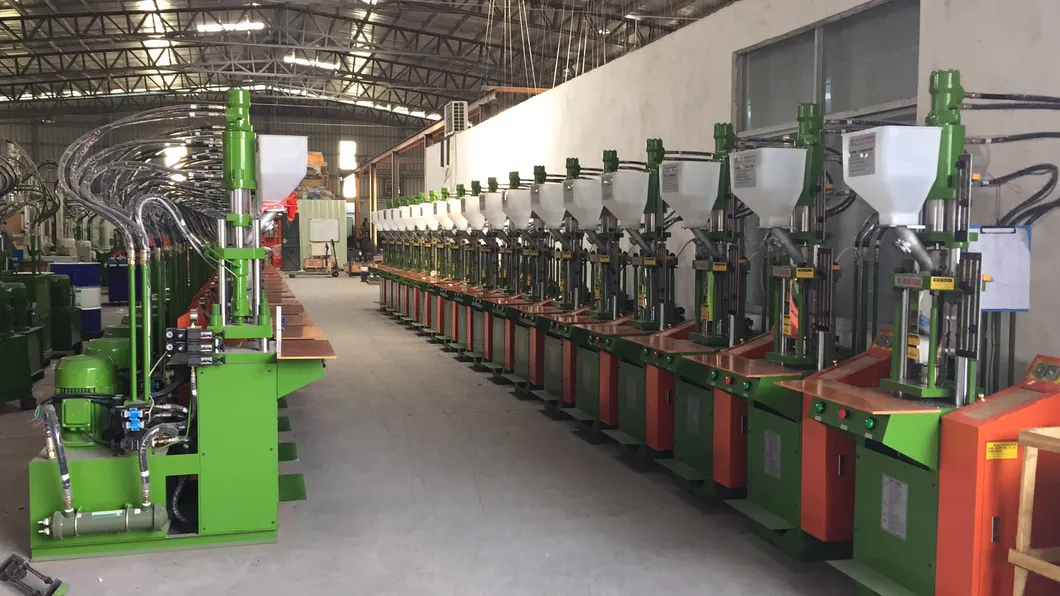

Dongguan JieYang Machinery Co., Ltd established on 2010, located in Xincheng Industrial Zone of Hengli Town. Our factory is about 2,000 square meters. We have more than 20 years manufacturing experiences of vertical plastic injection molding machines with precision machining equipment & professional team. We do our best to provide the solution with competitive cost to our customers and it is recognized by all our customers.
We warmly welcome you to visit our factory, we are waiting for you at JieYang!
Our Goal: "Customer Satisfaction, Continual Improvement & Innovative Service" is the driving force for our company to moving forwards. We will devote every efforts to do our best level.

high quality automatic handle making machine factory price:
1. Ergonomic operations thanks to wide range of different clamping systems;
2. Short cycle times and high productivity thanks to machine versions with various rotary tables and sliding tables;
3. Servo-electric rotary tables for precise and reliable processing of delicate inserts;
4. Simple integration into automated production lines;
5. Particularly space-saving, compact design.
.Packing & Shipping :

1.  Before shipping,the machine will be tested about 72 hours and checked by engineer strictly to guarantee the quality of machine

2.  We will arrange to manufacture the second day after confirmation,we can delivery it usually after 25 days.

3.  According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us

Youtube Videos:

45Tons Europe Plugs making	https://youtu.be/IRDLWHtWB9w
45Tons South Africa 3 pins plugs	https://youtu.be/JLMHU_XmlqU
Double slide machine	https://youtu.be/yBJAaYGzq5g
55Tons C-type Car accessories making	https://youtu.be/JBczO_C1XbY
55Tons C-type 2 pins plugs making	https://youtu.be/sHgicvjktNU
55Tons injection machine for hardware inserting	https://youtu.be/7hDjRBS67Mw
55tons injection machine with sliders for bucket handle	https://youtu.be/KwGKRYZsF9M

FAQ:

Q1: Are you a trading company or a manufactory?

A1: We are the Manufactory specialized in Plastic injection molding machine more than 20 years; we passed CE & ISO9001 & SGS Certificates.

Q2: What's your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with high quality afterservice. Also we have one year warranty of the spareparts, free of charge.

Q3: Why choose Jieyang Machinery Co.,Ltd.?

A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.
