              High Standard Injection Molding Machine Plastic Machinery for Plastic Crate Basket Container

              550~3300ton SEVH Series Injection molding Machine for Cvilian Contatiners Product Description:Excellent design features make Elite machinery very versatile to use high productivity, durability, and easy to maintain.Elite utilizes key components from the world-renowned manufacturing of Servo system, ......

              Send Inquiry

              Product Description

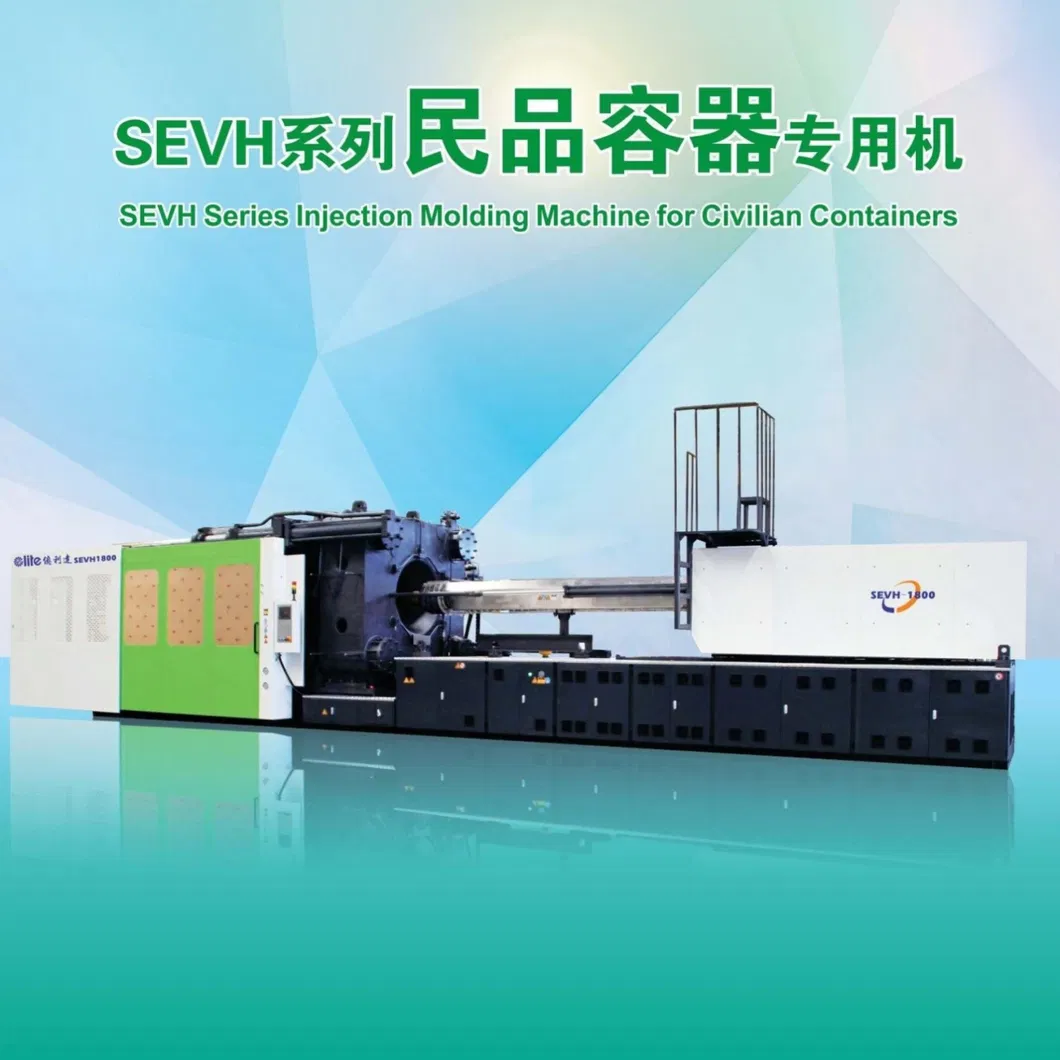

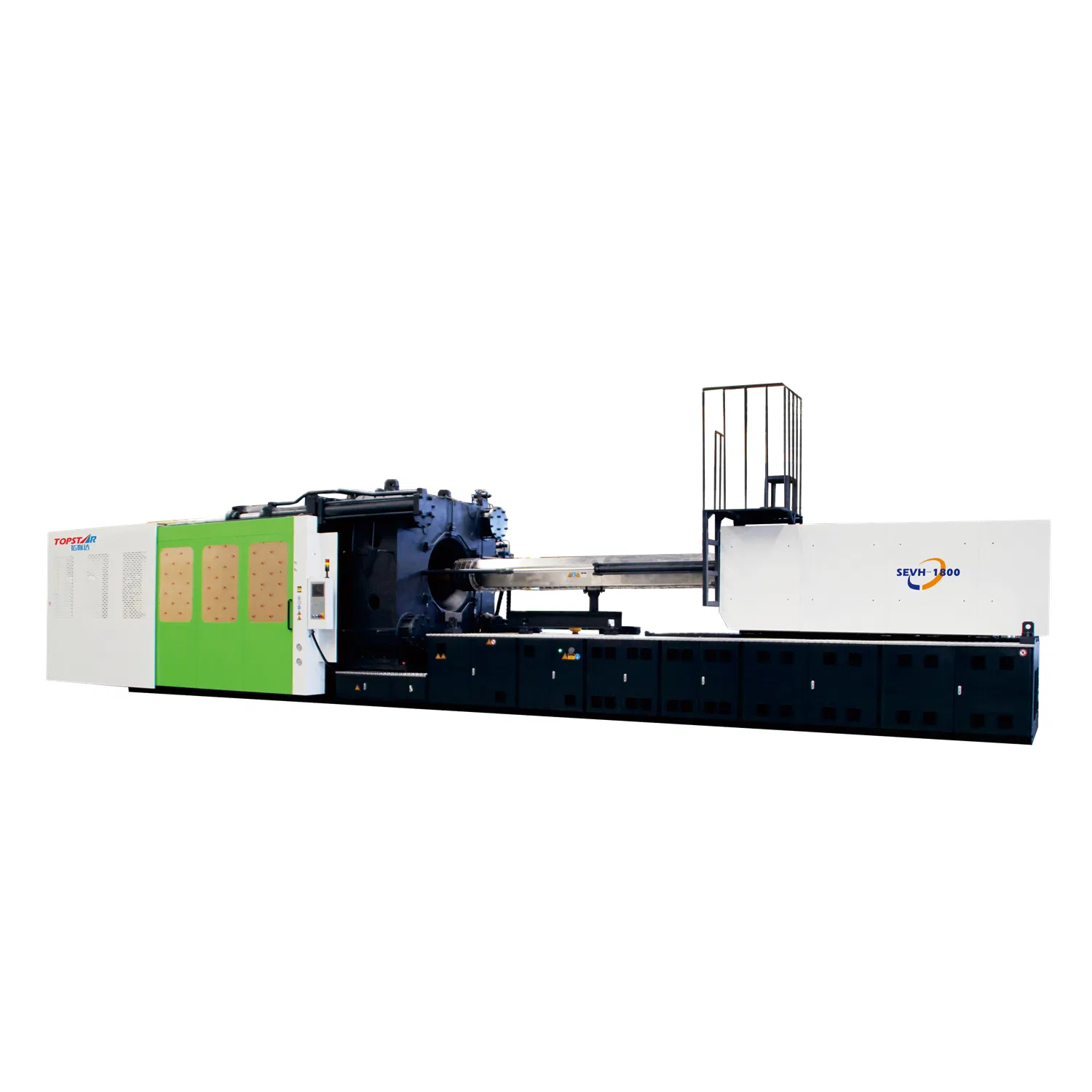

              550~3300ton SEVH Series Injection molding Machine for Cvilian Contatiners
              High Standard Injection Molding Machine Plastic Machinery for Plastic Crate Basket Container

              Product Description:
              Excellent design features make Elite machinery very versatile to use high productivity, durability, and easy to maintain.
              Elite utilizes key components from the world-renowned manufacturing of Servo system, Microprocessor controller hydraulic systems electrical parts and lubrication parts.
              The design utilizes very sturdy mechanical components.
              Ability to process all types of Thermoplastic and Thermoset materials with a wide range of Screw and Barrel for each application.
              Machine range from 550 Ton to 3300 Ton and Immediately available range from 550Ton to 3300Ton.
              Elite machine offers the best combination of ROI (Return of Investment) and COW (Cost of Ownership).

              Accessory Introduction:
              1. European KEBA brand controller, high speed response, precision control.
              2. Rexroth or Yuken solenoid directional valve for precise metering.
              3. Phase, Inovance, Modrol servo motor, energy saving more than 50%.
              4. Inovance, Modrol, Techmation servo motor driver, to achieve accurate control.
              5. Germany imports eckerle gear pump.
              6. INTERMOT, STAFFA brand melt motor, torque, overload capacity, long life.
              7. Sealtech, NOK brand oil seal, durable, sealed well.

              Parameter Table:
              ModelUnitSEVH550SEVH650SEVH800SEVH1000SEVH1400SEVH1800SEVH2200SEVH2800SEVH3300
              Internation Designationmm5358/5503469/6505588/8007058/100017443/140028848/180028848/220064263/280078777/3300
              Screw Diametermm958595110140170170210210
              Theoretical Injection Pressurekg/cm2148316501714145716501445144514391481
              Theoretical Injection Volume(PS)g3260215029104372874018017180174030348005
              oz11575.9102.8154.5308.863663614221696
              Screw L:D-222222222222222222
              Screw Strokemm51042046051063088088012901400
              Theoretical Injection Speedmm/s9796849182828267.462.7
              Screw Speedr.p,m1191391179194626252.548.5
              Shot Thrustton9.89.812.812.82126262626
              Theoretical Injection Ratecc/sec68754359586412851869186923332835
              Theory Plasticizing Capacityg/sec939291.894180195195240289
              Clamping Form-HydraulicHydraulicHydraulicHydraulicHydraulicHydraulicHydraulicHydraulicHydraulic
              Clamping Forceton550650800100014251800220028003300
              Clamping Strokemm1700-1850-2130-2750-2900-3700-3700-3700-4000-
              The Maximum Open-Spacingmm170018502130275029003700370037004000
              Yung Modulus (min-max)mm400~900450~1000450~1180500~1290590~1490700~1700800~1800900~19001000~2000
              Lever From Inside (W*H)mm*mm860*860920*920980*9801120*10201400*11201650*14001830*16002030*17002200*1900
              Platen Dimensionsmm1220*12201310*13101380*13801670815702060*17802390*21402620*23902870*24853120*2730
              Hydraulic Ejector Forceton131717263242465255
              Ejection Strokemm250300300320350380450500550
              Thimble Quantitypoint132121212525333333
              Oil Pressure System Pressurekg/cm2175175175175175175175175175
              Pump Motor PowerKW64648755.4*255.4*370*370*3280330
              Electric PowerKW53.353.367.883103143143181237
              Power RequirementsA2082082773474886366368021019
              Temperature Control Areazones88891011111111
              Fuel Tank CapacityL100010001210135018002160265030003900
              Weightton20.5252940.9(10.1+30.8)62(16+46)88(26+62)118(28+90)139(39+100)198(48+150)
              Dimensionsm*m*m7.7*2.2*2.38.7*2.4*2.548.9*2.4*2.611.15*2.6*312.9*3.2*3.314*3.5*3.615.5*3.8*3.817.2*4.4*4.418.8*4.9*4.1
              Note: The company reserves the right to modify the technical parameters without prior notice.

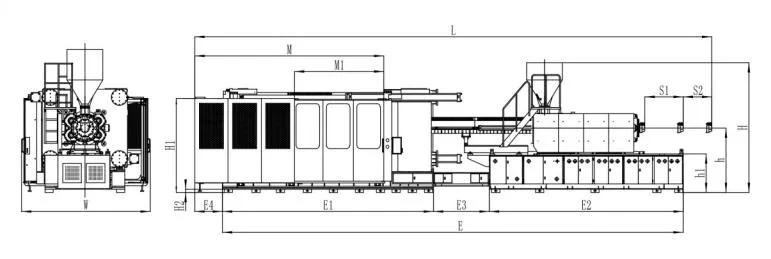

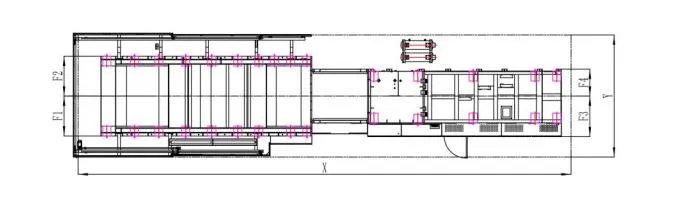

              Overall Dimension:

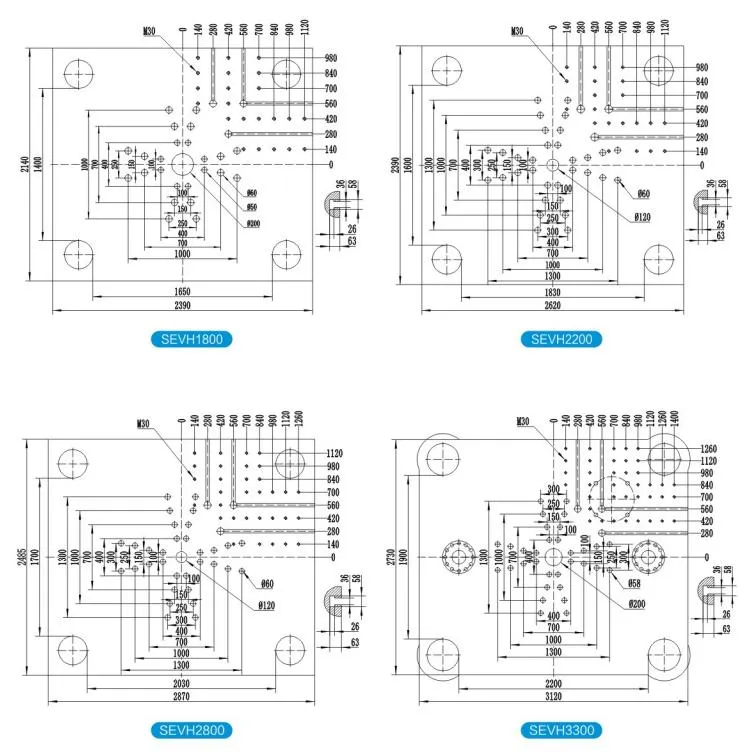

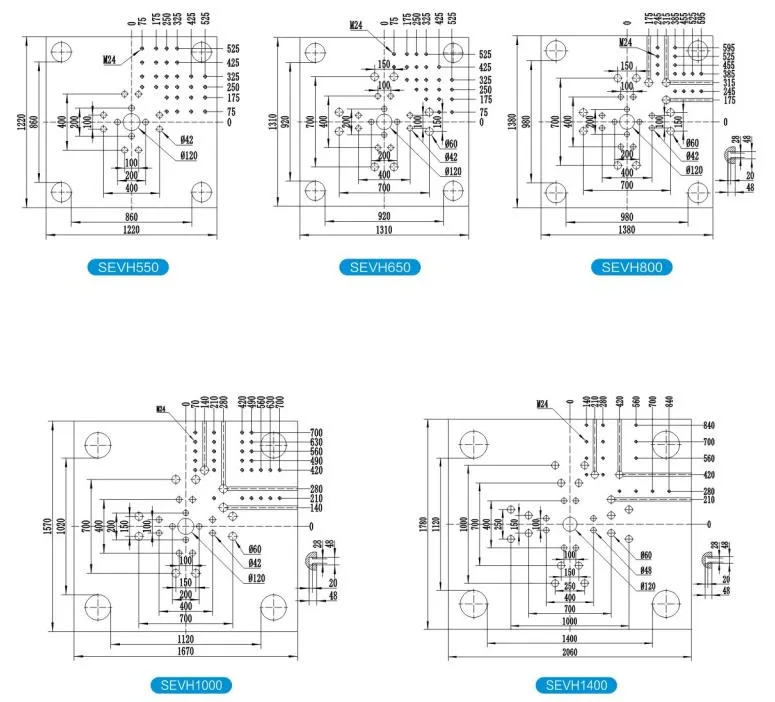

              High Standard Injection Molding Machine Plastic Machinery for Plastic Crate Basket ContainerHigh Standard Injection Molding Machine Plastic Machinery for Plastic Crate Basket ContainerTemplate Size:
              High Standard Injection Molding Machine Plastic Machinery for Plastic Crate Basket Container
              High Standard Injection Molding Machine Plastic Machinery for Plastic Crate Basket Container
              High Standard Injection Molding Machine Plastic Machinery for Plastic Crate Basket ContainerHigh Standard Injection Molding Machine Plastic Machinery for Plastic Crate Basket ContainerHigh Standard Injection Molding Machine Plastic Machinery for Plastic Crate Basket ContainerHigh Standard Injection Molding Machine Plastic Machinery for Plastic Crate Basket ContainerHigh Standard Injection Molding Machine Plastic Machinery for Plastic Crate Basket Container
