Hxm 630-I Servo Energy Saving Injection Molding Machines
1.PictureMODEL:HXM630-ITECHNICAL PARAMETER TABLEABINJECTION UNITSCREW DIAMETERmm7580SCREW L/D RATIOL/D22.721.3INJECTION CAPACITY IN THEORYcm318552110INJECTION WEIGHT(PS)g16881920oz59.567.7INJECTION PRESSUREMPa214188INJECTION RATEg/s377429PLASTICIZING CAPACITYg/s5262SCREW SPEEDrpm130CLAMPING UNITCLAM......
Send Inquiry
Product Description

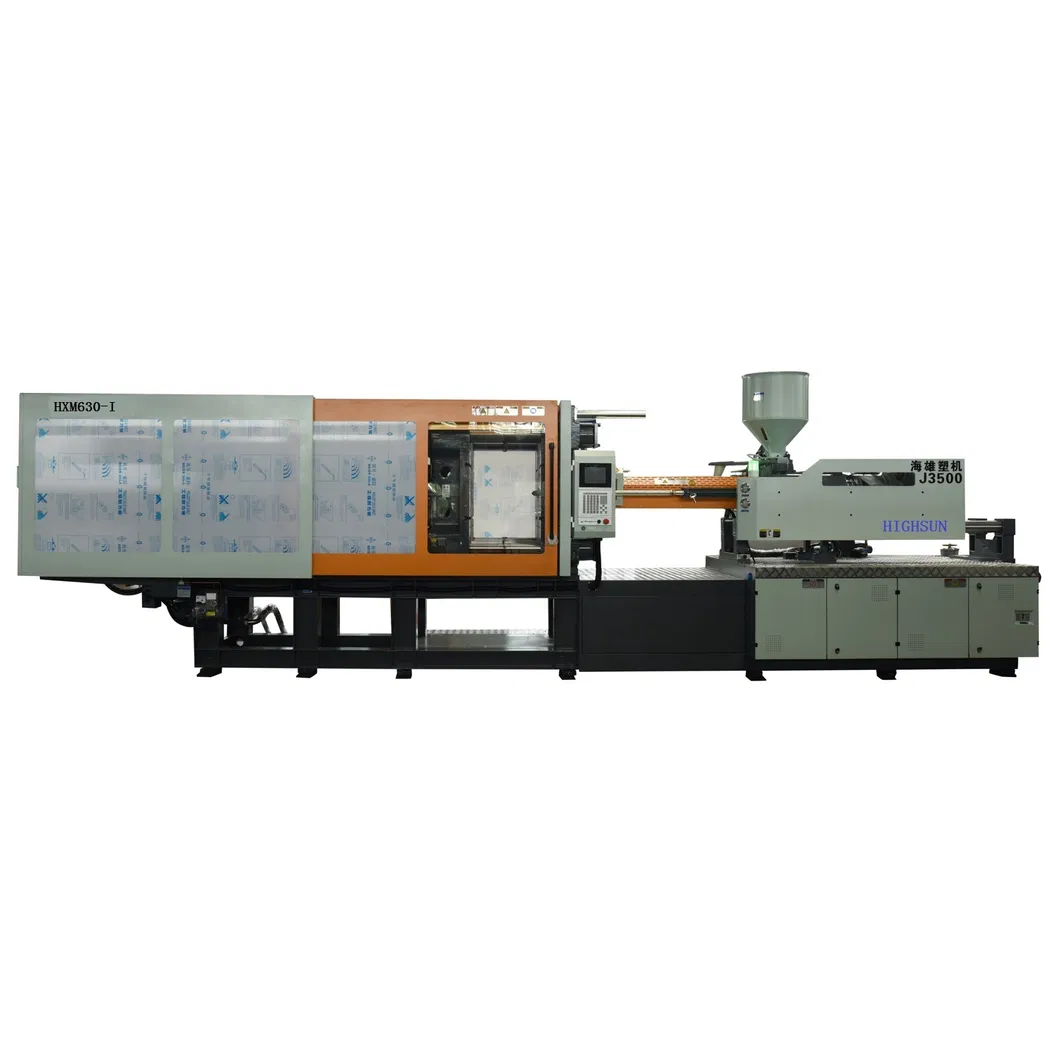

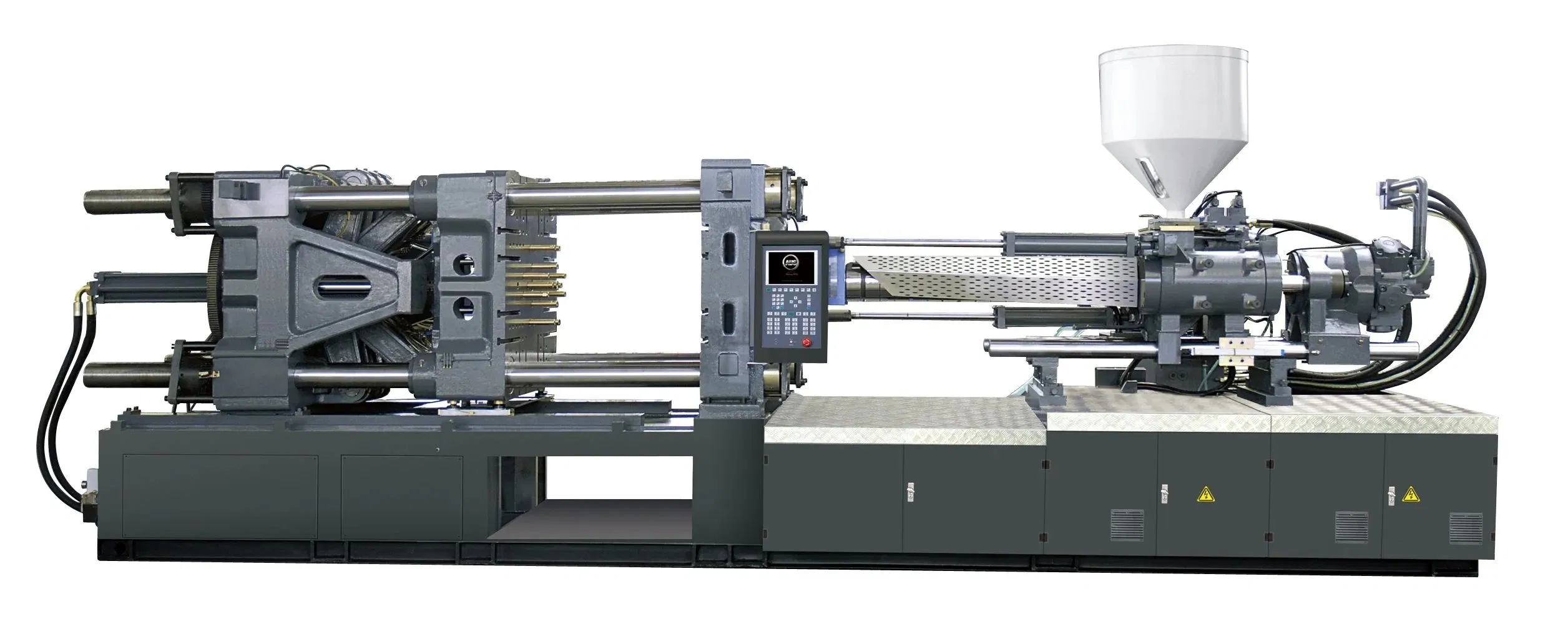

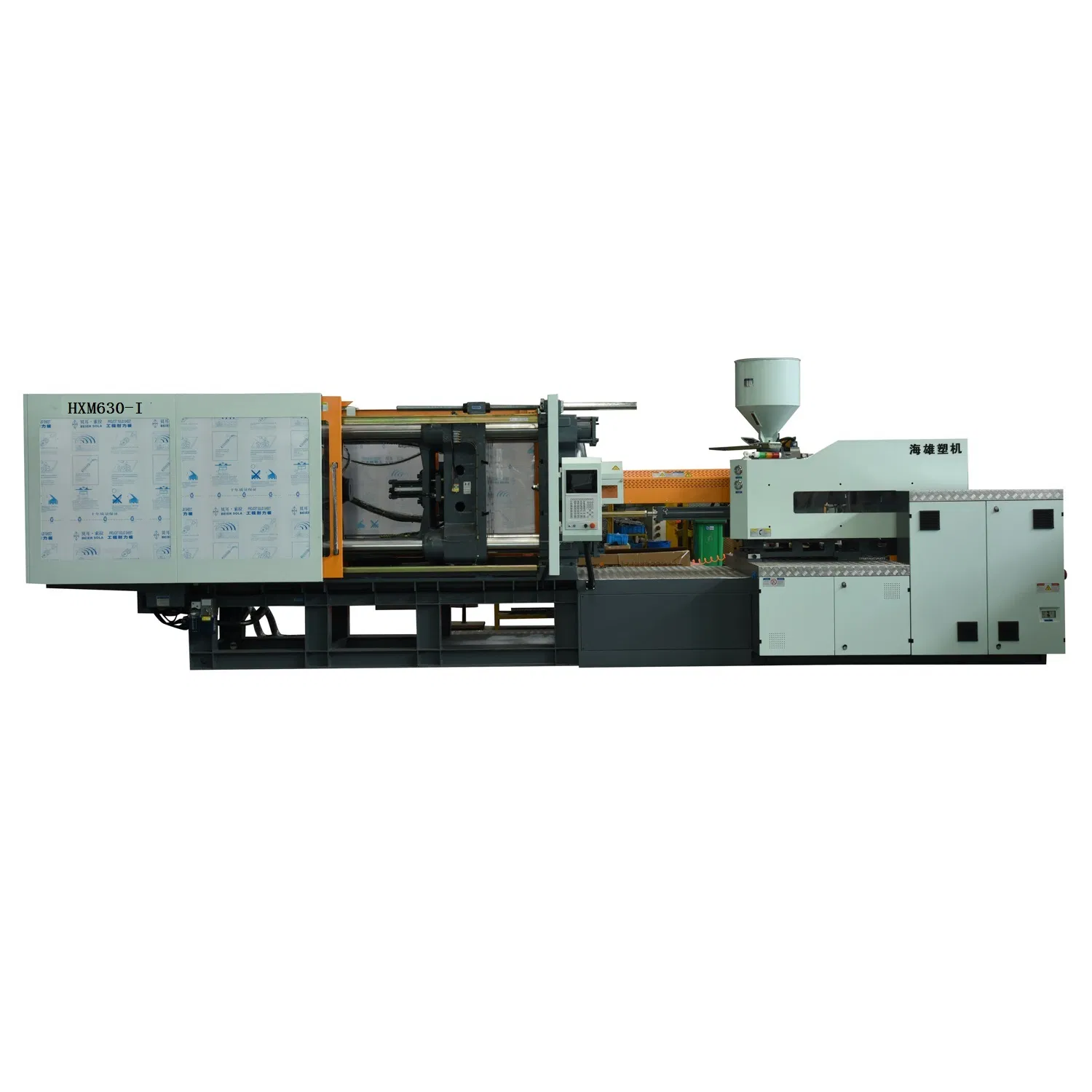

1.Picture

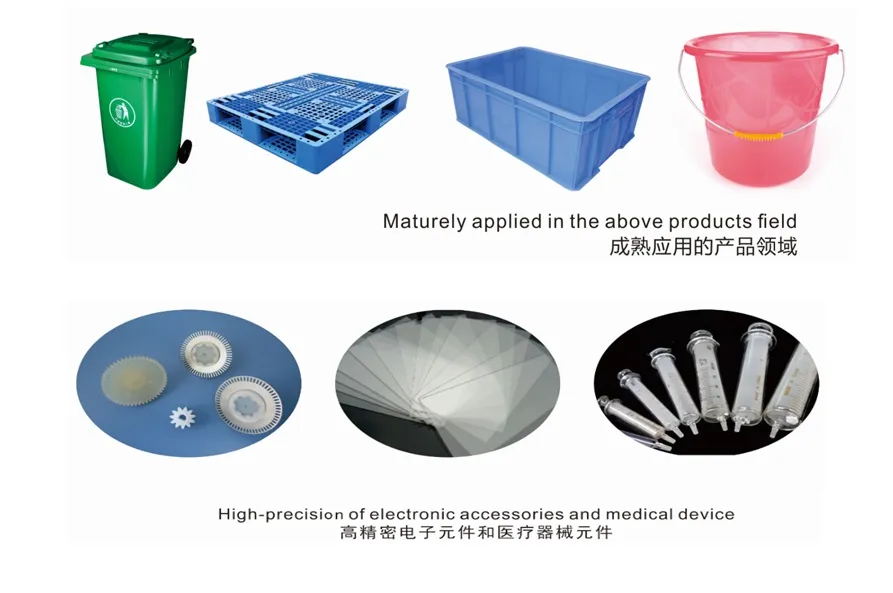

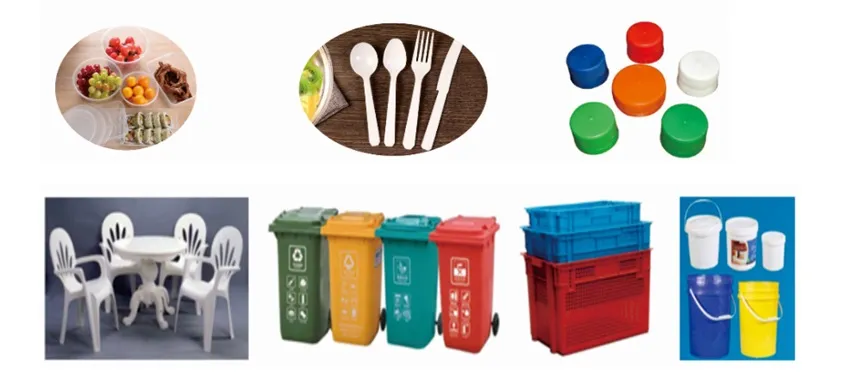

2.Application

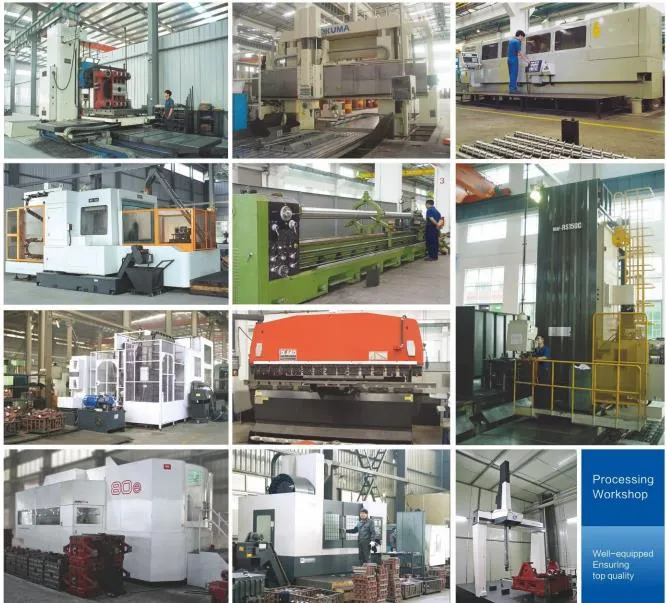

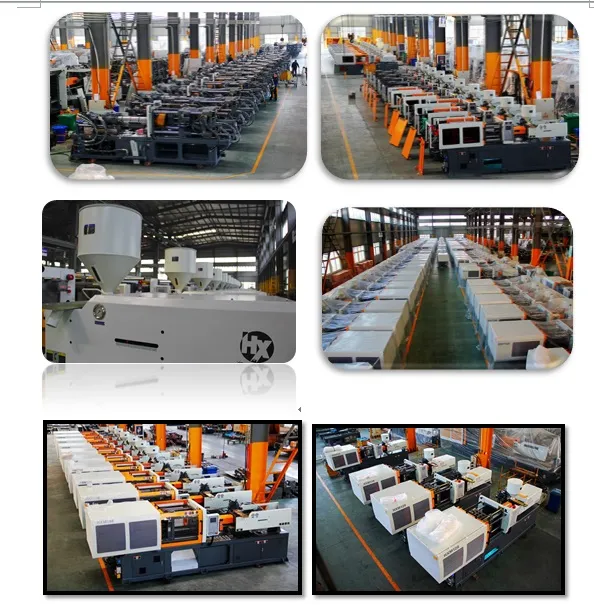

3.Processing,assembling production line

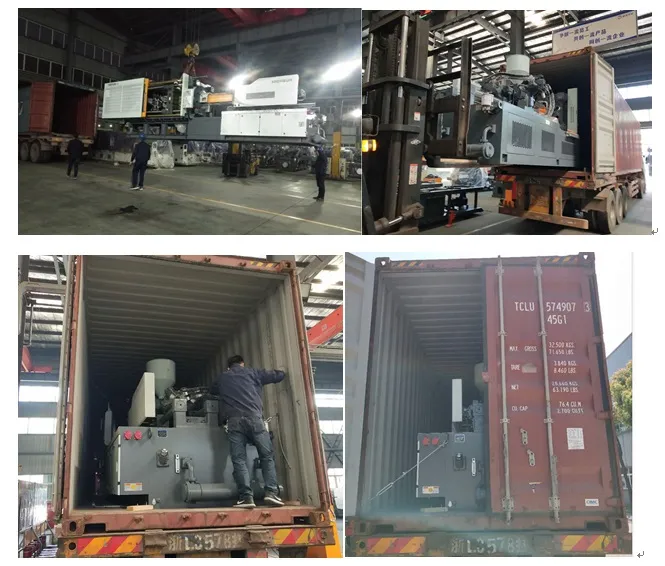

5.Loading containers

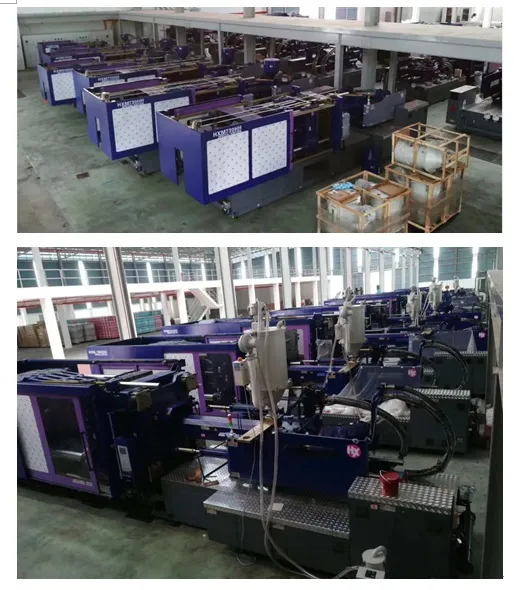

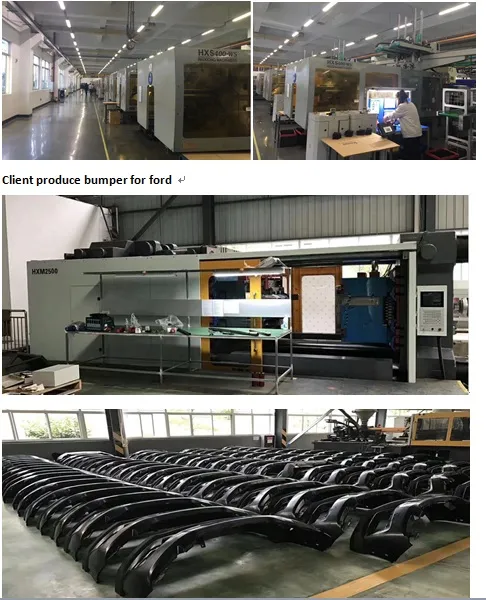

6. Customer case
Client in China produce shoe for Adidas
7.Client in Malaysia
| MODEL:HXM630-I | ||||
| TECHNICAL PARAMETER TABLE | A | B | ||

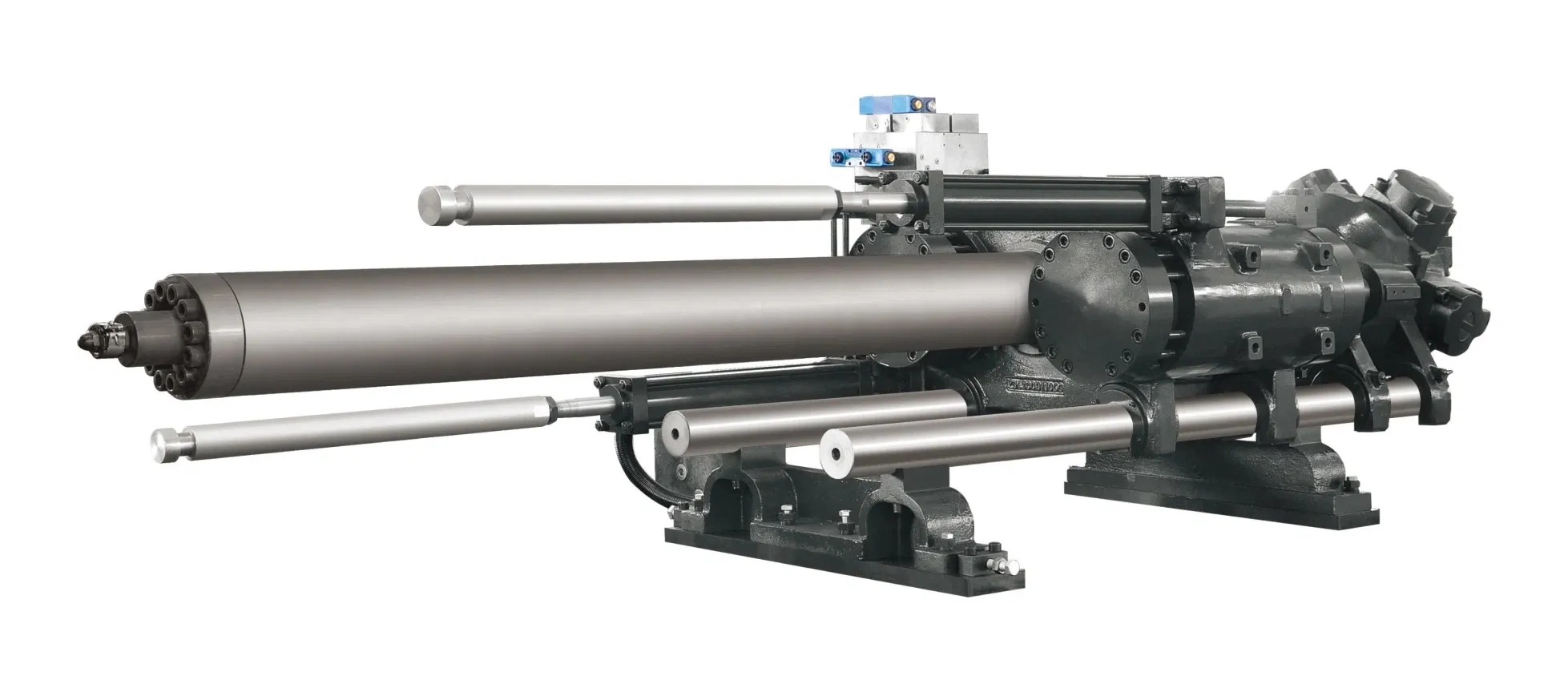

| INJECTION UNIT | SCREW DIAMETER | mm | 75 | 80 |
| SCREW L/D RATIO | L/D | 22.7 | 21.3 | |
| INJECTION CAPACITY IN THEORY | cm3 | 1855 | 2110 | |
| INJECTION WEIGHT(PS) | g | 1688 | 1920 | |
| oz | 59.5 | 67.7 | ||
| INJECTION PRESSURE | MPa | 214 | 188 | |
| INJECTION RATE | g/s | 377 | 429 | |
| PLASTICIZING CAPACITY | g/s | 52 | 62 | |
| SCREW SPEED | rpm | 130 | ||
| CLAMPING UNIT | CLAMPING FORCE | KN | 6300 | |
| MOVING MOULD-PLATE STROKE | mm | 870 | ||
| MAX. MOULD HEIGHT | mm | 900 | ||
| MIN. MOULD HEIGHT | mm | 350 | ||
| SPACE BETWEEN TIE-BARS (W×H) | mm | 900x850 | ||
| HYDRAULIC EJECTOR FORCE | mm | 200 | ||
| HYDRAULIC EJECTOR STROKE | KN | 260 | ||
| EJECTOR NUMBER | n | 17 | ||
| OTHERS | PUMP PRESSURE | MPa | 16 | |
| MOTOR /DRIVING POWER | KW | 55/30x2 | ||
| HEATING CAPACITY | KW | 28.85 | ||
| MACHINE DIMENSION (L×W×H) | m | 9.22*2.27*2.61 | ||
| MACHINE WEIGHT | t | 28 | ||
| OIL TANK CAPACITY | L | 1156 | ||
3.Processing,assembling production line5.Loading containers6. Customer case
Client in China produce shoe for Adidas
7.Client in Malaysia
