Hxm 630-II Servo Energy Saving Injection Molding Machines
1.PictureMODEL:HXM630-IITECHNICAL PARAMETER TABLEABCDINJECTION UNITSCREW DIAMETERmm859095100SCREW L/D RATIOL/D22.22119.918.9INJECTION CAPACITY IN THEORYcm32496279931183455INJECTION WEIGHT(PS)g227225472838 3144oz80.189.9100.1110.8INJECTION PRESSUREMPa206184164149INJECTION RATEg/s417470530580PLASTICIZ......
Send Inquiry
Product Description

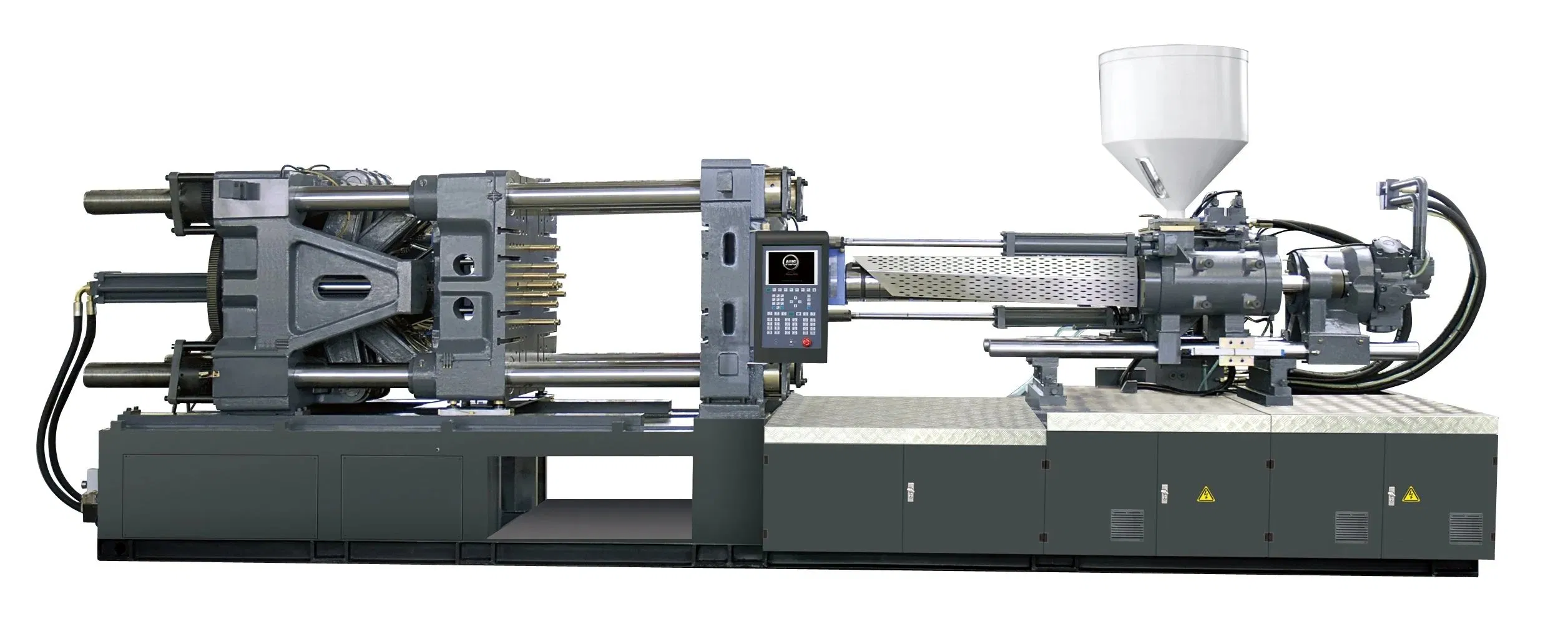

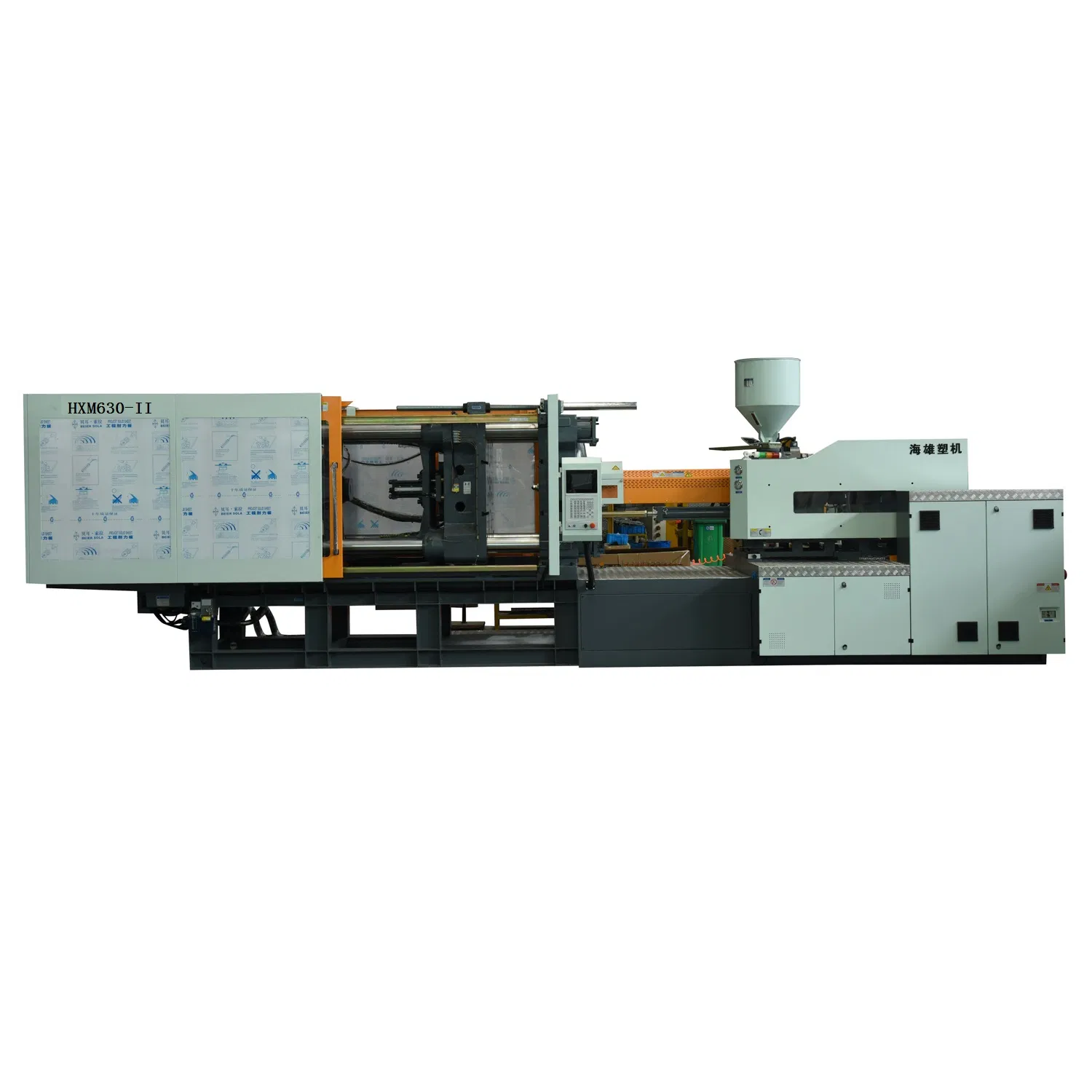

1.Picture

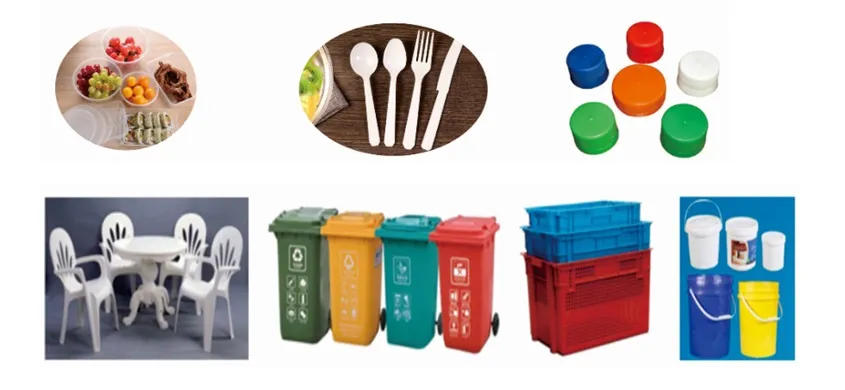

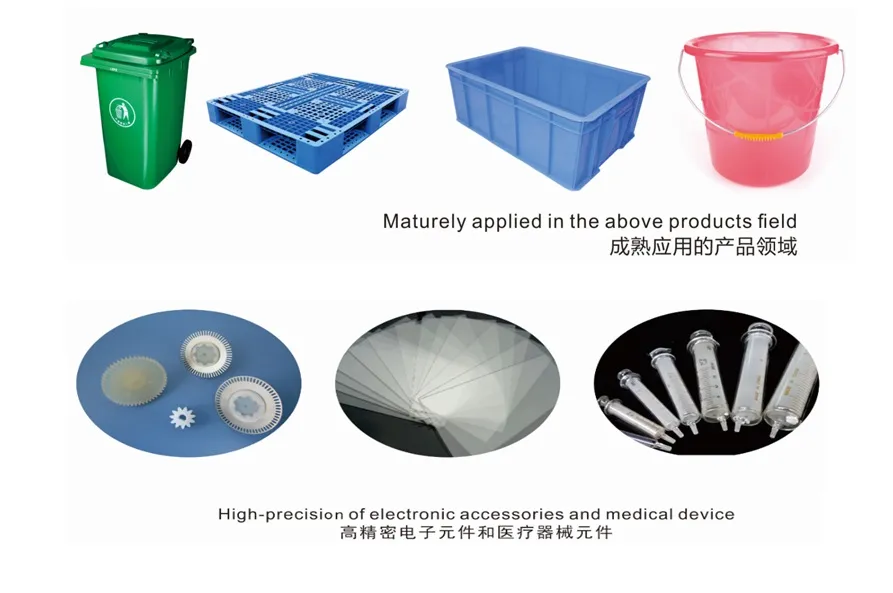

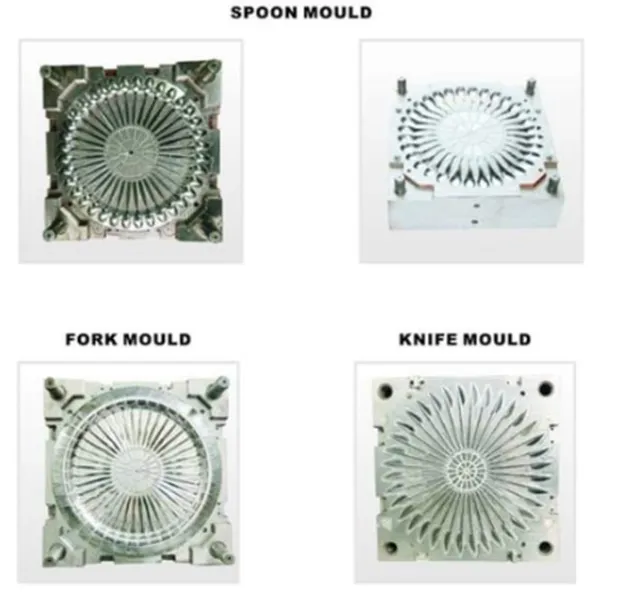

2.Application

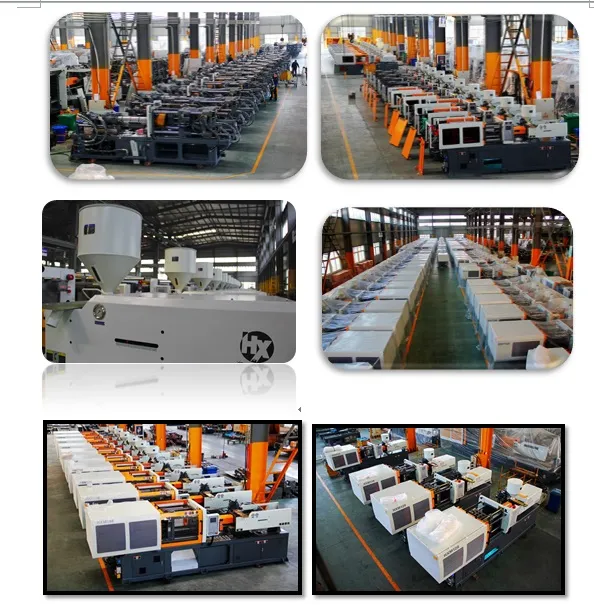

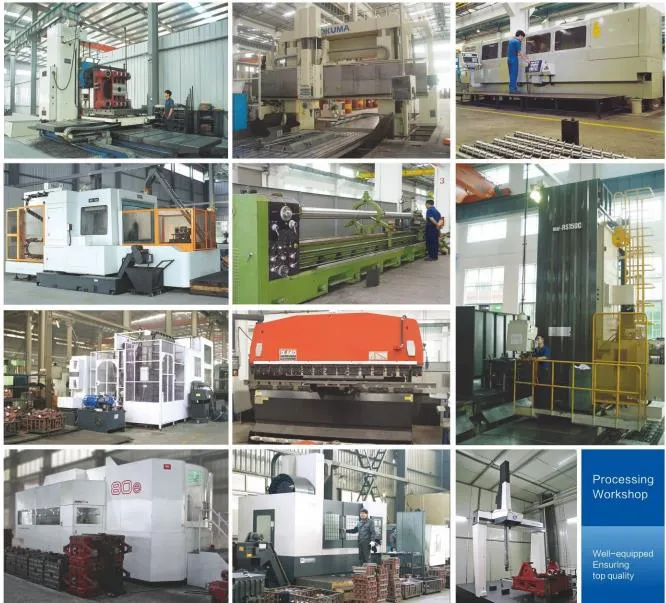

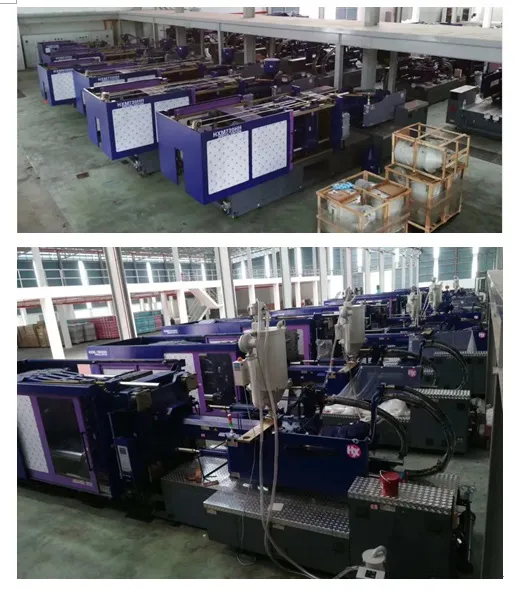

3.Processing,assembling production line

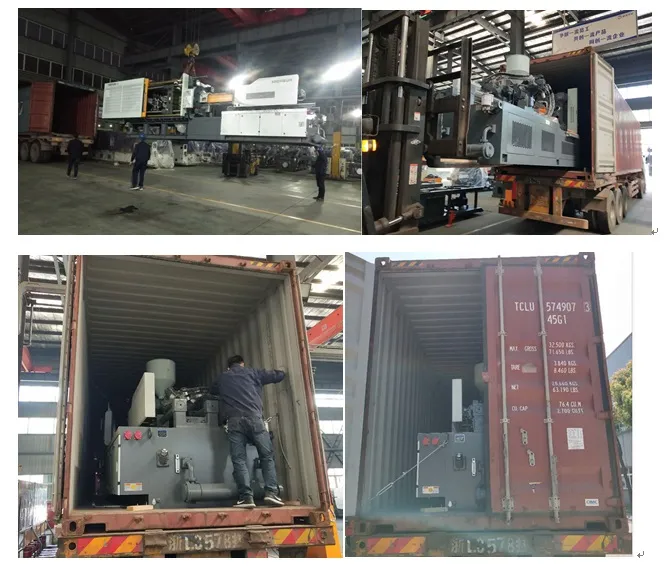

5.Loading containers

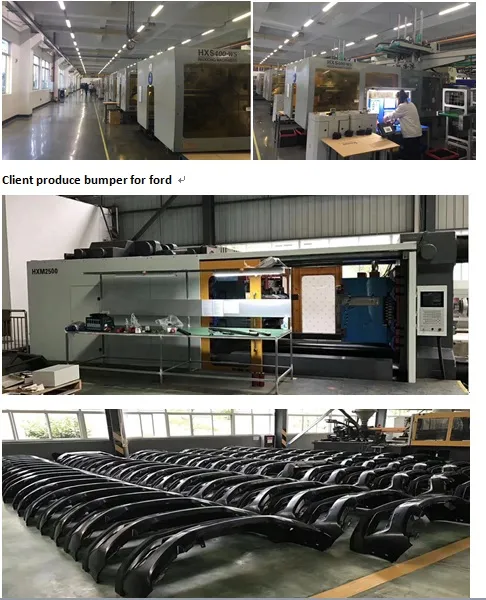

6. Customer case
Client in China produce shoe for Adidas
7.Client in Malaysia
| MODEL:HXM630-II | ||||||
| TECHNICAL PARAMETER TABLE | A | B | C | D | ||
| INJECTION UNIT | SCREW DIAMETER | mm | 85 | 90 | 95 | 100 |
| SCREW L/D RATIO | L/D | 22.2 | 21 | 19.9 | 18.9 | |
| INJECTION CAPACITY IN THEORY | cm3 | 2496 | 2799 | 3118 | 3455 | |
| INJECTION WEIGHT(PS) | g | 2272 | 2547 | 2838 | 3144 | |
| oz | 80.1 | 89.9 | 100.1 | 110.8 | ||
| INJECTION PRESSURE | MPa | 206 | 184 | 164 | 149 | |
| INJECTION RATE | g/s | 417 | 470 | 530 | 580 | |
| PLASTICIZING CAPACITY | g/s | 60 | 75 | 85 | 100 | |
| SCREW SPEED | rpm | 120 | ||||
| CLAMPING UNIT | CLAMPING FORCE | KN | 6300 | |||
| MOVING MOULD-PLATE STROKE | mm | 870 | ||||
| MAX. MOULD HEIGHT | mm | 900 | ||||
| MIN. MOULD HEIGHT | mm | 350 | ||||
| SPACE BETWEEN TIE-BARS (W×H) | mm | 900x850 | ||||
| HYDRAULIC EJECTOR FORCE | mm | 200 | ||||
| HYDRAULIC EJECTOR STROKE | KN | 260 | ||||
| EJECTOR NUMBER | n | 17 | ||||
| OTHERS | PUMP PRESSURE | MPa | 16 | |||
| MOTOR /DRIVING POWER | KW | 55/30x2 | ||||
| HEATING CAPACITY | KW | 42 | ||||
| MACHINE DIMENSION (L×W×H) | m | 9.515x2.27x2.65 | ||||
| MACHINE WEIGHT | t | 29 | ||||
| OIL TANK CAPACITY | L | 1136 | ||||
3.Processing,assembling production line5.Loading containers6. Customer case
Client in China produce shoe for Adidas
7.Client in Malaysia
