Product Description

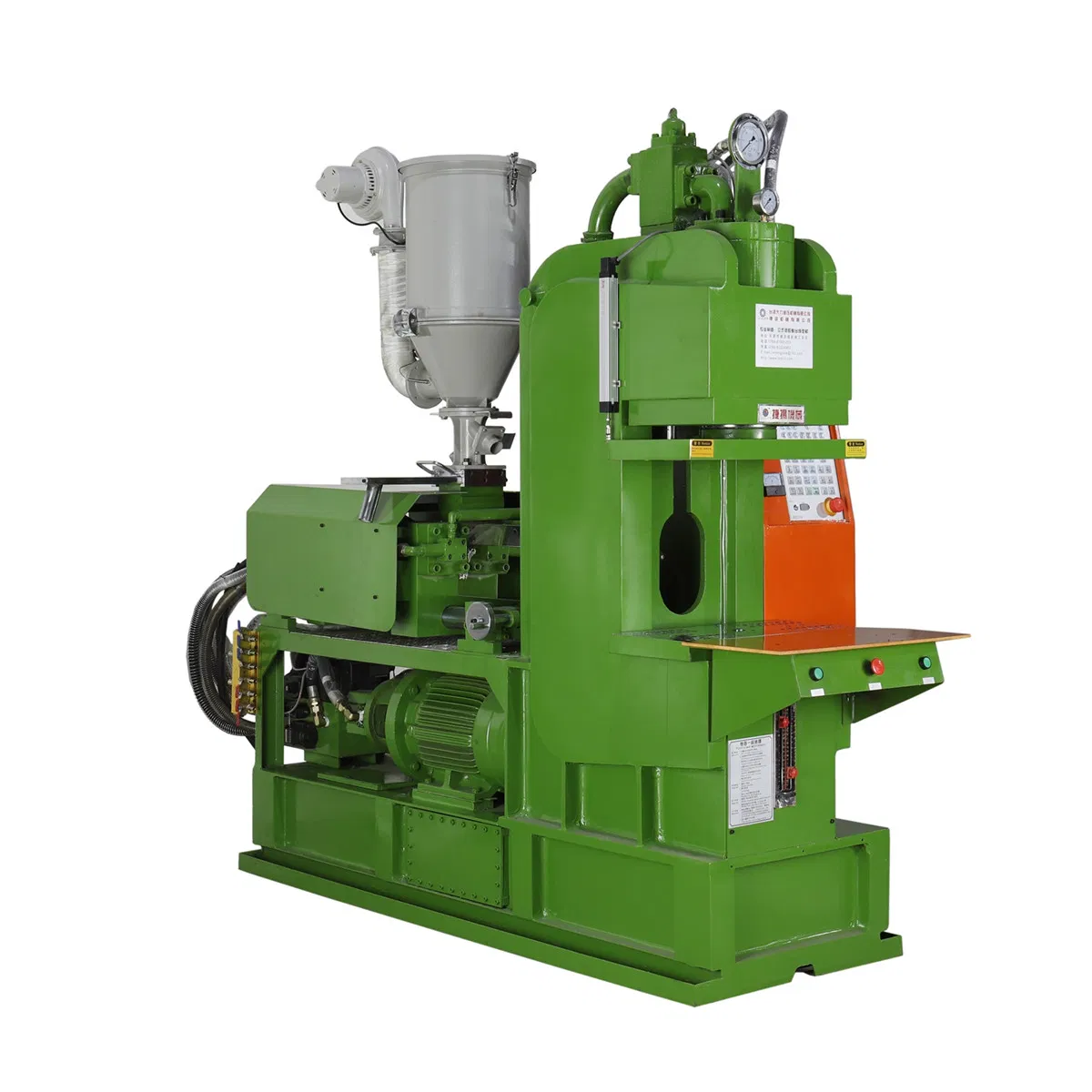

machine for making electric plug electric socket making machines

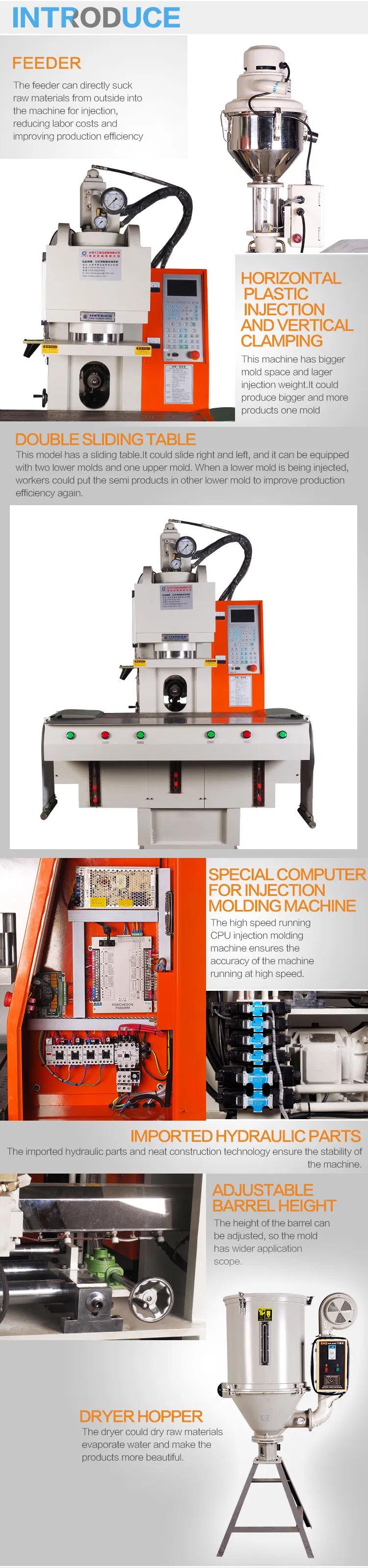

Main Feature:

1) Full hydraulic vertical clamp parting line horizontal injection unit.
2) Control temperature with 3~4 zone temperature with solid state controllers .

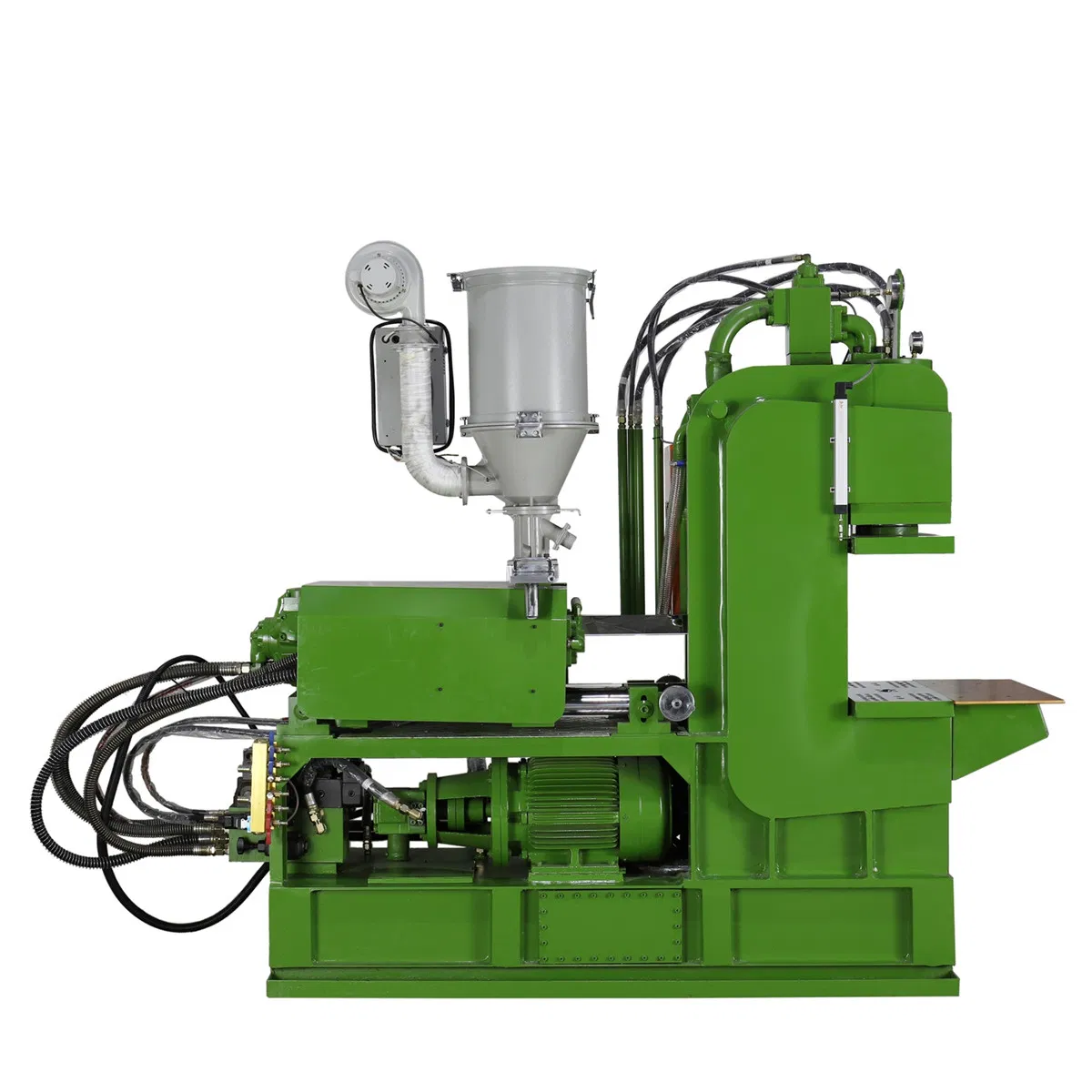

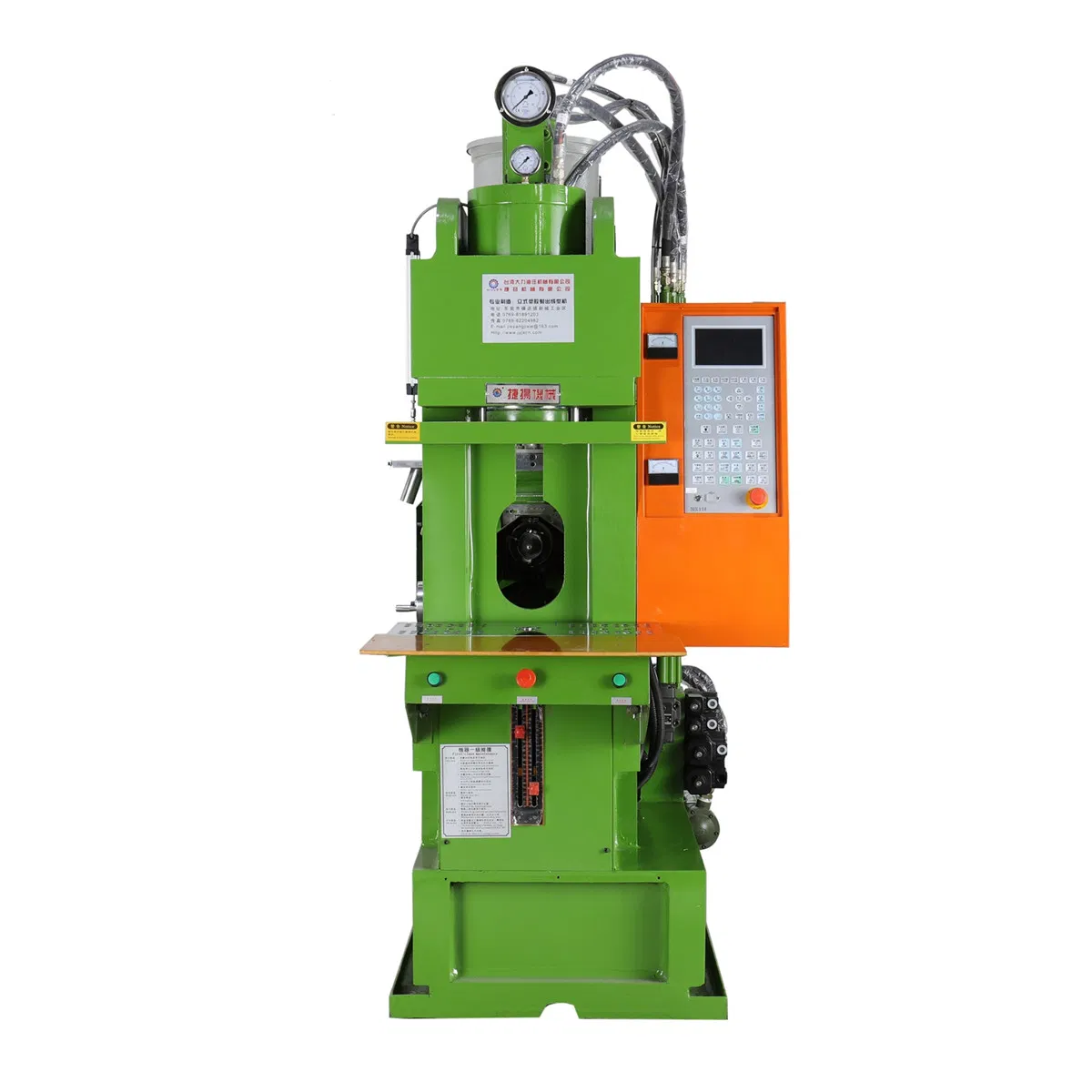

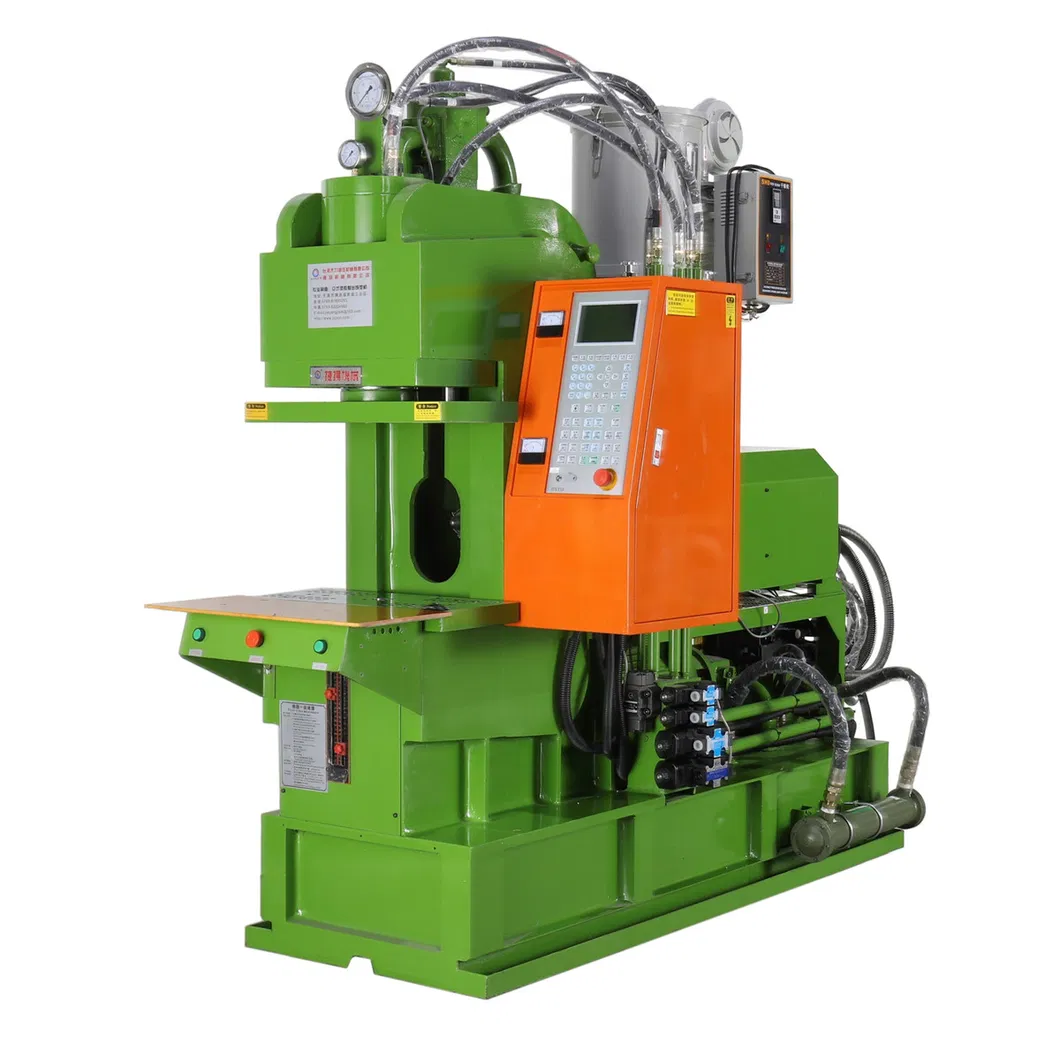

3) "C" frame machine can be easily for workers to work with maximum flexibility and increase the working high efficiency in the same time without column.

4) Unloading-die fixed and upper-die flexible moving can make the inserted products more positioning and the machine has lift-out parts for finished products .

5) Low pressure can protect the safety of die and prolong its life.
6) The C type machine can be installed double sliding platen or rotary table ,this is customized according to the clients' requirement

Application :

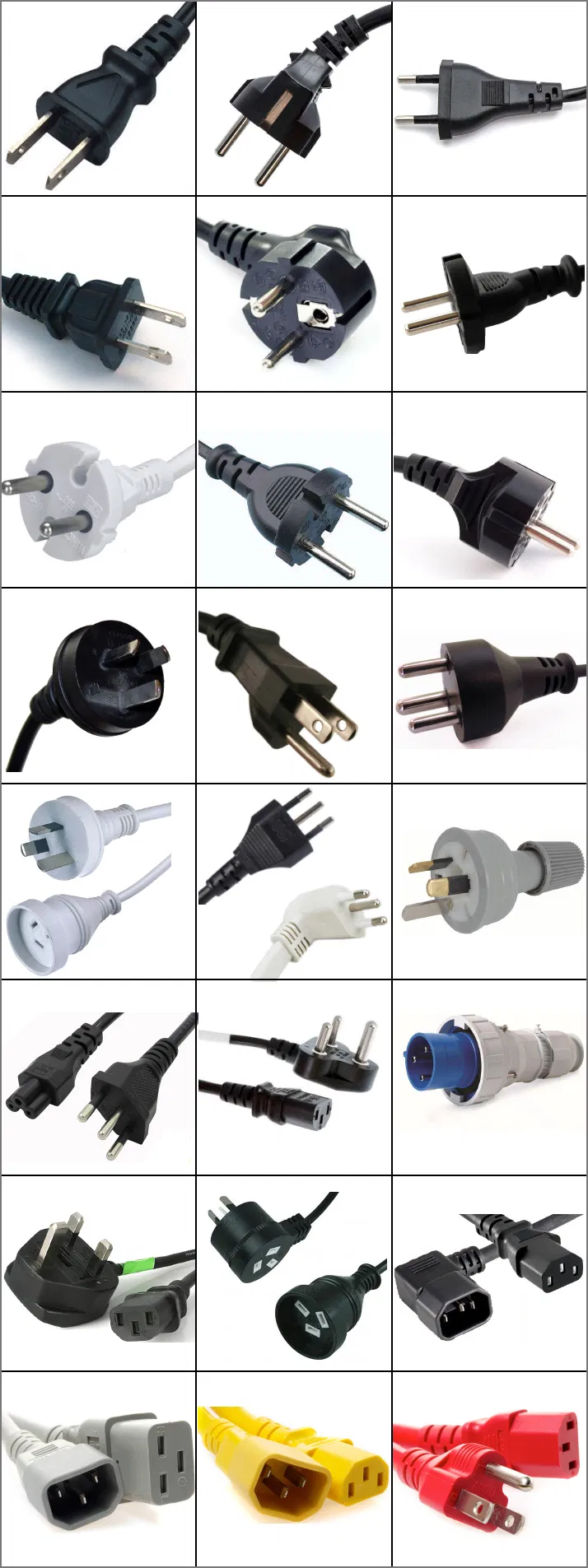

Machine for Making Electric Plug Electric Socket Making Machine

	MODEL	UNIT	JY-550C
Injection Unit	Screw Diameter	mm	32	38	42
	Injection Pressure	kg/cm²	1506	1063	870
	Max.Shot Weight(PS)	g	139	196	239
	Injection Rate	mm	190
Clamping Unit	Clamping Force	Tons	55
	Platen Size	mm	480x280
	Max.Open daylight	mm	415
	Min.Mold Height	mm	215
	Opening Stroke	mm	200
	Enjection Force	Tons	1.5
	Enjection Stroke	mm	135
Power Unit	Max.Hydaulic Pressure	kg/cm2	140
	Pump Motor Power	KW/HP	7.5/10HP
	Total Weight	KW	13
Other	Machine Weight	Tons	4.4
	Machine Dimensions(LxWxH)	m	3x1.2x2.1
	Shipping Weight	Tons	5
	Shipping Measurements(LxWxH)	m	3.1x1.3x2.3

Company :
(1)We will take some videos to guide you use the machine well.It is more simple and easier to understand than the machine manual.

(2)If your moulds could not fit our standard machine,we could make the custom-built machine for your moulds.We will give you a most perfect scheme.

(3)If you could tell me your mould's size (Length*Width*Height),hardness of material and injection weight needed,then we could program the machine for you.So when you get the machine ,you could use it directly.

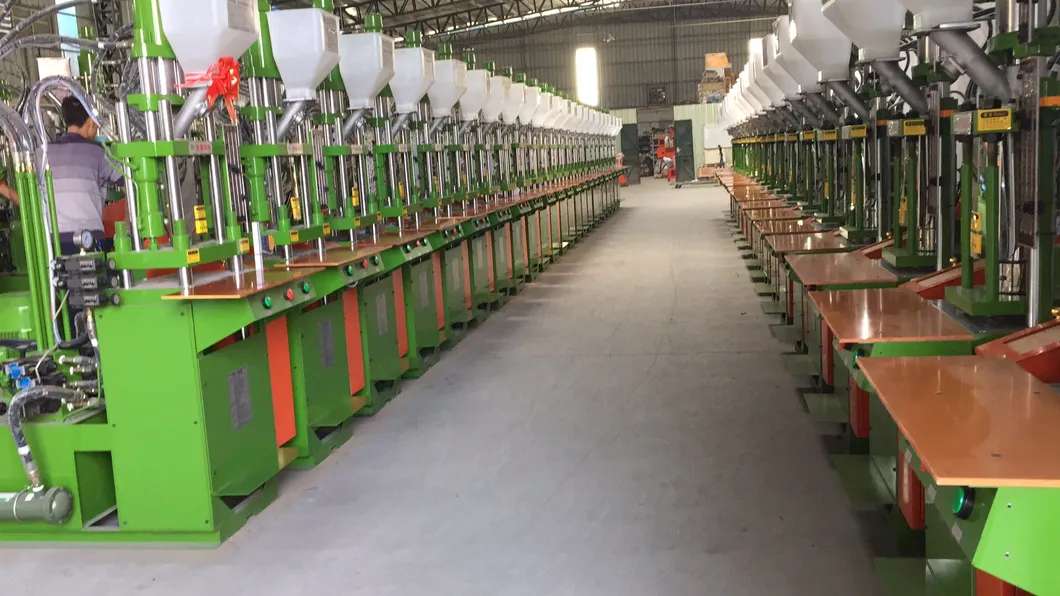

(4)Because we are machine factory,if you come to our factory,we could teach you to use our machines freely.The machines are easy to use.

(5)Our machines all have 1 year warranty. In this year,if the machine parts damage,we are responsible for the cost of new parts,and you pay the express charges.
Machine for Making Electric Plug Electric Socket Making Machine

Machine for Making Electric Plug Electric Socket Making Machine

Youtube Videos :

JY 550C 2M Car accessories: https://youtu.be/JBczO_C1XbY

C-type 2 pins plugs making: https://youtu.be/sHgicvjktNU
FAQ:

Q1: Are you a trading company or a manufactory?

A1: We are the Manufactory specialized in Plastic injection molding machine more than 20 years; we passed CE & ISO9001 & SGS Certificates.

Q2: What's your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with high quality afterservice. Also we have one year warranty of the spareparts, free of charge.

Q3: Why choose Jieyang Machinery Co.,Ltd.?

A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.
