Product Description

Technical parameter.

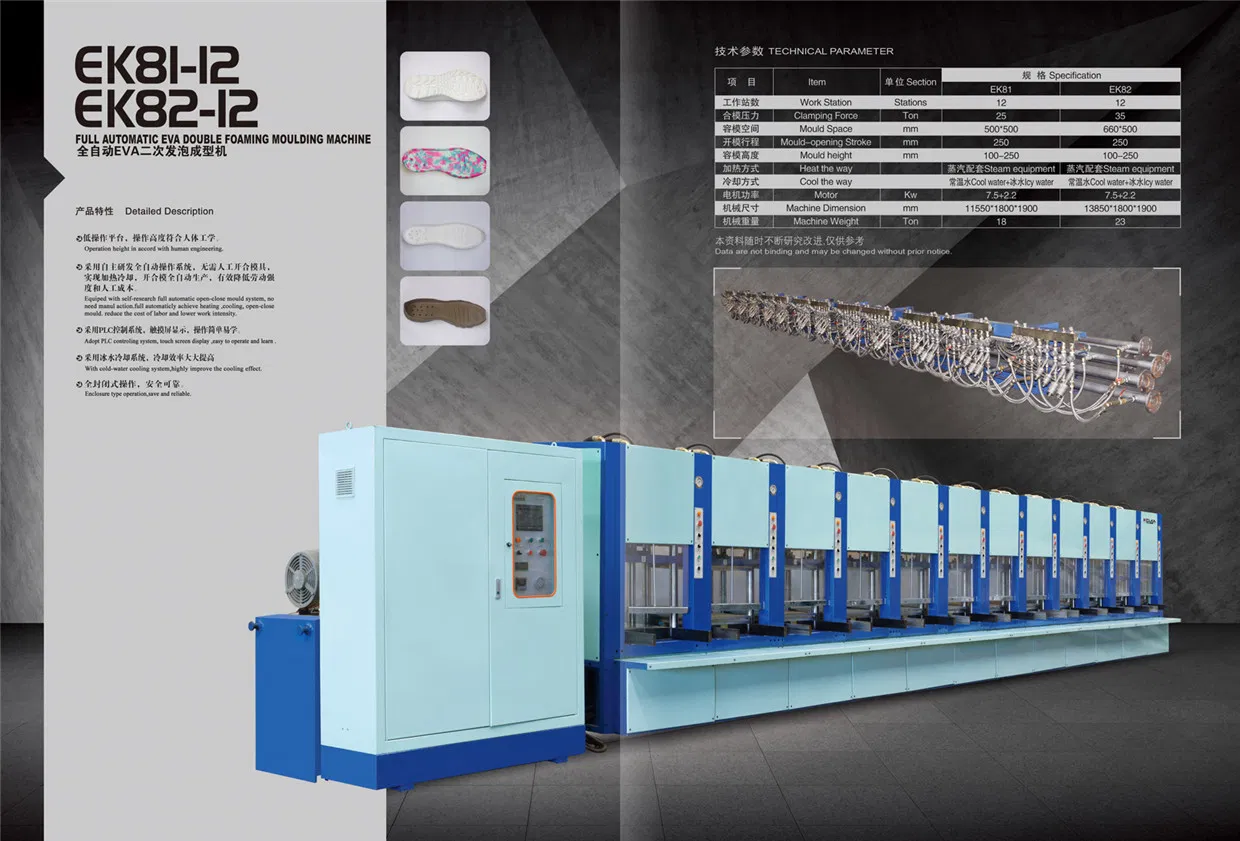

Iterm	Section	EK81	EK82
Work Station	Station	12	12
Clamping Force	kgf	25	35
Mould Space	mm	500*500	650*500
Mould-opening Sroket	mm	250	250
Mould Height	mm	100-250	100-250
Heating method		Steam equipment	Steam equipment
Cooling method		Cool water + Icy water	Cool water + Icy water
Motor	Kw	7.5+2.2	7.5+2.2
Machine Dimension	mm	1150018001900	1380018001900
Machine Weight	Ton	18	23

1.it is PLC control system, with humanized parameter computer operation interface, provide all function items with clear structure, by manual and full automatic.

2.Equiped with self-research full automatic open-close mould system, no need manully open-close mould, less cost of labor and lower work intensity.

3,With cold-water cooling system, highly improve the cooling effect.

4. Full automatic production model, heating and cooling can be finished in the same position, constrict the area of machine and make higher utilization of the factory workshop.

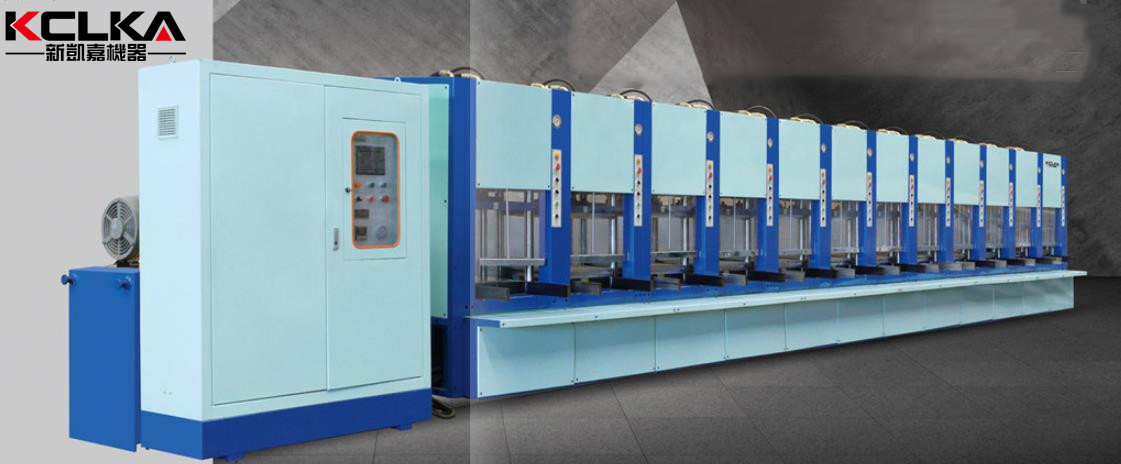

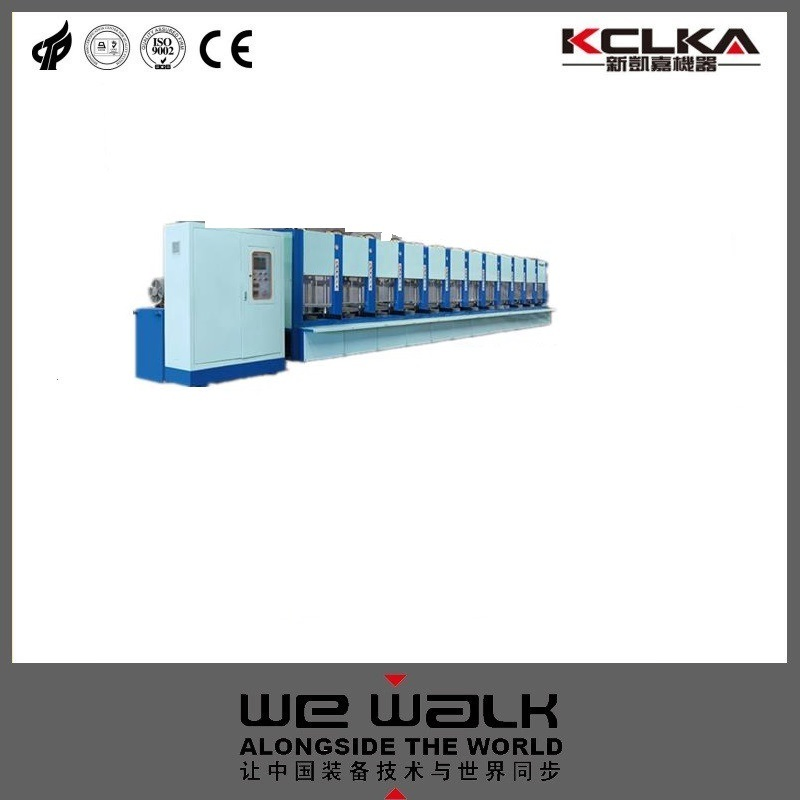

Md EVA Sole Fashion Shoe Steam Foam Moulding Machine

Md EVA Sole Fashion Shoe Steam Foam Moulding Machine

FAQ:
1.Delivery date:
Within 20 days After receiving the 30% earnest money
2.Payment term:
Advance payment at order 30%, 70% before shipment
3.What kind of technical support is provided?
Under normal circumstances, if the customer need it, we will send a technician to the factory to help install the machine. Due to the epidemic, technicians cannot go out, we will provide installation videos of related machine.
