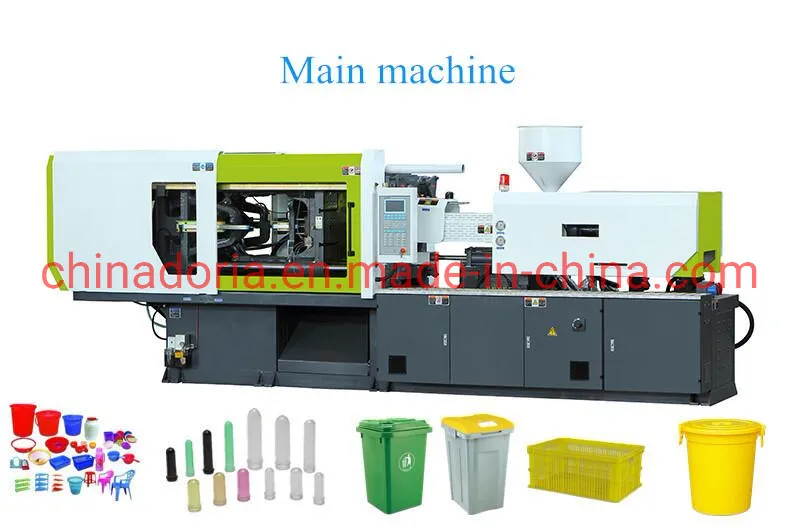

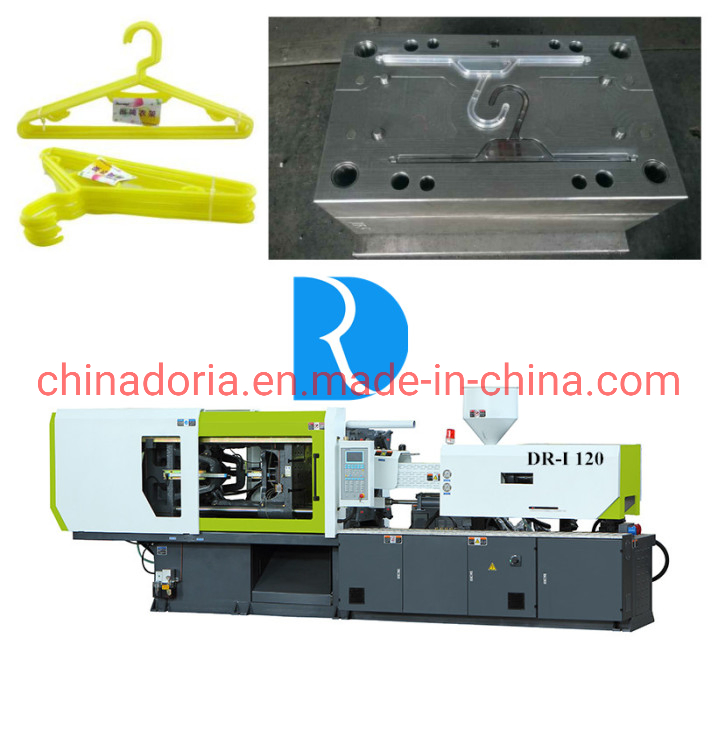

Plastic Clothes/Coat Hanger Inject/Injection Mould/Molding Machine 120ton
Specification of plastic hanger injection moulding machine D-RI1201. Product details:2. Technical data of D-RI120ModelItem D-RI120Screw diameter(mm)40Injection pressure(Mpa)170Shot weight(PS) (g)183Screw L/D ratio20:1Screw stroke (mm)170Screw speed(r.p.m)10-170Injection rate (cm3/s)122Plasticizing c......
Send Inquiry
Product Description

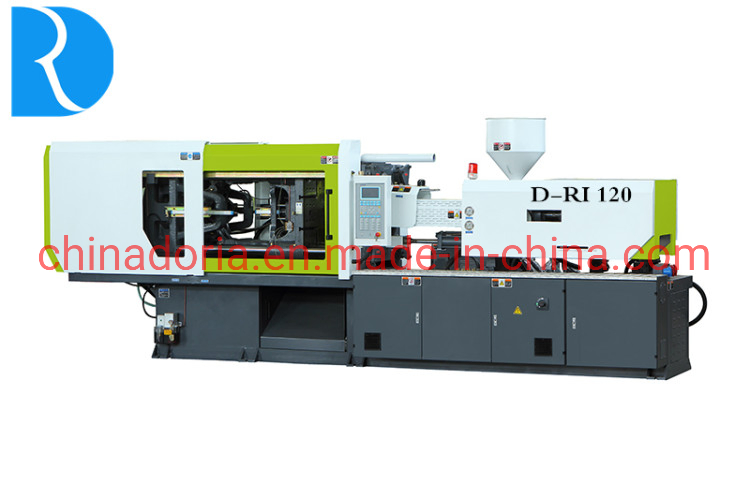

Specification of plastic hanger injection moulding machine D-RI120
1. Product details:
2. Technical data of D-RI120
We are the leading trader of New Plastic Injection Moulding Machine 120Ton. This product is produced with the use of high-grade raw material with advanced techno machinery under the guidance of experienced engineers, keeping in mind its application area. It is provided with suction line and return line filtration. These products are highly demanded by our clients in market for their silent features.
Features:
Noise-free machine operation
Long operational life
Low maintenance
3. Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) one year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
4. Delivery date: the contract is signed and completed within 45 working days after receiving the deposit unit processing and manufacturing, with the conditions of the factory acceptance

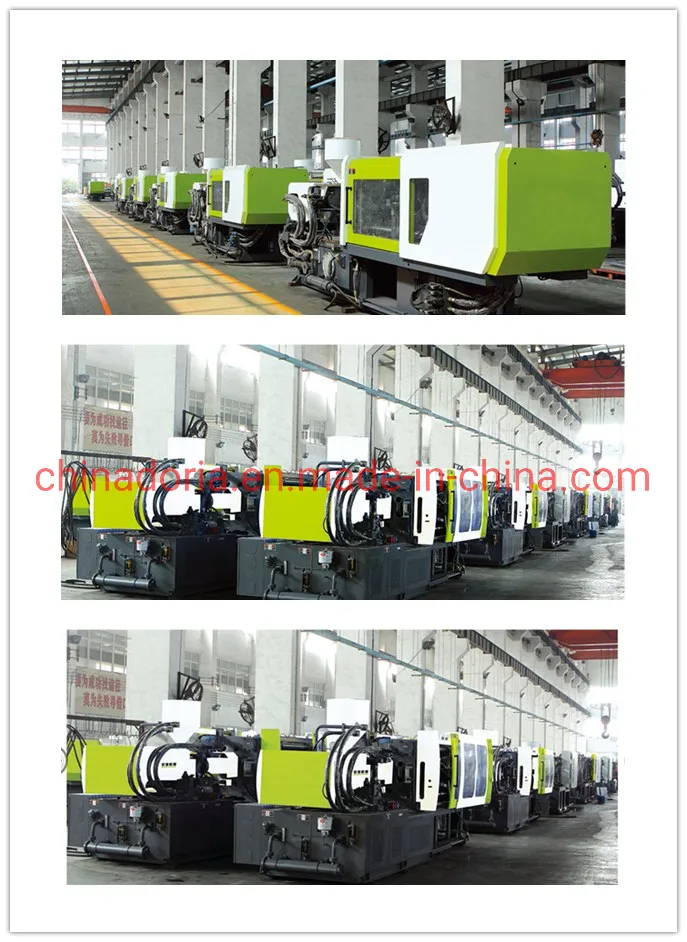

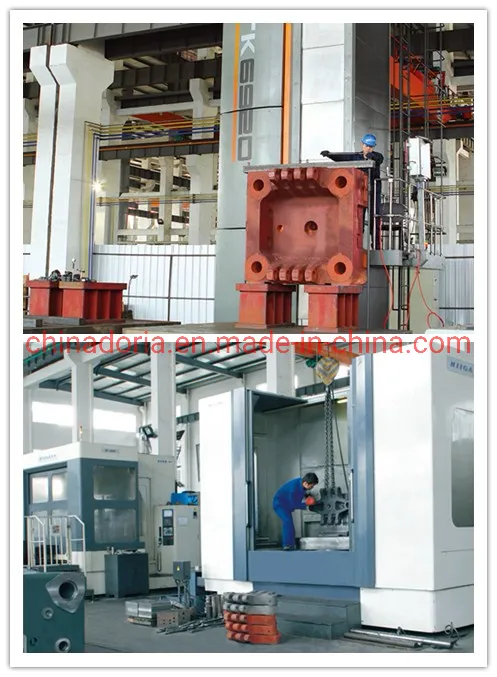

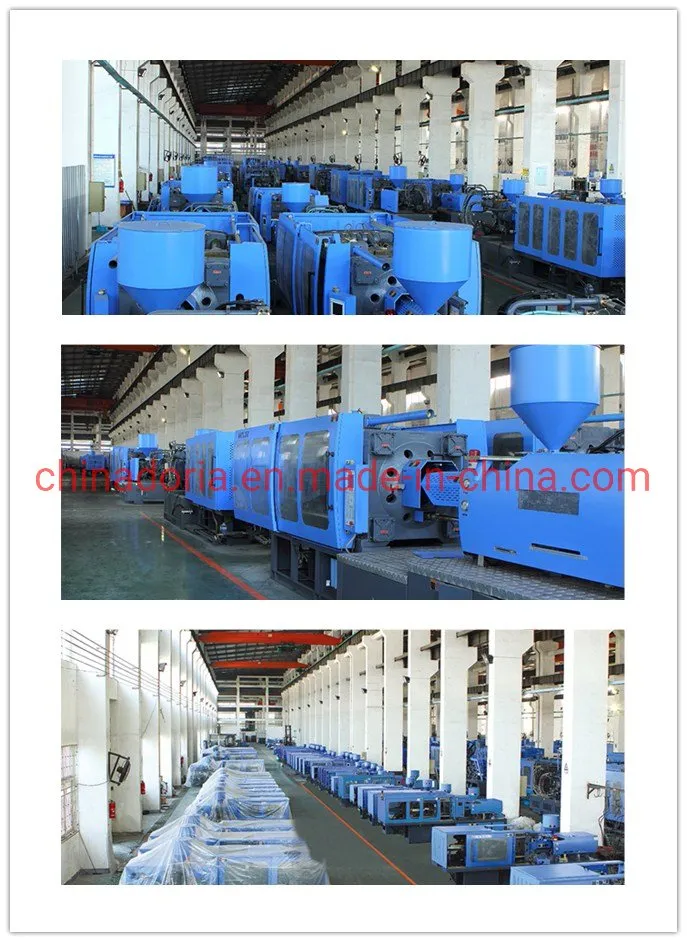

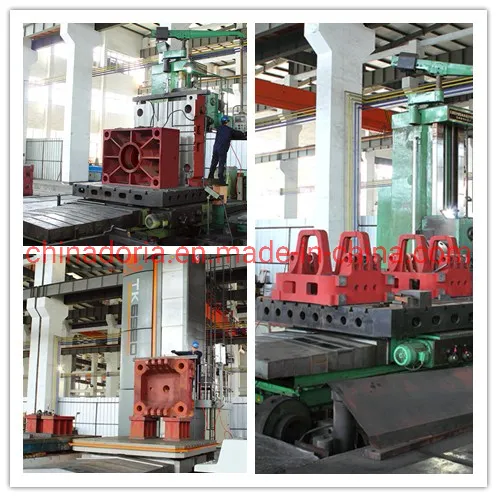

5. worshop of machine:

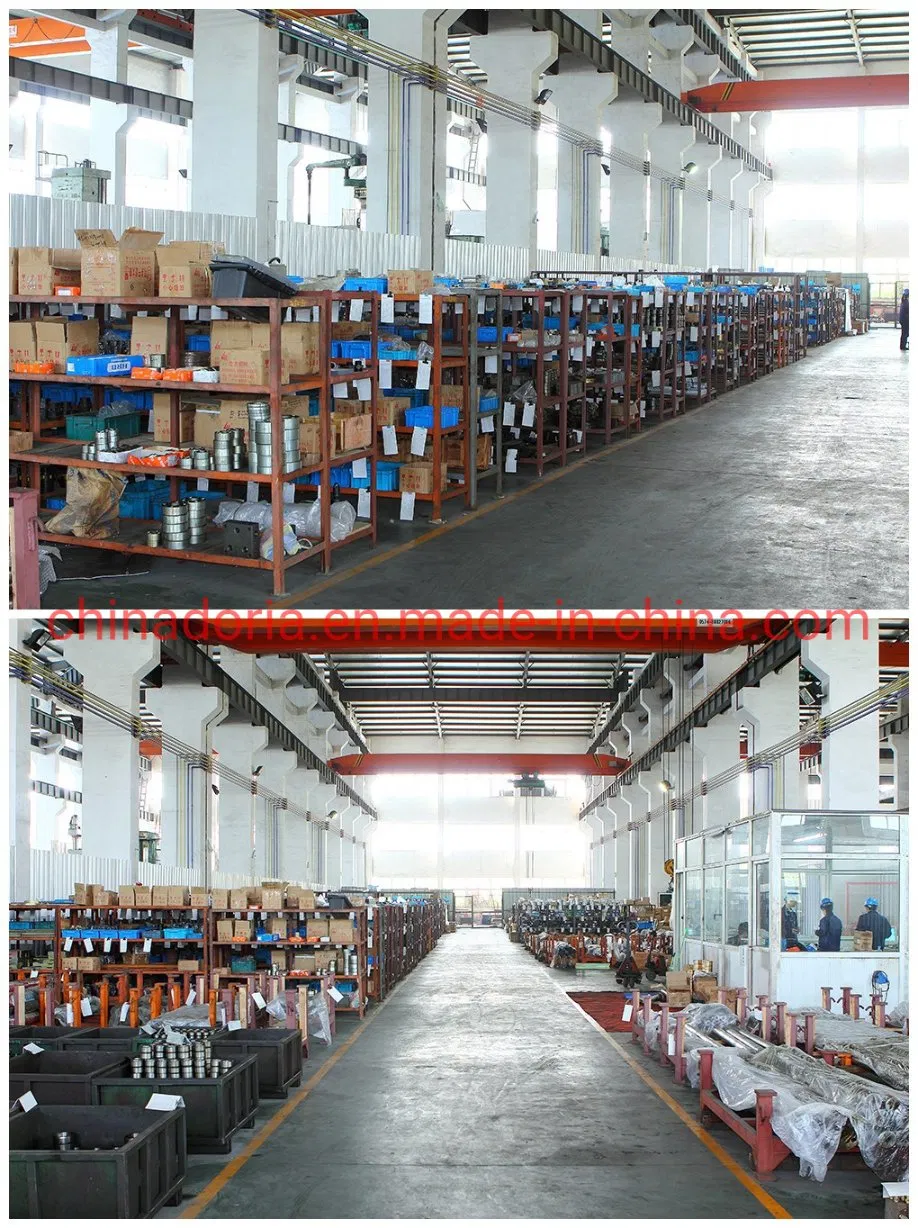

6. Warehouse of machine:
8. Frequently Asked Questions:
Q: What are your company's main products?

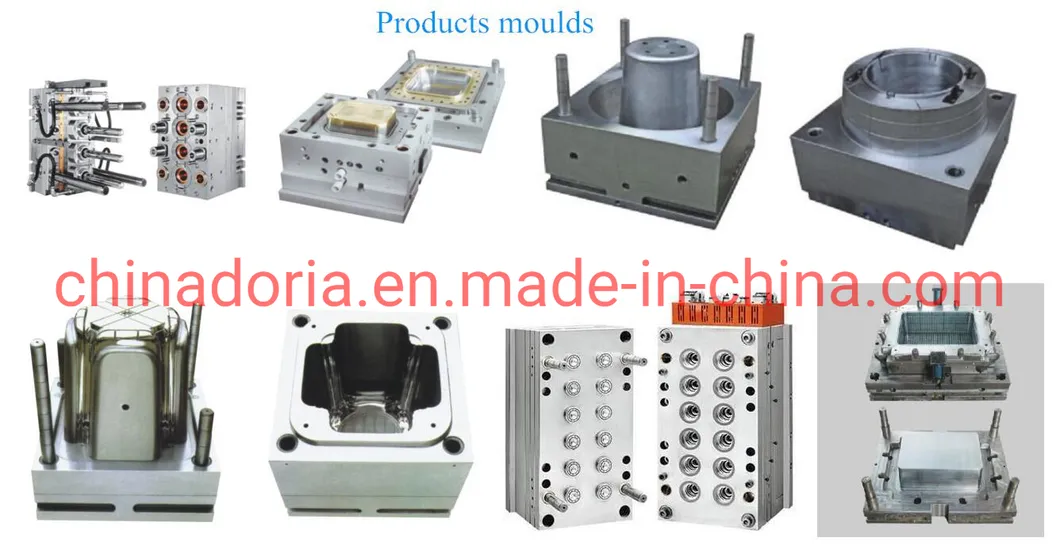

A: The main products of our company are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Q: What is your selection of shipping method?
A: (1). For small trial order, international express, just as TNT, DHL, FedEx, UPS, EMS is suitable.
(2). For large order, we can arrange shipment by sea or air according to your requirement.
Q: How do you control the quality?
A: We do 3times leakage test before packing.
Q: Which trade terms do you prefer?
A: We can accept FOB, CIF, CFR, etc.

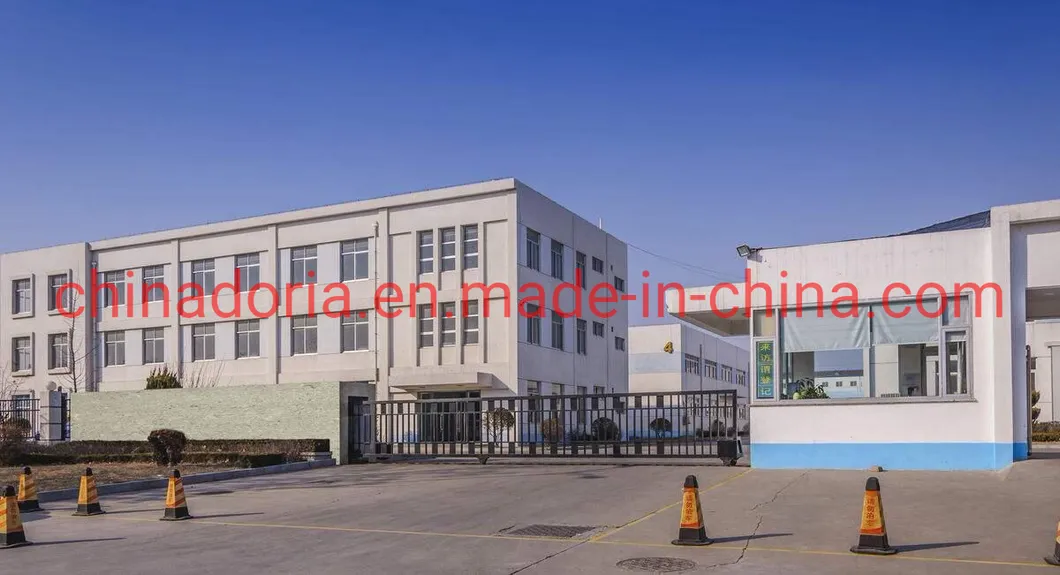

9. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
10. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
11. Contact us:
1. Product details:
2. Technical data of D-RI120
| Model Item | D-RI120 |
| Screw diameter(mm) | 40 |
| Injection pressure(Mpa) | 170 |
| Shot weight(PS) (g) | 183 |
| Screw L/D ratio | 20:1 |
| Screw stroke (mm) | 170 |
| Screw speed(r.p.m) | 10-170 |
| Injection rate (cm3/s) | 122 |
| Plasticizing capacity(g/s) | 20.1 |
| Clamping stroke(tons) | 120 |
| Mould clamping stroke (mm) | 375 |
| Max. daylight opening (mm) | 775 |
| Mould thickness (Min.-Max.) (mm) | 150-400 |
| Space between tie-bars (mm) | 375*415 |
| Hydraulic ejection force (tons) | 3.8 |
| Hydraulic ejector stroke (mm) | 110 |
| Max. pump pressure(Mpa) | 16 |
| Motor power(KW) | 13 |
| Heater power(KW) | 6.3 |
| Temperature control zones | 3+1 |
| Tank capacity (L) | 220 |
| Machine dimension(L*W*H) | 3940mm*1280mm*1795mm |
| Machine weight(ton) | 4.2 |
We are the leading trader of New Plastic Injection Moulding Machine 120Ton. This product is produced with the use of high-grade raw material with advanced techno machinery under the guidance of experienced engineers, keeping in mind its application area. It is provided with suction line and return line filtration. These products are highly demanded by our clients in market for their silent features.
Features:
Noise-free machine operation
Long operational life
Low maintenance
3. Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) one year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
4. Delivery date: the contract is signed and completed within 45 working days after receiving the deposit unit processing and manufacturing, with the conditions of the factory acceptance
5. worshop of machine:
6. Warehouse of machine:
8. Frequently Asked Questions:Q: What are your company's main products?
A: The main products of our company are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Q: What is your selection of shipping method?
A: (1). For small trial order, international express, just as TNT, DHL, FedEx, UPS, EMS is suitable.
(2). For large order, we can arrange shipment by sea or air according to your requirement.
Q: How do you control the quality?
A: We do 3times leakage test before packing.
Q: Which trade terms do you prefer?
A: We can accept FOB, CIF, CFR, etc.
9. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
10. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
11. Contact us:
