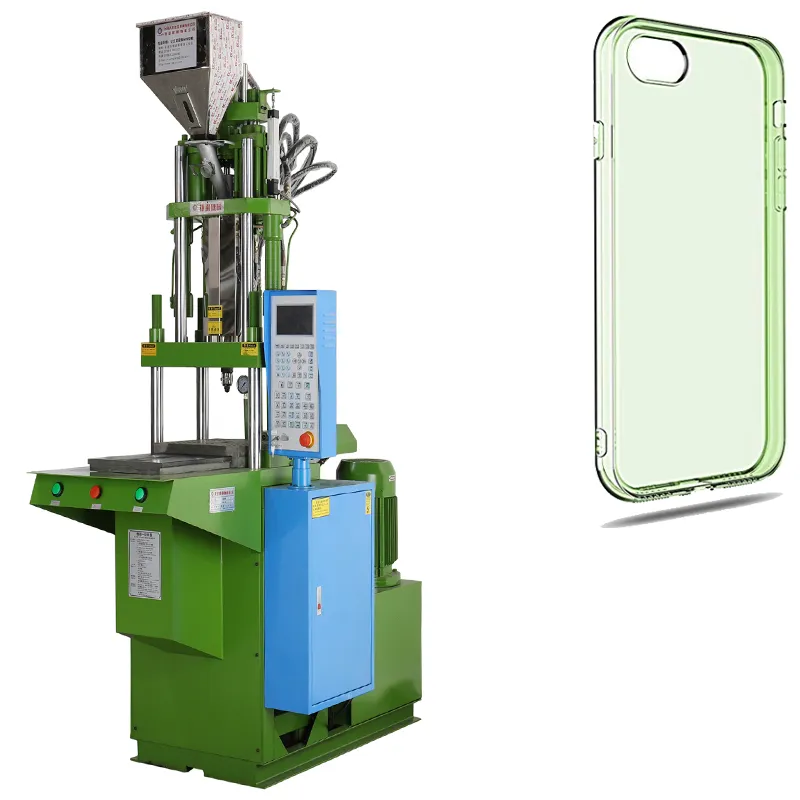

Silicone Rubber TPU Phone Case Making Injection Molding Machine
Hot Selling servo injection machine for plastic Specification of vertical plastic Injection molding machine INJECTION UNIT mmΦ42Φ45Φ48Screw Diameter mm140140140Screw Barrel Route g(oz)176201227Injection Weight(PS) cm3/sec99113129Injection Rate tons5.55.55.5Nozzle Comtact For......
Send Inquiry
Product Description
Hot Selling servo injection machine for plastic
Specification of vertical plastic Injection molding machine
| INJECTION UNIT | mm | Φ42 | Φ45 | Φ48 | |
| Screw Diameter | |||||
| mm | 140 | 140 | 140 | ||
| Screw Barrel Route | |||||
| g(oz) | 176 | 201 | 227 | ||
| Injection Weight(PS) | |||||
| cm3/sec | 99 | 113 | 129 | ||
| Injection Rate | |||||
| tons | 5.5 | 5.5 | 5.5 | ||
| Nozzle Comtact Force | |||||
| kg/cm2 | 1027 | 895 | 790 | ||
| Max.Injection Pressure | |||||
| r.p.m | 0~200 | ||||
| Screw Speed Rotation | |||||
| mm | 210 | ||||
| Nozzle Retraction Nozzle | |||||
| CLAMPING UNIT | tons | 85 | |||
| Clamping Force | |||||
| mm | 255 | ||||
| Clamping Stroke | |||||
| mm | 430/230 | ||||
| Min.Mold Thickness | |||||
| mm | 685/485 | ||||
| Max.Open daylight | |||||
| mm | 530*330 | ||||
| Distance Between Tie Bars | |||||
| L/Min | 47 | ||||
| Pump Output | |||||
| mm | 35 | ||||
| Ejector Distance | |||||
| tons | 1.3 | ||||
| Ejector Force | |||||
| OTHERS | kg/cm2 | 140 | |||
| Max. Hydaulic Pressure | |||||
| L | 180 | ||||
| Oil Tank Capacity | |||||
| m | 2.2*1.9*2.7 | ||||
| Shipping Measurements(LxWxH) | |||||
| kW | 5 | ||||
| Heater Power | |||||
| mm | 2*1.7 | ||||
| Machine Dimension | mm | 2.5 | |||
| tons | 5.4 | ||||
| Machine Weight | |||||

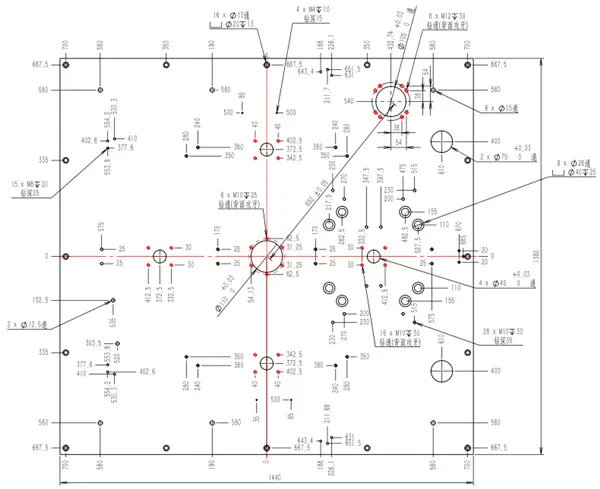

Product Drawing
Factory direct, more size can be customized according to your needs!
Product Features
1)Straight screw ejected assembly.
2)Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3)Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4)Low-pressure closed die assembly can protect the safety of die.
5)Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6)Can be installed a single mold or double shuttle table.
vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, USB cables,auto parts, Plug ,etc.
Advantage
1.We will arrabge to manufacture the machine the second day after your confirmation.
2.Before shipment,we will check and test the machine carefully.

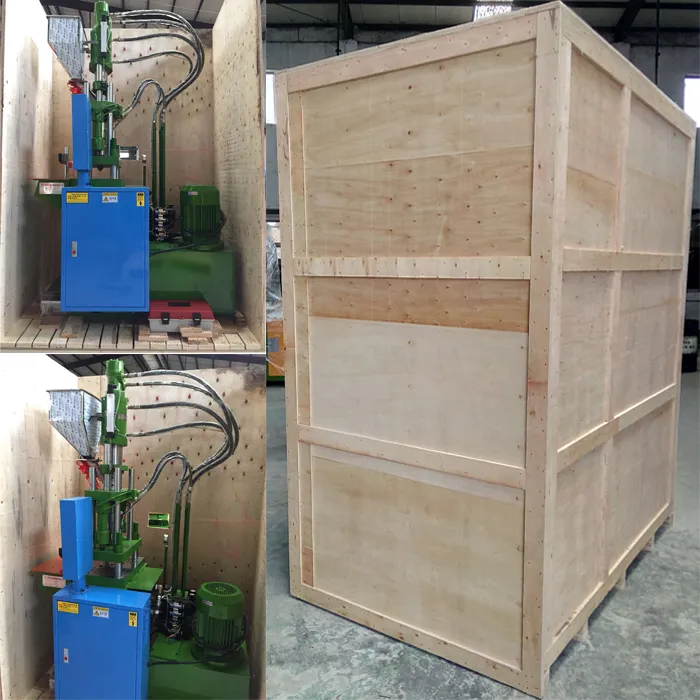

3.We will send the machine to your designated place in China.Besides,we can help you send the machine to your seaport if you need.
Contact us
Our Service
1. 24 hours online and telephone support; Nomatter anytime, anywhere or any question I will reply you as soon as possible.
2. Exclusive and unique solution can be provided to our customers by well-trained and professional engineers and staffs.
3. Engineers and professional technicians keep seeking the new ways to innovate all of our wheel loaders, which could provide you the most competitive products.
4. Global cooperation with distributors, you can get the most convinent after-sale service. Special discount and protection of sales area provided to your distributor.
5. Your success is our business. We will do our best to provide you the most competitive product with high quality and low price.
Please contact us,we will provide a professional production plan for you.
