Hpa100A Horizontal Paper Plastic Baler Machine
Applications: Used to bale such loose articles as the waste paper(carton, newspaper),waste plastics(PET bottle, plastic film and turnover box)and straw. Feature A:1. Horizontal structure is able to be equipment with the conveyor belt for automatic or manual feeding.2. Operated by button, PLC cont......
Send Inquiry
Product Description
Applications:
Used to bale such loose articles as the waste paper(carton, newspaper),waste plastics(PET bottle, plastic film and turnover box)and straw.
Feature A:
1. Horizontal structure is able to be equipment with the conveyor belt for automatic or manual feeding.
2. Operated by button, PLC control. It is safe and reliable.
3. Manual belting.
Feature B:
1. PLC control combined with window monitoring of the human-computer interface(touch screen). Synchronous action instruction chart combined with the error warning. The bale length is available for adjustment.
2. Floating convergent mouth design in three directions(left, right and upward) is beneficial to automatic pressure distribution in four sides. This machine can be widely used for baling different materials.
3. Automatic belting, speeding up baling.
4. Push cylinder and head connected by the sphere structure with good reliability and long working life of oil seal.
5. Decentralized shears equipment at the feeding inlet with high shearing efficiency.
6. Low-noise hydraulic circuit design with high efficiency and low trouble frequency.
7. Simple installation without base.
Technical Parameters

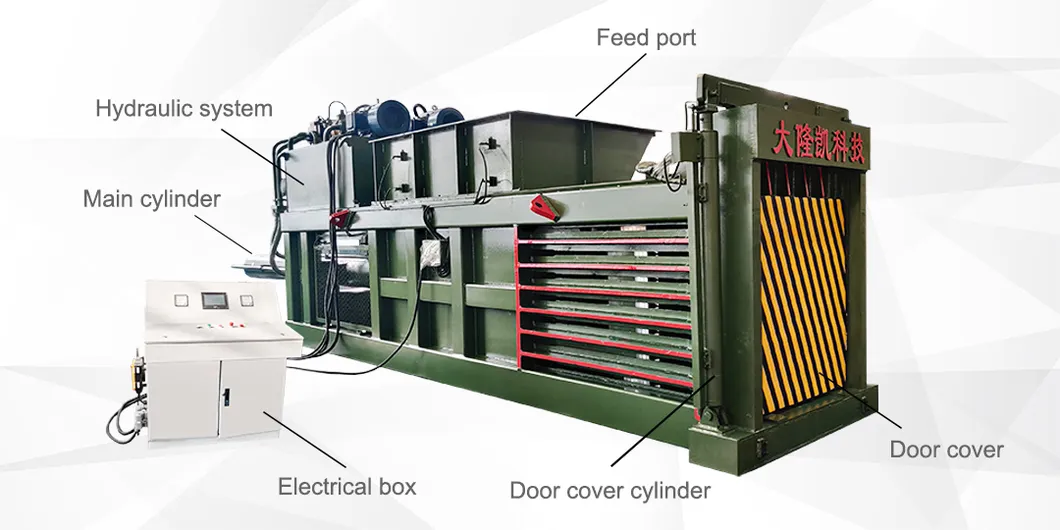

Machine Detail
Application

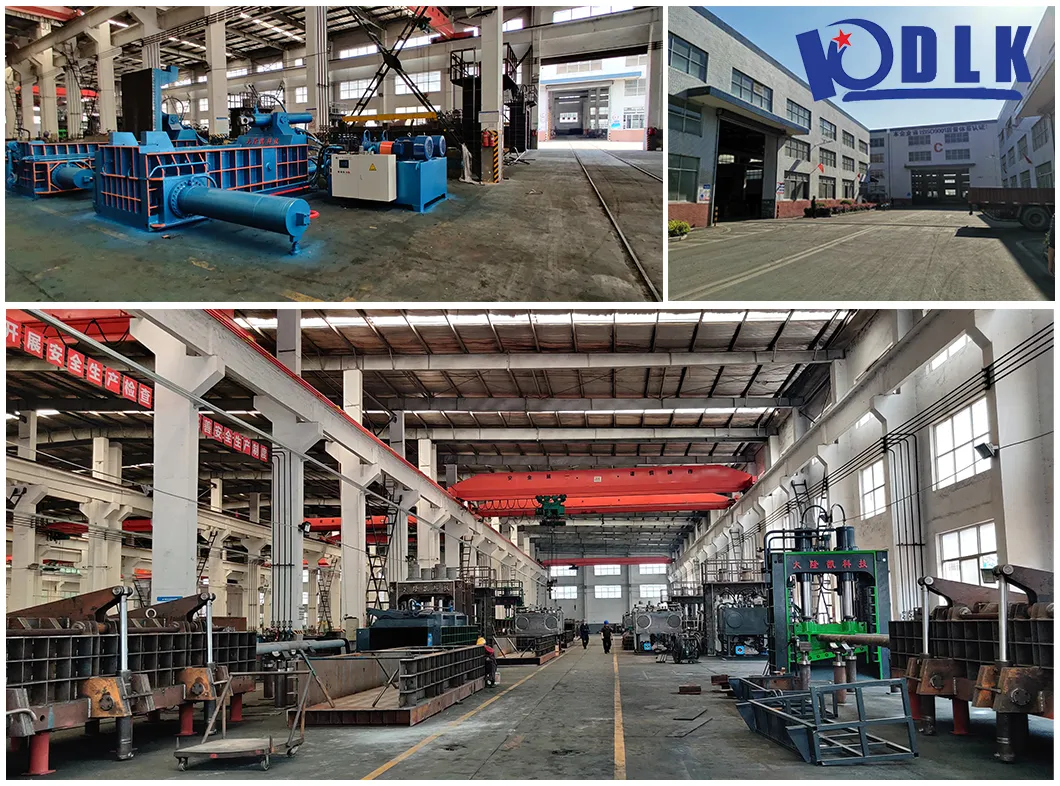

Workshop
Our team
Certification
FAQ
Q1: How can I get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: 29# Panlongshan Road,Jiangyin city,Jiangsu province,214429, P.R China
Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3: Are you a factory or trade company?
A: We are manufacturer with own factory for 20 years, export proportion 50~60%.
Q4: How can I trust your company?
A: With 20-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment.
2. Welcome to inspect anytime. We are near to Shanghai Pudong airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears.
Q5: Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
Used to bale such loose articles as the waste paper(carton, newspaper),waste plastics(PET bottle, plastic film and turnover box)and straw.
Feature A:
1. Horizontal structure is able to be equipment with the conveyor belt for automatic or manual feeding.
2. Operated by button, PLC control. It is safe and reliable.
3. Manual belting.
Feature B:
1. PLC control combined with window monitoring of the human-computer interface(touch screen). Synchronous action instruction chart combined with the error warning. The bale length is available for adjustment.
2. Floating convergent mouth design in three directions(left, right and upward) is beneficial to automatic pressure distribution in four sides. This machine can be widely used for baling different materials.
3. Automatic belting, speeding up baling.
4. Push cylinder and head connected by the sphere structure with good reliability and long working life of oil seal.
5. Decentralized shears equipment at the feeding inlet with high shearing efficiency.
6. Low-noise hydraulic circuit design with high efficiency and low trouble frequency.
7. Simple installation without base.
Technical Parameters
| Information | Model Number: HPM500~HPM1250 HPA500~HPA1250 |
| Certification: SGS | |
| Place of Origin: Jiangsu P.R. China | |
| Attribution | Product Name: HP Series Of Horizontal Paper/Plastic Baler |
| Condition: New | |
| Application: Waste Paper and Plastic | |
| Nominal Force: 50Tons ~125Tons | |
| Driven Type: Hydraulic | |
| Power: 15KW~37kW | |
| Voltage : 21.5Mpa, Customized | |
| Color: Customized | |
| Automatic Grade: Semi-Automatic Automatic | |
| Commercial terms | Minimum Order Quantity: 1 Set |
| Price: Negotiable | |
| Payment Terms: 30% T/T In Advance | |
| Supply Ability: 10set /month | |
| Delivery Time: As your requirement | |
| Packaging Details: Seaworthy packing | |
| After-sales Service : Engineers are available to overseas service |
| Model | Main Cyl,Force(ton) | Hopper Size(L*W)(mm) | Bale Size(L*W)(mm) | Bale Weight(kg) | Motor(kw) | Conveyor Width(mm) |
| HPM Series Semi-automatic Horizontal Balers | ||||||
| HPM63A | 63 | 1400*800 | 800*800 | 280-400 | 28.25 | 1200 |
| HPM100A | 100 | 2000*900 | 900*900 | 450-600 | 38.25 | 1400 |
| HPM125A | 125 | 2200*1100 | 1100*900 | 630-900 | 45.25 | 1600 |
| HPM160B | 160 | 2200*1120 | 1120*1300 | 900-1350 | 52.25 | 1600 |
| HPM250 | 250 | 2200*1120 | 1120*1300 | 1050-1500 | 98.25 | 1600 |
| HPM315 | 315 | 2200*1120 | 1120*1300 | 1200-1600 | 98 | 1600 |
| HPM400 | 400 | 2200*1120 | 1120*1300 | 1300-1700 | 98 | 1600 |
| HPA Series Automatic Horizontal Balers | ||||||
| HPA63 | 63 | 1600*700 | 700*700 | 230-310 | 37+5.5 | 1400 |
| HPA80A | 80 | 1600*720 | 720*1100 | 400-530 | 45+7.5 | 1400 |
| HPA100A | 100 | 1600*1000 | 1000*1100 | 670-1050 | 55+15 | 1400 |
| HPA125B | 125 | 2200*1100 | 1100*1250 | 790-1250 | 74+7.5 | 1600 |
| HPA180 | 180 | 2200*1100 | 1100*1100 | 810-1350 | 180+7.5 | 1600 |
| HPA315 | 315 | 2200*1100 | 1100*1300 | 1100-1400 | 180+7.5 | 1600 |
ApplicationWorkshopOur teamCertificationFAQQ1: How can I get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: 29# Panlongshan Road,Jiangyin city,Jiangsu province,214429, P.R China
Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3: Are you a factory or trade company?
A: We are manufacturer with own factory for 20 years, export proportion 50~60%.
Q4: How can I trust your company?
A: With 20-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment.
2. Welcome to inspect anytime. We are near to Shanghai Pudong airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears.
Q5: Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
